Power Station Kit · 3,600W · 3,072Wh
Anker SOLIX F3000 + 6-Circuit Manual Transfer Switch Home Backup Kit
Anker SOLIX F3000 + 6-Circuit Manual Transfer Switch Home Backup Kit: F3000 + 6-circuit 30A transfer switch – 3,600W of output and 3,072Wh of LiFePO4 storage.
Anker SOLIX F3000 + 6-Circuit Manual Transfer Switch Home Backup Kit

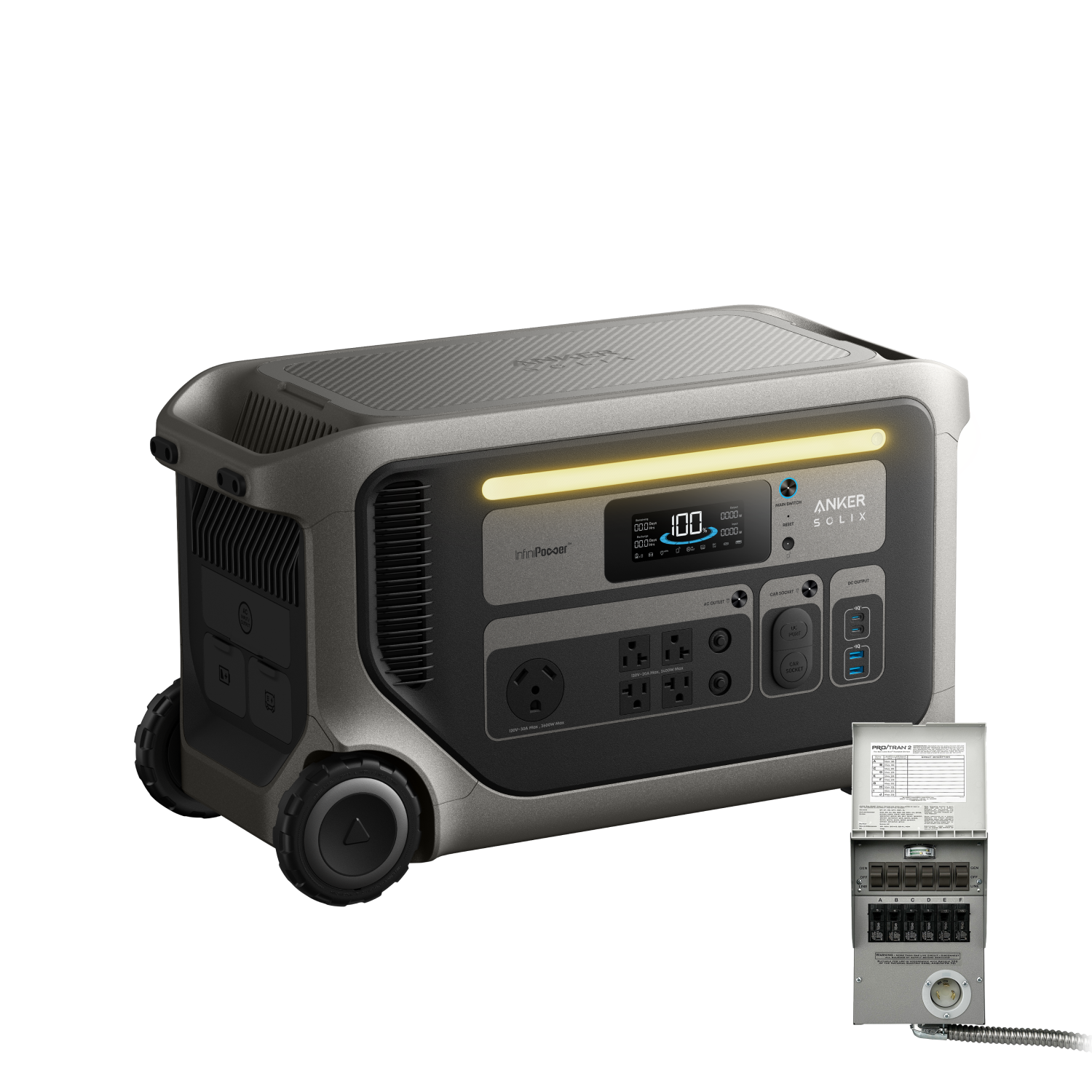

This kit combines Anker SOLIX F3000 Portable Power Station and Anker SOLIX 6-Circuit Manual Transfer Switch (120V, 30A). The Anker SOLIX F3000 is a UL9540-certified 3,072Wh LiFePO4 power station with 3,600W output (7,200W surge), 2,400W dual-MPPT solar input and expansion to 24kWh.
The manual transfer switch lets an electrician wire your essential circuits so backup is a matter of flipping a few toggles instead of running extension cords.
Anker SOLIX F3000 + 6-Circuit Manual Transfer Switch Home Backup Kit Features
3,600W pass-through charging
Recharge at full speed while powering appliances – no shutdown needed.
Ultra-low idle draw
Up to 5 days of AC standby, or 2 days of cooling for an 8 cu ft refrigerator on one charge.
2,400W dual-MPPT solar
60V and 165V inputs recharge the F3000 in under 2 hours of good sun with portable or rigid panels.
120V or 240V
Run 120V essentials from one unit, or pair two with the Double Voltage Hub for 240V / 7,200W.
Expandable to 24kWh
Add up to three BP3000 batteries per station for a week of backup, ITC tax-credit eligible.
6,000W hybrid recharging
Combine a fuel generator and solar for the fastest recharge (expansion battery required).
Back up 6 circuits
Refrigerator, furnace blower, lights and outlets switch to the F3000 with a flip of each toggle.
No back-feed risk
UL 1008 listed manual transfer switch in a steel cabinet, installed by an electrician.
Load meters
Built-in wattmeters keep the 3,600W F3000 within its limits.
What’s in the Box
- 1×Anker SOLIX F3000 Portable Power Station
- 1×AC charging cable
- 1×High-voltage solar charging cable
- 1×User manual
- 1×120V Generator Input Adapter (A17D1111) – free with every F3000
- 1×Pro/Tran 2 30A 6-circuit manual transfer switch
- 1×L5-30 inlet and cable
- 1×Installation guide
Anker SOLIX F3000 + 6-Circuit Manual Transfer Switch Home Backup Kit FAQ
Can I charge the F3000 from a gas generator?
Yes. The 120V Generator Input Adapter connects the F3000 to a 120V generator for up to 3,600W of pass-through charging – and it is included free with every F3000 ordered from Eco Solar Kits.
Does the F3000 need an electrician for home backup?
No electrician is needed to use the station on its own or with the Double Voltage Hub. A manual transfer switch or the Power Saver Kit must be installed by a licensed electrician.
How long does it run a refrigerator?
About 42 hours for a 190W (8 cu ft) refrigerator on the base 3,072Wh, and roughly double with one BP3000 expansion battery.
Does it ship free?
Yes – free shipping within the contiguous USA and no sales tax in most states. Large kits may ship in several boxes that can arrive on different days.
Anker SOLIX F3000 + 6-Circuit Manual Transfer Switch Home Backup Kit Specifications
Anker SOLIX F3000 Portable Power Station
| Battery | |
| Battery type | LFP (LiFePO4) |
| Cell capacity | 51.2V / 60Ah / 3,072Wh |
| Cycle life | 4,000 cycles |
| Expandable capacity | Up to 3 × BP3000 per unit (12.3kWh); 2 units: 24kWh |
| Input | |
| AC input (charging cable) | 120V~ 15A max (<3 hrs), 1,800W max, 12A continuous |
| AC input (bi-directional inlet box) | 120V~ 15A max, 1,800W max |
| AC input (TT-30 cable + EV adapter) | 120V~ 30A max, 3,600W max, 24A continuous |
| AC input (EV charging adapter, J1772) | 240V~ 15A max, 3,600W max |
| High-PV input | 11-165V⎓17A max, 1,600W |
| Low-PV input | 11-60V⎓17A max, 800W |
| DC input port | 60V⎓120A max |
| Output | |
| AC output (NEMA 5-20R) | 120V~ 20A max, 2,400W max per outlet, 3,600W total |
| SurgePad power | 4,860W |
| AC surge power | 7,200W |
| AC output (TT-30R) | 120V~ 30A max, 3,600W max |
| AC output (Double Voltage Hub) | 240V~ 30A max, 7,200W max |
| Car socket | 12V⎓10A |
| Anderson DC output | 13.4V⎓30A |
| USB-A output | 5V⎓2.4A, 12W max per port |
| USB-C output | 100W max per port |
| UPS | 20 ms |
| General | |
| Discharging temperature | -4°F to 104°F |
| Charging temperature | 32°F to 104°F |
| Dimensions | 25.6 × 11.8 × 14.8 in |
| Net weight | 91.5 lb |
| Warranty | 5 years |
Anker SOLIX 6-Circuit Manual Transfer Switch (120V, 30A)
| Pro/Tran 2 30A 6-circuit transfer switch | |
| Circuits | 6 × 15A single-pole |
| Rating | 30A, 120V |
| Inlet / cable | L5-30 power inlet and cable to the F3000 TT-30 port |
| Meters | Colour-coded wattmeters |
| Certification | UL 1008, NEC Article 702 |
| Compatible | Anker SOLIX F3000, F2600, F2000 |
