Sungold Power 10,000W Off‑Grid Solar Kit 25.6 kWh 48VDC 120V/240V 12×550W Solar Panels SGR‑10K25S
A complete off-grid solar system — 10,000W split-phase inverter, 25.6kWh of LiFePO₄ battery storage, and twelve 550W monocrystalline panels — with WiFi monitoring included.
Overview
Introducing the SGR-10K25S, a comprehensive solar package designed to meet your off-grid energy needs. This exceptional kit features 12 x 550W solar panels, 5 x 5.12kWh server rack batteries, a robust 10kW solar inverter (120V/240V), essential cables and brackets, and a complimentary server rack gift.
With an average of 4 hours of sunlight per day, this system can generate an impressive 26kWh of energy daily. Equipped with a powerful 10kW 120V/240V split inverter, it’s capable of powering a wide range of appliances including air conditioners, well pumps, refrigerators, TVs, workshops, and offices.
For added convenience and flexibility, you have the option to expand the system by adding more batteries and solar panels to suit your requirements. Plus, with Wi-Fi monitoring capabilities, you can easily track the performance and energy data of your solar system through a dedicated app.
Experience the freedom of off-grid living and embark on exciting adventures with the Solar Energy Kit!

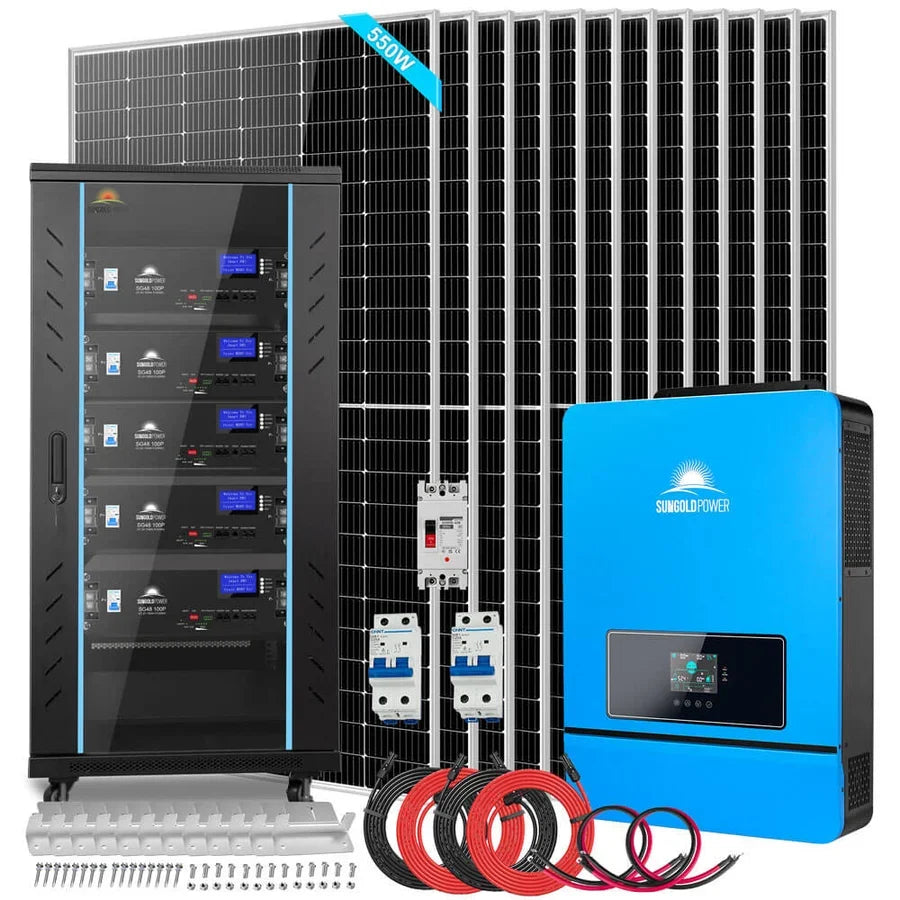

What is Included with the SGR-10K25S Solar Kit!
- •1 x 10000 Watt 48V DC 120V/240V AC Output
- •12 x 550 Watt Monocrystalline Solar Panels
- •5 x 100AH 51.2V Lifepo4 Battery
- •1 x Enclosed Battery Cabinet for 5 X 100AH 51.2V Lifepo4 Batteries
- •2 Sets x 10AWG, Solar Extension Cables-Inverter PV input
- •12 x Sets of Mounting Z-Brackets
- •1 x 200A DC Breaker
- •2 x 25A PV Breaker
Technical Highlights
10,000W, 30,000W Surge
Rated continuous output with a 20-second surge rating triple the continuous power for motor starts and other high-draw moments.
Split-Phase 120V/240V
Runs standard household circuits and larger 240V appliances from the same system.
100W No-Load Consumption
Low standby draw keeps the system efficient even when appliances aren’t actively running.
WiFi Monitoring
Track performance and energy data remotely through a dedicated mobile app.
Easily Expandable
Add more batteries and solar panels in the future as your energy needs grow.
UL1741 Listed by ETL
Meets recognized North American safety standards for solar inverter equipment.
IP68 Waterproof Panels
Junction box rated for full submersion protection, backed by a 25-year linear product warranty.

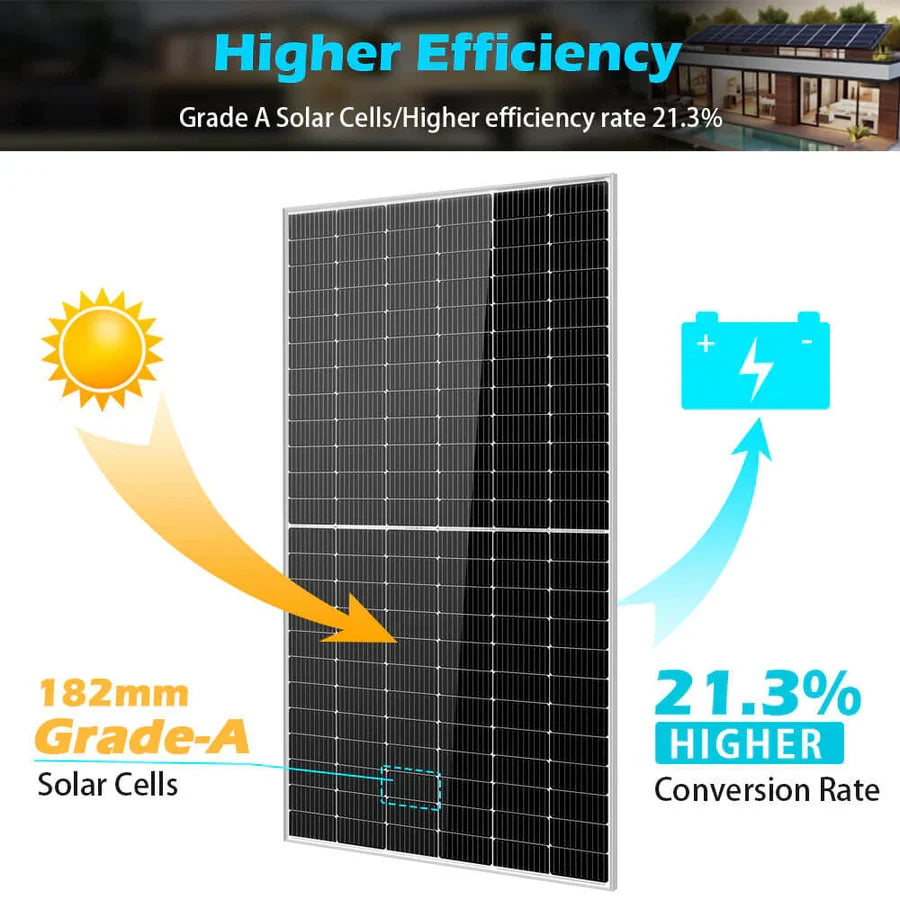

21.28% Panel Efficiency
182mm Grade-A monocrystalline cells for a higher conversion rate per panel.
Full Specifications

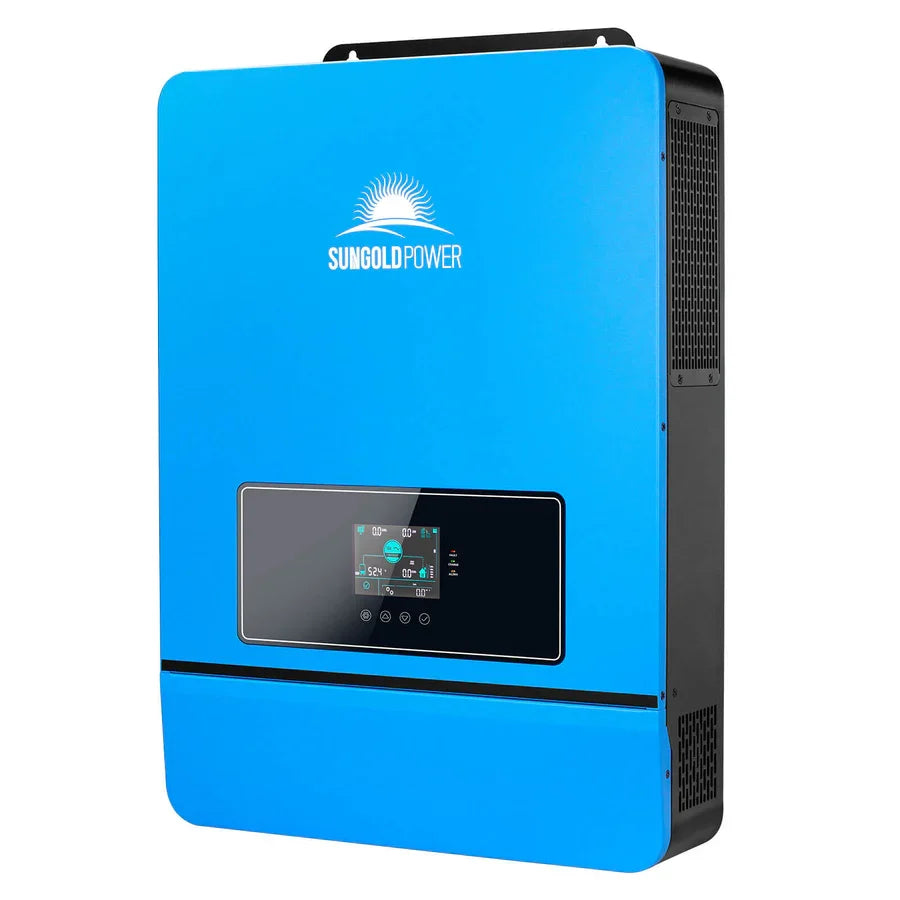

LF-PV 10KW Off-Grid Inverter/Charger (×1)
Output
| Continuous output power | 10,000 W |
| Surge rating (20 sec) | 30,000 W |
| Rated output voltage | 120/240Vac split-phase |
| Waveform | Pure sine wave |
Efficiency
| No-load consumption | 100 W |
Battery
| Nominal DC input voltage | 48 Vdc |
Certification & Monitoring
| Safety | UL1741 Listed by ETL |
| Monitoring | WiFi app included |

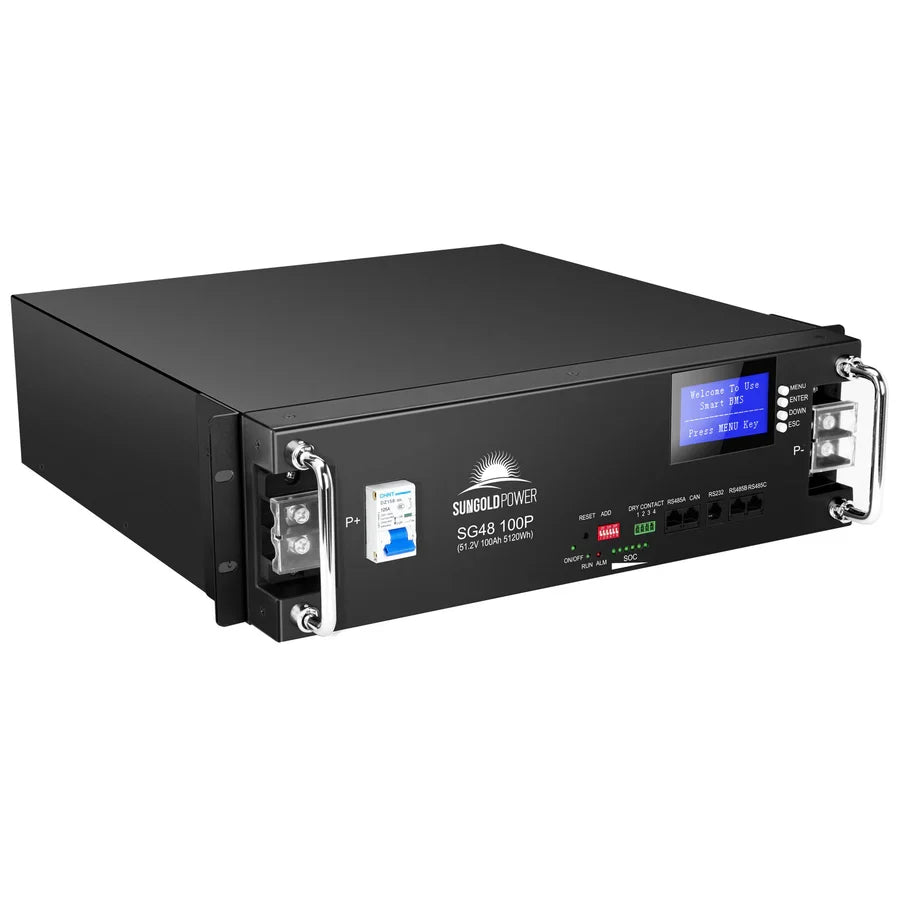

SG48100P LiFePO₄ Battery (×5, In Enclosed Battery Cabinet)
Capacity
| Rated capacity | 100 Ah |
| Rated voltage | 51.2 V |
| Rated energy per unit | 5.12 kWh |
| Combined (5 units) | 25.6 kWh |
Charge & Discharge
| Standard current | 50 A |
| Max. continuous current | 100 A |
| Cycle life | ≥7,000 @ 80% DOD |
| Design life | 15 years |
Physical & Certification
| Weight (each) | ~95 lbs (43 kg) |
| Dimensions | 16.5 × 22.8 × 5.5 in |
| Protection rating | IP20 (battery box) |
| Certification | UL1973 |
Environmental & Scaling
| Charging temp | 32–113°F |
| Discharging temp | -4–140°F |
| Max parallel | 63 batteries |
| Communication | RS232 / RS485 / CAN |
SG-550WM Monocrystalline Panel (×12)
Electrical
| Max. power | 550 W |
| Max-power voltage | 41.96 V |
| Max-power current | 13.11 A |
| Open-circuit voltage | 49.9 V |
| Module efficiency | 21.28% |

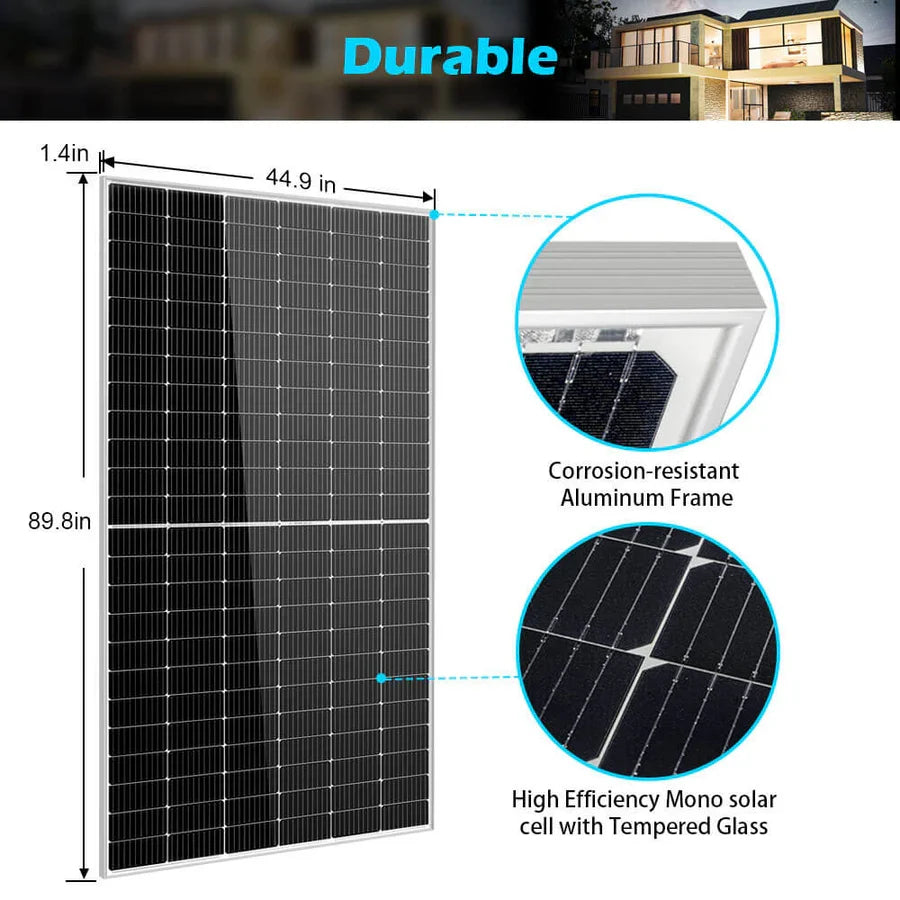

Build & Warranty
| Cell type | Mono 182×91mm (144 cells) |
| Weight (each) | 63.05 lbs (28.6 kg) |
| Dimensions | 89.72 × 44.65 × 1.38 in |
| Junction box | IP68 |
| Warranty | 25yr linear product + 10yr workmanship |

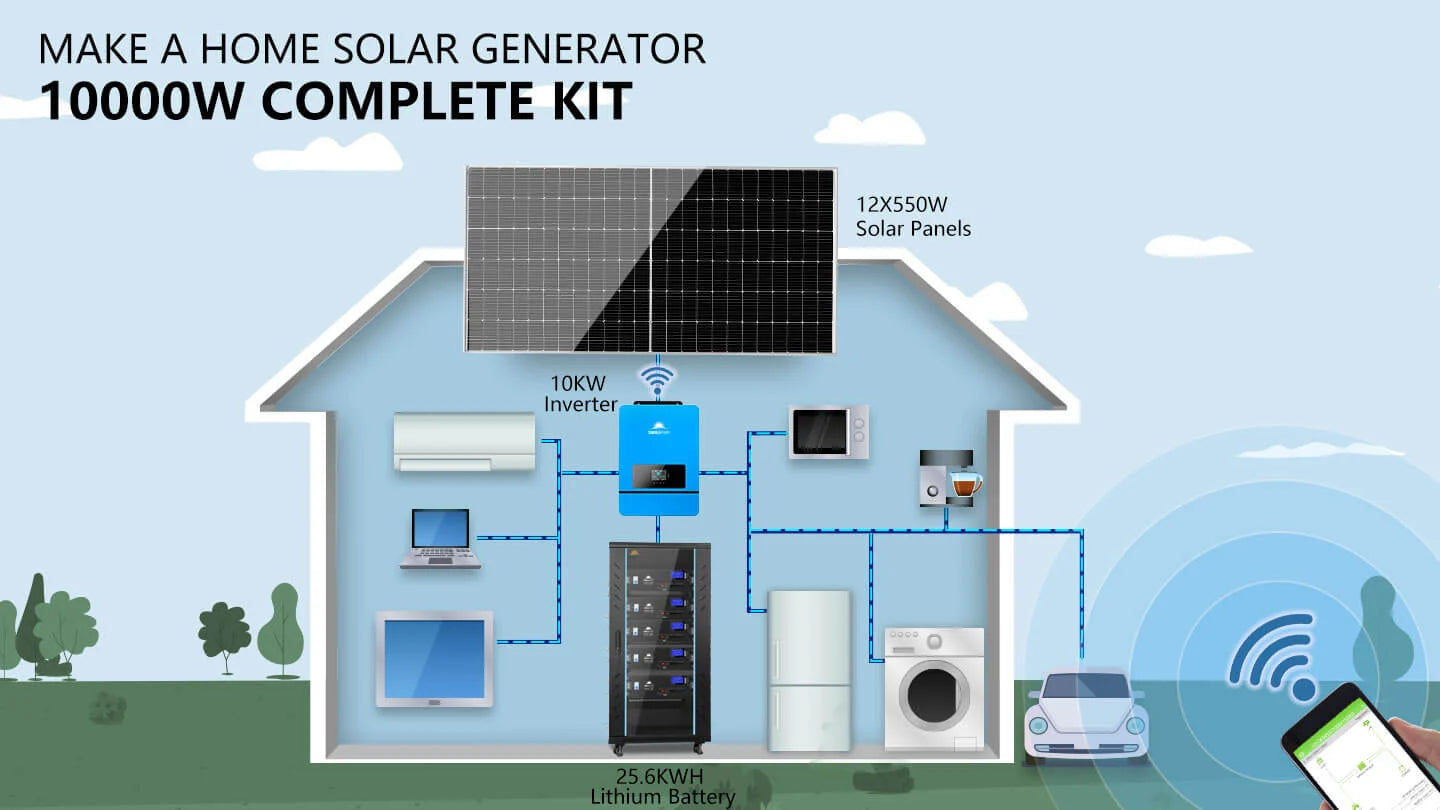

What It Can Power
With about 4 hours of direct sunlight, the panel array produces roughly 26kWh per day — enough for air conditioners, well pumps, refrigerators, TVs, workshops, and offices, per the manufacturer’s own description.
Additional Documentation
Common Questions
Does this inverter have built-in solar charge controllers?
Yes — the LF-PV 10KW inverter has integrated solar charging, so no separate MPPT controllers are needed for this kit.
What’s the actual usable battery capacity?
25.6kWh combined from five 5.12kWh batteries housed in the included enclosed battery cabinet.
Are the batteries stored in a rack or individually?
This kit includes an enclosed battery cabinet sized for all five 100AH batteries, rather than mounting them individually.
Can I add more solar panels later?
Yes — this system is easily expandable, letting you add more batteries and solar panels as your energy needs grow, per the manufacturer’s own product description.
Do I need a licensed electrician to install this?
Given the scale of this system — a 10,000W inverter and a 25.6kWh battery bank — installation should be handled by a qualified, licensed electrician familiar with your local code.
