Eco Solar Kits · Sungold Power · SGM-5K10M

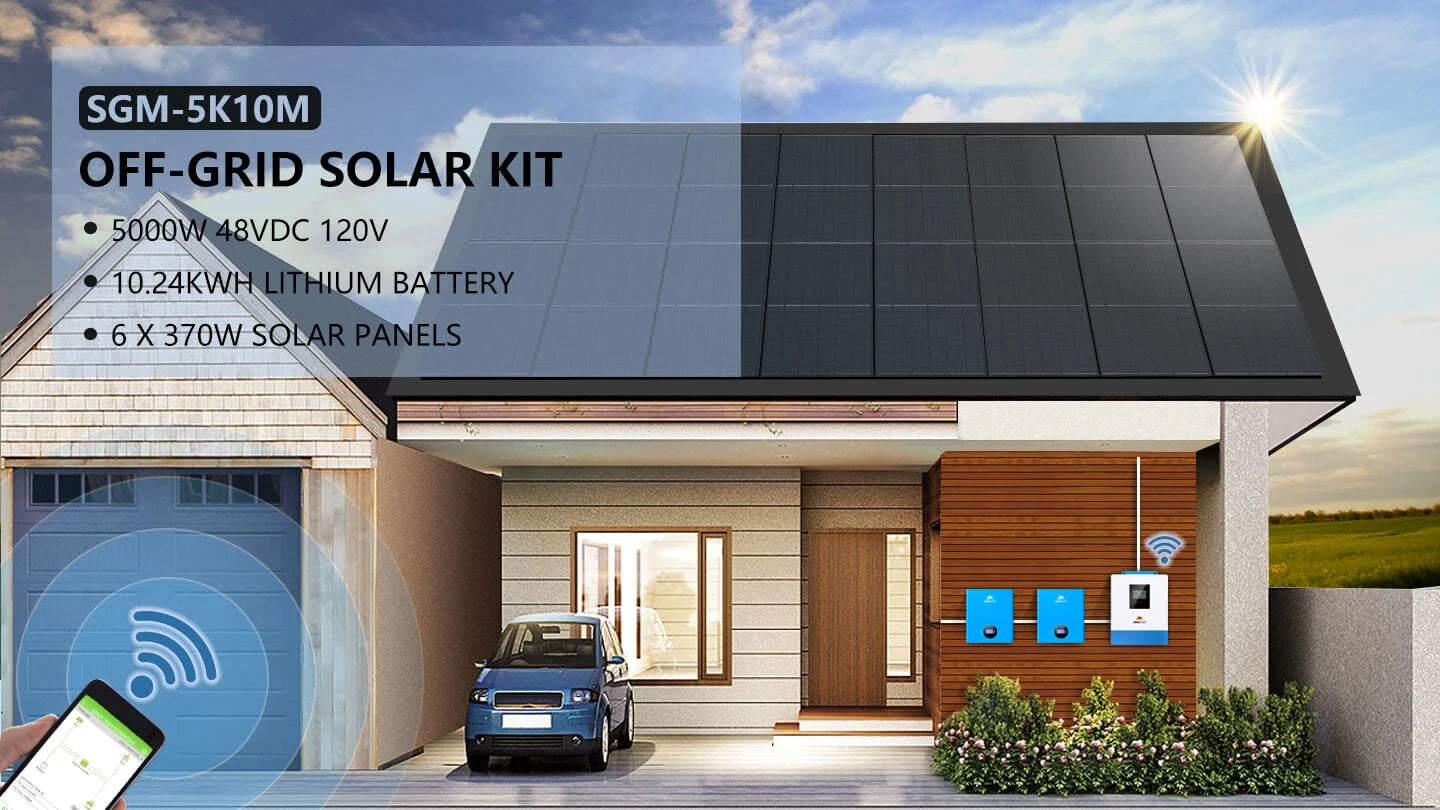

Sungold Power Off‑Grid Solar Kit 5,000W 48VDC 120V 10.24 kWh Powerwall Lithium Battery & 6×370W Solar Panels SGM‑5K10M
A complete off-grid solar system — 5,000W inverter, 10.24kWh of LiFePO₄ battery storage, and six 370W monocrystalline panels — customizable with extra batteries and panels as needs grow.
Overview

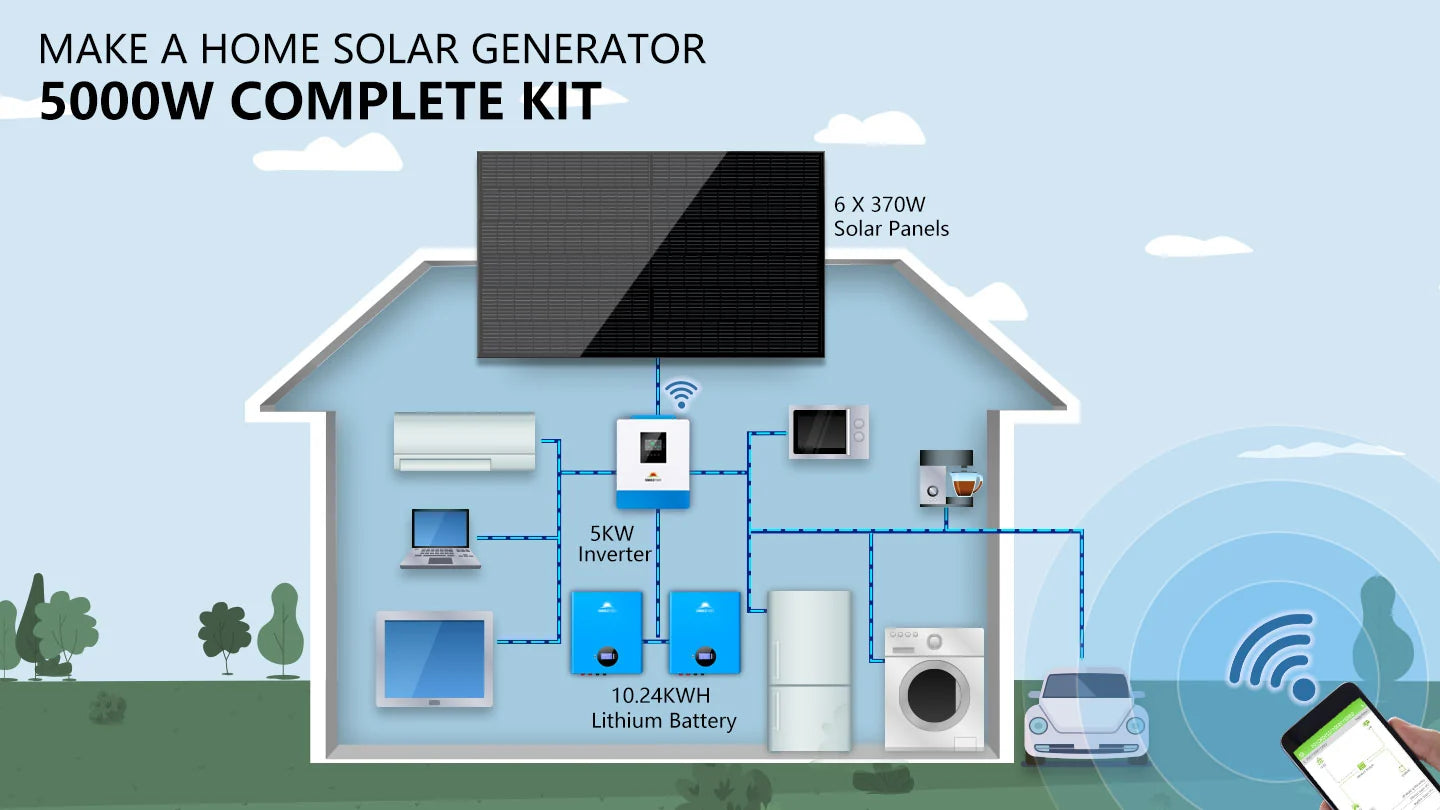

Introducing our comprehensive off-grid solar system kit, designed to effortlessly bring 2.22kW of solar power and storage to mid-sized off-grid homes or remote cabins. Complete with 2PCS 51.2V 100AH PowerWall Lithium batteries and solar panel mounting hardware, this kit sets you on the path to energy independence. For a larger capacity option, check out the Sungold Power Off-Grid 5000W Solar Kit with 48VDC 120V Inverter and LiFePO4 Batteries, offering 10–24kWh of storage and 6×415W solar panels for expanded energy needs.
Equipped with a 5000W 48V 120V pure sine wave inverter, capable of powering most household appliances, our system is primed for expansion. You can seamlessly integrate up to 6 identical inverters, allowing for parallel operation in single-phase (120VAC), split-phase (240VAC), or three-phase (208V) configurations. Tailor your system to your needs by adding more batteries and solar panels as required.
Monitor your system’s performance and energy data with ease through the Wi-Fi monitor, accessible via a convenient app. Embrace off-grid living and embark on the adventure of sustainable energy with our solar energy kit!

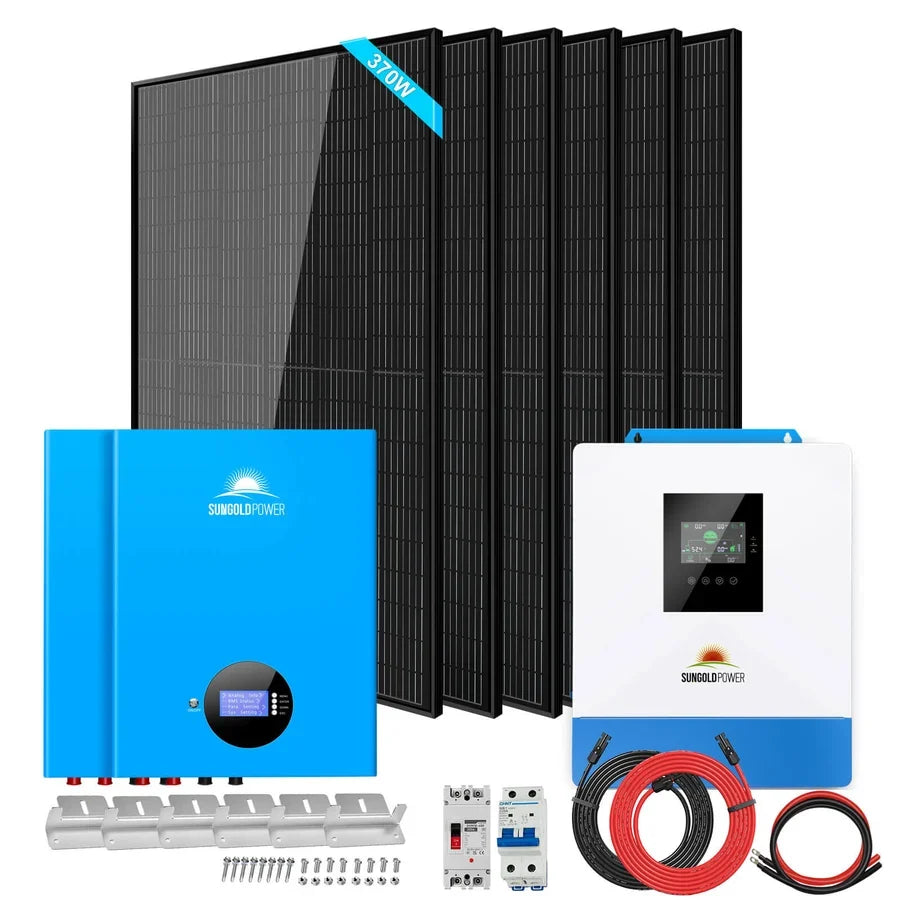

What is Included with the SGM-5K10M Solar Kit
- •1 x 5000 Watt 48V DC 120V Output with Wifi Model
- •6 x 370 Watt Monocrystalline Solar Panels
- •2 x 100AH 51.2V PowerWall Lithium Battery
- •1 Set x 50 Feet, Solar Extension Cables-Inverter PV input
- •6 x Sets of Mounting Z-Brackets
Key Features
5,000W, 10,000VA Peak
Rated output with double the power available briefly for motor starts and other high-draw moments.
>95% Line-Mode Efficiency
Minimal energy loss whether running on battery, solar, or passthrough grid power.
5,500W Max Solar Input
Room to add panels beyond the 2,220W (6×370W) included, up to the system’s rated ceiling.
Optional Wi-Fi / GPRS
Add remote monitoring hardware for system status and performance without needing to be on-site.
Expandable to 6 Units
Parallel up to 6 identical inverters as a system’s power needs grow.
CE / IEC62109-1 Certified
Meets recognized international safety standards for solar charge controller equipment.
≥7,000-Cycle Battery Life
The LiFePO₄ battery is rated for at least 7,000 cycles to 80% depth of discharge — a 15-year design life.

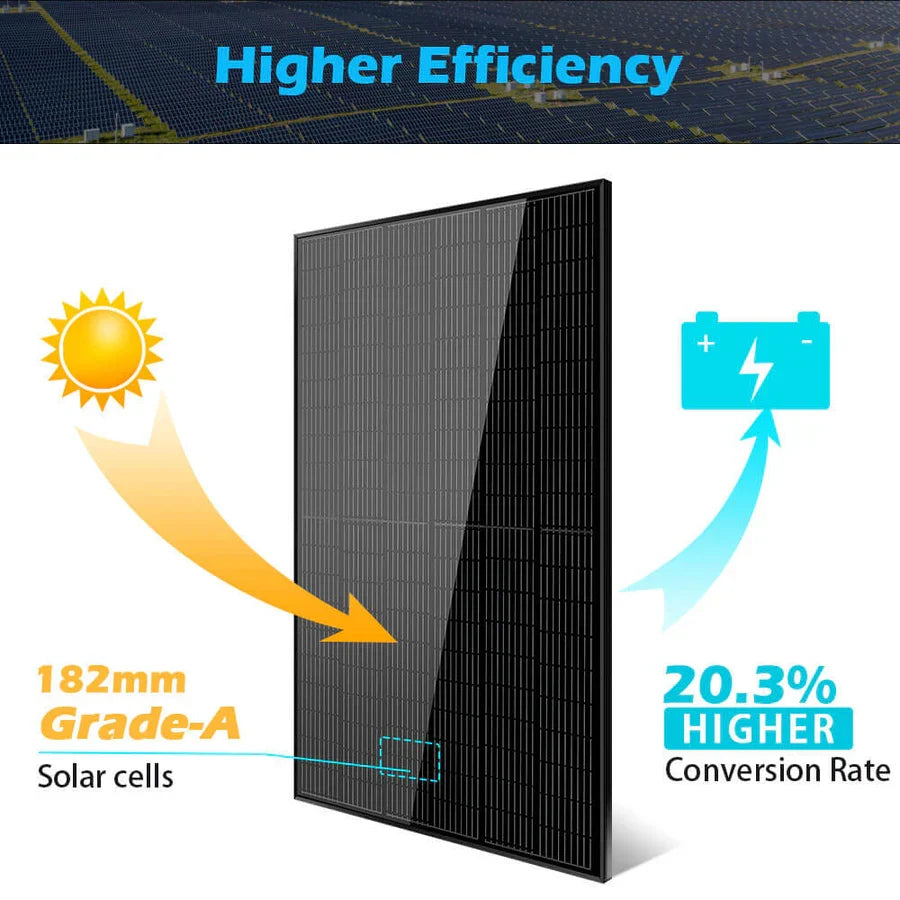

20.41% Panel Efficiency*
Grade-A monocrystalline cells with IP67-rated connectors for weather resistance.
Full Specifications

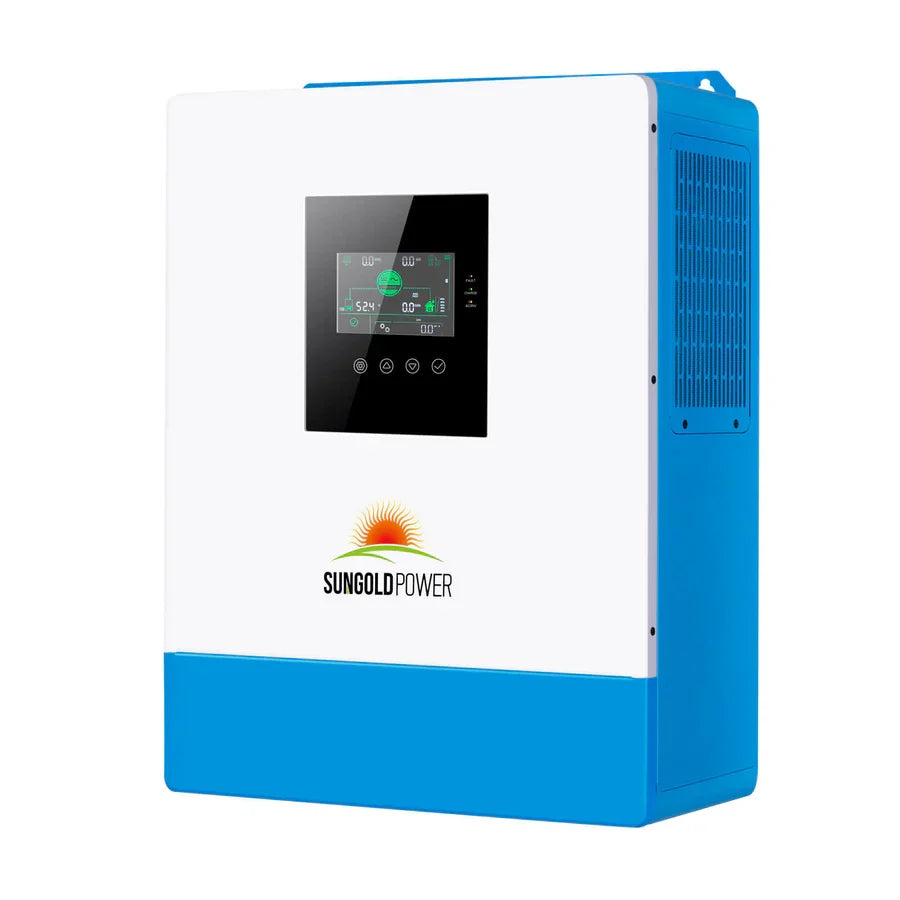

SPH5048P Inverter/Charger (×1)
Output
| Rated output power | 5,000 W |
| Peak power | 10,000 VA |
| Rated output voltage | 120 Vac |
| Line-mode efficiency | >95% |
| Inverter-mode max efficiency | >92% |
Battery & Charging
| Nominal DC input voltage | 48 Vdc |
| Max. charging current (hybrid) | 100 A |
| Certification | CE (IEC62109-1) |
PV Input
| No. of MPPT trackers | 1 |
| Max. PV input power | 5,500 W |
| Max. input current | 22 A |
| Max. open circuit voltage | 500 Vdc |
| MPPT voltage range | 120–450 Vdc |
Physical & Environmental
| Weight | 28.7 lbs (13 kg) |
| Dimensions | 17.6 × 13.8 × 5.2 in |
| Operating temp | 14–131°F |
| Noise | ≤60 dB |
Communication & Scaling
| Built-in | USB / RS485 / Dry contact |
| Optional | Wi-Fi / GPRS module |
| Max parallel | 6 units |

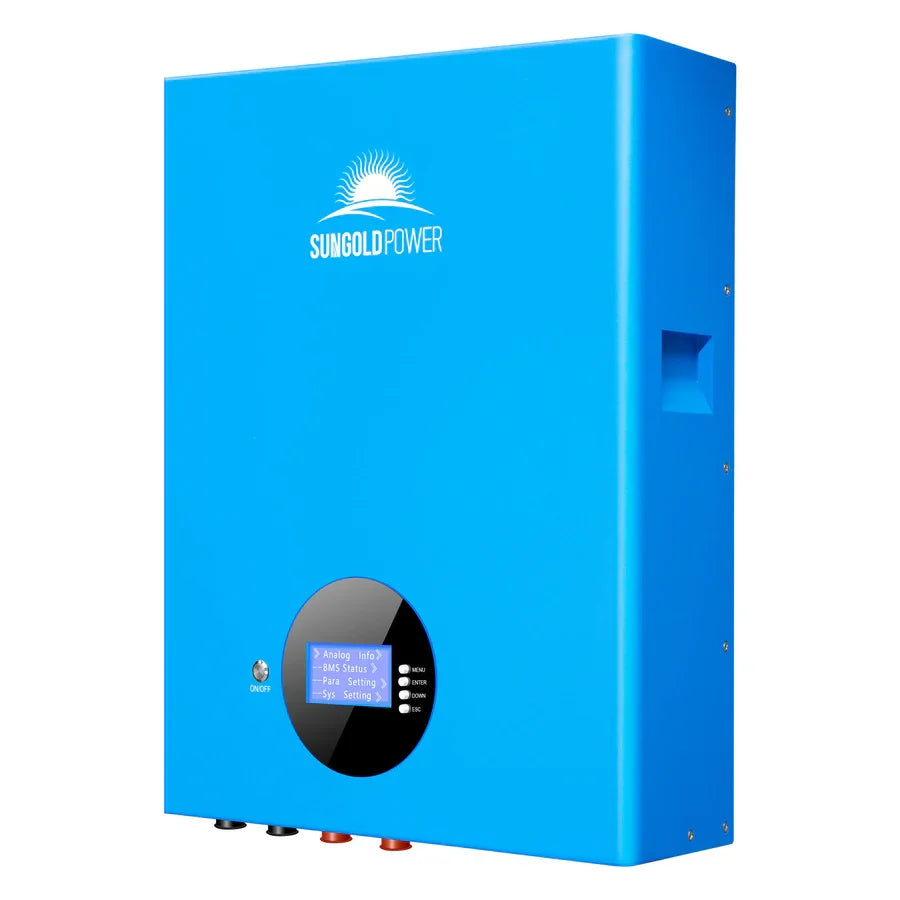

SG48100M LiFePO₄ Battery (×2)
Capacity
| Rated capacity | 100 Ah |
| Nominal voltage | 51.2 V |
| Energy per unit | 5,120 Wh |
| Combined (2 units) | 10,240 Wh (10.24 kWh) |
Charge & Discharge
| Standard current | 50 A |
| Max. continuous current | 100 A |
| Cycle life | ≥7,000 @ 80% DOD |
| Design life | 15 years |
Physical (Per Unit)
| Weight | ~95 lbs (43 kg) |
| Dimensions | 16.5 × 22.8 × 5.5 in |
| Protection rating | IP20 (battery box) |
Environmental & Scaling
| Charging temp | 32–113°F |
| Discharging temp | -4–140°F |
| Communication | RS232 / RS485 / CAN |
| Max parallel | 63 batteries |

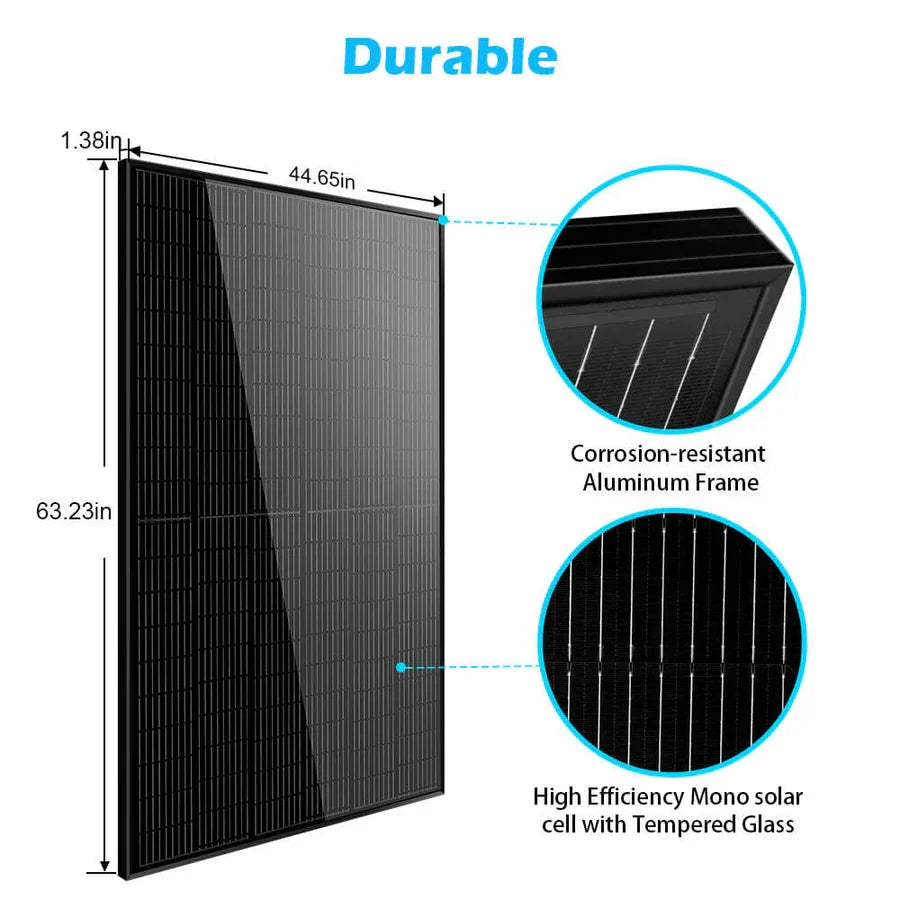

SG-370WM Monocrystalline Panel (×6)
Electrical
| Max. power | 370 W |
| Max-power voltage | 33.2 V |
| Max-power current | 11.15 A |
| Open-circuit voltage | 40.17 V |
| Module efficiency | 20.30% |
Build & Warranty*
| Cell type | Mono 166×83mm (120 cells) |
| Weight (each) | 41.3 lbs (18.75 kg) |
| Dimensions | 69.3 × 40.9 × 1.4 in |
| Junction box | IP68 |
| Warranty | 25yr linear product + 10yr workmanship |
What It Can Power
Additional Documentation
Common Questions
Can I add more solar panels later?
Yes — the inverter supports up to 5,500W of solar input in total, well above the 2,220W (6×370W) included in this kit, leaving significant room to expand.
Can I connect multiple inverters together?
Yes — up to 6 identical SPH5048P inverters can run in parallel in single-phase (120VAC), split-phase (240VAC), or three-phase (208V) configurations.
What’s the actual usable battery capacity?
10.24kWh combined from two 5,120Wh LiFePO₄ batteries, each rated for at least 7,000 cycles to 80% depth of discharge — a 15-year design life per the manufacturer.
How is this different from the SGR-5KE kit?
Per the manufacturer’s own product description, the SGR-5KE offers a larger-capacity option with 415W panels for expanded energy needs — this kit uses 370W panels and is positioned as the smaller of the two.
Do I need a licensed electrician to install this?
Given the voltages, currents, and battery wiring involved, installation should be handled by a qualified, licensed electrician familiar with your local code.
