Sungold Power Complete Off-Grid Solar Kit 8000W 48V 120V/240V Output 10.24 kWh Lithium Battery 5,400 Watt Solar Panel SGK‑8MAX
A complete off-grid solar system — 8,000W dual-MPPT split-phase inverter, 10.24kWh of Bluetooth-enabled LiFePO₄ battery storage, and twelve 450W monocrystalline panels.

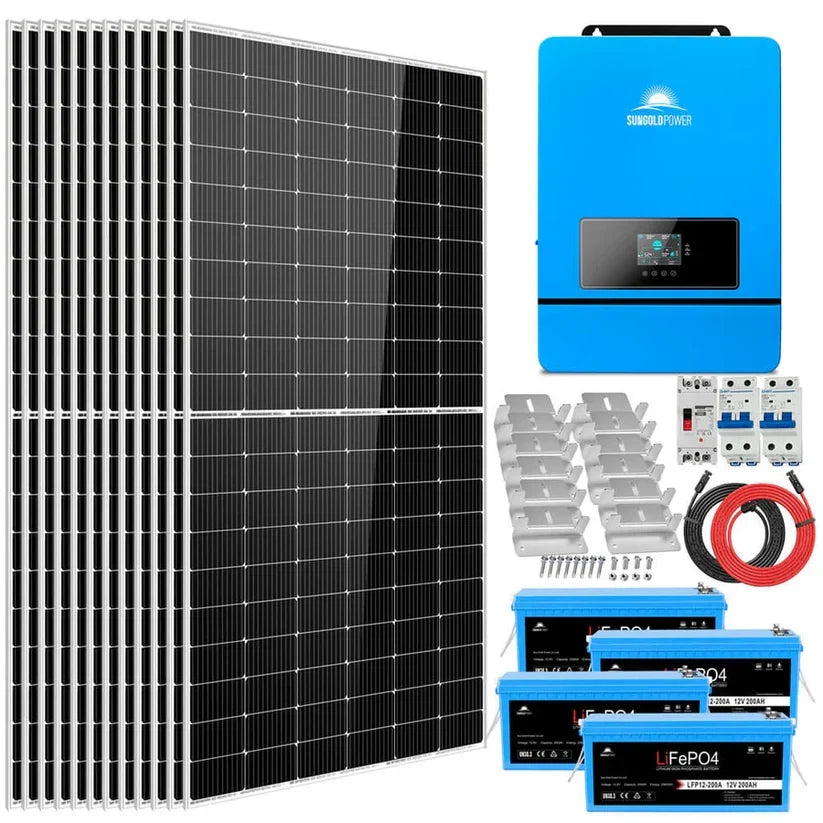

What is Included with the SGK-8MAX Solar Kit
- •1 x 8000 Watt 48V DC 120V/240V Inverter UL1741
- •12 x 450 Watt Monocrystalline Solar Panels
- •4 x 200AH Lifepo4 Batteries with Bluetooth
- •12 x Set of Mounting Z-Brackets
- •1 x 10AWG Solar Extension Cable for Inverter PV input
- •1 x Controller-Battery Extension Cable
- •1 x 200A DC Breaker
- •2 x 25A PV Breakers
Explore our full selection of Sungold Power Kits to compare different configurations and find the best fit for your energy needs.
Technical Highlights
8,000W, 16,000W Peak
Rated output with double the power available briefly, supporting motors up to 5HP.
Split-Phase 120V/240V
Runs standard household circuits and larger 240V appliances from the same system.
Dual Built-In MPPT
Two solar charge trackers built directly into the inverter, supporting up to 11,000W of combined solar input at 99.9% tracking efficiency.
UL1741 Certified
Certified by ETL to UL1741, alongside IEC62109-1/2 safety standards.
Expandable to 6 Units
Parallel up to 6 identical inverters as a system’s power needs grow.
Bluetooth Battery Monitoring
Each 12V battery pairs with a mobile app for live voltage, SOC, and cell-level data.
Built-In Heating Function
Batteries self-heat below 33.8°F to protect charging performance in cold conditions.

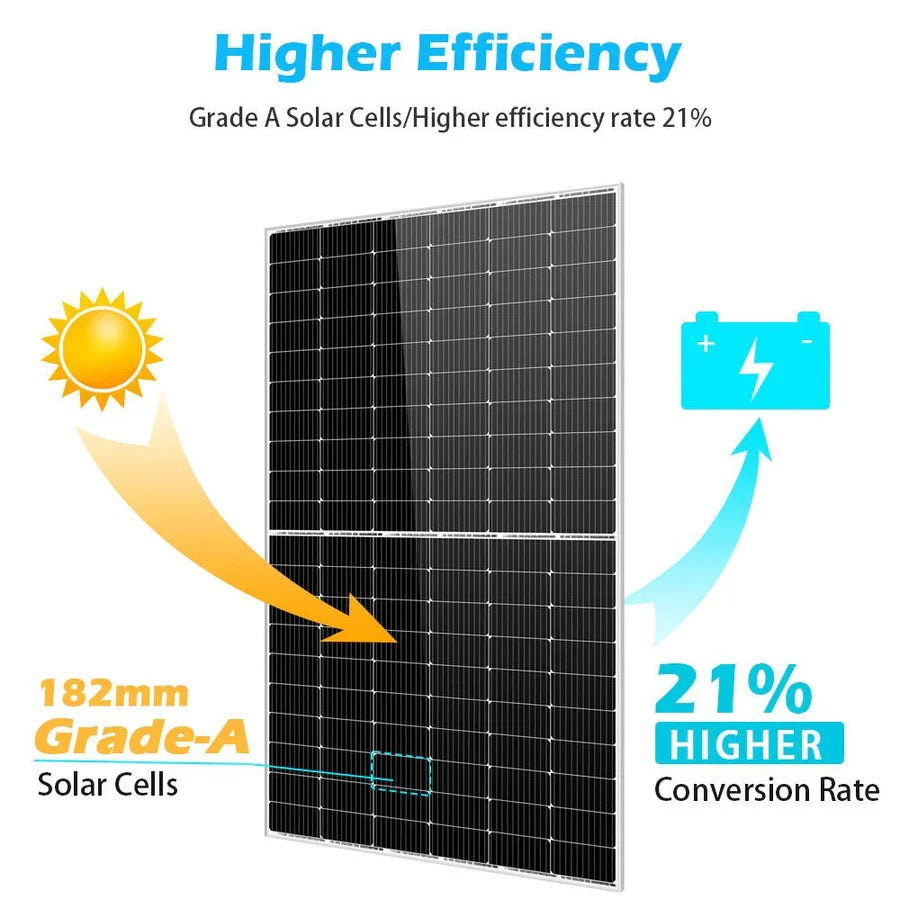

20.79% Panel Efficiency
182mm Grade-A monocrystalline cells backed by a tiered 25-year output warranty and 12-year material and workmanship coverage.
Full Specifications

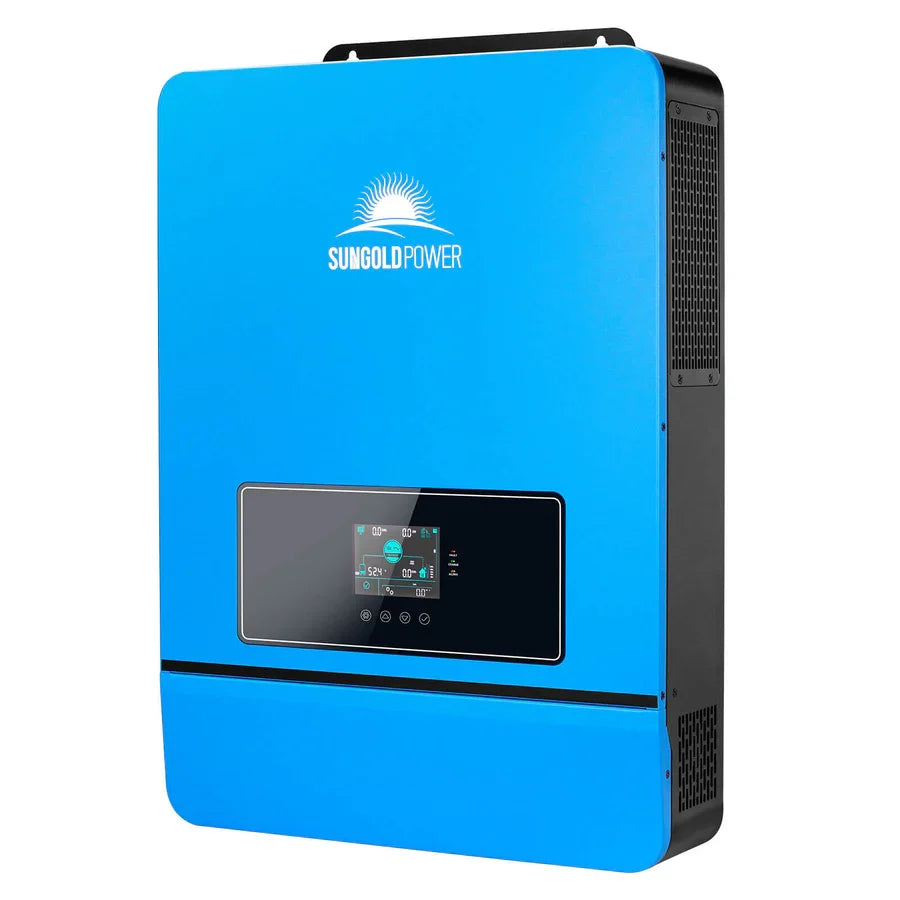

SPH8048P Inverter/Charger (×1)
Output
| Rated output power | 8,000 W |
| Max. peak power | 16,000 W |
| Rated output voltage | 120/240Vac split-phase |
| Load capacity of motors | 5 HP |
| Waveform | Pure sine wave |
| Switch time | 10ms (typical) |
Battery
| Compatible types | Li-ion / Lead-acid / User-defined |
| Rated battery voltage | 48 Vdc |
| Voltage range | 40–60 Vdc |
| Max. PV charging current | 180 A |
| Max. grid/generator charging | 100 A |
| Max. hybrid charging | 180 A |
PV Input (Built-In Dual MPPT)
| No. of MPPT trackers | 2 |
| Max. input power | 11,000 W |
| Max. input current | 22A / 22A |
| Max. open circuit voltage | 500 Vdc |
| MPPT voltage range | 125–425 Vdc |
| MPPT tracking efficiency | 99.9% |
Efficiency & Physical
| Max. battery efficiency | 92% |
| Weight | 59.5 lbs (27 kg) |
| Dimensions | 620 × 445 × 130 mm |
| Protection rating | IP20, indoor only |
| Operating temp | -10°C to 55°C (>45°C derated) |
| Noise | <60 dB |
Certification, Communication & Scaling
| Safety | IEC62109-1, IEC62109-2, UL1741 (ETL) |
| EMC | EN61000-6-1, EN61000-6-3, FCC15 Class B |
| Communication | RS485 / CAN / USB / Dry contact; WiFi/GPRS optional |
| Max parallel | 6 units |

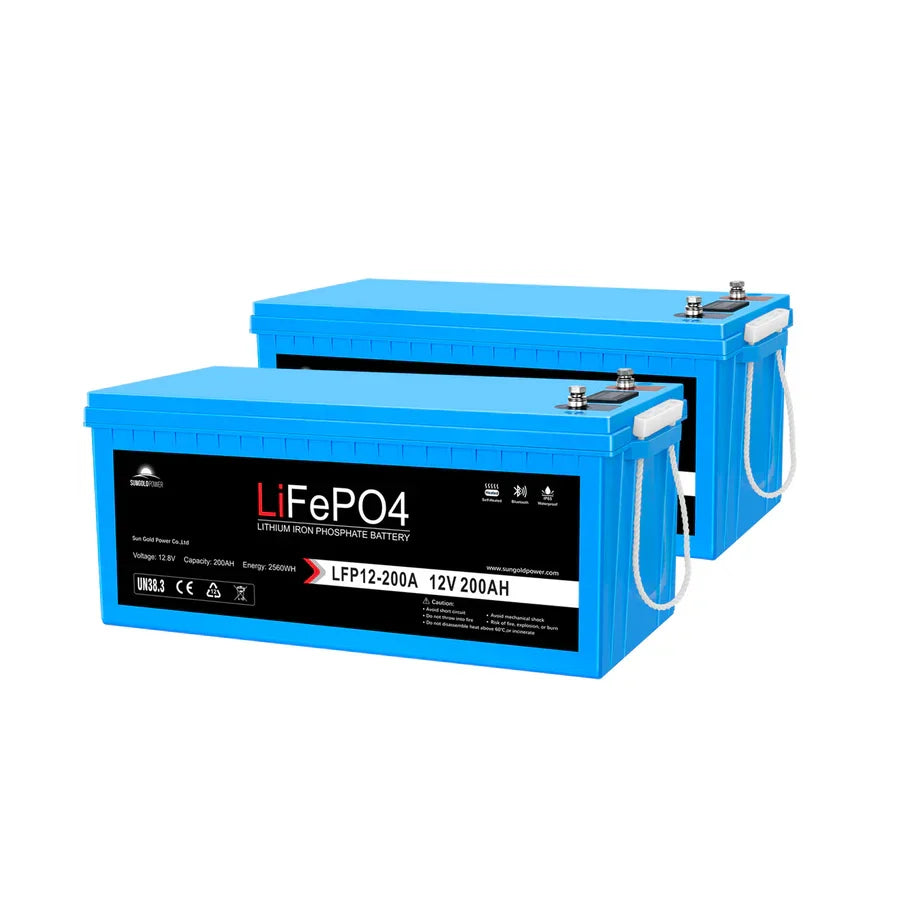

200AH 12V LiFePO₄ Battery with Bluetooth (×4)
Capacity
| Rated capacity | 200 Ah |
| Nominal voltage | 12 V |
| Combined (4 units) | 10.24 kWh |
Charge & Discharge
| Charging voltage | 14.4–14.6 V |
| Discharge cut-off voltage | ≥10.8 V |
| Max. series connection | 4 units (58.4V max) |
Features
| Monitoring | Bluetooth app (iOS/Android) |
| Display | LCD (voltage, SOC, per-cell) |
| Heating function | On below 33.8°F, off above 42.8°F |
| Protection rating | IP65 |
Environmental
| Charging temp | -4–113°F |
| Discharging temp | -4–131°F |

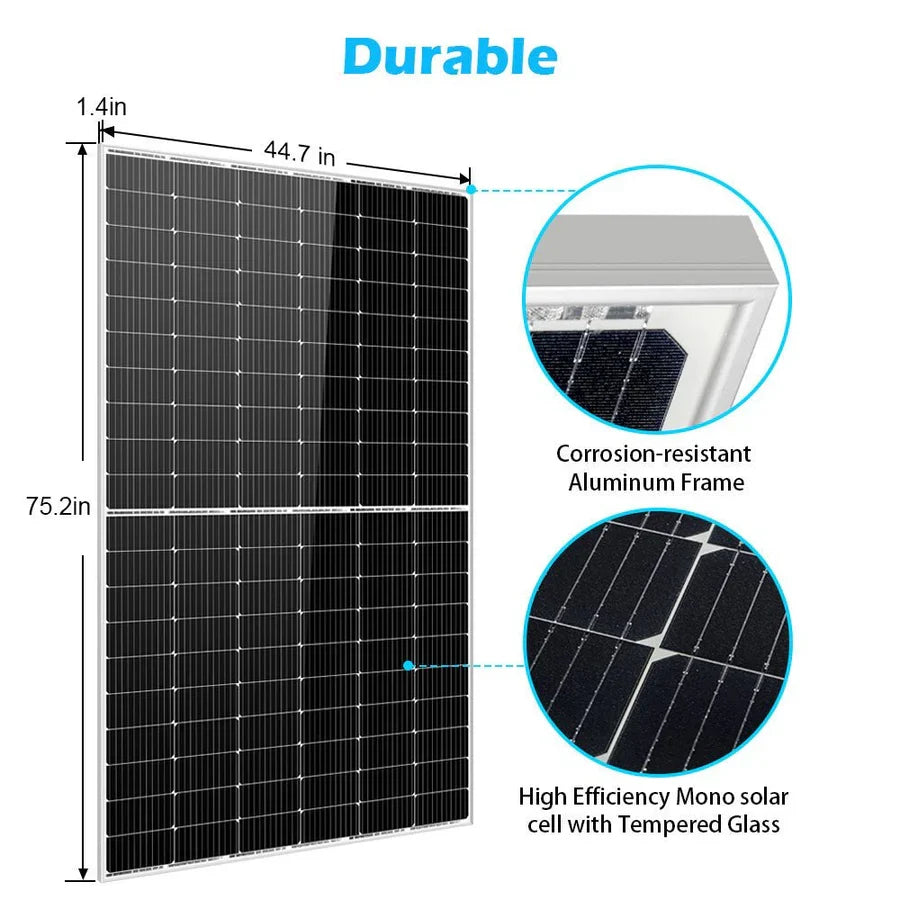

SG-450WM Monocrystalline Panel (×12)
Electrical
| Max. power | 450 W |
| Max-power voltage | 34.2 V |
| Max-power current | 13.16 A |
| Open-circuit voltage | 41.72 V |
| Module efficiency | 20.79% |
Build & Certification
| Cell type | Mono 182×91mm (120 cells) |
| Weight (each) | 54.0 lbs (24.5 kg) |
| Dimensions | 75.16 × 44.65 × 1.38 in |
| Junction box | IP68 |
| Certification | UL61730, CEC Listed |
Warranty
| 5-year output | ≥95% |
| 10-year output | ≥90% |
| 25-year output | ≥80% |
| Material & workmanship | 12 years |
What It’s For

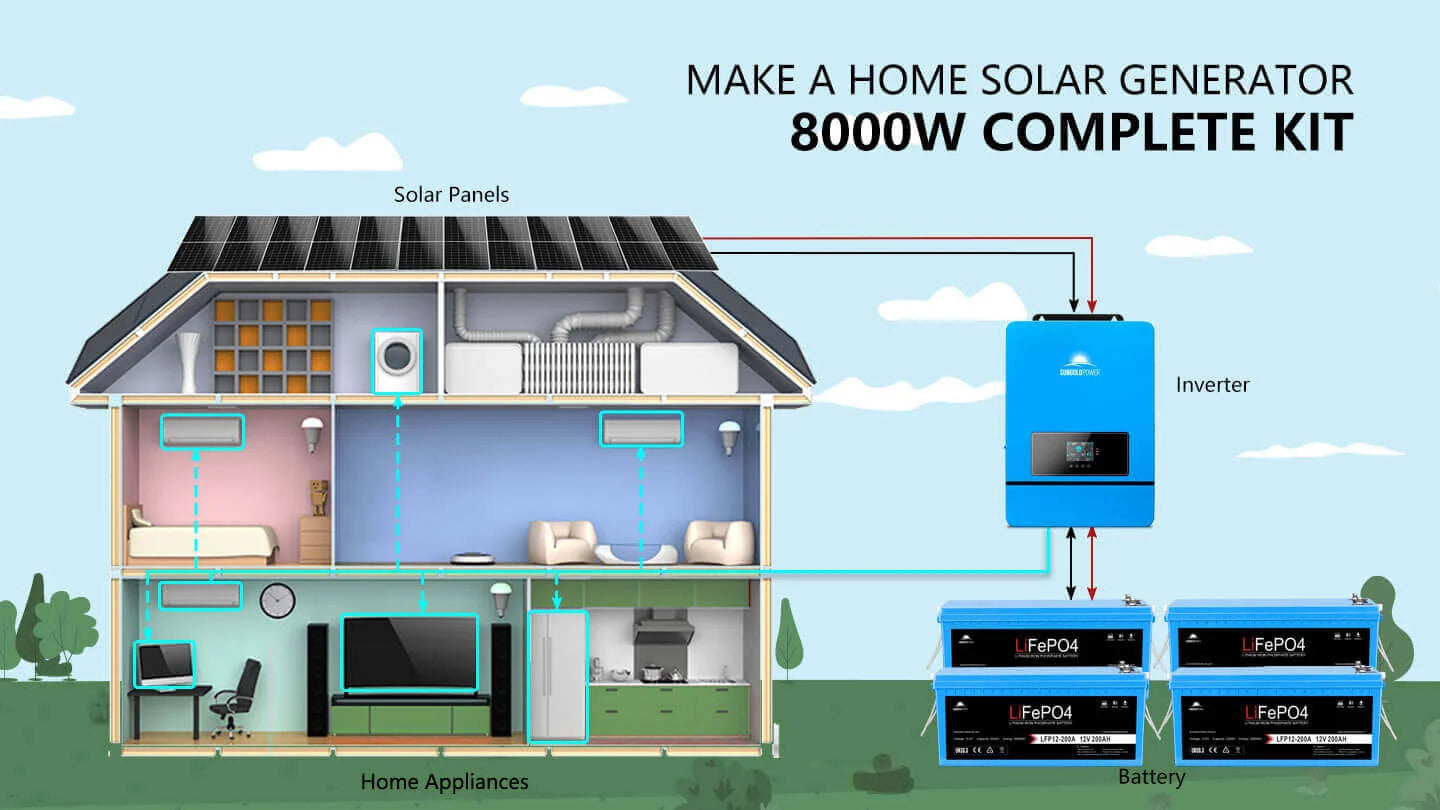

A complete, self-contained 8,000W system with split-phase output, sized for off-grid homes, cabins, and backup power applications.
Additional Documentation
Common Questions
Does this inverter have a built-in solar charge controller?
Yes — two MPPT trackers are built directly into the inverter, supporting up to 11,000W of combined solar input.
What’s the actual usable battery capacity?
10.24kWh combined from four 12V 200Ah LiFePO₄ batteries, each with its own Bluetooth app for live voltage, SOC, and cell-level monitoring.
How are the batteries wired together?
Up to four 12V batteries can be connected in series (staying under the 58.4V maximum) to reach the system’s 48V nominal input.
Can I add more solar panels later?
Yes — the inverter supports up to 11,000W of solar input in total, above the 5,400W (12×450W) included in this kit.
Do I need a licensed electrician to install this?
Given the voltages, currents, and battery wiring involved, installation should be handled by a qualified, licensed electrician familiar with your local code.
