Portable Solar Panel · 500W · IP68
Jackery SolarSaga 500 X Portable Solar Panel
The Jackery SolarSaga 500 X Solar Panel is a 500W folding portable solar panel with 25% cell efficiency and an IP68 rating, built to recharge Jackery power stations off-grid.
Jackery SolarSaga 500 X Portable Solar Panel
Pair it with a Jackery portable power station or see all Jackery solar panels.
Jackery SolarSaga 500 X Solar Panel Features

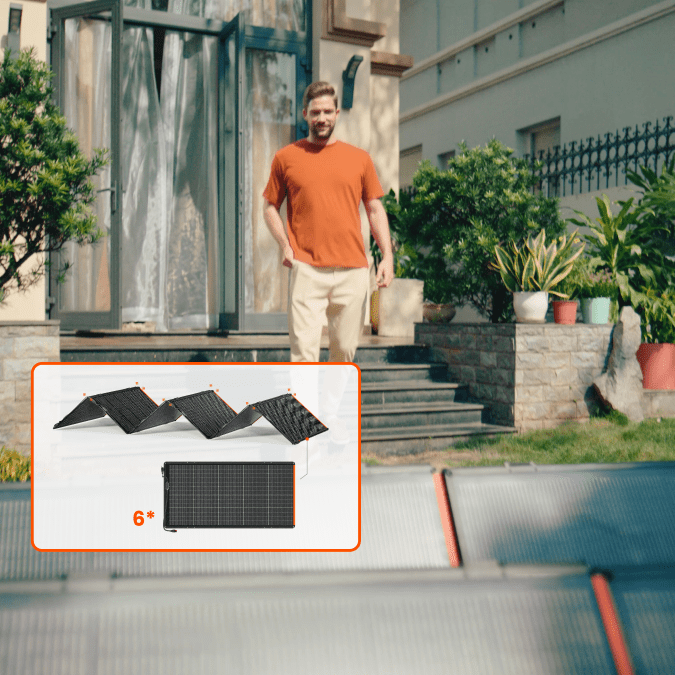

500W from six 85W panels
Use all six or only some, depending on space and shade.
25% TOPCon bifacial cells
High yield in real-world light.
-40°F to 185°F, IP68
M-shaped array layout stands up to strong wind.
Foldable, no permanent install
Deploy on a lawn, balcony or flat roof; not intended for permanent mounting.
Simple parallel wiring
Plug in and start charging.
Compatibility
Sold by Jackery in kits with the Explorer 2000 v2, HomePower 2000 Plus v2, HomePower 3000, HomePower 3600 Plus / Pro Max and Explorer 5000 Plus; also works with the Explorer 2000 Plus, 1000 Plus and 1000 v2.
Jackery SolarSaga 500 X Solar Panel Specifications
Jackery SolarSaga 500 X Solar Panel
| Solar | |
| Maximum System Voltage | 90V DC |
| Maximum Reverse Current | 15A |
| Bifaciality Coefficient (back/front) | Pmax>80%，Voc>97%，Isc>80% |
| Voltage Temperature Coefficient | -0.26%/℃ |
| Power Temperature Coefficient | -0.32%/℃ |
| General | |
| Weight | 22.05 lbs ± 2.20 lbs (10.5 kg±0.5 kg) |
| Protection Class Against Electric Shock | Class II |
| Waterproof | IP68 |
| Operating Temperature Range | -40~185℉（-40~85℃） |
| Warranty | 5 Years |
| Dimensions | |
| Folded | Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97mm) |
| Unfolded | Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294mm) |
Compatible Jackery Accessories
These genuine Jackery accessories work with this product. To add one to your order, call +1 307 317 7213 or contact us before checkout.
Jackery DC Extension Cable for Solar Panel
16.4 ft flame-retardant PVC extension cable with copper core for placing the solar panel farther from the power station.
Jackery 10m DC Extension Cable Plus
32.8 ft (10 m) DC8020-to-DC8020 extension cable with UL2464 PVC insulation. Works with most Jackery solar panels.
Jackery Anderson Extension Cable
Anderson extension cable for SolarSaga 100 Prime and SolarSaga 500 X solar panels.
Jackery Anderson Y Parellel Connector
Anderson Y connector for wiring SolarSaga 100 Prime / 500 X panels in parallel.
Jackery Anderson Y Series Connector
Anderson Y connector for wiring SolarSaga 100 Prime / 500 X panels in series.
