Stack’d Series LFP Battery Bank · 48V · Modular

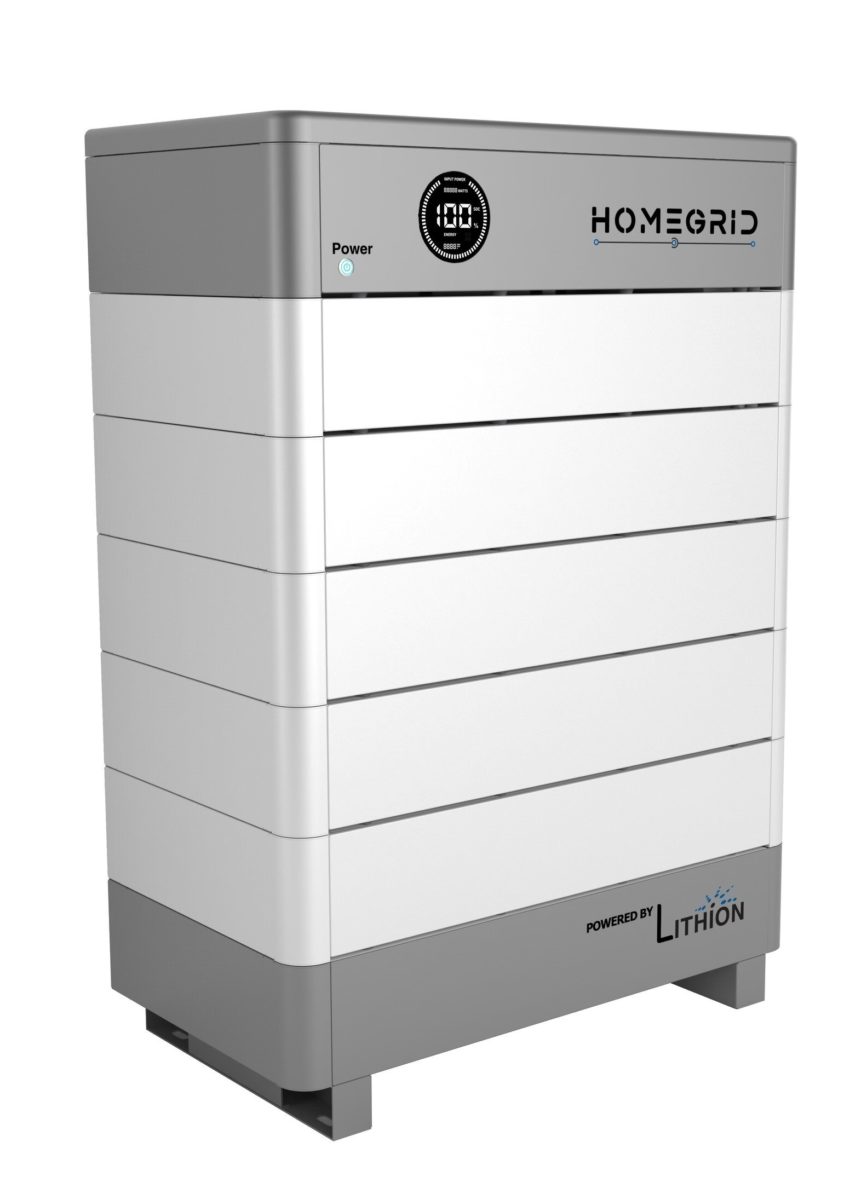

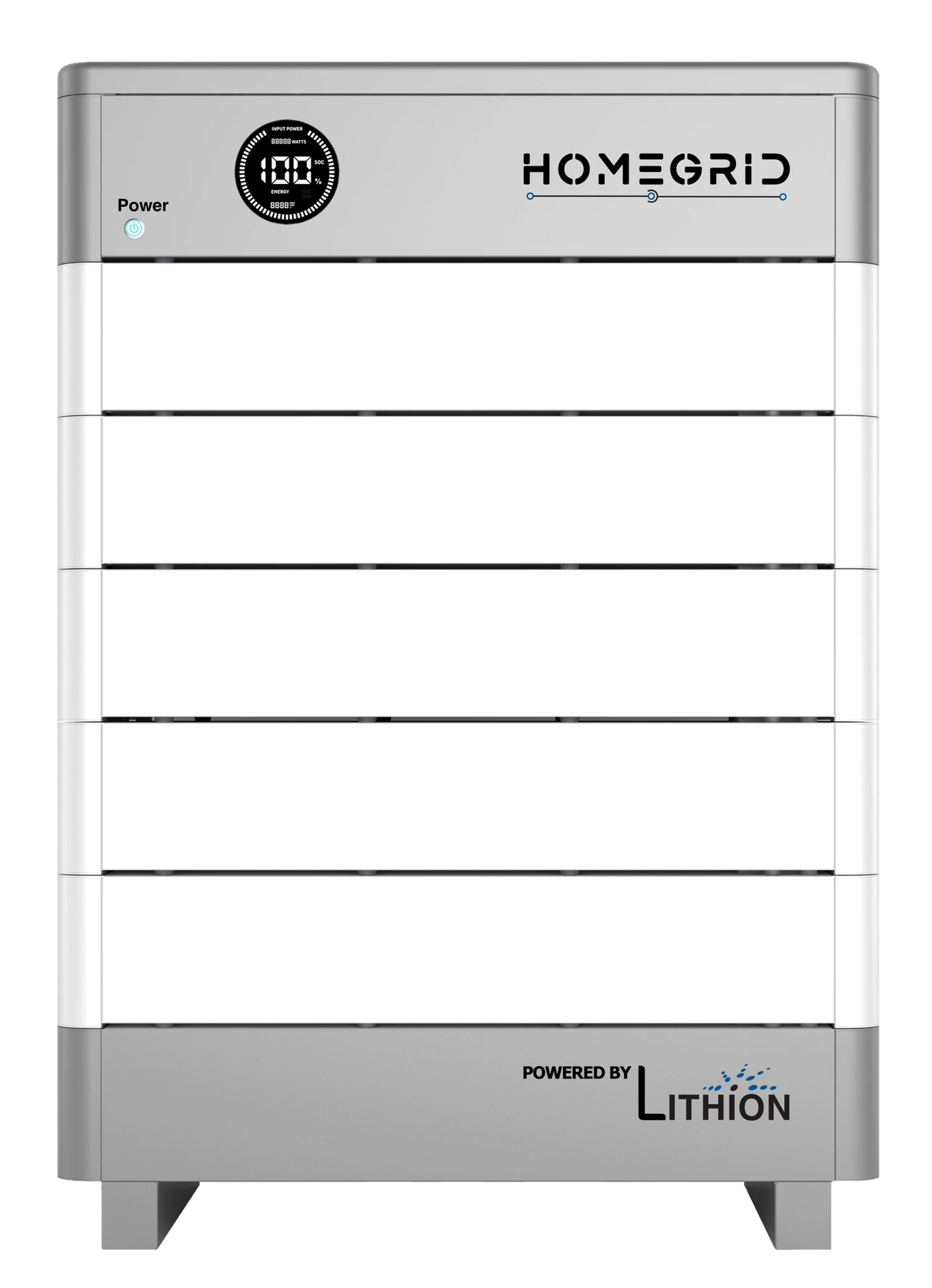

HomeGrid 5 Stack’d Series 48V 24kWh LFP Battery Bank

Introducing our modular home battery system, designed for seamless integration and future-proofing your energy needs. Each unit comes with a base capacity of 9.6 kWh, expandable in 4.8 kWh increments up to a robust 38.4 kWh per stack. This modular design not only ensures flexibility for your current requirements but also enables hassle-free servicing and effortless expansion as your energy demands evolve.

24 kWhTotal Energy (This Config)

15 kWContinuous Power (This Config)

24 kWSurge (10s)

10yrWarranty

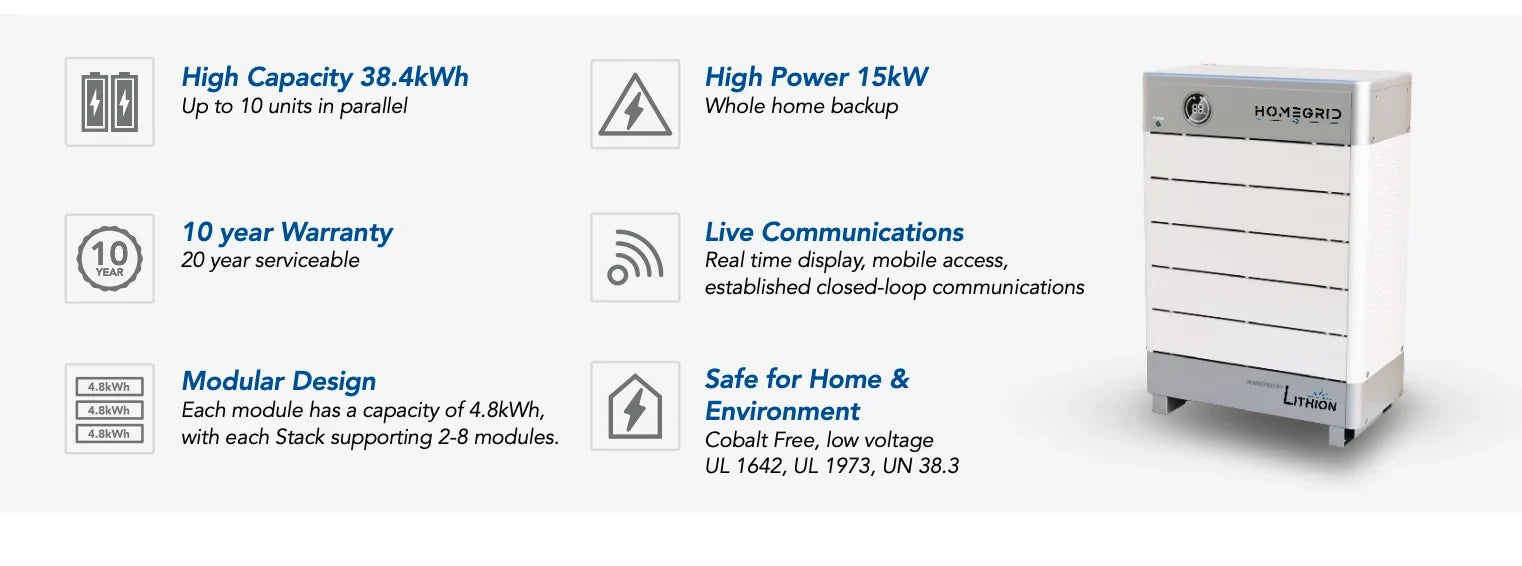

Infographic showing features of the HomeGrid 8 Stackd Series 48V 38.4kWh LFP Battery Bank: 38.4kWh capacity, 15kW power, 10-year warranty, modular design, live monitoring, eco-friendly materials. Battery shown right.

Overview

Modular, Expandable, Reliable

Featuring a continuous output of up to 15 kW and a surge capability of 24 kW for 10 seconds, our system offers reliable full-home backup power when you need it most. Whether it’s keeping your lights on during an outage or powering essential appliances, rest assured, we’ve got you covered.

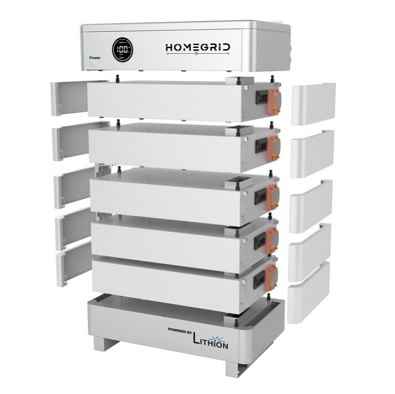

Configuration example: 1 base + 5 × 4.8kWh modules = total capacity of 24kWh.

For smaller setups, consider the HomeGrid 3 Stack’d LFP Battery Bank to provide reliable full-home backup power.

And the best part? You can easily add more modules in the future, tailoring the system to match your growing energy needs seamlessly. Explore the full range of HomeGrid Stack’d Batteries to find the right configuration for your home.

Compatible with leading systems such as Sol-Ark, Schneider, and Outback, our home battery solution offers interoperability and versatility, ensuring a smooth integration into your existing setup. Experience the power of flexibility with our modular home battery system.

Data

Specifications

Battery chemistry technology	Lithium Iron Phosphate
Nominal DC voltage	48 V
DC voltage range	46–56 V
Charge temperature	32°F to 113°F
Discharge temperature	14°F to 140°F
Enclosure rating	IP55
Mounting options	Floor standing

Certificates	UL 1642, UL 1973, UN 38.3
Warranty	10 years
Service plan	20 years serviceable
Scalability	Units in parallel (384 kWh)
Communication	CAN/RS485
Efficiency	> 98%
Compatible inverters	Sol-Ark, Schneider, SMA, Growatt, Solis, Sofar, Sermatec, Victron, Studer, Goodwell, Outback

Stack Configurations

Specifications by Stack Size

The Stack’d Series scales in 4.8kWh increments from 9.6kWh up to 38.4kWh. This product is the 24kWh configuration (highlighted below); other stack sizes are available as separate listings.

Specification	9.6 kWh	14.4 kWh	19.2 kWh	24 kWh	28.8 kWh	33.6 kWh	38.4 kWh
Total energy [kWh]	9.6	14.4	19.2	24	28.8	33.6	38.4
Continuous power output [kW]	9.6	14.4	15	15	15	15	15
Capacity [Ah]	200	300	400	500	600	700	800
Recommended charge current [A]	200	300	312.5	312.5	312.5	312.5	312.5
Max. discharge current, continuous [A]	200	300	312.5	312.5	312.5	312.5	312.5
Max. pulse current DC [A]	300	350	500	500	500	500	500
Weight [lbs]	304	412	520	628	736	844	952

Base unit dimensions (W×D×H): 29 × 15.75 × 25.25 in. Height scales with additional modules: 30.5, 35.75, 41, 46.25, 51.5, 56.75 in for the 14.4 through 38.4 kWh configurations respectively.
