Yeti 1000 Core + Ranger 300 BC Solar Generator

short

Our most versatile power station paired with the lightweight Ranger 300 Briefcase to give you a dependable power solution for high-use energy consumption. Powerful enough for larger devices such as fridges or TVs, portable enough for on the go.

box1

Yeti 1000 Core + Ranger 300 Briefcase Solar Generator HIGHLIGHTS

This solar generator can recharge from the sun in as little as 4 hours.

Solar panels designed for maximum recharge that are lightweitch, easy to set up.

A sustainable energy source with no noise and no fumes.

box2

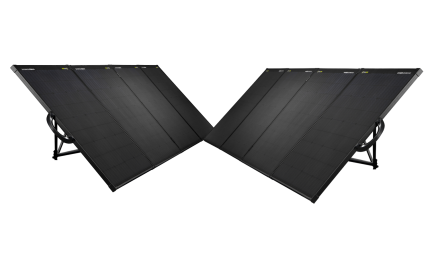

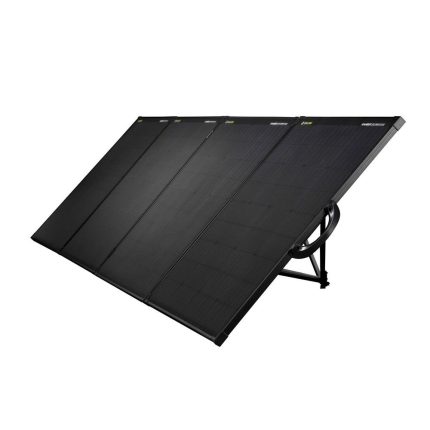

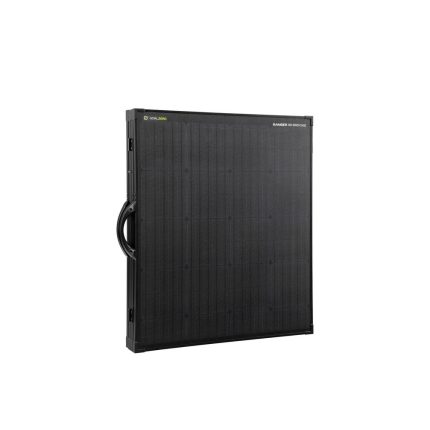

RANGER 300 BRIEFCASE HIGHLIGHTS

• Convenient, Foldable Design
  Four 75-Watt panels, totaling 300 Watts, chained together and connected at the hinge. Easily pack and transport the Ranger 300 from place to place, then store it when not in use.
• Add Solar Power, Not Pounds
  Designed with a thinner aluminum frame and PET polymer shield instead of glass, the Ranger 300 adds 100 Watts of solar to the Boulder 200 while shedding 3 lbs.
• Easy to Use
  Featuring an innovative, patent-pending design, the Ranger 300 kickstands automatically fold out as you open the panel, allowing you to easily position the panel in place while solar charging.
• Maintain Portability
  Built-in handles and magnetized corners make it easier to fold up your panel, pack in the car and go.

TIPS & TRICKS FOR USING SOLAR PANELS

1. The solar panel does not hold a charge – it produces power when it is exposed to sunlight.
2. Place solar panels towards the sun at an angle.
3. Connect High Power Power to Yeti Power Station.
4. Adjust solar panel as the sun moves across the sky.

box3

THREE WAYS TO RECHARGE

• FROM THE SUN
  Recharge from the sun by connecting a compatible solar panel. Charge times are dependent on the size of the solar panel. Example: the Ranger 300 Briefcase will provide 300W of solar and fully recharge the Yeti 1000 Core in 4-8 hours.
• FROM THE WALL
  Plug it into the wall. Fully recharges in 9 hours using the included 120W Power Supply AC Wall Charger. Not quick enough? Drop your recharge time to 4.5 hours with the 230W Power Supply.
• FROM THE CAR
  The Goal Zero Yeti 1000 Core can be charged by plugging into your 12V adapter using the Goal Zero Yeti Lithium 12V Car Charging Cable.

features

YETI 1000X HIGHLIGHTS

• Goodbye Gas Generator. Hello Yeti X.
  With a lithium-ion battery at its core, the Goal Zero Yeti X equips you with safe, clean, portable power for camping, tailgating, off-grid events, workshops, and emergency power during an outage.
• Faster Charging from the Wall
  Yeti 1000X offers up multiple recharging options. Included 120W Power Supply plugs into the 8mm charging port to recharge the Yeti in 9 hours. Industry-leading 600W High Power Port lets you recharge in as little as 2 hours using the Yeti X 600W Power Supply (sold separately).
• Versatile Port Options
  Power a wide range of devices with seven different port options including fast-charging 60W USB-C Power Delivery, multiple USB-A ports, regulated 12V, and two 120V AC ports.
• Experience Unlimited Power
  Charge the Yeti 1000X from the sun with our portable solar panels while away from the grid, and keep it topped off from a wall outlet when you’re home. Integrated MPPT charge controller ensures you’re getting the most efficient solar charge possible.

RANGER 300 BRIEFCASE HIGHLIGHTS

• Convenient, Foldable Design
  Four 75-Watt panels, totaling 300 Watts, chained together and connected at the hinge. Easily pack and transport the Ranger 300 from place to place, then store it when not in use.
• Add Solar Power, Not Pounds
  Designed with a thinner aluminum frame and ETFE polymer instead of glass, the Ranger 300 adds 100 Watts of solar to the Boulder 200 while shedding 3 lbs.
• Easy to Use
  Featuring an innovative, patent-pending design, the Ranger 300 kickstands automatically fold out as you open the panel, allowing you to easily position the panel in place while solar charging.
• Maintain Portability
  Built-in handles and magnetized corners make it easier to fold up your panel, pack in the car and go.

WHAT CAN THE YETI 1000X POWER?

Recharges
Smart Phone (12 Wh): 82
Tablet (30 Wh): 33
Laptop (50 Wh): 20
POV Camera (5 Wh): 197
DSLR Camera (18 Wh): 55
Head Lamp (5 Wh): 197

Hours of Runtime
Light-a-Life 350 (4.5 W): 219
Light Bulb (11 W): 90
CPAP (65 W): 15
TV (42″ LED) (100 W): 10
Pellet Grill (60 W): 17
Microwave (1000 W): 1
Portable Fridge (25 W): 40
WiFi Router (25 W): 40
Mini Fridge(35 W): 28
Full Size Refrigerator (55 W): 18
Circular Saw (13 Amp) (1500 W): 0.5

WHAT’S IN THE BOX

• Yeti 1000 Core Power Station
• 120W Power Supply
• Ranger 300 Briefcase Solar Panel
• Canvas Carrying Bag

specs

1. 12V CAR PORT

   12V, up to 15A (180W max), regulated

2. (2X) 120V AC INVERTER

   120VAC 60Hz 12-5A (1200W,2400W surge)

3. (2X) 6MM OUTPUT PORTS

   12V, up to 10A (120W max), regulated

4. 8MM CHARGE PORT

   14-50V, up to 10A (150W max)

5. HIGH POWER CHARGE PORT

   14-50V, up to 25A (300W max)

6. 12V HIGH POWER PORT

   12V, up to 13A (150W max), regulated

7. USB-C PD PORT

   5-20V, up to 10A (60W max), regulated

8. (2X) USB-A PORT

   5V, up to 2.4A(12W max regulated)

9. usb-c pd port

   5-12v, up to 3.0A (18W max) regulated

tech

CHARGE TIMES

• AC Wall Charger
• 120W: 9 Hours
• 230W: 4.5 Hours

Battery Details

• Cell chemistry: Li-ion NMC
• Pack capacity: 983Wh (10.8V, 91Ah)
• Single Cell Equivalent Capacity: 273Ah @ 3.6V
• Pack Lithium Content: 82g
• Lifecycles: 500 Cycles to 80% capacity (Discharge rate: 1C, Full charge/discharge, Temp: 25C)
• Shelf-life: Charge every 3-6 months
• Management system: MPPT charge controller

Ports

• USB-A port (output): 5V, up to 2.4A (12W max), regulated
• USB-C port (output): 5 – 12V, up to 3.0A (18W max), regulated
• USB-C PD port (input / output): 5 – 20V, up to 3.0A (60W max), regulated
• 6mm port (output, 6mm): 12V, up to 10A (120W max), regulated
• 12V car port (output): 12V, up to 15A (180W max), regulated
• 12V High Power Port (output): 12V, up to 15A (180W max), regulated
• 120V AC Inverter: 120VAC 60Hz, 10A (1200W, 2400W surge) (output, pure sine wave)
• Charging port (input, 8mm): 14-50V, up to 10A (150W max)
• Charging High Power Port (input): 14-50V, up to 25A (300W max)
• Expansion Module port: Not Available

General

• Kit SKU: 44410
• Chainable: No
• Weight: 31.68 lbs (14.37 kg)
• Dimensions: 15.25 x 10.23 x 9.86 in (38.74 x 25.98 x 25.04 cm)
• Operating usage temp.: 32-104 F (0-40 C)
• Certs: CE FCC
• Warranty: 2 years

tech2

Charge Times

• Yeti 1000 Core: 4-8 Hours
• Yeti 1000X: 4-8 Hours
• Yeti 1400 Lithium: 7-14 Hours
• Yeti 1500X: 6-12 Hours
• Yeti 3000 Lithium: 12-24 Hours
• Yeti 3000X: 12-24 Hours
• Yeti 6000X: 24-48 Hours

General

• Weight: 37.71 lbs (17.12 kg)
• Dimensions (folded): 31.26 x 23.39 x 3.8in (79.4 x 59.4 x 9.7cm)
• Dimensions (unfolded, without leg stand): 31.26 x94.29 x 0.9in (79.4 x 239.5 x 2.3cm)
• Cable Length: 6ft
• Cable Gauge: 12 AWG
• Warranty: 2 years

Ports

• High Power Port (6ft of 12AWG cable): 14-23V, up to 21A (300W max)
