Eco Solar Kits · Sungold Power · SGH-7.6N3E

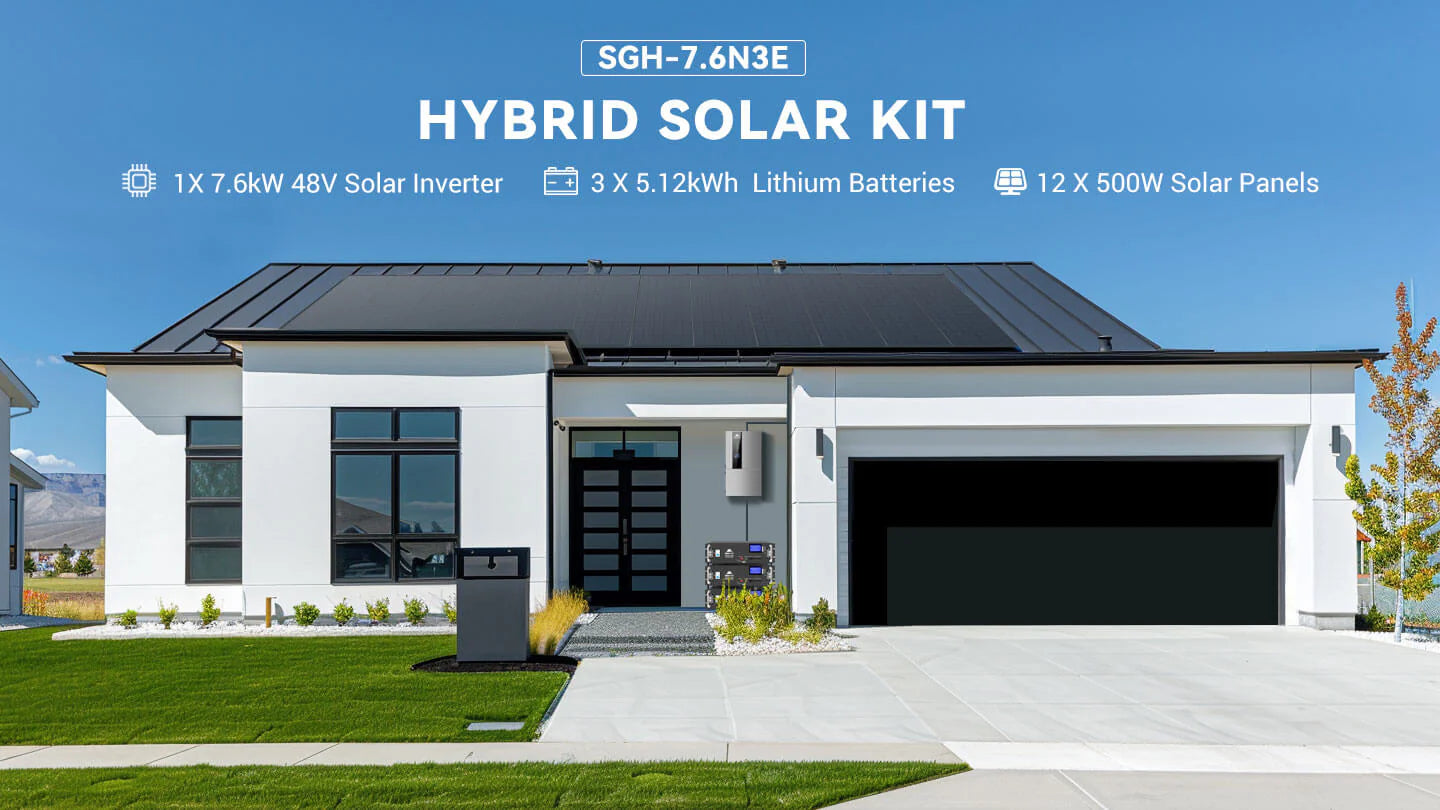

Sungold Power 7.6kW 15.36kWh Split Phase Hybrid Solar Kit 48V Lithium Battery 12 x 500 Watt Solar Panels SGH-7.6N3E

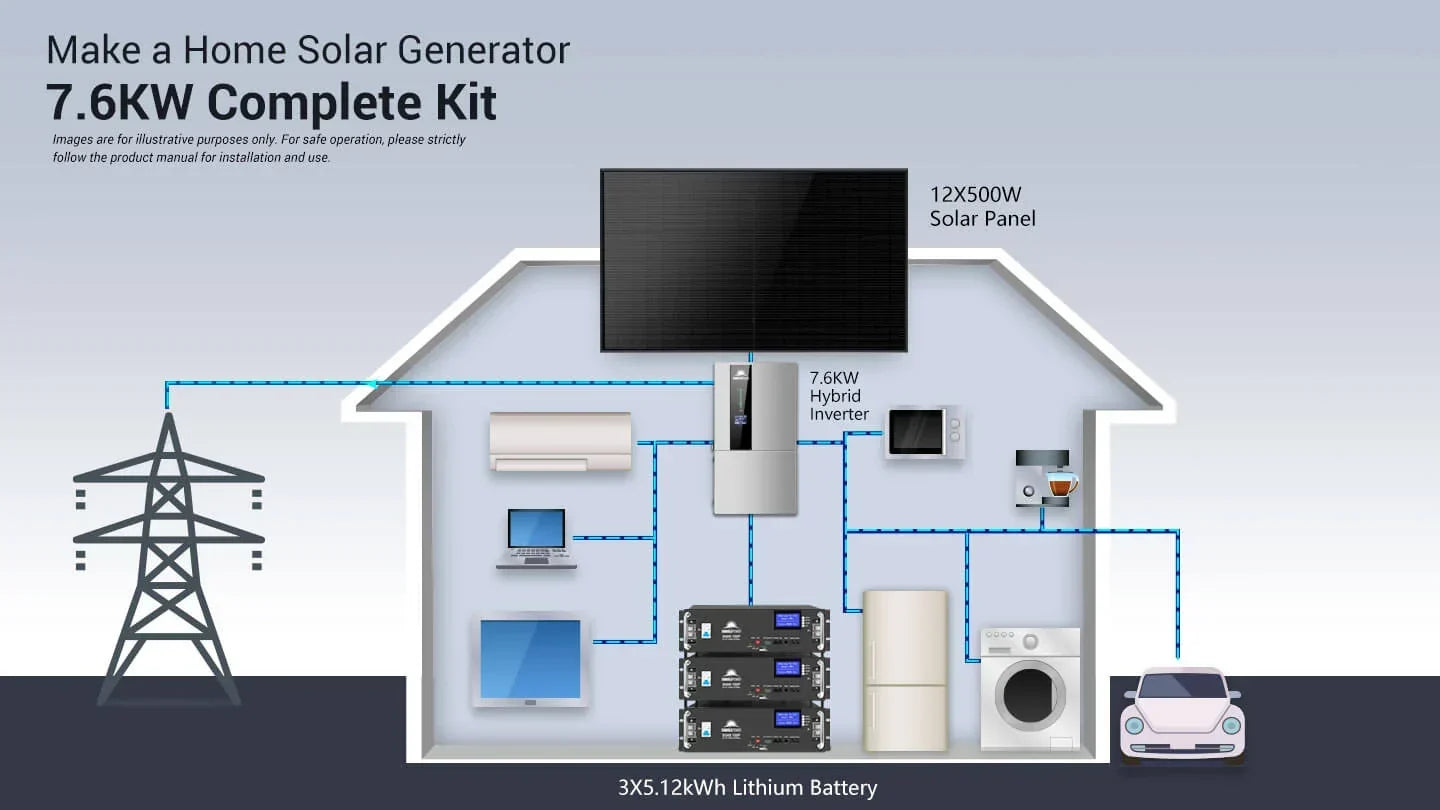

A complete hybrid solar system — 7.6kW split-phase inverter with grid-tie capability, 15.36kWh of LiFePO₄ battery storage, and twelve 500W monocrystalline panels — supports off-grid, hybrid, and grid-tied configurations.
Overview
This Hybrid Solar Kit includes 6,000W or 13,280W of solar panels, a 7.6kW hybrid inverter, and your choice of 15.36kWh or 30.72kWh of lithium battery storage. Designed for ultimate flexibility, the system supports off-grid, hybrid, and grid-tied configurations, allowing you to run appliances on solar power, send excess energy to the grid, and store electricity for cost savings or backup during outages.

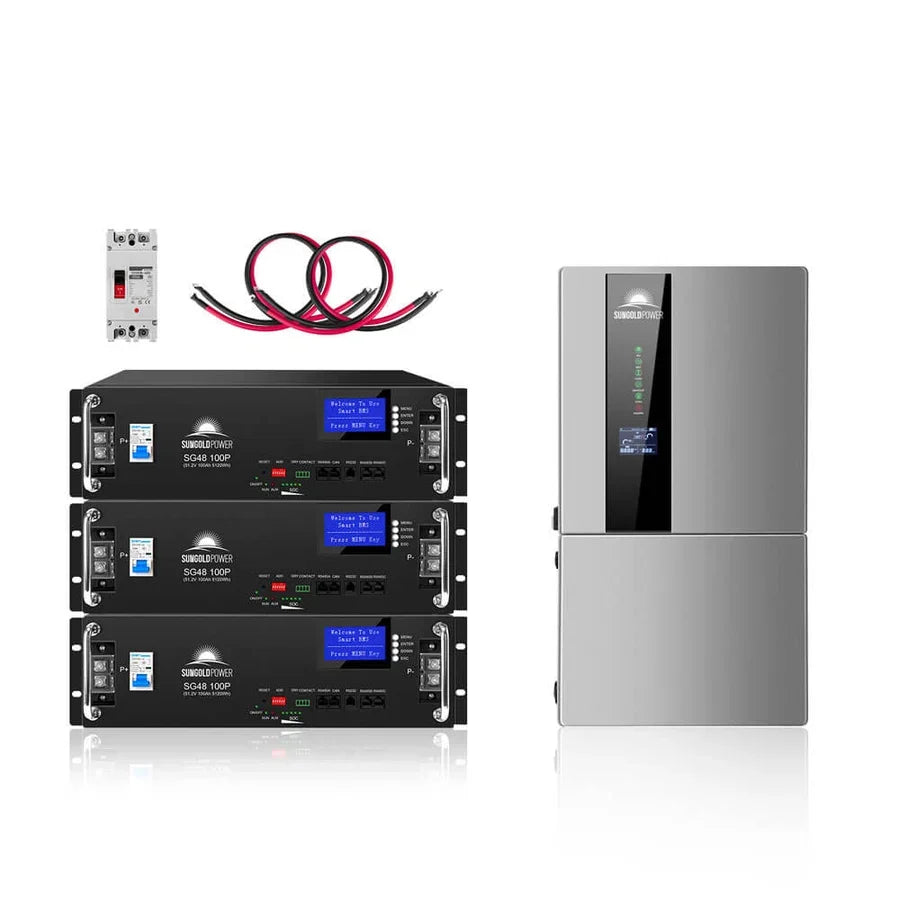

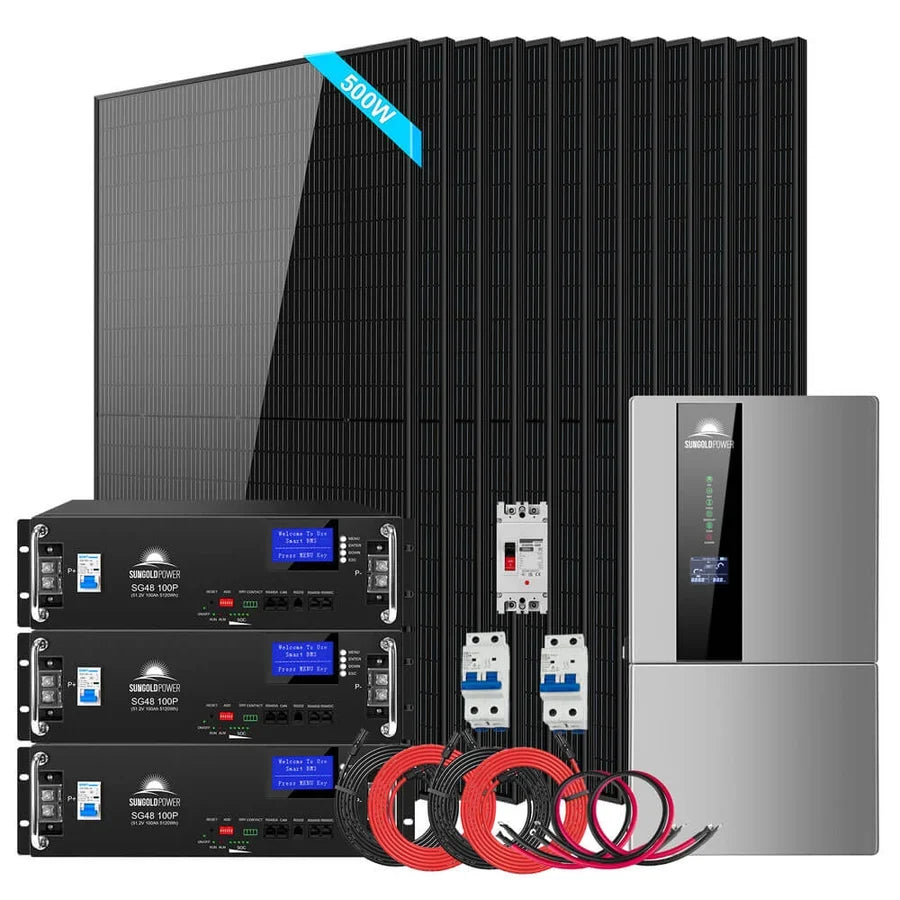

What is included with the solar kit?
- •1 X 7.6KW 48V Split Phase Hybrid Solar Inverter
- •12 X 500W Watt Monocrystalline Solar Panels
- •3 X 100AH 51.2V Lifepo4 Battery
- •2 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
- •2/0 AWG Battery Cable
Key Features
7.6kW Continuous, 10kW Peak
Rated output with extra headroom available briefly for motor starts and other high-draw moments.
Off-Grid, Hybrid, or Grid-Tied
Run appliances on solar, send excess to the grid, or store power for backup — one system, three modes.
12kW Solar Input, 3 MPPTs
Each tracker supports up to 600V, for a combined solar array well beyond the 6kW of panels included here.
WiFi Monitoring Included
Track performance, battery status, and system behavior from your phone or browser.
Expandable to 9 Units
Parallel up to 9 identical inverters for a 68.4kW system as power needs grow.
UL 1741 / CEC Listed, IP65
Meets utility-interconnection standards for grid-tie use, in a rated-for-outdoor enclosure.
10-Year Inverter Warranty
Confirmed directly for this inverter model — notably longer than the off-grid SPH-series inverters.
21.05% Panel Efficiency
Half-cell Mono PERC cells backed by a 25-year linear performance warranty.
Full Specifications

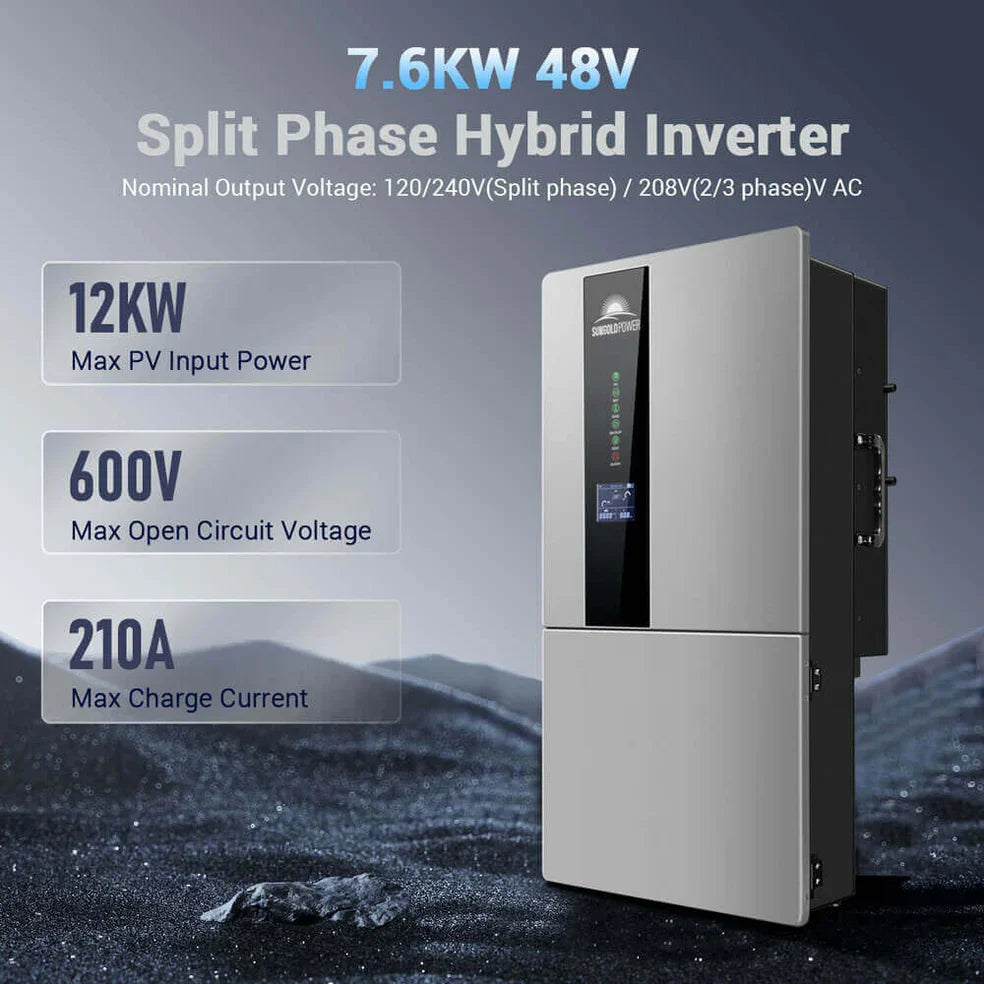

SGN7.6K1HB-48 Hybrid Inverter (×1)
Output
| Continuous output power | 7.6 kW |
| Peak output power | Up to 10 kW |
| Rated output voltage | 120/240Vac split-phase, or 208V (2/3 phase) |
| AC frequency | 50/60 Hz |
Battery Input
| Battery voltage range | 40–64 Vdc |
| Max. charge current | 210 A |
| Max. discharge current | 180 A |
PV Input
| No. of MPPT trackers | 3 (independent) |
| Max. combined solar input | 12 kW |
| Max. voltage per tracker | 600 Vdc |
| PV voltage range | 70–540 Vdc |
Modes & Grid Functions
| Operating modes | Off-grid / Hybrid / Grid-tied |
| AC coupling | Supported (single-inverter systems only) |
| Monitoring | WiFi + mobile app, LCD display |
Physical & Scaling
| Protection rating | IP65 |
| Mounting | Wall-mounted |
| Max parallel | 9 units, up to 68.4kW combined |
Certification & Warranty
| Safety | UL 1741, UL 1699B, UL 1741SB, CSA C22.2 |
| Grid standards | IEEE 1547:2018, HECO SRD 2.0, CEC Listed |
| Warranty | 10 years |

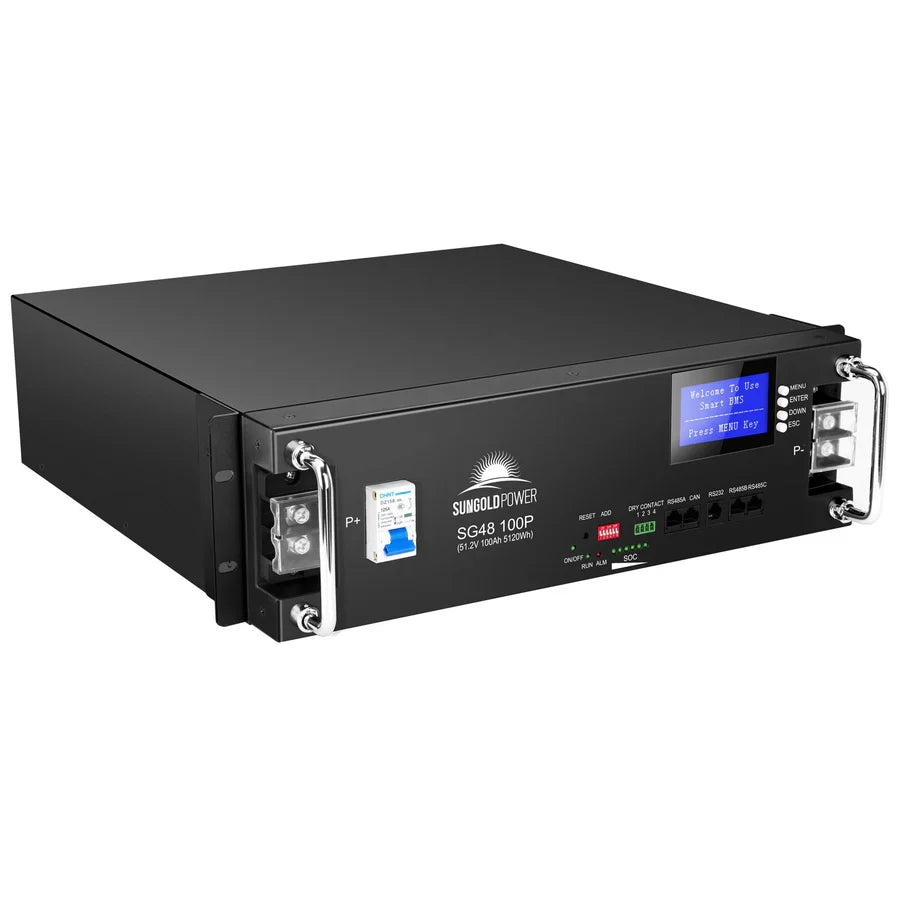

SG48100P LiFePO₄ Battery (×3)
Capacity
| Rated capacity | 100 Ah |
| Nominal voltage | 51.2 V |
| Energy per unit | 5,120 Wh |
| Combined (3 units) | 15,360 Wh (15.36 kWh) |
Durability & Warranty
| Cycle life* | ≥7,000 to 80% capacity |
| Design life | 15 years |
| Warranty | 10 years |
| Certification | UL1973 |
Protection & Communication
| Smart BMS | Overcharge, deep-discharge, overheat, short-circuit |
| Communication | CAN / RS485 / RS232 |
| Inverter compatibility | Growatt, Deye, Luxpower, Victron, and more |
Scaling
| Max parallel | 32 units |
| Max combined capacity | 163.84 kWh |

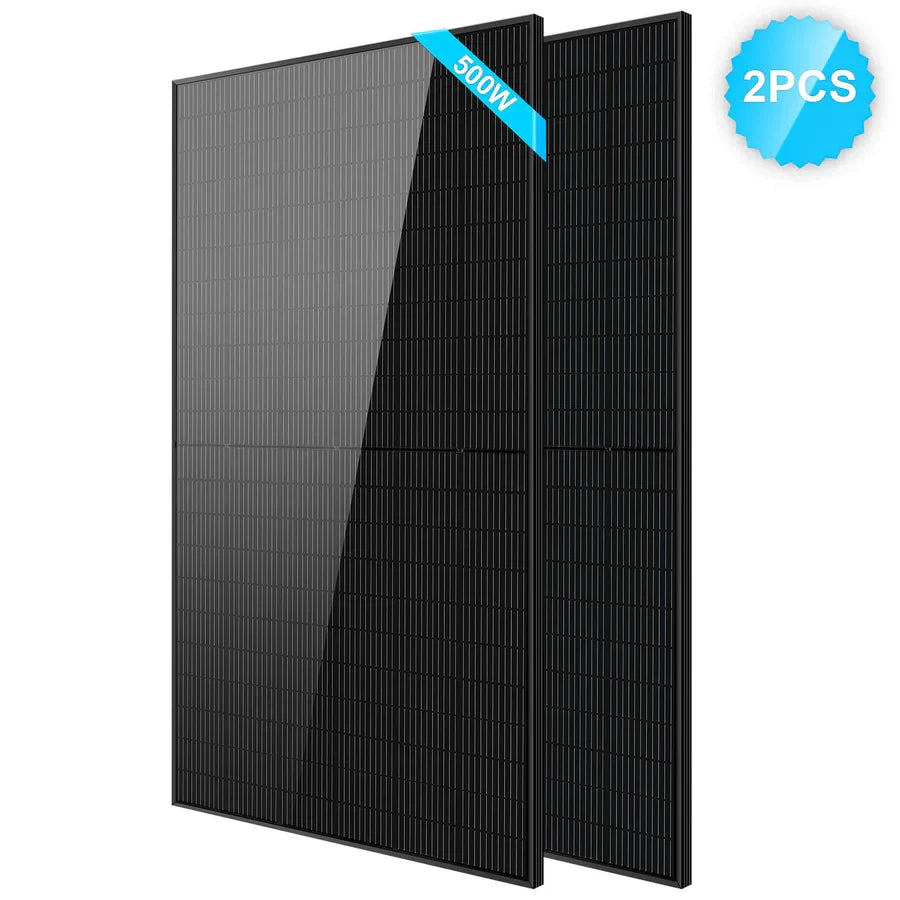

SG500WM Monocrystalline Panel (×12)
Electrical
| Rated power | 500 W |
| Module efficiency | 21.05% |
| Cell technology | Mono PERC, half-cut |
Build & Warranty**
| Weight (each) | 56.2 lbs |

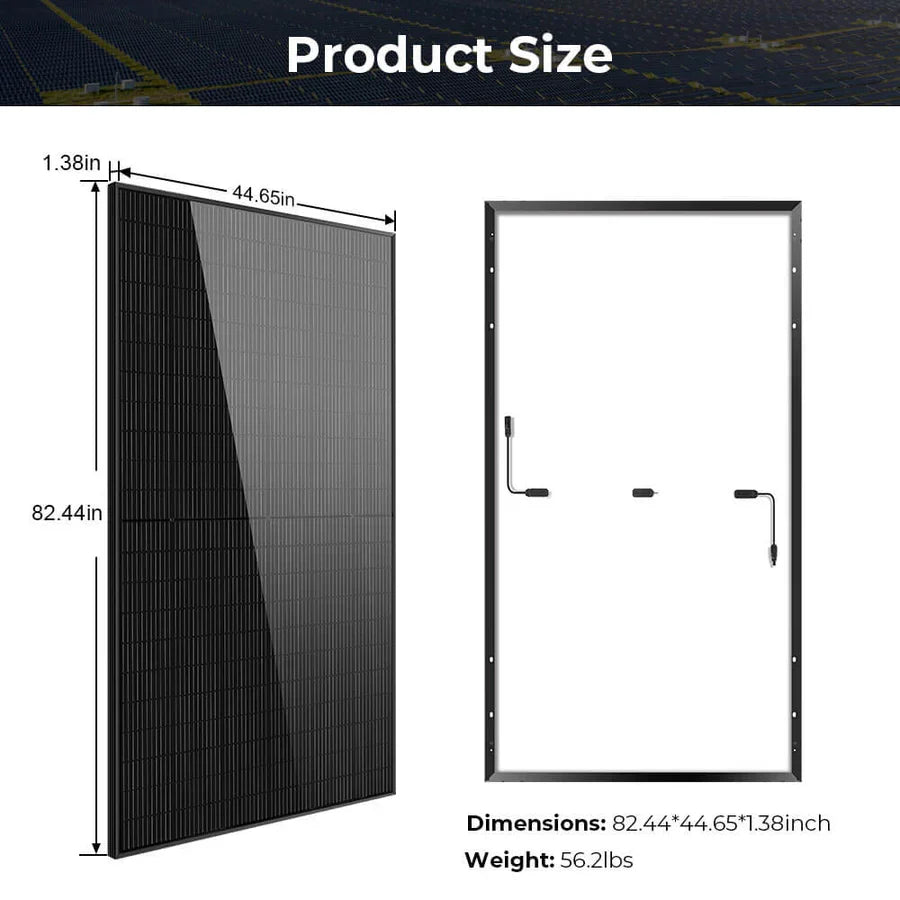

| Dimensions | 82.44 × 44.65 × 1.38 in |
| Certification | UL 61730, CEC Listed |
| Warranty | 25yr linear performance + 10yr workmanship |
Three Ways to Use It
Common Questions
Can this system send power back to the grid?
Yes — in grid-tied mode, excess solar power can be sold back to the grid. The system also supports pure off-grid operation and a hybrid mode combining solar, battery, and grid.
Can I connect multiple inverters together?
Yes — up to 9 identical SGN7.6K1HB-48 inverters can run in parallel for a combined 68.4kW system as power needs grow.
What’s the actual usable battery capacity?
15.36kWh combined from three 5,120Wh LiFePO₄ batteries, each rated for at least 7,000 cycles to 80% capacity and backed by a confirmed 10-year warranty.
Can I add more solar panels later?
Yes — the inverter’s three MPPT trackers support up to 12kW of combined solar input, well above the 6kW (12×500W) included in this kit.
Is there a version without solar panels?
Yes — this product is also available without panels, for anyone sourcing their own or already owning compatible panels.
Do I need a licensed electrician to install this?
Given the grid-interconnection requirements plus the voltages, currents, and battery wiring involved, installation should be handled by a qualified, licensed electrician familiar with your local code and utility interconnection rules.
