Features

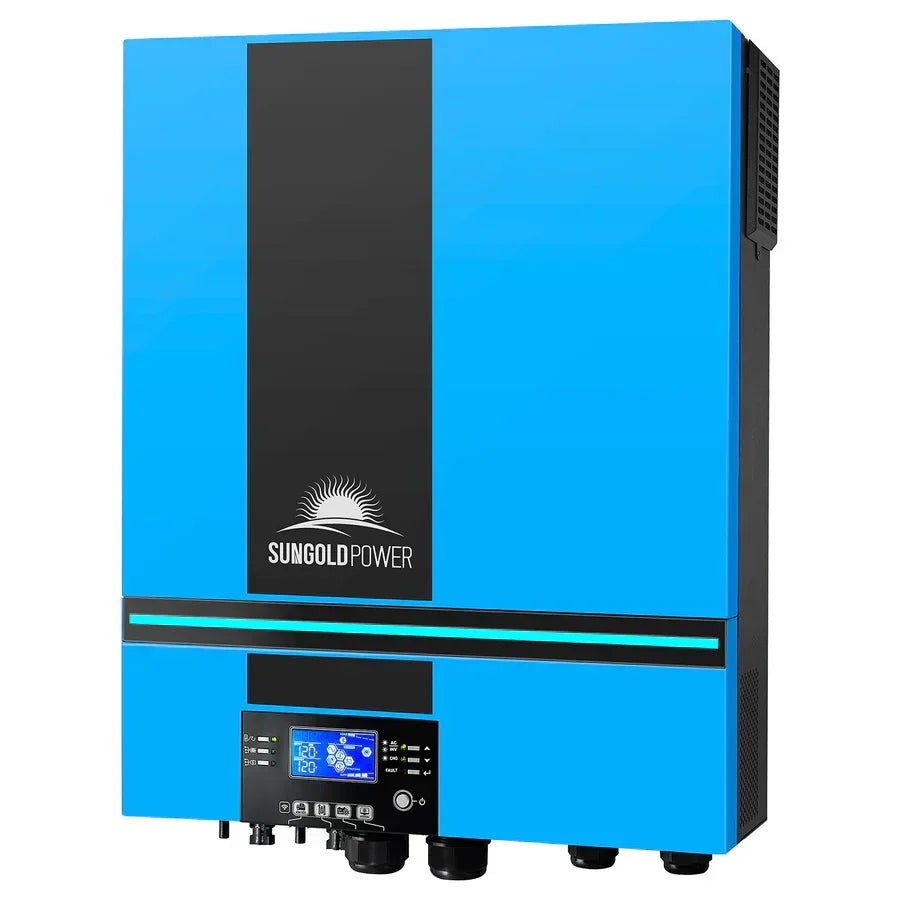

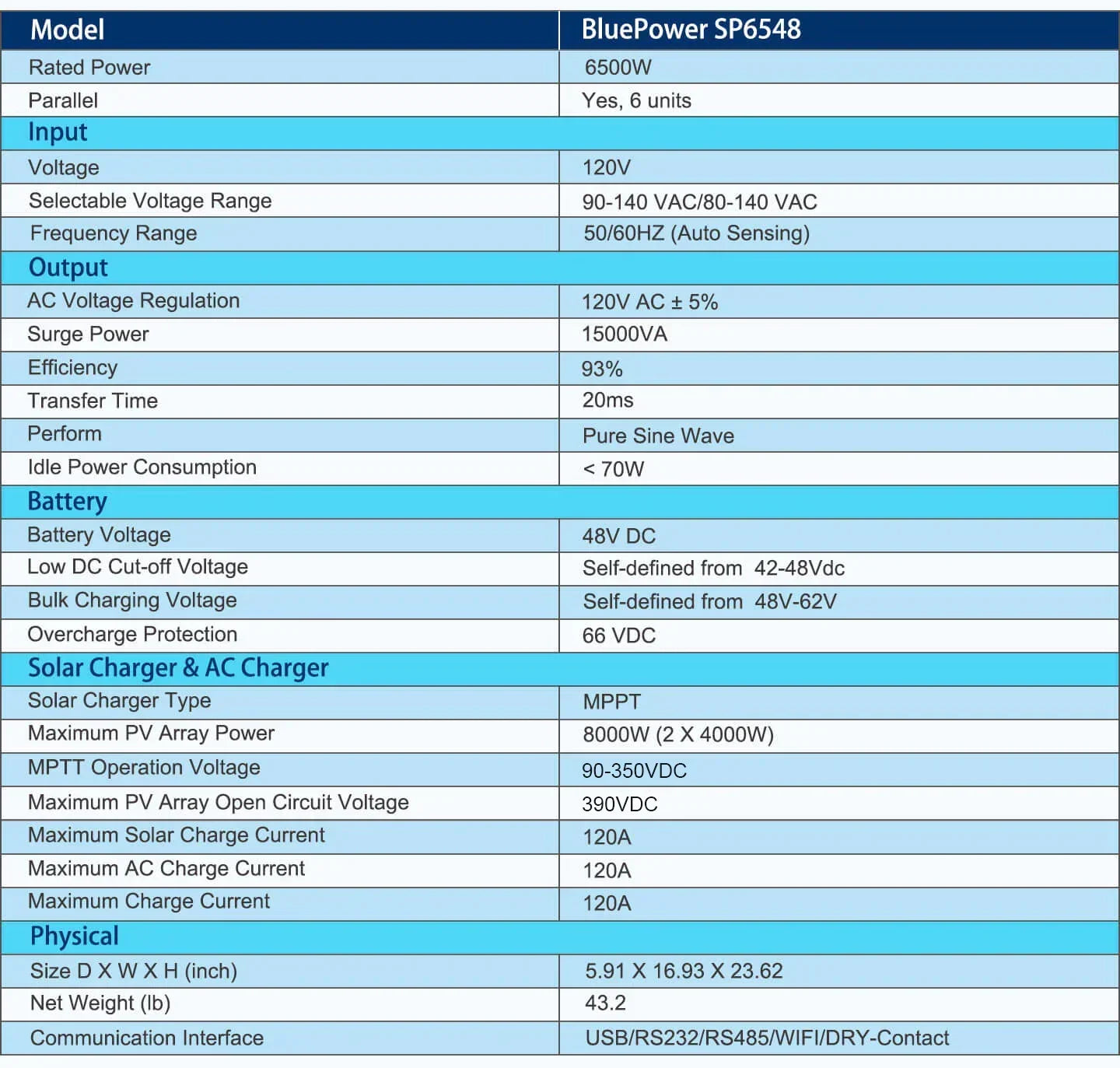

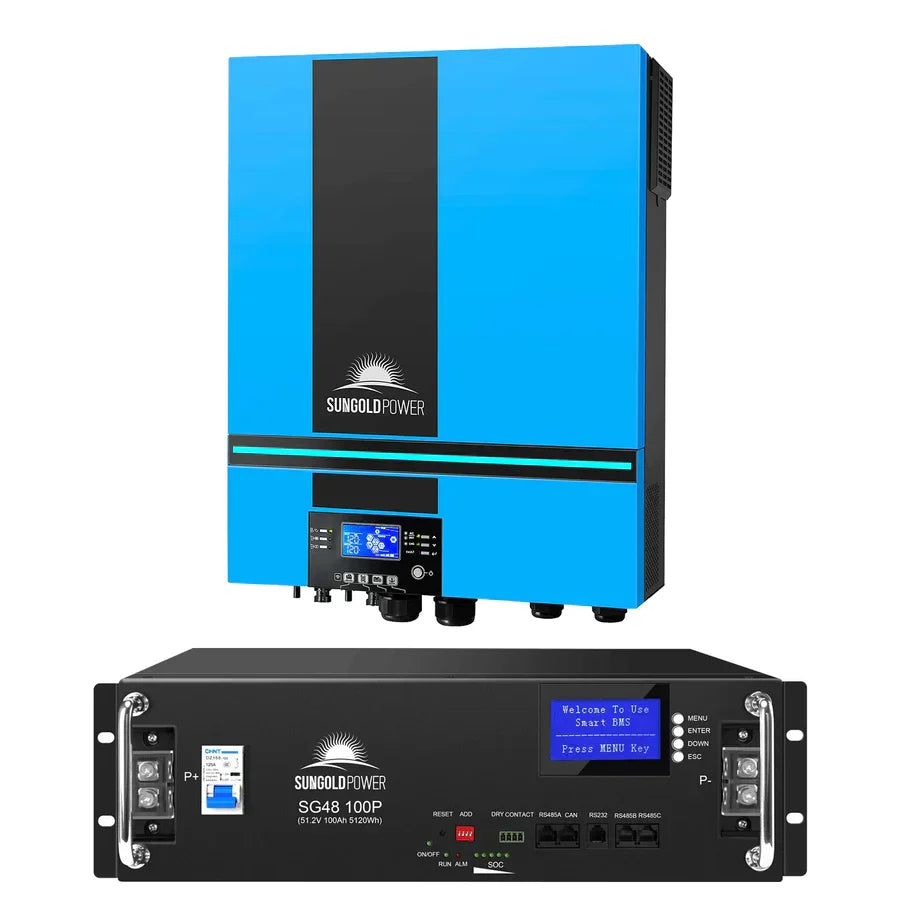

• Solar Inverter: Featuring a 6.5KW DC 48V pure sine wave output of 120VAC, equipped with a built-in MPPT solar charger with a maximum capacity of 120A, and a utility battery charger with a maximum capacity of 120A. Supports a maximum PV input of 390V (VOC) with dual PV input. Compliant with UL 1741 Standard and listed by TUV/CSA/FCC.

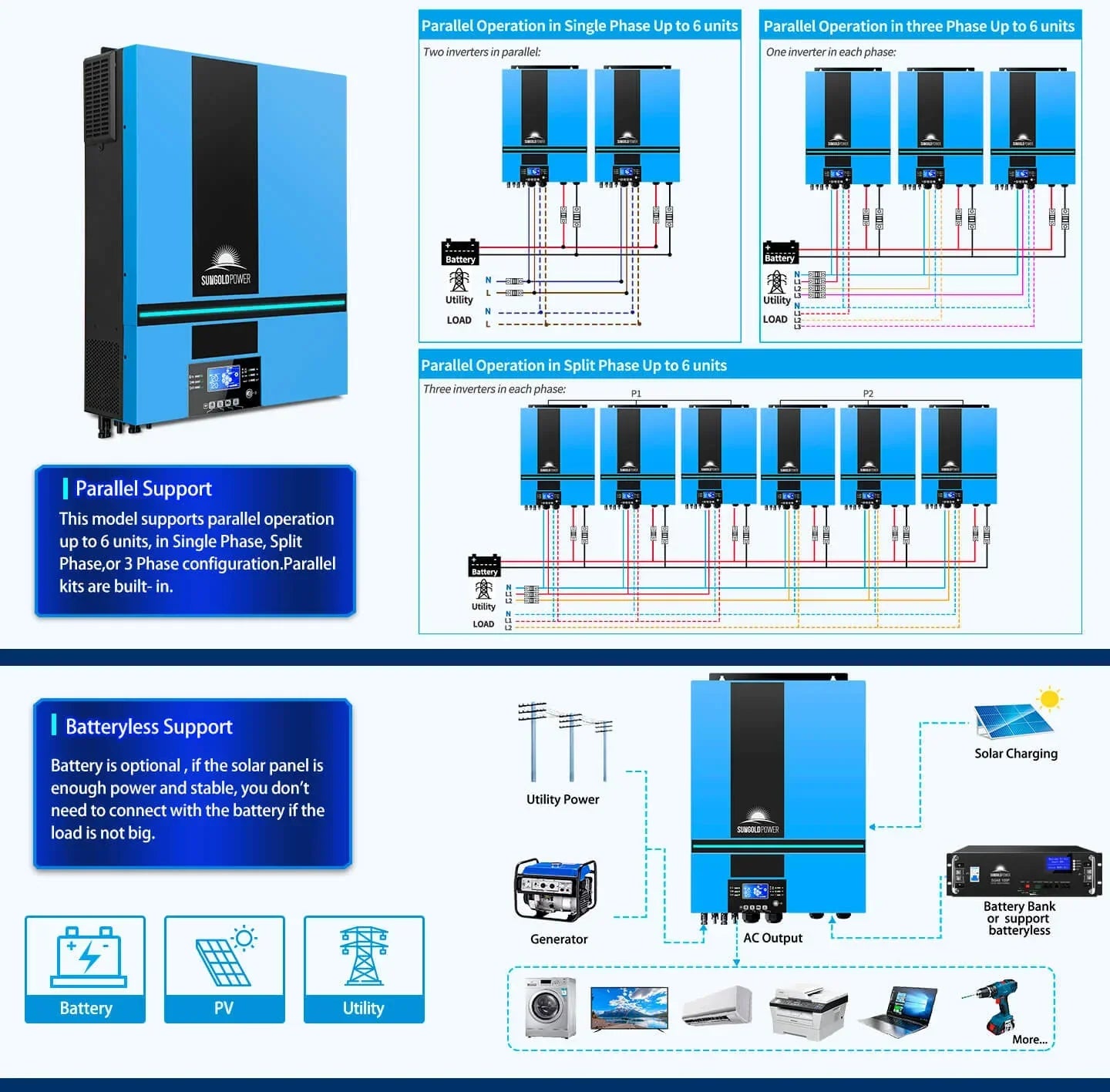

• Parallel Kit: Supports parallel connection of up to 6 units, offering 120V single-phase output (1 unit), 120V/240V Split Phase capability (2 units parallel), and 208V 3-Phase Support (3 units parallel).

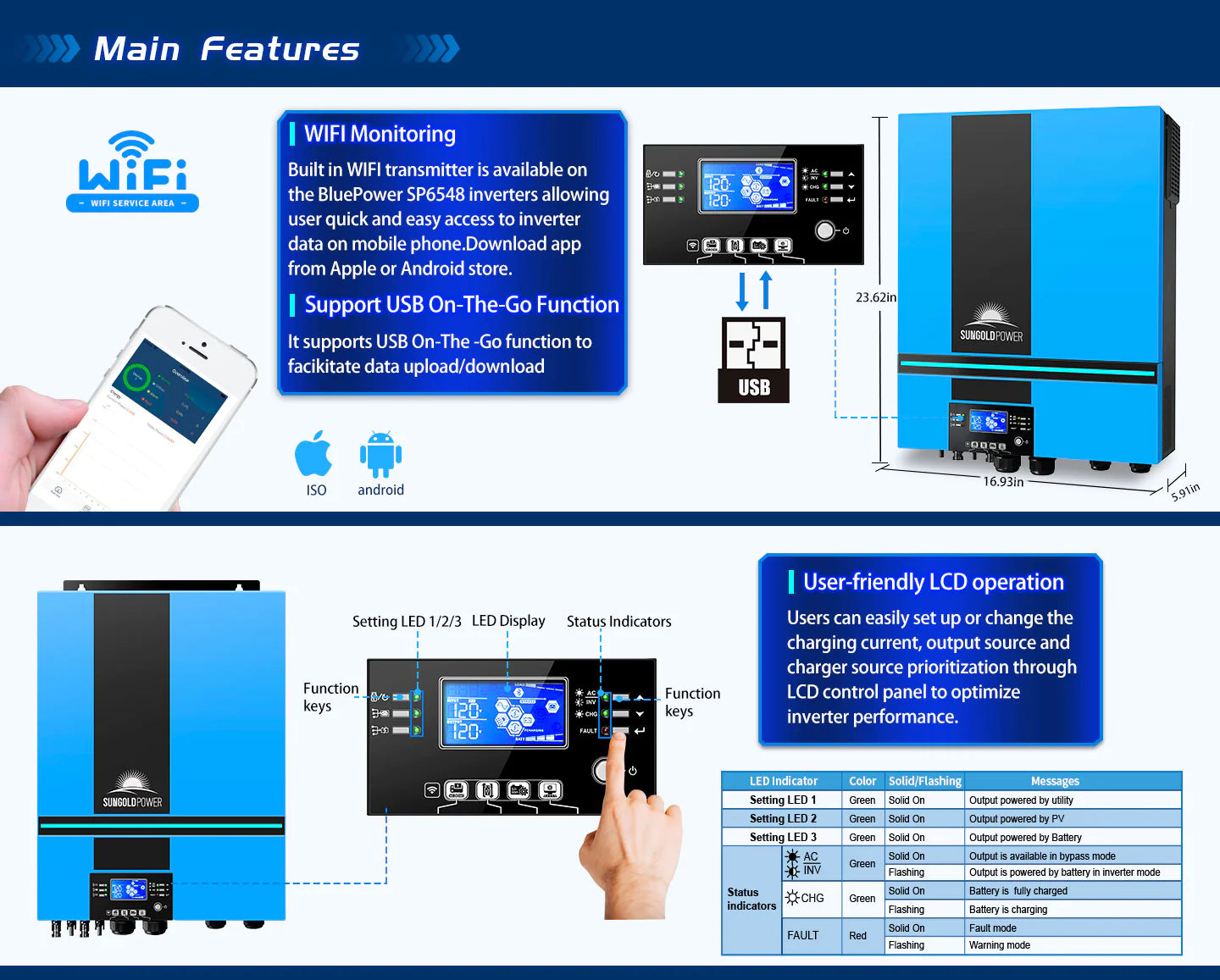

• WIFI Model: Includes a built-in WIFI transmitter, allowing for the transmission of inverter data via WIFI to the user’s iPhone or Android smartphone. The app for monitoring can be downloaded from the Apple or Android store.
• Batteryless Support: The inverter is capable of powering loads directly from the PV array or AC grid without the need for a connected battery.

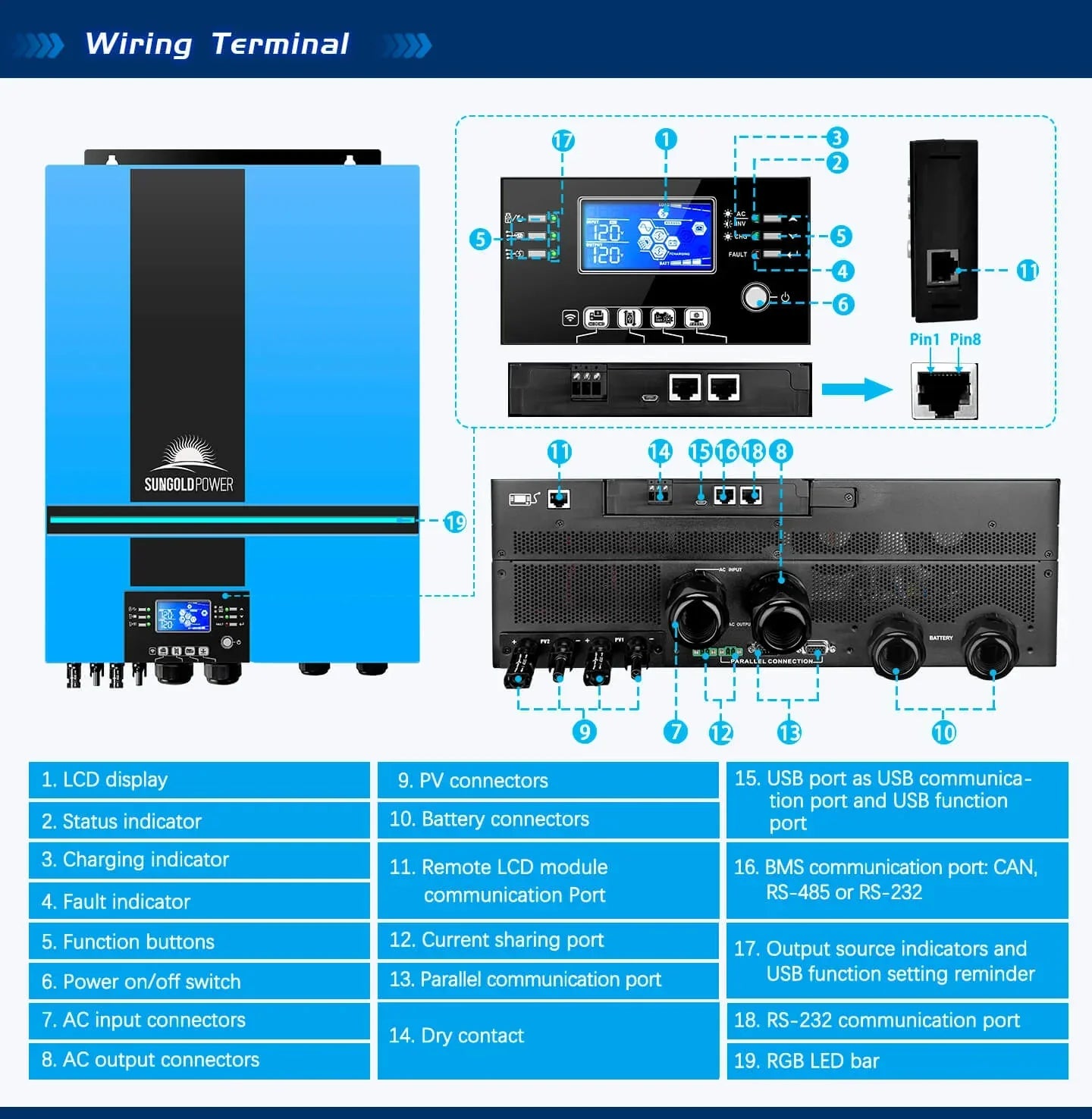

• LCD Operation: Features a detachable LCD control module with multiple communication ports for BMS, including RS485, CAN-BUS, and RS232.
