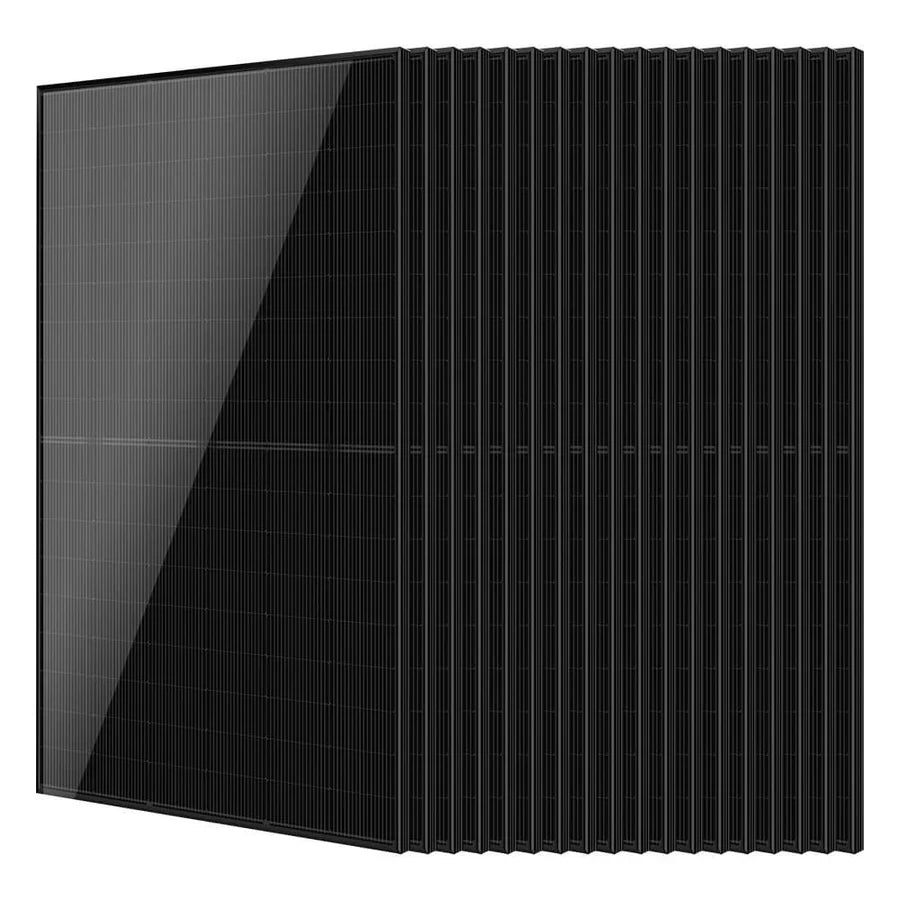

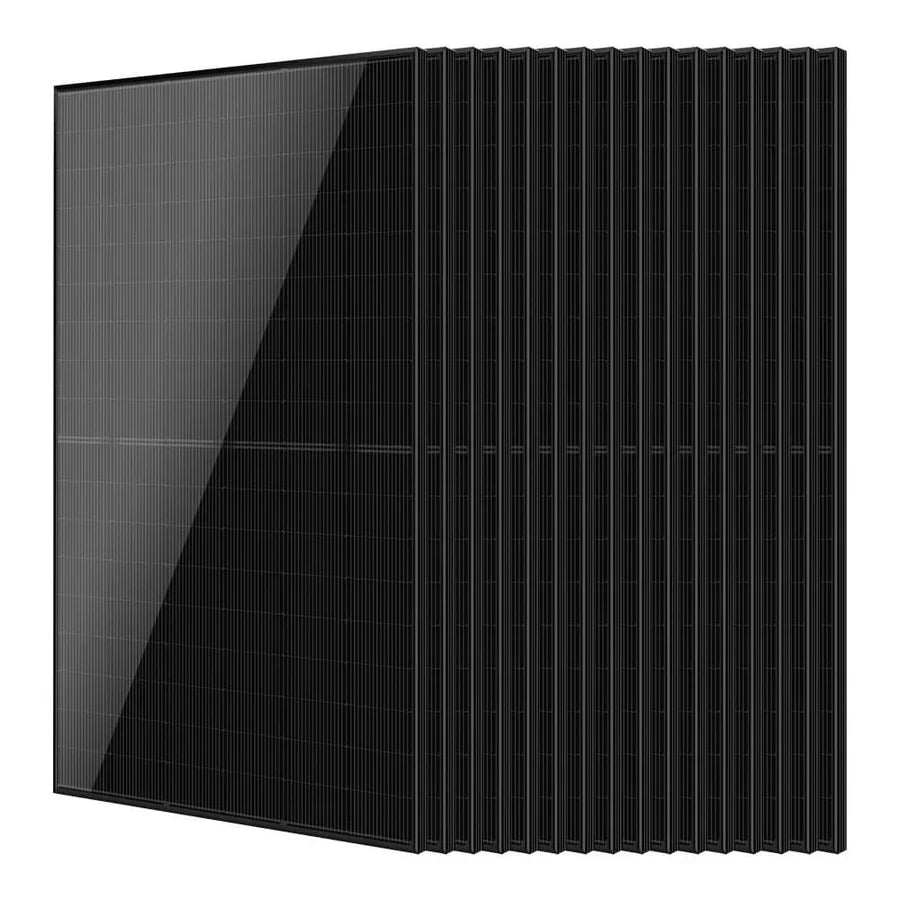

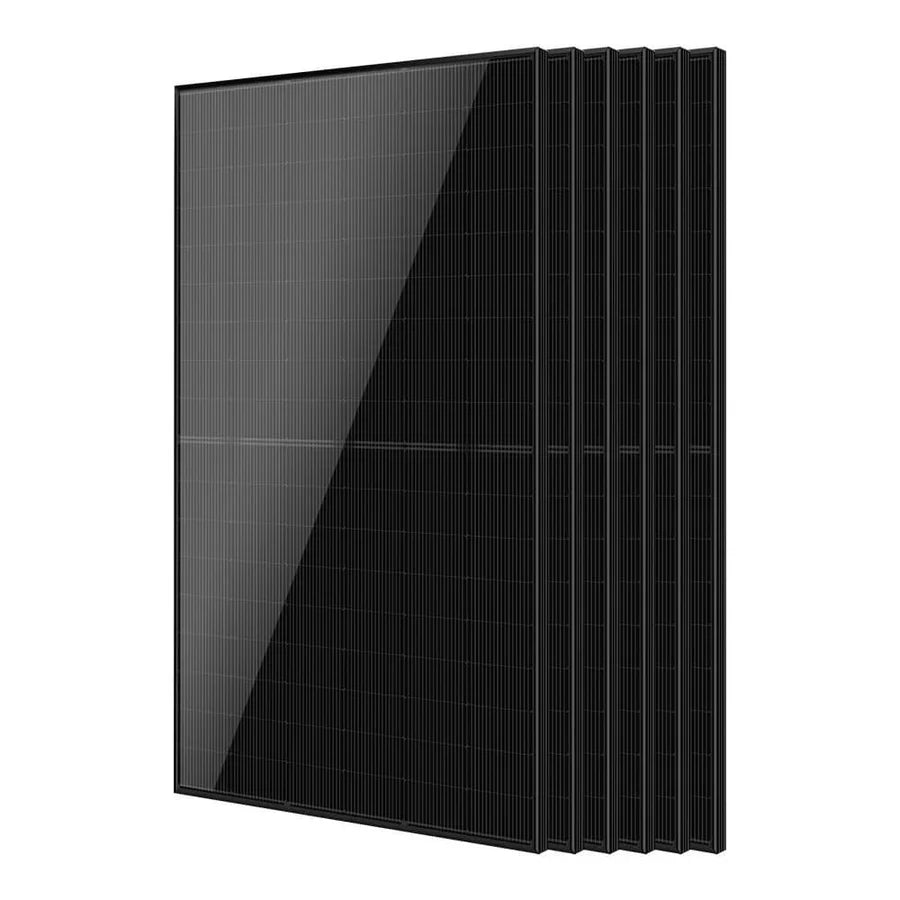

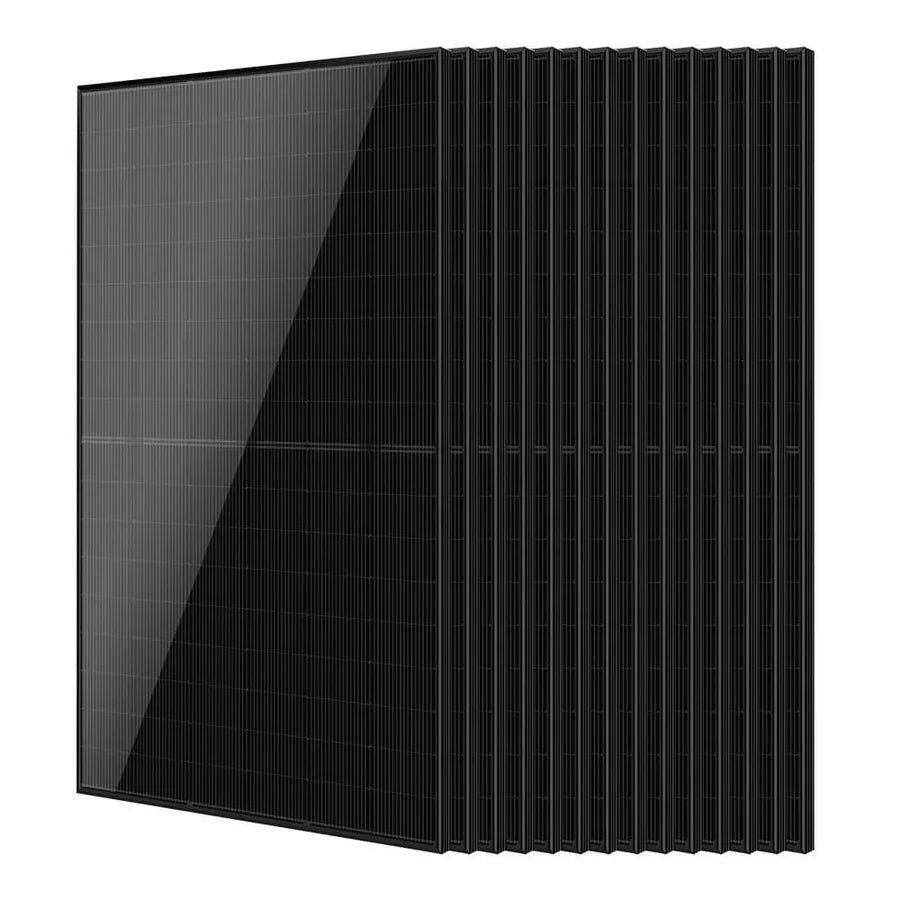

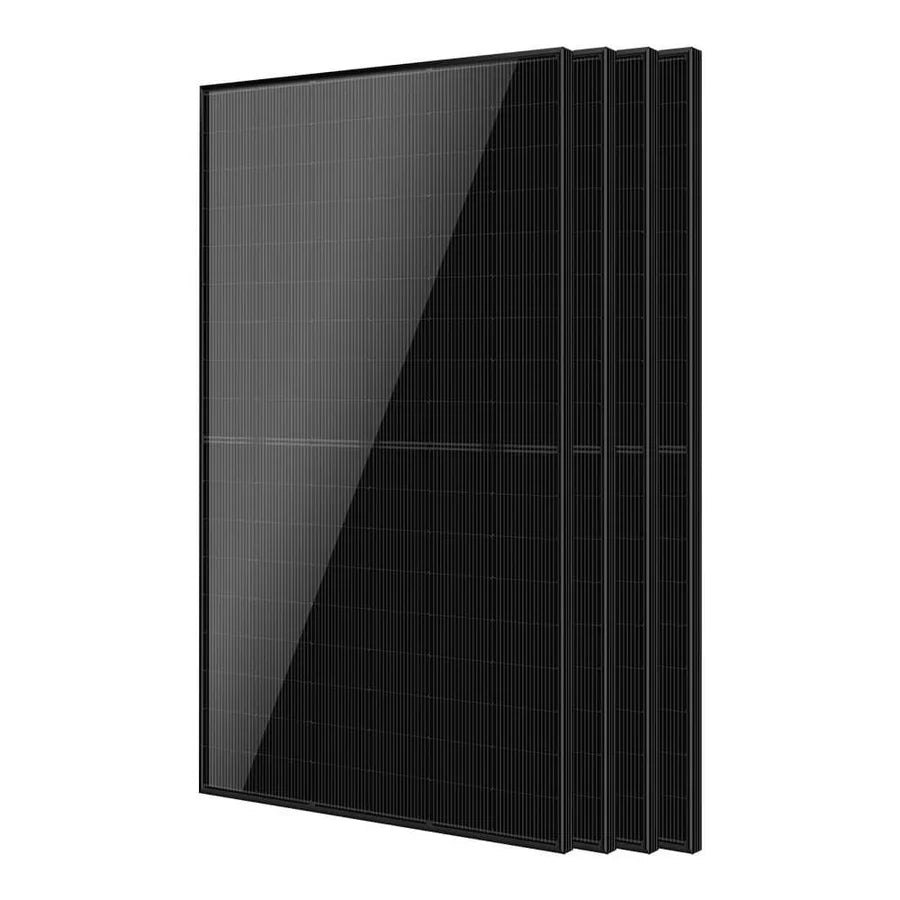

N-Type Monocrystalline Solar Panel · 440W
440W Mono Black N-Type Solar Panel UL61730
This high efficiency N-Type Solar panel works for both on-grid/off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.
Built for Every System Type
This high efficiency N-Type Solar panel works for both on-grid/off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.

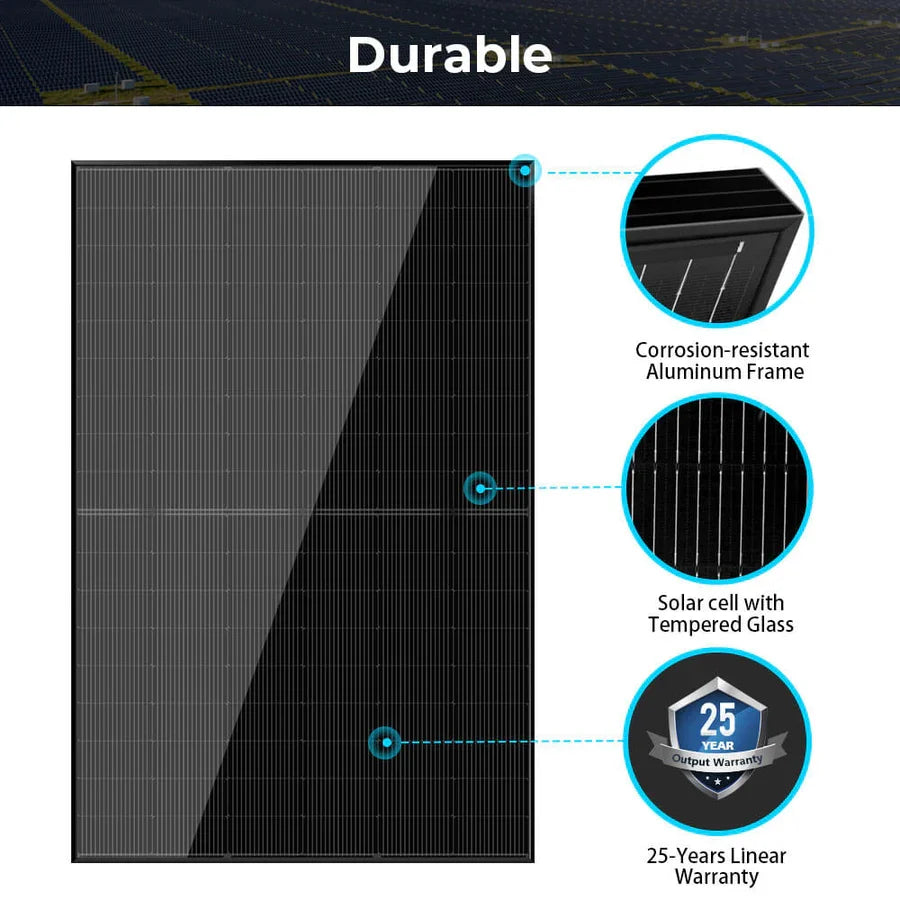

Built for Performance & Durability

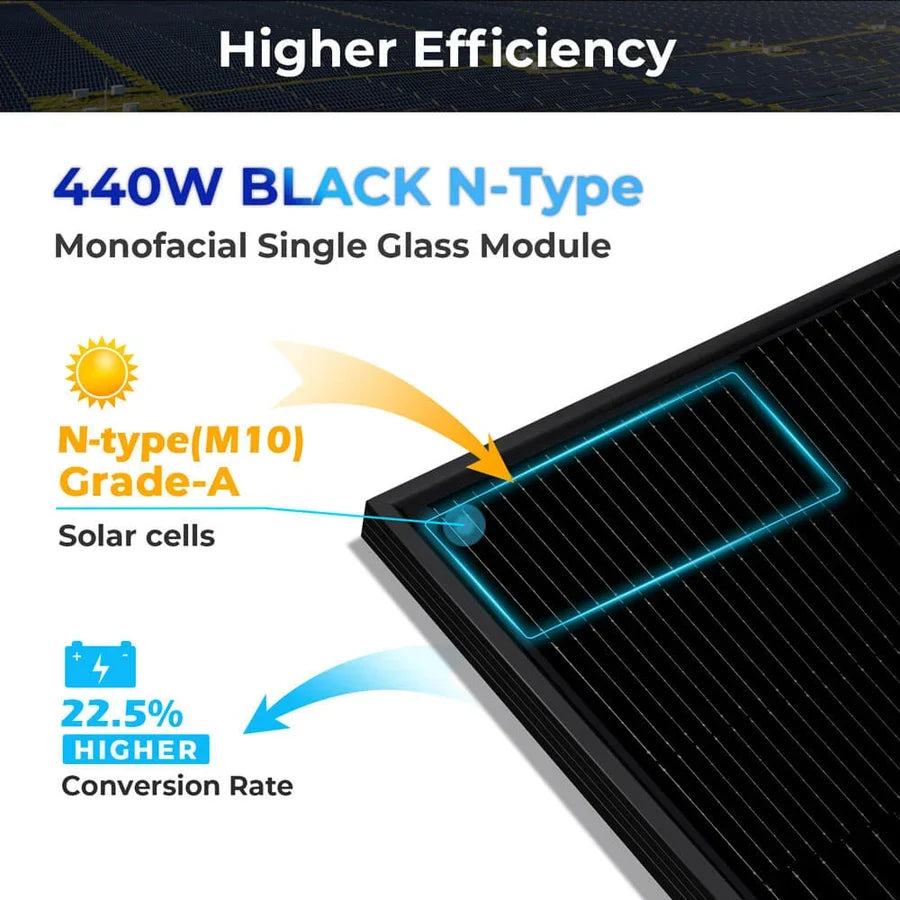

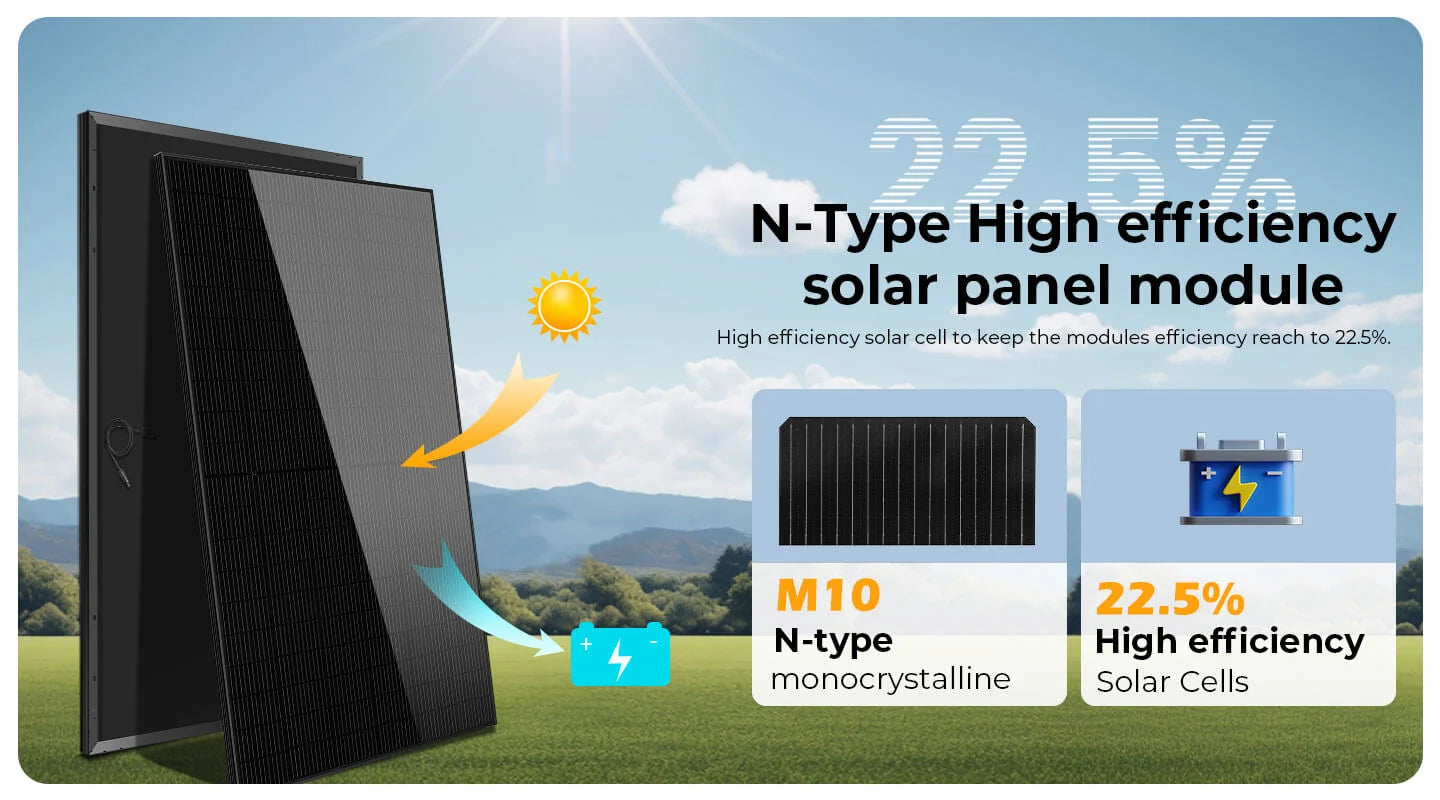

High Efficiency
30-year lifespan delivers 10-30% more power compared with conventional P-type modules.
Water Proof

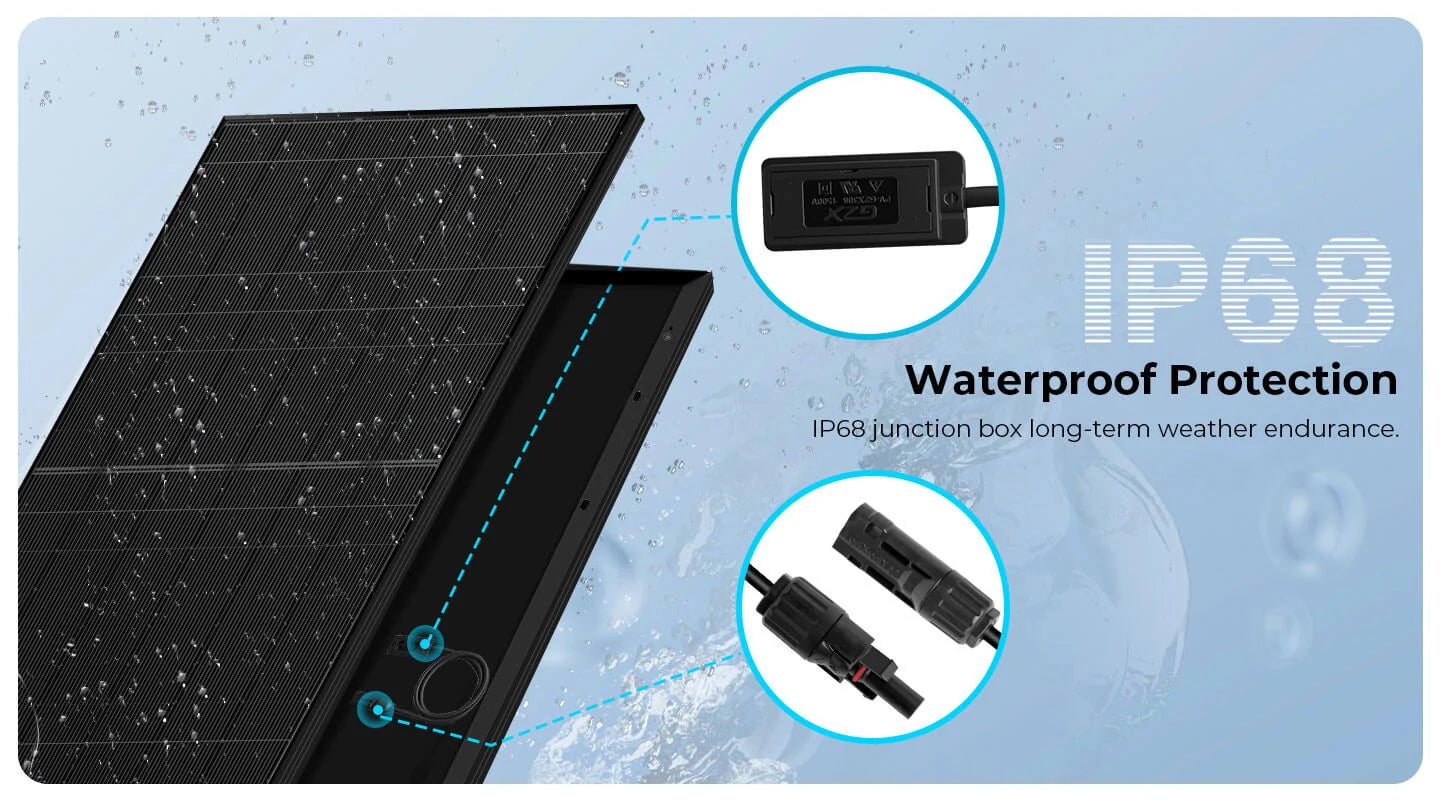

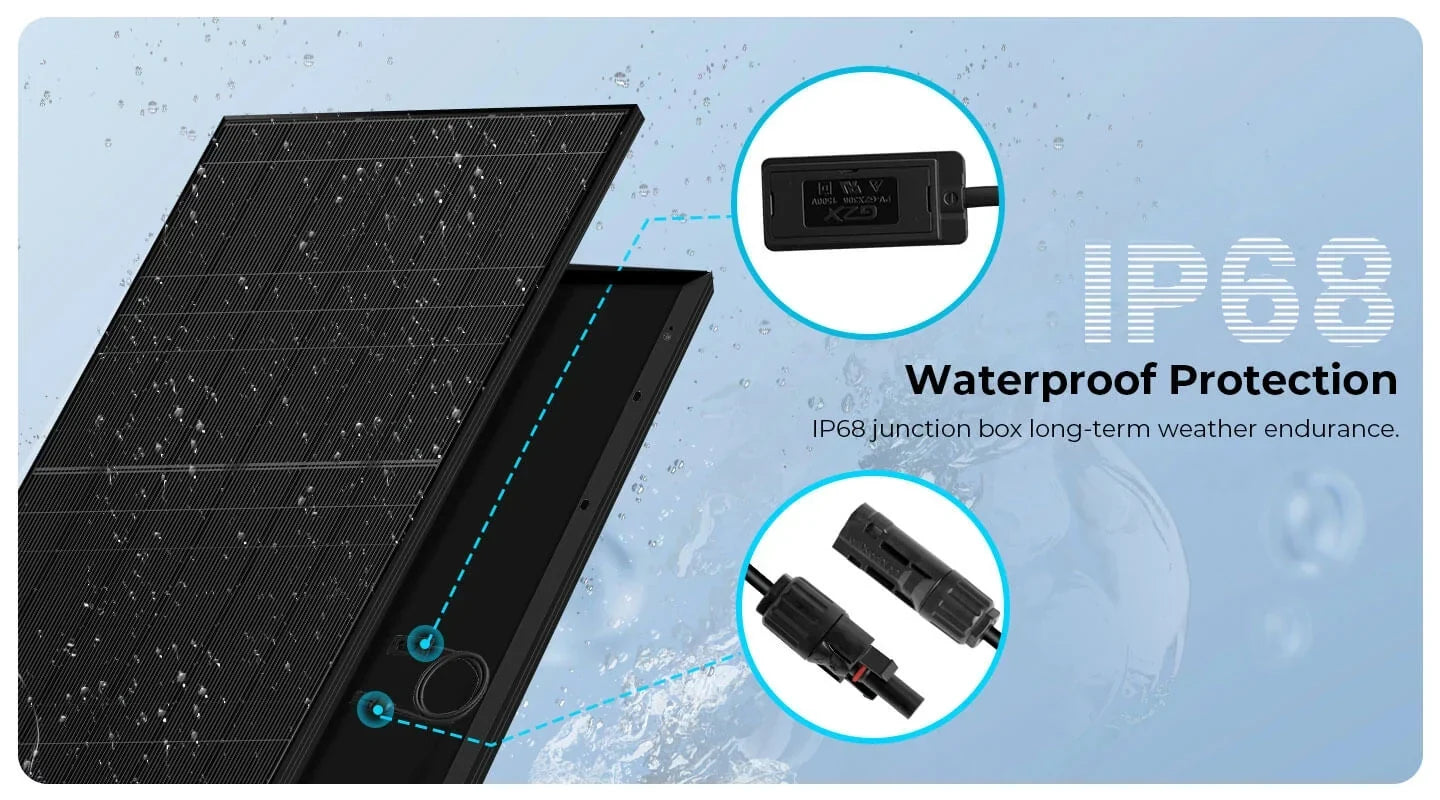

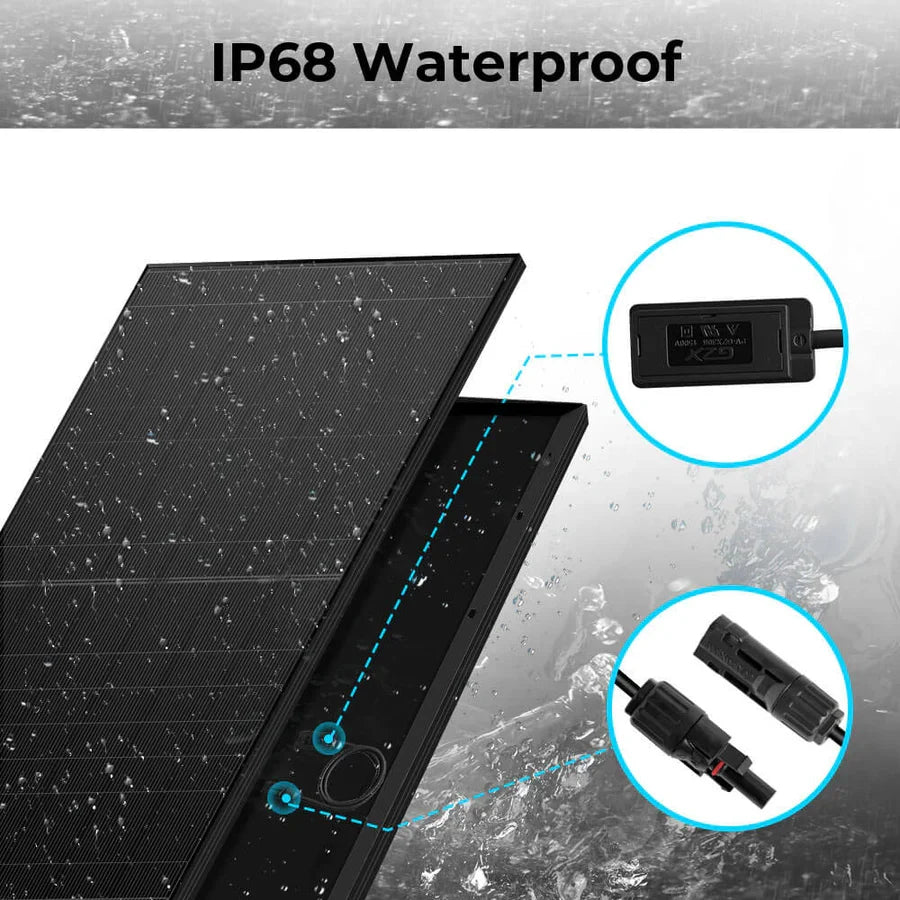

The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly function after temporary immersion in water (up to 1m deep).
Snow and Wind Protection
Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure.

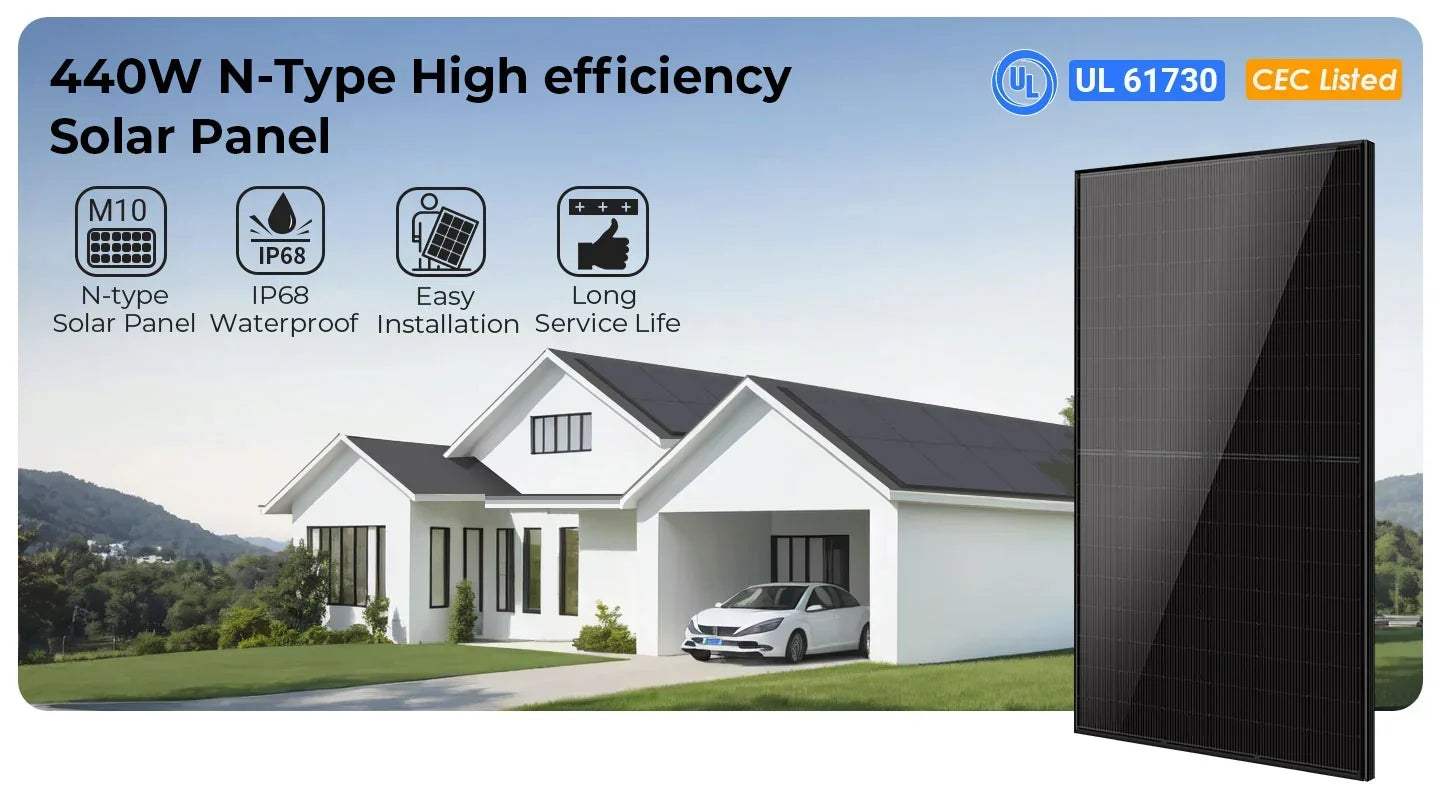

Home Solar System
With balanced power, improved stability, and economical electricity costs.
Full Specifications (Per Panel)
| Model type | SNG-440-SW5 |
| Peak power (Pmax) | 440 W |
| Production tolerance | ± 3% |
| Max. power current (Imp) | 13.15 A |
| Max. power voltage (Vmp) | 33.48 V |
| Short circuit current (Isc) | 13.73 A |
| Open circuit voltage (Voc) | 39.03 V |
| Max. system voltage | 1,500 V |
| Wind resistance | 2,400 Pa |
| Snow load | 5,400 Pa |
| Output wire | 4mm² (IEC), 12 AWG (UL) |
| Number of cells | 108 cells (2×54) |
| Cell type | N-type monocrystalline (M10) |
| Certifications | UL 61730, CE, TUV, CEC Listed |
| Product weight | 46.30 lbs |

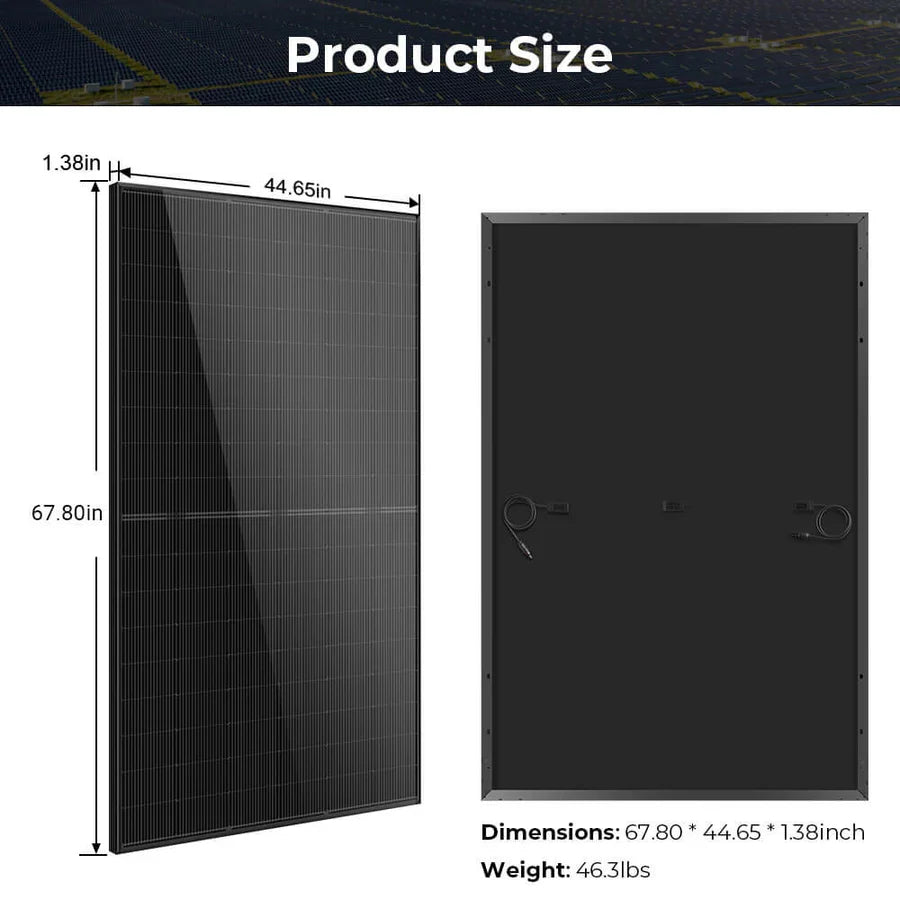

| Product dimensions | 67.80 × 44.65 × 1.38 in |
Warranty

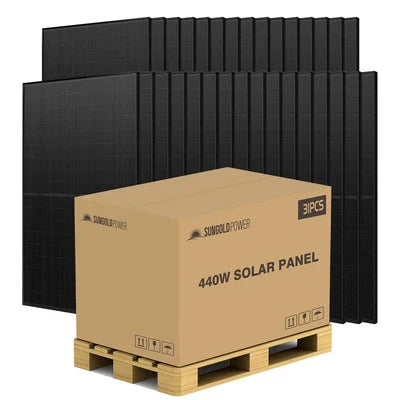

12 years performance warranty, 30 years linear power warranty. Package weight 92.6 lbs (2pcs), package dimensions 67.80 × 47.6 × 3.5 in (2pcs).
Where It Fits
Frequently Asked Questions
Is it waterproof?
Yes, this solar panel is waterproof.
