24V Solar Panel · Grid-Tie or Off-Grid · 400W
400W of Premium Solar Power for Residential, Commercial & Agricultural Installs
The MEGA 400 pairs 10-busbar monocrystalline cells in a 108-cell configuration for a reliable 400W output — compatible with both grid-tie and off-grid inverters, and sold in bulk pallet quantities for larger installations.
What Sets the MEGA 400 Apart
Cell Technology
- 10-busbar monocrystalline cells, up to 23.2% efficiency
- 108-cell configuration delivers a reliable 400W output
- Power tolerance of 0 to +5W — never undershoots the rated output
- Strong low-light performance on cloudy days and at dawn or dusk
Built to Last
- 3.2mm AR-coated tempered glass for durability and light capture
- PID-resistant and 100% EL-inspected against microcracks
- Tested for UV exposure, thermal cycling, and humidity freeze
- Rated for 5,400 Pa snow loads and 2,400 Pa wind loads
Certified & Versatile
- Certified to UL 61730, IEC 61215, and CSA C22.2 standards
- Compatible with both grid-tie and off-grid inverters
- MC4 connectors with 4ft pre-attached cables for quick hookup
- Suited to residential, agricultural, and commercial installations
Installation & Built-In Components
- Anodized aluminum frame — lightweight, strong, corrosion-resistant
- 8 pre-drilled mounting holes for Z-brackets, tilt mounts, pole, or ground installation
- Panel leads (pair): 12 AWG, 4ft each
- IP68-rated waterproof junction box
- IP67-rated waterproof solar connectors
Full Specifications
Electrical
| Max. power (Pmax) | 400 W |
| Max-power voltage (Vmp) | 31.0 V |
| Max-power current (Imp) | 12.9 A |
| Open-circuit voltage (Voc) | 37.1 V |
| Short-circuit current (Isc) | 13.7 A |
| Max. system voltage (Vmax) | 1500 Vdc |
| Max. series fuse rating | 25 A |
Physical
| Weight | 45.2 lbs |

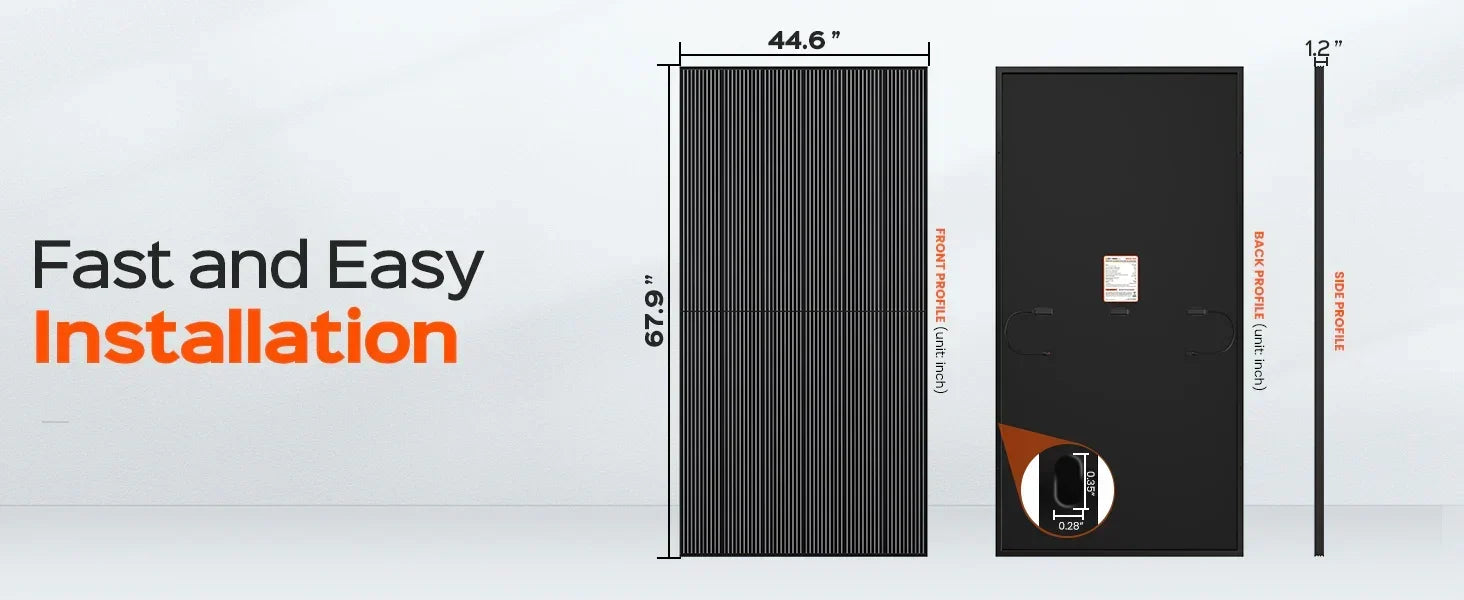

| Dimensions | 67.8 × 44.7 × 1.2 in |
| Operating temp | -40°F to 185°F |
| Junction box | IP68 |
| Solar connectors | IP67, MC4 |
Where It Fits
Sold in bulk pallet quantities for larger installations. For custom or non-standard quantities, contact Rich Solar’s sales team directly.
Common Questions
Can this panel be used in a grid-tie system?
Yes — the MEGA 400 is compatible with both grid-tie and off-grid inverters, making it suitable for utility-connected residential and commercial installations as well as fully off-grid setups.
How is this different from Rich Solar’s smaller RV-focused panels?
At 400W and 45.2 lbs, the MEGA 400 is built for fixed residential, commercial, and agricultural installations rather than mobile use — larger, heavier, and sold in bulk pallet quantities rather than as single units.
What quantities does this come in?

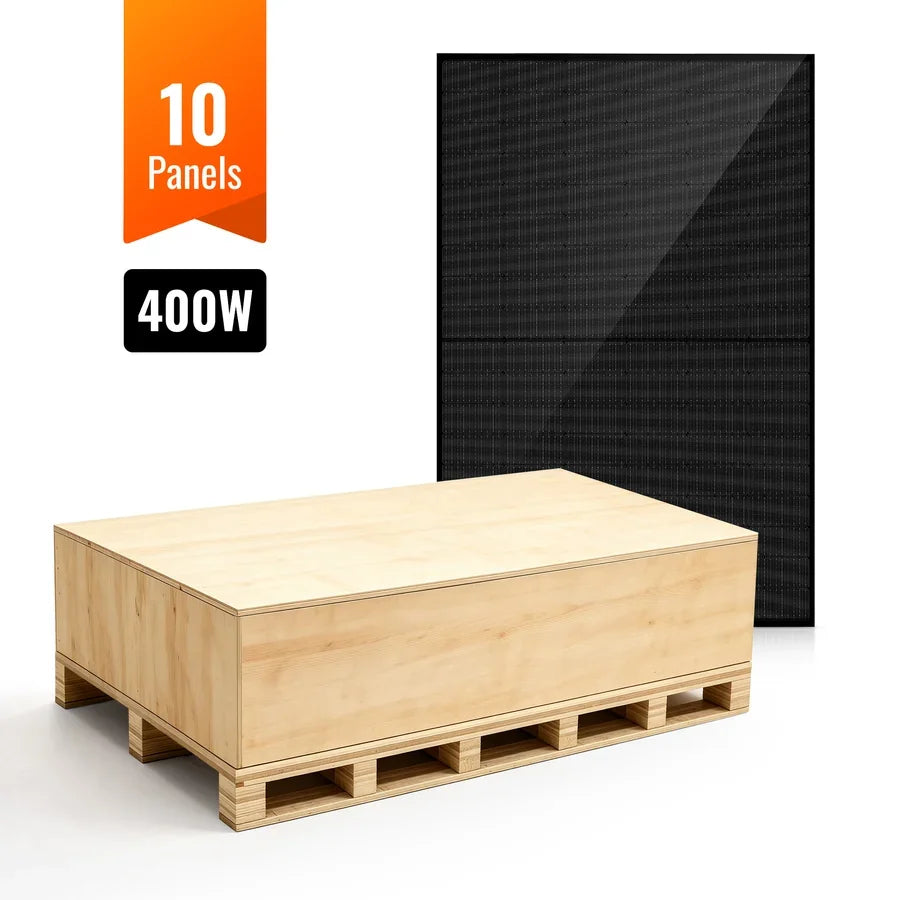

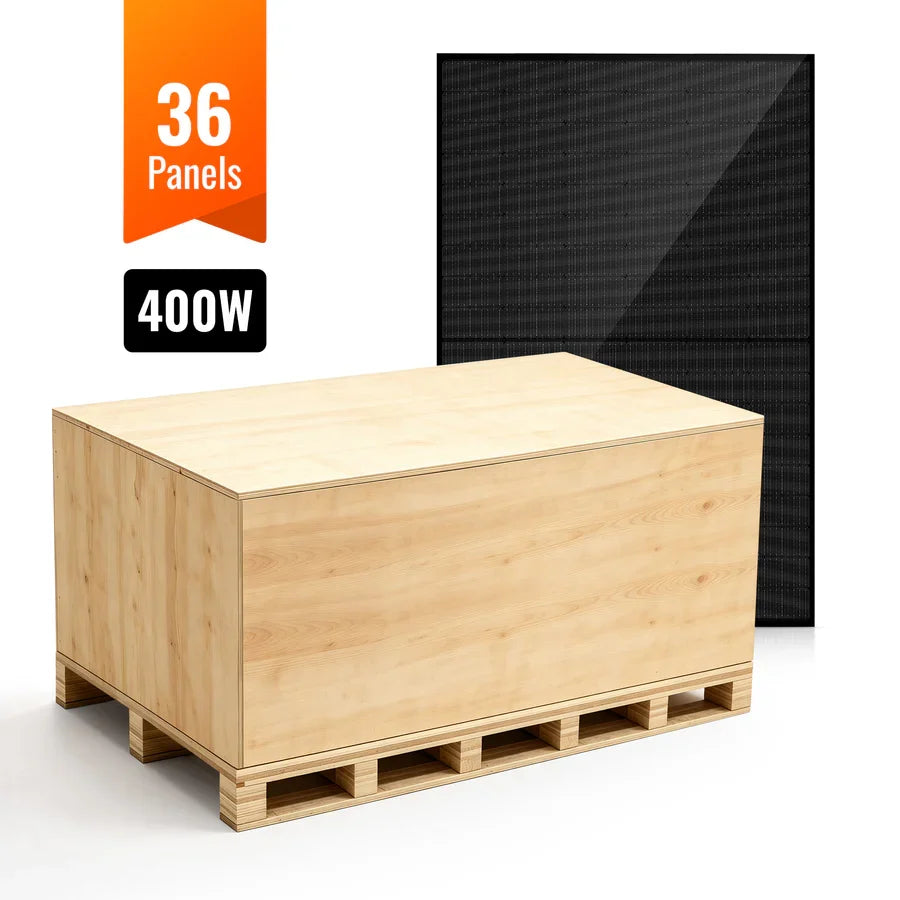

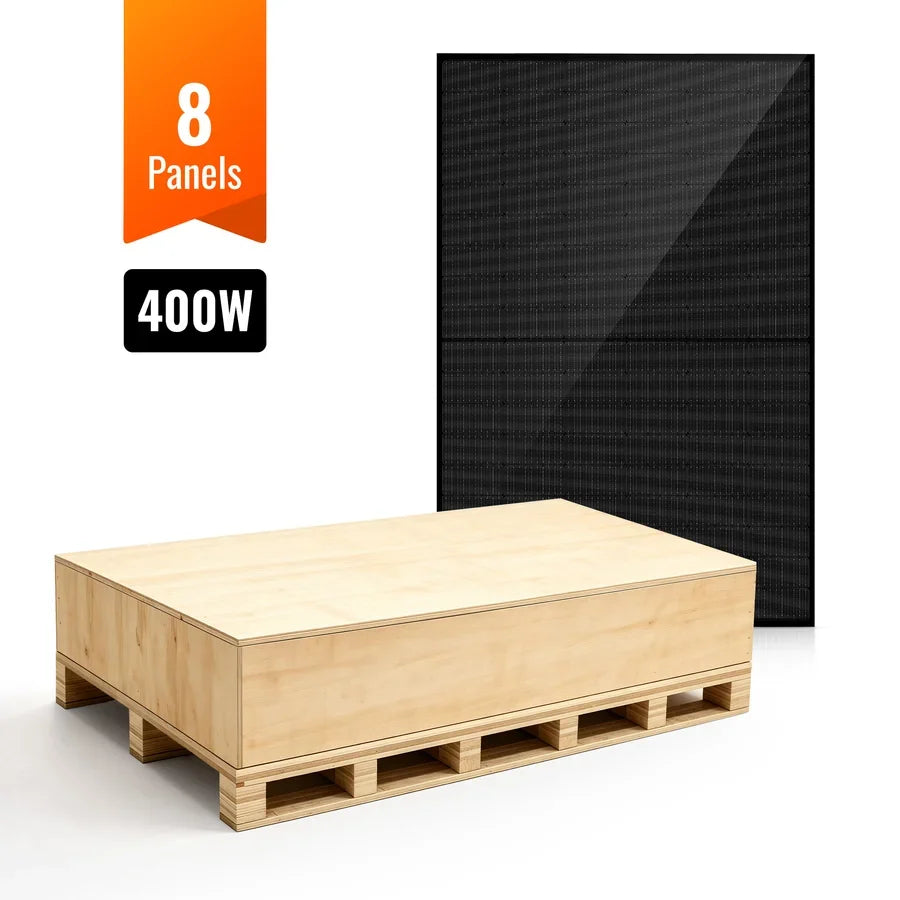

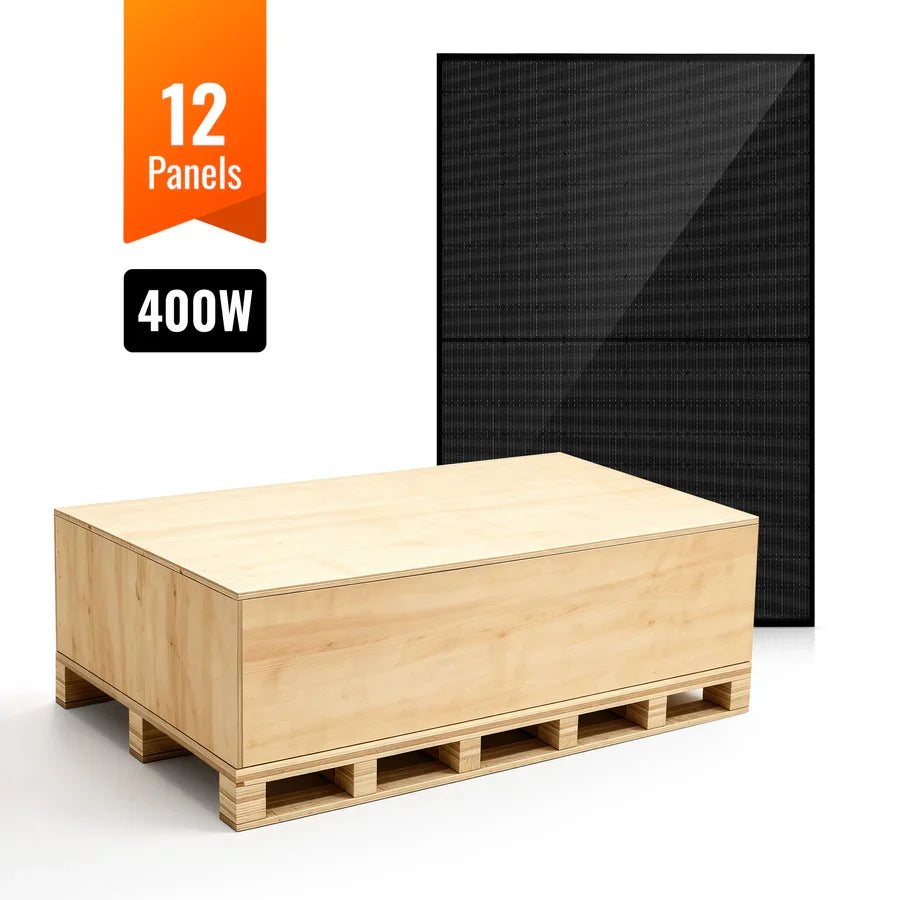

It’s sold in pallets of 8, 10, 12, or 36 panels. For other quantities, Rich Solar’s sales team can be reached directly by phone or email.
What’s the actual usable lifespan?
It carries a 25-year limited power output warranty plus a 10-year workmanship warranty, in line with Rich Solar’s other MEGA Series panels.
Do I need a licensed installer for a system this size?
Given the scale and voltage involved in residential, commercial, or agricultural installations — especially grid-tie systems — installation should be handled by a qualified, licensed electrician or solar installer familiar with your local code.
