12V Off-Grid Solar Kit · Panel + Controller + Battery + Inverter · Complete
400W of Solar Power With Battery Storage and a Built-In Inverter
This configuration pairs two Rich Solar MEGA 200 panels and a 30A MPPT controller with a 100Ah ALPHA 1 battery and a 2,000W pure sine wave inverter — a complete, ready-to-run 12V off-grid system for RVs, vans, tiny homes, cabins, and backup power.

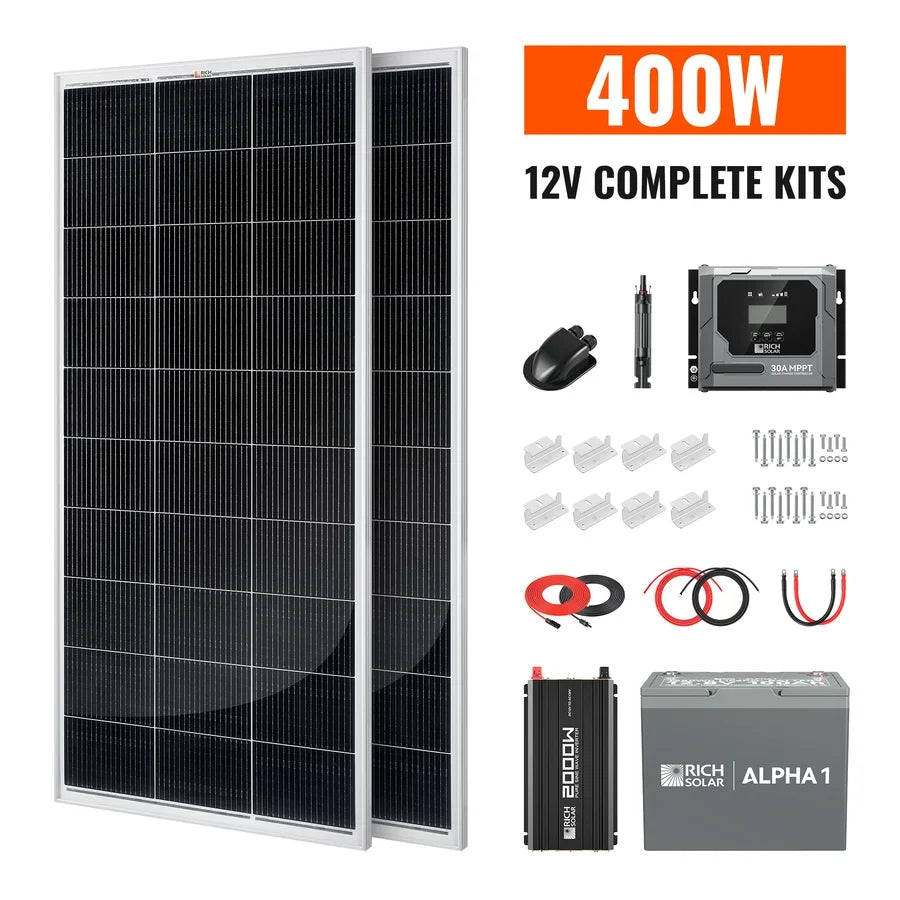

What’s In This Kit

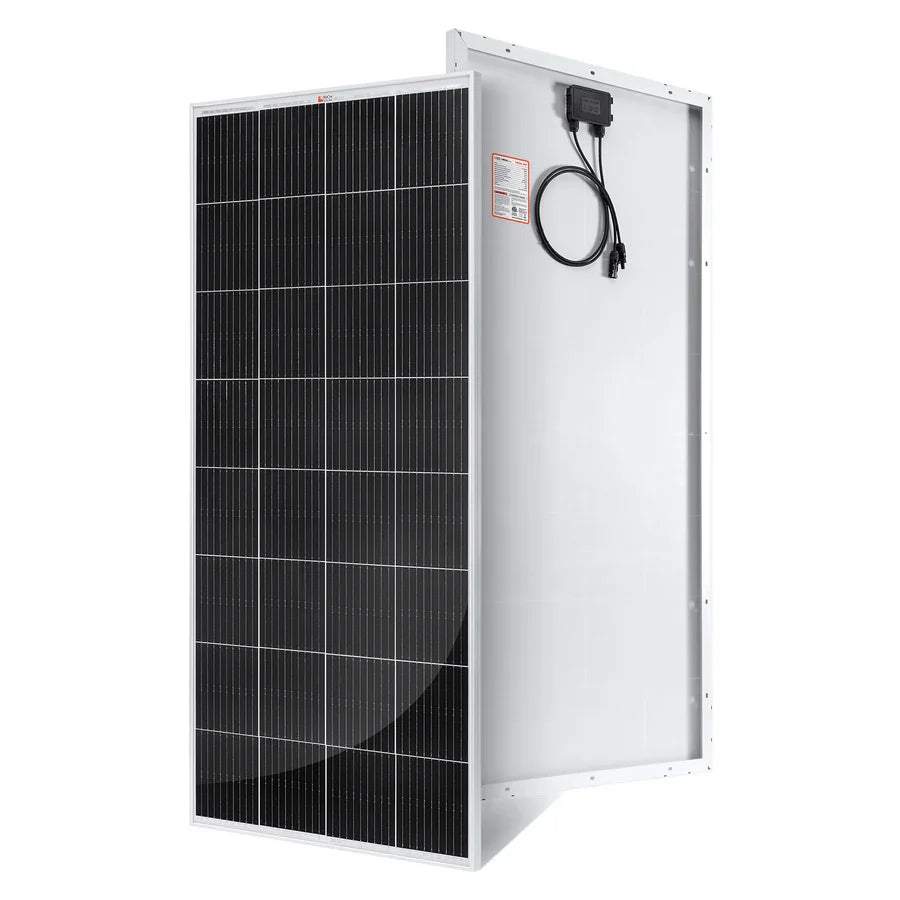

MEGA 200 Monocrystalline Solar Panel
200W each, with anti-reflective tempered glass and an anodized aluminum frame. RS-M200
BRAVO 30 MPPT Charge Controller
Auto-detects 12V/24V systems, up to 99.5% MPPT tracking efficiency, Bluetooth app monitoring. RS-MPPT30PB

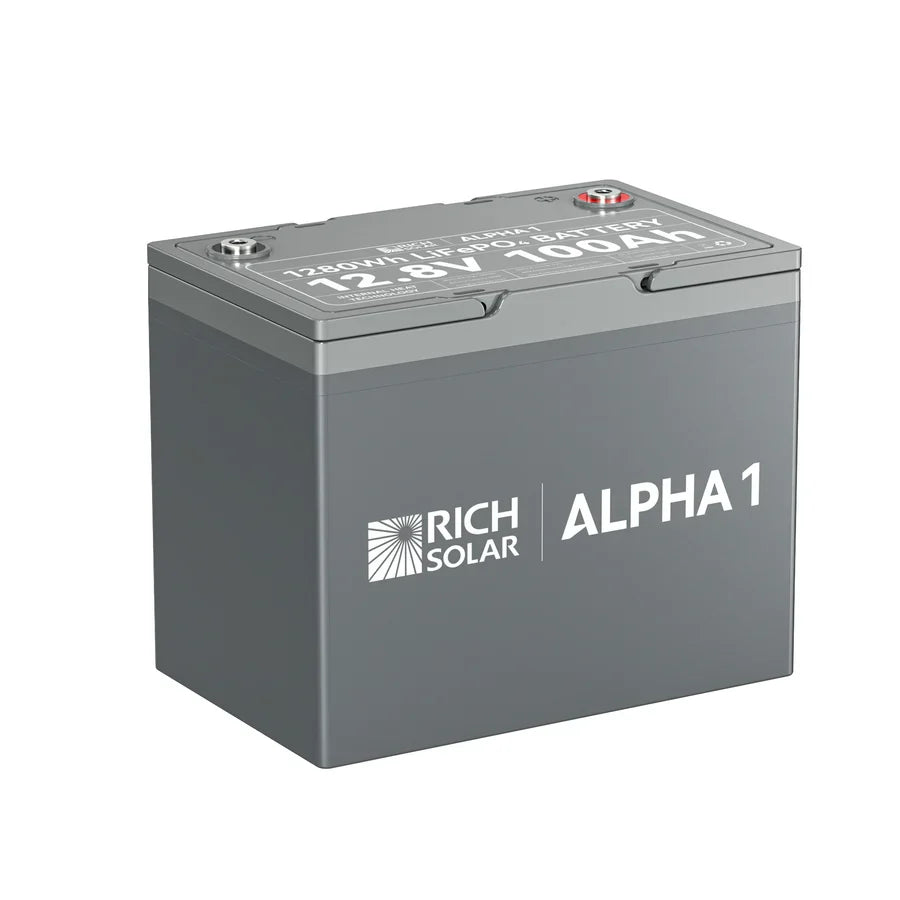

ALPHA 1 LiFePO₄ Battery
12.8V 100Ah (1,280Wh), rated for 5,000+ cycles with Bluetooth monitoring and internal self-heating. RS-B121S
NOVA PURE 2K Inverter
2,000W continuous (4,000W surge) pure sine wave output, 12V DC input. RS-V2P12
- 2×Mounting Z-Bracket Sets (4 per set)RS-ZB4C
- 1×Cable Entry HousingRS-C2B
- 1×15A Solar Panel Inline Fuse HolderRS-SC15F
- 1×30ft 10AWG Solar Cable Set — Panel to ControllerRS-30101
- 1×10ft 10AWG Battery Cable Set — Controller to BatteryRS-1010
- 1×2/0 AWG 3/8″ Battery Cables, 4ft — Inverter to BatteryRS-2/0A4F3
What Makes This Kit Work
~1.4kWh of solar per day
The 400W array produces roughly 1.4kWh daily under 4 peak sun hours, sized to keep the included battery topped off.
1.28kWh of storage with app monitoring
The ALPHA 1 battery tracks charge, voltage, and temperature from a phone, with self-heating for cold-weather charging.
Ready to run AC devices
The included 2,000W pure sine wave inverter powers standard AC appliances directly from the battery — no separate purchase needed.
Room to expand
The BRAVO 30 controller supports up to 500W of solar on a 12V system, so a third panel can be added later.
Internal Heating in Low Temperature (ALPHA 1 Battery)
Full Specifications
MEGA 200 Solar Panel
RS-M200 · ×2 included
Electrical
| Max. power | 200 W |
| Max-power voltage | 18.4 V |
| Max-power current | 10.9 A |
| Open-circuit voltage | 21.8 V |
| Short-circuit current | 11.6 A |
| Max. series fuse rating | 15 A |
Build & Warranty
| Weight | 24 lbs |

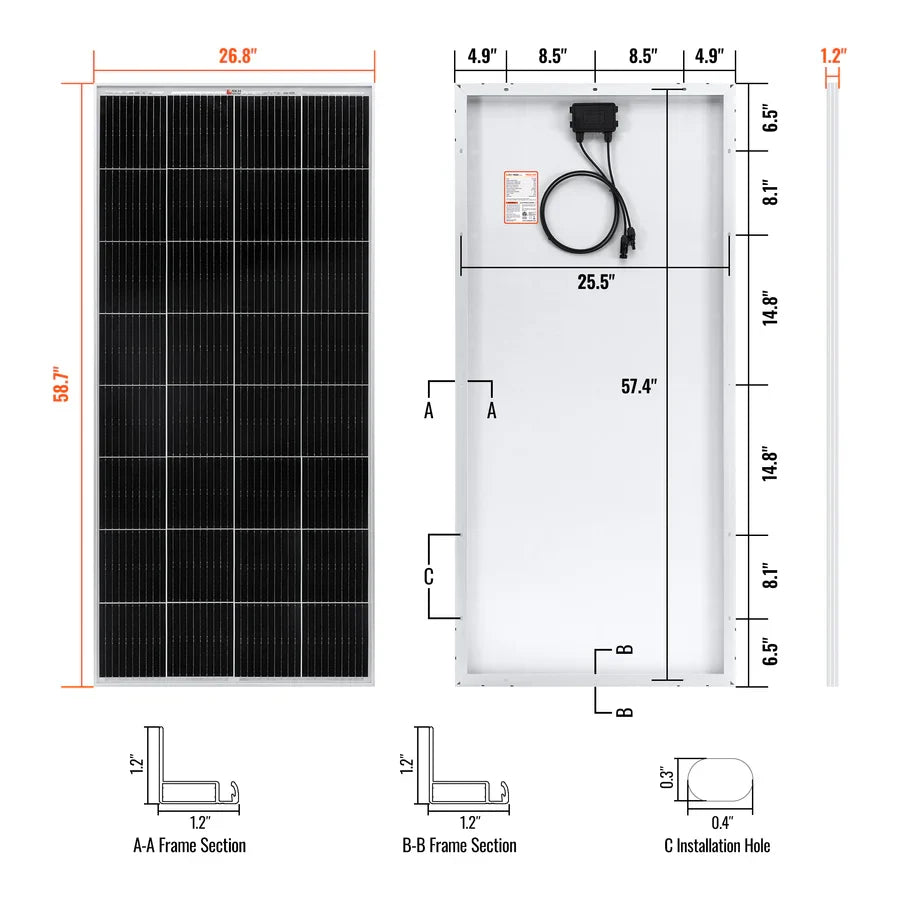

| Dimensions | 58.7 × 26.8 × 1.2 in |
| Operating temp | -40°F to 185°F |
| Output warranty | 25 years |
| Workmanship warranty | 10 years |
BRAVO 30 MPPT Charge Controller
RS-MPPT30PB · ×1 included
Charging
| Max. solar input current | 30 A |
| Max. charging current | 30 A |
| Recommended solar power | 500W (12V) / 1000W (24V) |
| System voltage | 12V/24V auto-detect |
Solar Input & Efficiency
| Solar input voltage range | 8–100 V |
| MPPT voltage range | 15–72 V |
| Max. conversion efficiency | 98% |
| Max. MPPT tracking efficiency | 99.5% |
ALPHA 1 LiFePO₄ Battery
RS-B121S · ×1 included
Capacity
| Nominal voltage | 12.8 V |
| Nominal capacity | 100 Ah |
| Nominal energy | 1,280 Wh |
| Cycle life | 5,000+ cycles |
Charging & Protection
| Charge voltage | 14.4V ± 0.2V |
| Max. charging current | 100 A |
| Protection rating | IP65 |
| Warranty | 5 years |
NOVA PURE 2K Inverter
RS-V2P12 · ×1 included
Output
| Continuous power | 2,000 W |
| Peak surge | 4,000 W |
| Output voltage | 120 Vac |
| Output efficiency | > 88% |
Physical & Warranty
| AC outlets | 3 |
| USB port | 5V / 2.1A |
| Dimensions | 16.1 × 9.6 × 4.0 in |
| Warranty | 2 years |
Other Configurations Available
This same 400W panel-and-controller platform is sold in a few different bundles. The row highlighted below is the configuration this page describes.
| Configuration | Panels | Controller | Battery | Inverter |
|---|---|---|---|---|
| Basic Solar Kit | 2× 200W | BRAVO 30 (30A) | — | — |
| Solar & Battery Kit | 2× 200W | BRAVO 30 (30A) | 100Ah 12V ALPHA 1 | — |
| Complete Solar Kit | 2× 200W | BRAVO 30 (30A) | 100Ah 12V ALPHA 1 | 2,000W NOVA PURE 2K |
Where It Fits
Common Questions
What’s the difference between this and the Basic or Solar & Battery kits?
All three share the same panels and controller. The Basic kit is panel-and-controller only, the Solar & Battery kit adds the ALPHA 1 battery, and this Complete kit adds both the battery and a 2,000W pure sine wave inverter.
Can I run AC appliances with this kit?
Yes — the included NOVA PURE 2K inverter converts the battery’s 12V DC power into 120V AC, supporting up to 2,000W continuous (4,000W surge) through three AC outlets.
Does the battery monitor itself remotely?
Yes — the ALPHA 1 has Bluetooth app monitoring for real-time charge, voltage, and temperature tracking, plus internal self-heating for cold-weather charging.
Can I add more panels later?
Yes — the BRAVO 30 controller supports up to 500W of solar on a 12V system, so a third 200W panel can be added without upgrading the controller.
Do I need an electrician to install this?
Many RV and van owners install this kit themselves using the included cables and mounting hardware. If you’re unsure about your electrical setup, a qualified installer is a safer bet.
