48V Hybrid Inverter + Battery Kit · 1× Inverter / 12× Battery · No Panel
12,000W of Hybrid Power With 61.44kWh of Battery Storage
This inverter-and-battery kit pairs a 12,000W NOVA 12K hybrid inverter with twelve ALPHA 5 PRO server rack batteries — 61.44kWh of storage on a 48V system — sold without solar panels for pairing with panels you already own or plan to add separately.
What’s In This Kit
NOVA 12K PV Hybrid Inverter
12,000W PV input, 10,000W continuous AC output, 120/240V split-phase, dual MPPT. RS-H12K

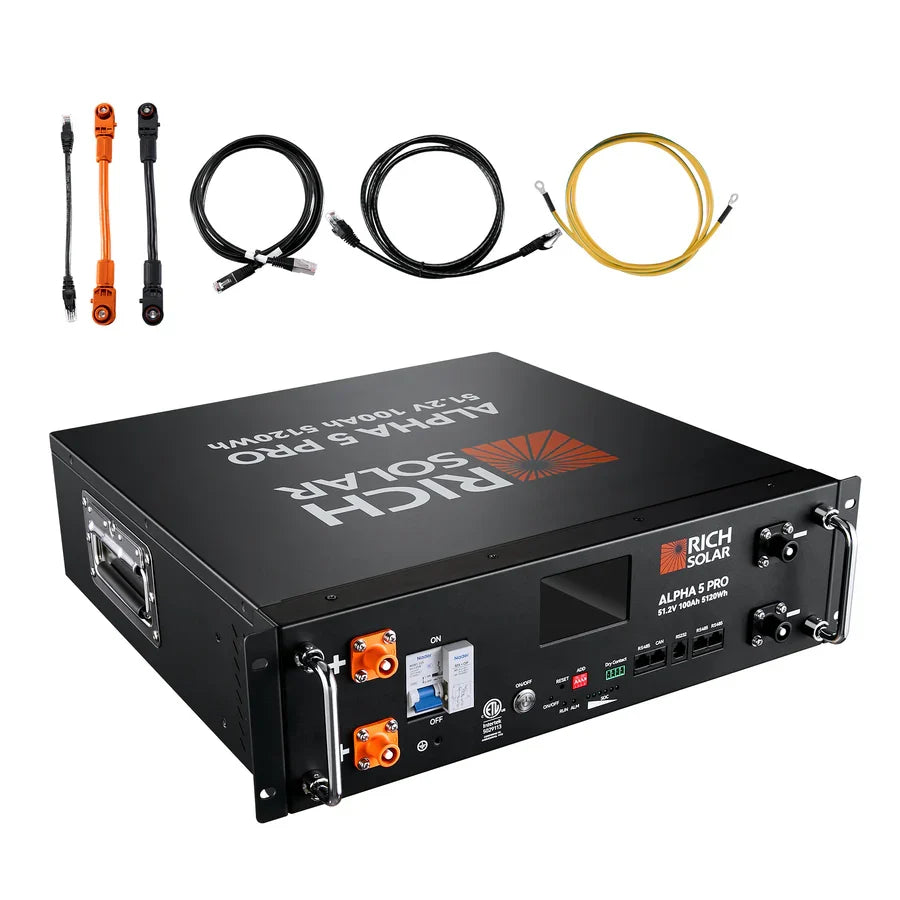

ALPHA 5 PRO Server Rack Battery
51.2V 100Ah (5,120Wh) each — 61.44kWh combined, rated for 7,000+ cycles. RS-B5121P

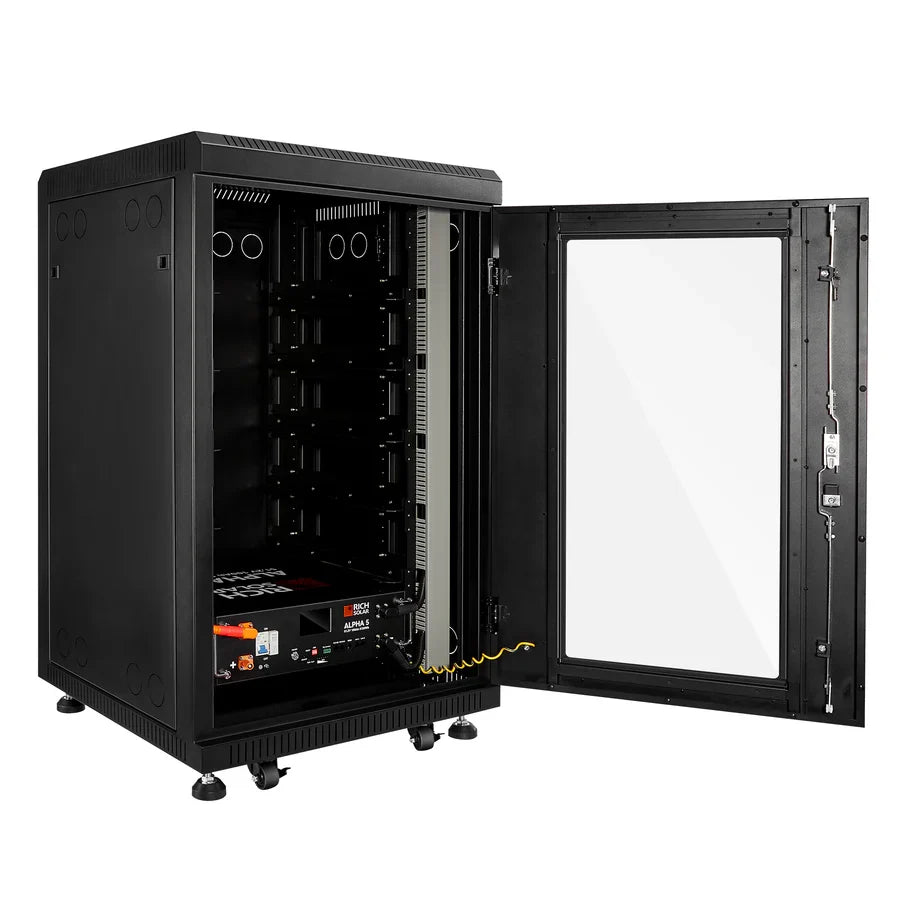

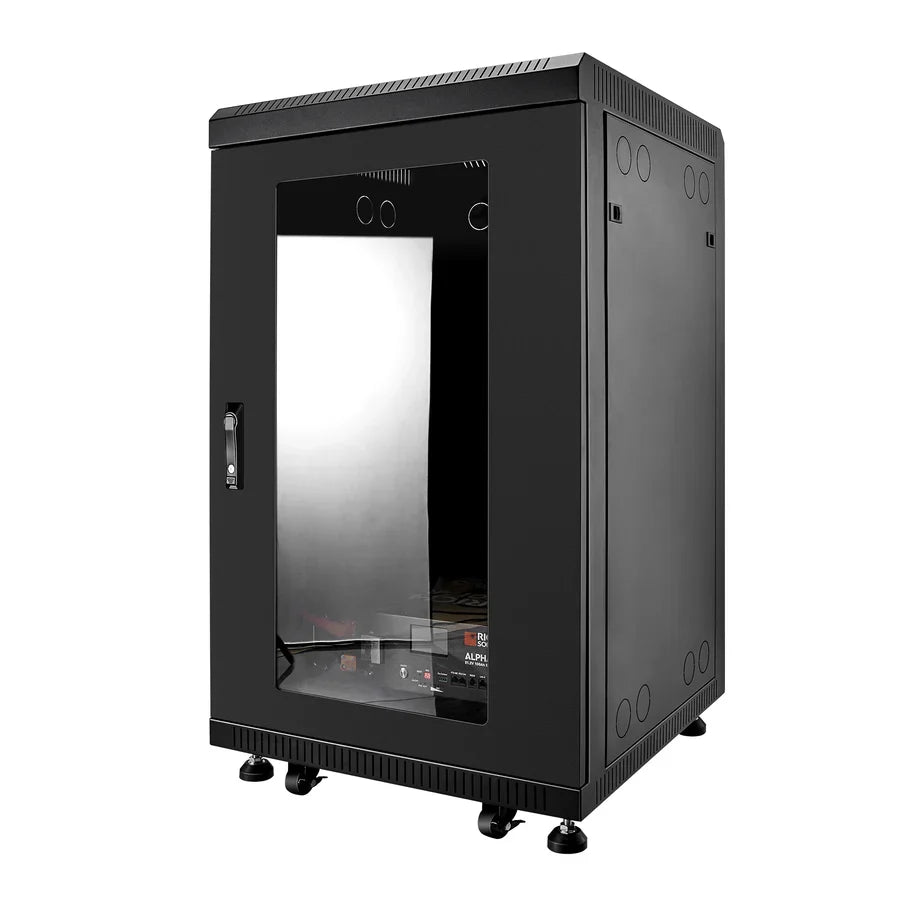

- 2×Free Battery Racks
This kit does not include solar panels. It’s built for pairing with an existing array or panels purchased separately — the NOVA 12K accepts up to 12,000W of PV input across its dual MPPT trackers.
What Makes This Kit Work
12kW split-phase hybrid inverter
10,000W continuous output at 120/240V, with dual MPPT trackers and support for solar, battery, utility, and generator input.
61.44kWh of rack-mounted storage
Twelve ALPHA 5 PRO batteries provide high-capacity energy storage and extended backup power on a 48V system.
WiFi and app monitoring throughout
Built-in WiFi on the inverter and Bluetooth/WiFi app monitoring on each battery keep the whole system visible from a phone.
Professionally matched components
Inverter and battery counts are pre-matched, with two battery racks included to simplify installation.
Integrated 150W Subzero Heater (Per Battery)
Full Specifications
NOVA 12K Hybrid Inverter
RS-H12K · ×1 included
PV Input
| Maximum PV input power | 12,000 W |
| Maximum DC voltage | 600 Vdc |
| Start-up voltage | 125 Vdc |
| MPPT voltage range | 120–550 Vdc |
| MPPT trackers / max. current | 2 / 18 A |
AC Output
| Rated output power | 10,000 VA / 10,000 W |
| Nominal output voltage | 120V (P-N) / 208V / 240V (P-P) |
| Output voltage range | 105.5–132 Vac per phase |
| Nominal output current | 41.5 A per phase |
Battery & Charging
| Battery DC voltage range | 40–62 Vdc (48V nominal) |
| Max. solar charging current | 200 A |
| Max. AC charging current | 200 A |
| Max. charging current | 200 A |
Physical & Certification
| Operating temp | -13°F to 140°F (>113°F derated) |
| Protection rating | IP65 |
| Communication | RS232 / RS485 / WiFi / USB |
| Dimensions | 8.5 × 20.3 × 28.1 in |
| Net weight | 99.2 lbs (45 kg) |
| Certification | UL1741SA/SB, CSA 22.2.107.1, CEC |
ALPHA 5 PRO Server Rack Battery
RS-B5121P · ×12 included
Capacity
| Nominal voltage | 51.2 V |
| Nominal capacity | 100 Ah |
| Nominal energy | 5,120 Wh |
| Combined (12 units) | 61,440 Wh (61.44 kWh) |
Charging & Discharge
| Charging voltage | 56 V |
| Discharging cutoff voltage | 44.8 V |
| Max. charging current | 100 A |
| Max. discharge current | 100 A |
Monitoring & Physical (Per Unit)
| Wireless monitoring | WiFi + Bluetooth |
| Dimensions | 17.7 × 17.8 × 5.2 in |
| Weight | ~100 lbs |
| Protection class | IP21 |
Certification & Scaling
| Cycle life | 7,000+ deep cycles |
| Certification | UL1973, UL9540A, FCC |
| Max. expansion | 30 units in parallel |
| Communication | RS485 / RS232 / CAN |
| Warranty | 10 years |
Charging Current by Temperature (Per Battery)
| Battery Temperature | Charge Rate |
|---|---|
| 32°F–50°F | 0.1C |
| 50°F–68°F | 0.2C |
| 68°F–77°F | 0.5C |
| 77°F–113°F | 1C |
| 113°F–131°F | 0.3C |
| 131°F–140°F | 0.2C |
Where It Fits
Common Questions
Why doesn’t this kit include solar panels?
It’s designed for customers who already have panels or want to select them separately. The NOVA 12K supports up to 12,000W of PV input across two MPPT trackers, so panels can be added to match your site.
How much usable battery capacity does this kit have?
61.44kWh combined from twelve 5,120Wh ALPHA 5 PRO batteries, each rated for 7,000+ deep cycles and expandable up to 30 units in parallel.
Can the batteries charge in freezing temperatures?
Each ALPHA 5 PRO has an integrated 150W heater that activates automatically below 41°F and shuts off once the battery warms past 50°F; charging locks out entirely below 32°F.
Does the inverter support generator or grid input?
Yes — the NOVA 12K accepts solar, battery, utility, and generator input, with a second input power source supported for generator compatibility.
Do I need a licensed electrician to install this?
Given the scale of this system — a 12,000W hybrid inverter and a 61.44kWh battery bank — installation should be handled by a qualified, licensed electrician or solar installer familiar with your local code.
Documents & Downloads
Full Specification
User Manual
