Home Backup Kit Pro · 6,000W · 14,120Wh · 120/240V
Mango Power E 6,000W 14,120Wh 240V Portable Power Station Kit with mPanel Pro
The top-tier Mango Power home backup solution: two Mango Power E power stations, two expansion batteries, and the mPanel Pro included in one package — enough combined capacity and output to back up an entire home circuit at 240V, not just a handful of essential outlets.
Whole-Home Backup, Fully Assembled

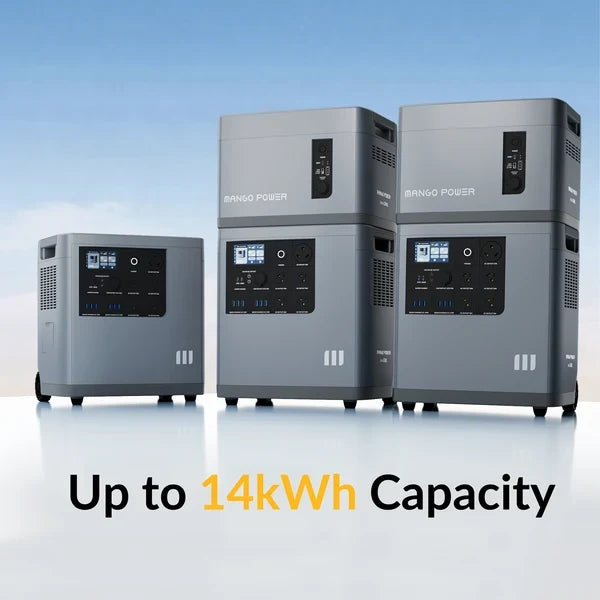

Pairing two Mango Power E units brings combined output to 6,000W and 240V split-phase capability, while the two included expansion batteries roughly double total storage to around 14kWh. With the mPanel Pro included in this kit, the system wires directly into a home’s circuit panel — when the grid goes down, backup power kicks in automatically, without needing to buy the panel hardware separately.
This kit includes 2× Mango Power E power stations, 2× Mango Power E expansion batteries, and the mPanel Pro accessory. Some general Mango Power marketing material describes the mPanel as sold separately — that applies to smaller packages; this specific kit includes it.

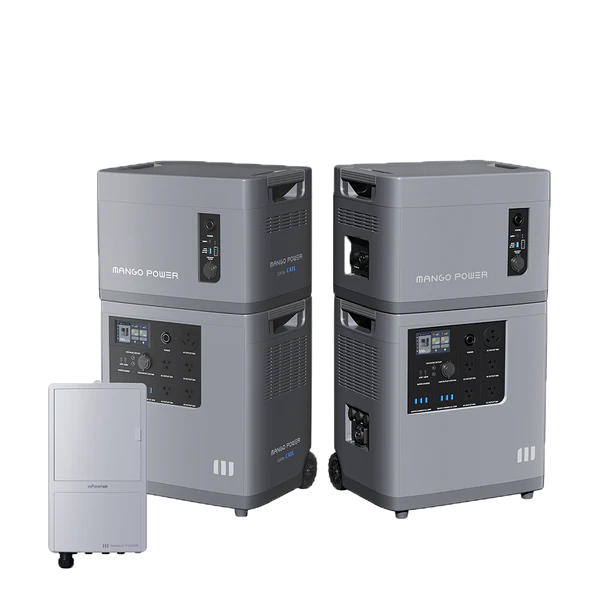

Kit Contents

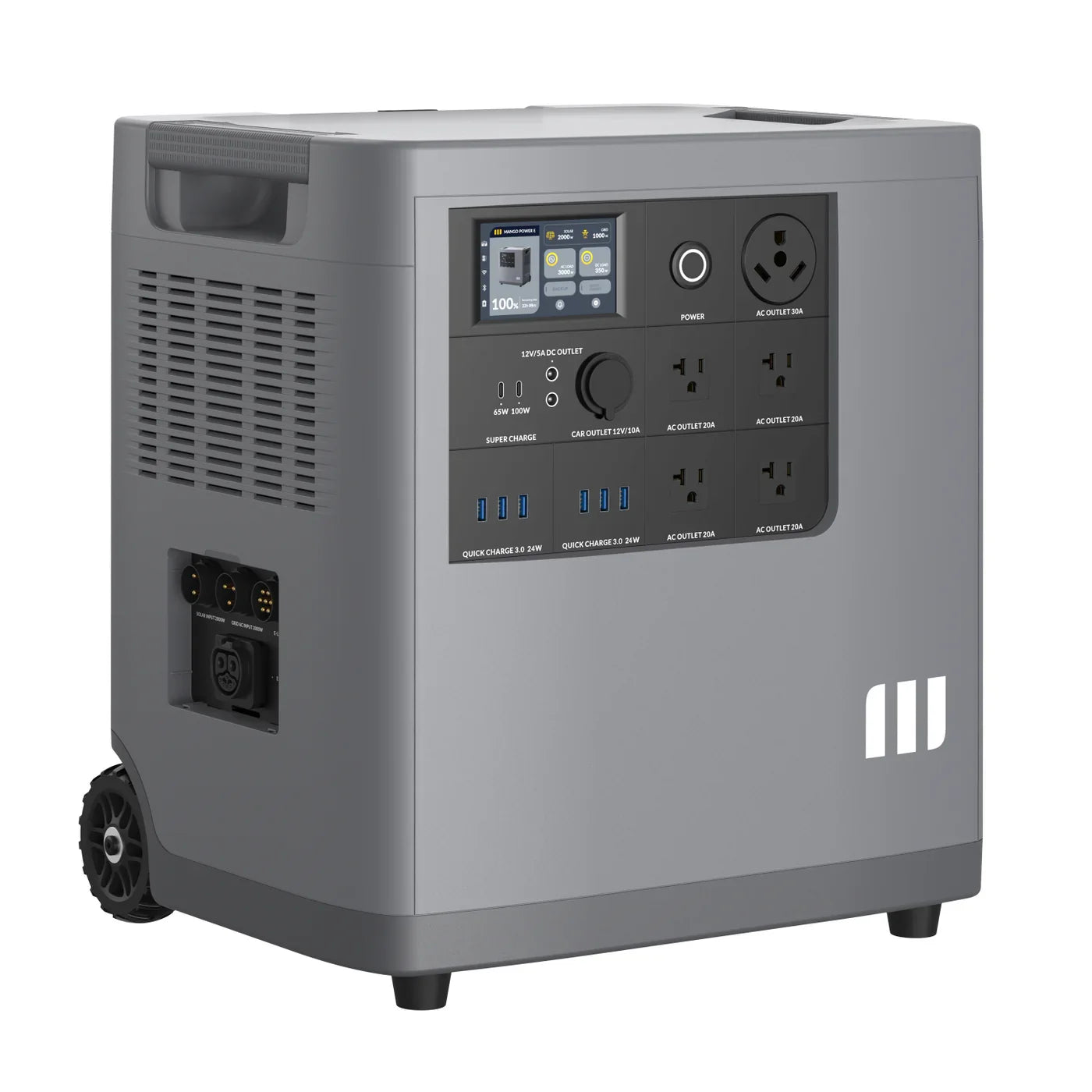

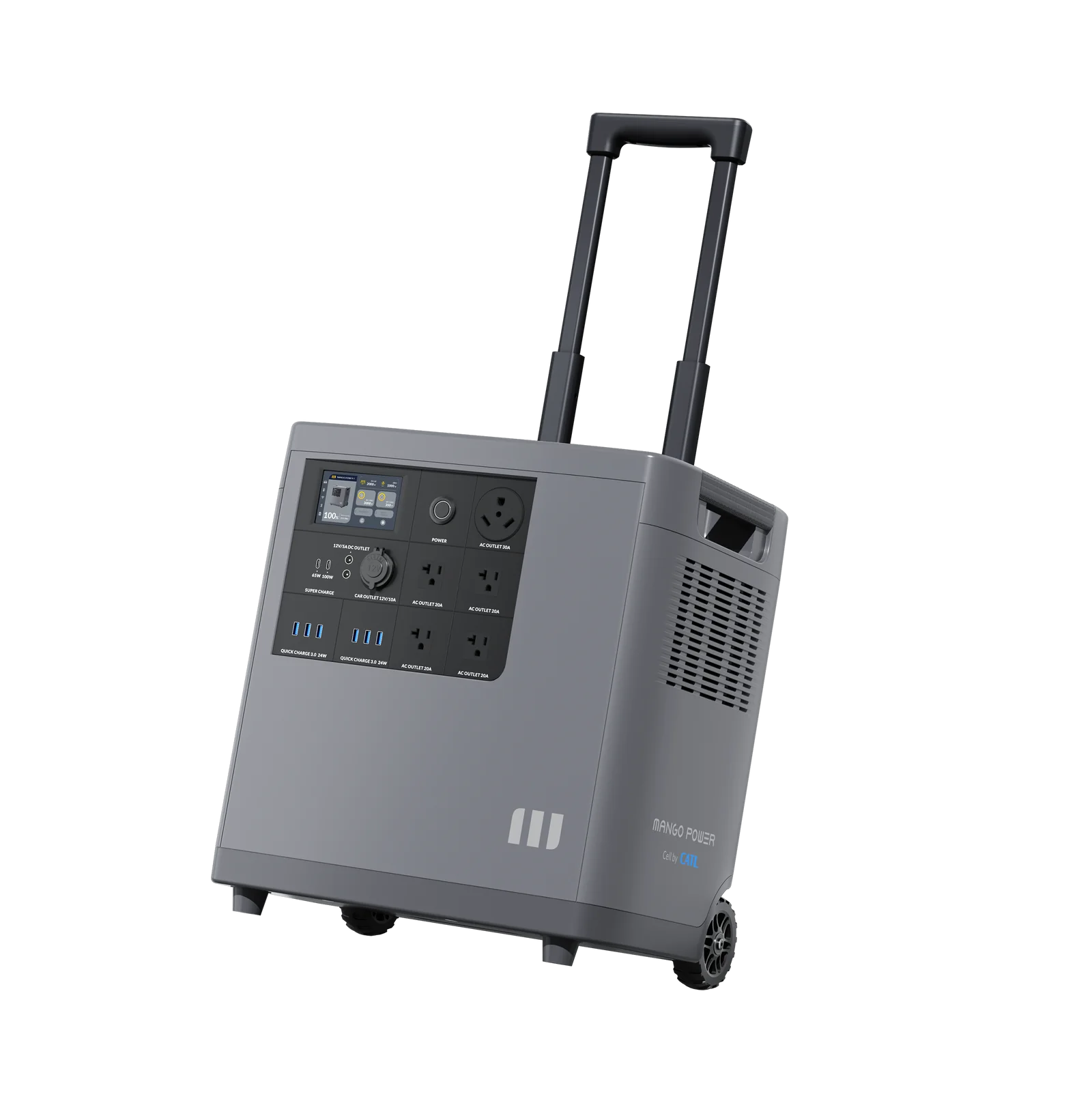

- 2× Mango Power E power stations (3.53kWh each, 3,000W each)

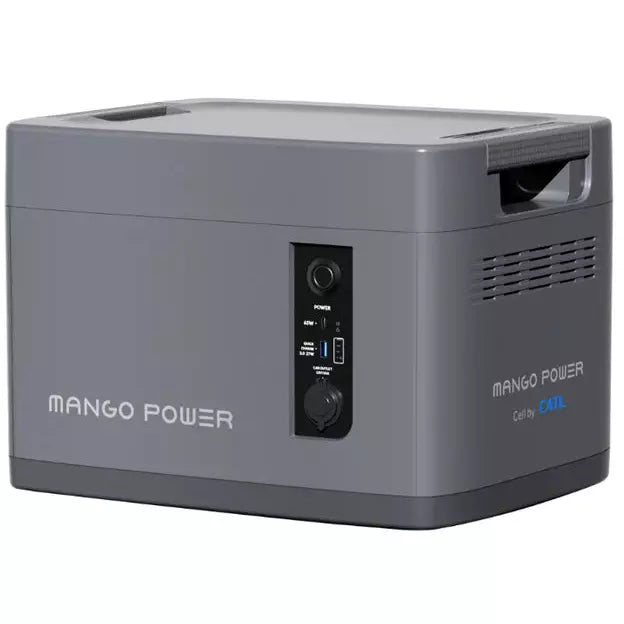

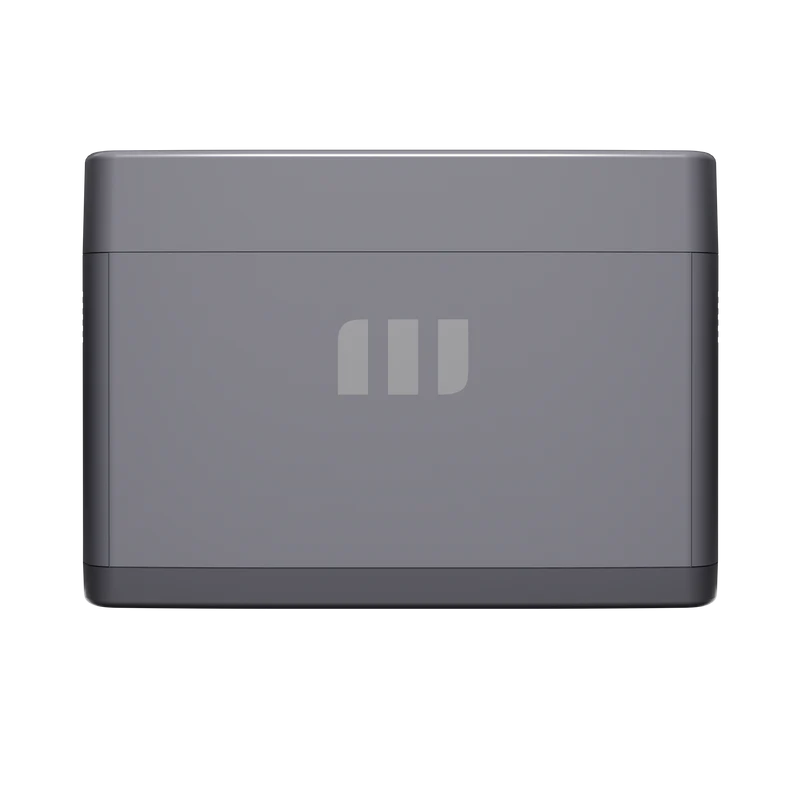

- 2× Mango Power E expansion batteries (3.53kWh each)

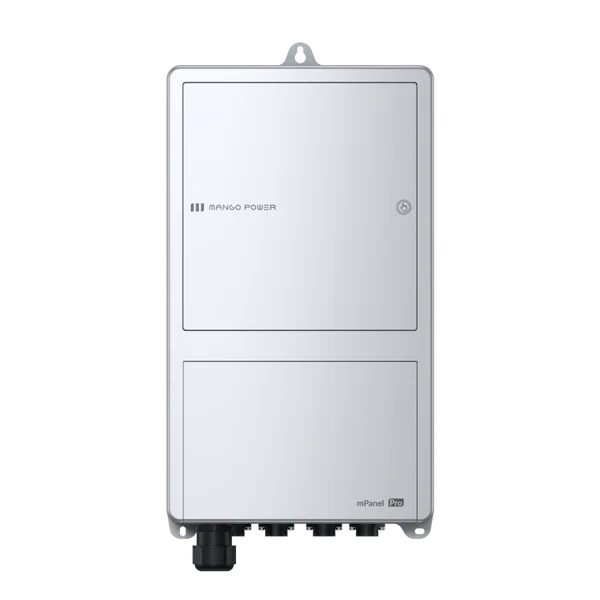

- 1× mPanel Pro (home circuit-panel integration hardware)
The Same CATL LFP Cells That Power the World’s Best EVs
Every unit in this kit runs on CATL lithium iron phosphate cells, the same chemistry used in some of the highest-performing electric vehicles on the road. Rated for over 6,000 cycles while retaining more than 70% of original capacity, these cells are built for years of daily charging and discharging without a meaningful drop in real-world performance.

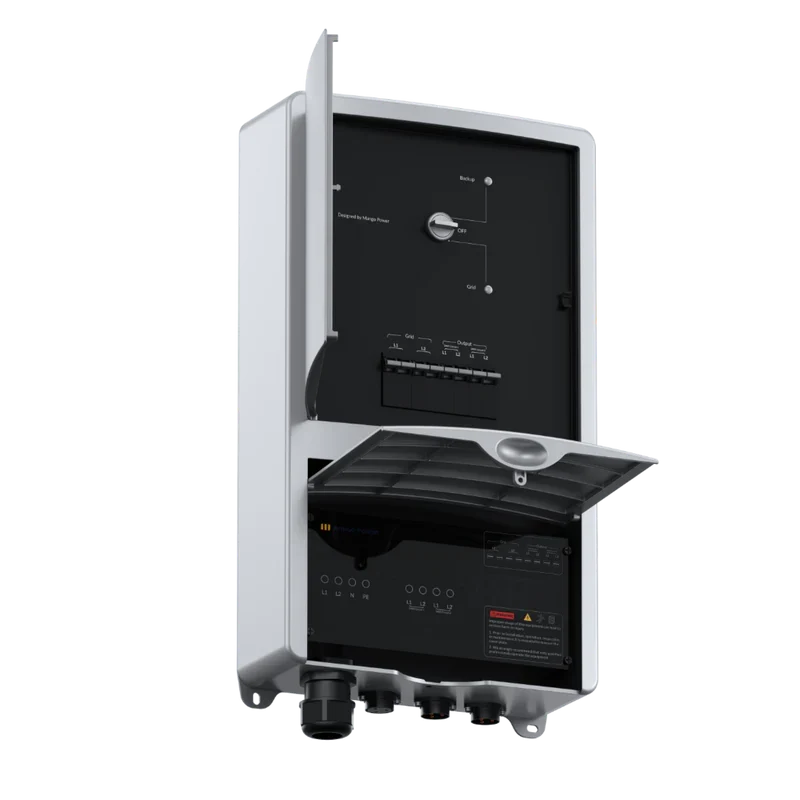

Automatic Whole-Circuit Backup with mPanel Pro
The included mPanel Pro wires the entire kit directly into a home’s circuit panel. When utility power fails, the system transitions to battery power automatically — no manual switching, no scrambling for extension cords. Lights, refrigerators, and other essentials plugged into that circuit stay powered without interruption.
True 240V Split-Phase Output for Demanding Loads
With two Mango Power E units working together and mPanel Pro integration, this kit delivers genuine 240V split-phase output — enough to run heaters, dryers, well pumps, and other large appliances that a single 120V-only power station can’t handle.
Rated From -20°C to 60°C
CATL’s cell chemistry tolerates a wide operating range, so the system keeps working through conditions that would degrade many consumer battery packs — whether that’s a garage through a hard winter or a heat wave with the AC running non-stop.
Estimated Runtime (Per 3.53kWh Unit)
Where It Fits

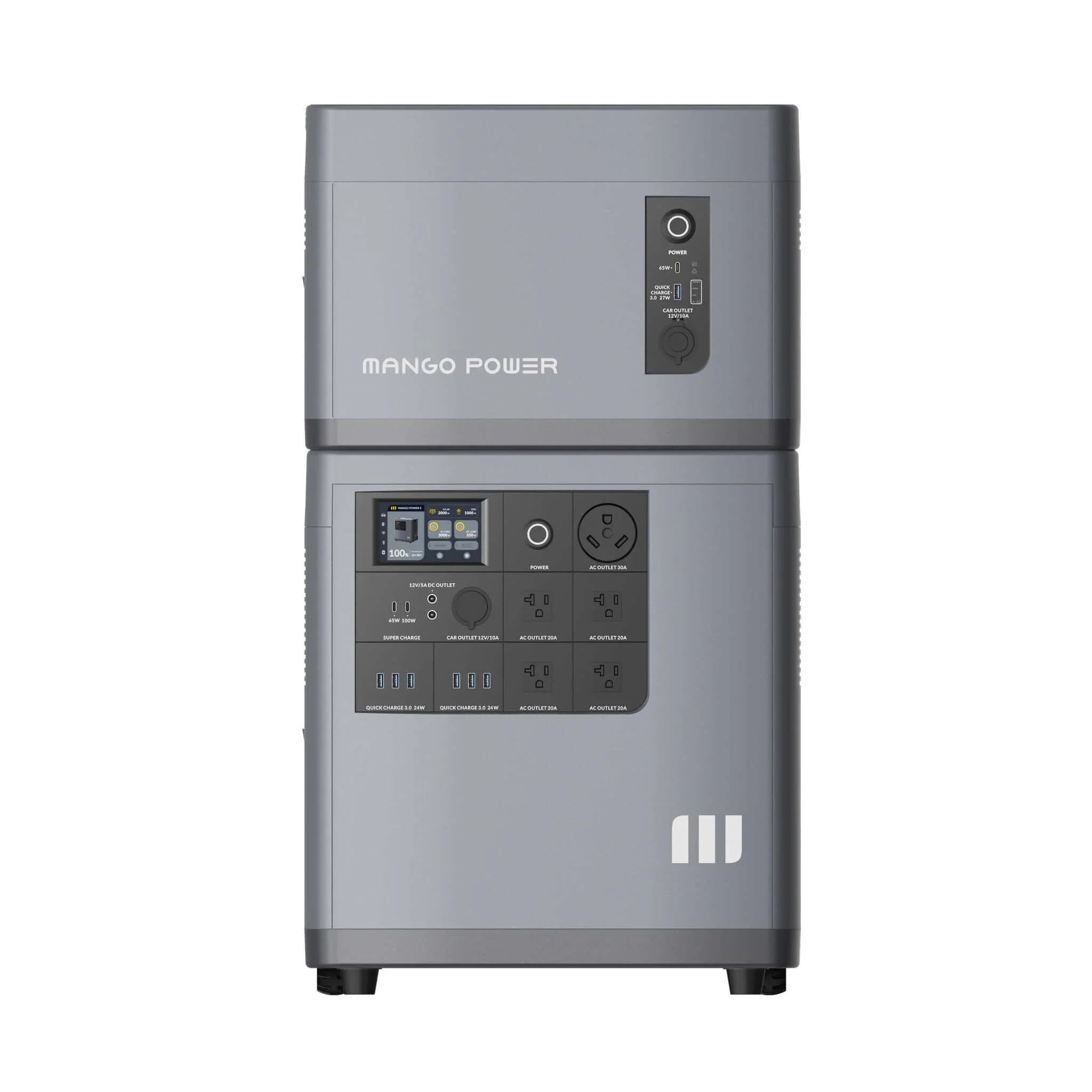

Mango Power E & Expansion Battery Specifications
General
| Specification | Mango Power E | Expansion Battery |
|---|---|---|
| Net weight | 100 lbs (45.4 kg) | 73 lbs (33.18 kg) |
| Size | 17.8 × 13.6 × 19.4 in | 17.8 × 13.6 × 12.5 in |
| Working temperature | Charge -20°C to 60°C, discharge -30°C to 60°C | Charge -20°C to 60°C, discharge -30°C to 60°C |
| Warranty | 5 years | 5 years |
| IP level | IP21 | IP21 |
| Quick charge | 80% in 1hr, 100% in 1.5hrs | — |
| Running noise | < 40dB no-load, < 51dB full-load | — |
Battery
| Specification | Mango Power E | Expansion Battery |
|---|---|---|
| Battery capacity | 3.53 kWh | 3.53 kWh |
| Cell chemistry | CATL LFP | CATL LFP |
| Life span | > 70% capacity after 6,000 cycles @ 25°C | > 70% capacity after 6,000 cycles @ 25°C |
| Max charging rate | Up to 1.1C | Up to 1.1C |
Input & Inverter
| Specification | Mango Power E | Expansion Battery |
|---|---|---|
| Charging method | AC wall, solar, EV charger, generator | AC wall, adapter |
| AC charging | Max 3,000 W | Max 3,000W (via MPE) / AC adapter |
| Solar charging | Max 2,000 W (60–150V) | — |
| Rated AC output | 3,000 W, 120V, 60Hz | — |
| MPPT | 1× (roof and portable solar) | — |
| Inverter efficiency | Up to 88% | — |

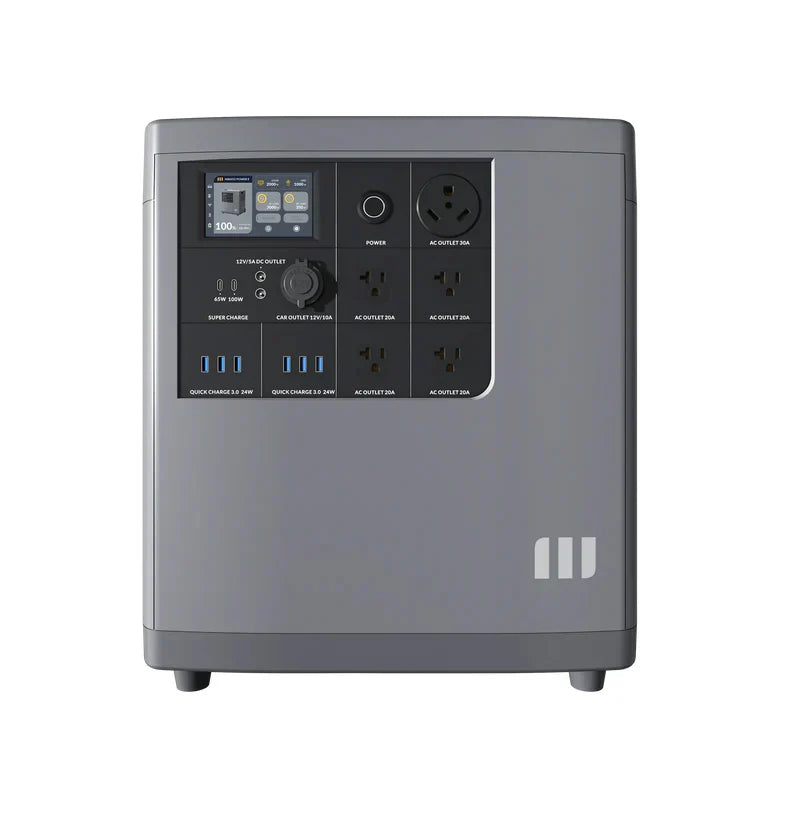

Output Ports
| Specification | Mango Power E | Expansion Battery |
|---|---|---|
| Total output ports | 16 | 3 |
| AC output | 4 × 20A | — |
| USB-A | 6 × QC 3.0 27W | 1 × QC 3.0 27W |
| USB-C | 1 × PD 65W + 1 × PD 100W | 1 × PD 100W |
| Car power | 12V / 10A | 12V / 10A |
| AC RV port | 30A | — |
Smart Control & Display (Mango Power E)
| Specification | Value |
|---|---|
| Connectivity | Bluetooth and Wi-Fi |
| App remote control | Yes |
| OTA / USB firmware update | Yes |
| Customized modes | Backup, economical, time-based control |
| Screen | 4.3in touchscreen, 480×800, 16.7M colors |
Common Questions
Is the mPanel Pro included in this kit, or sold separately?
It’s included in this specific kit. Smaller Mango Power packages typically require mPanel or mSocket Pro as a separate purchase, but this bundle includes it.
How is 14,000Wh calculated for this kit?
Two Mango Power E units (3.53kWh each) plus two expansion batteries (3.53kWh each) combine for roughly 14.12kWh of total storage.
Does this kit still accept solar charging?
Yes. Each Mango Power E unit accepts up to 2,000W of solar input via its built-in MPPT controller.
Is professional installation required for mPanel Pro?
Home circuit-panel integration involves electrical wiring and should be installed by a qualified electrician.
