Portable Power Station + Solar Panel Kit · 3,000W · 3.5kWh

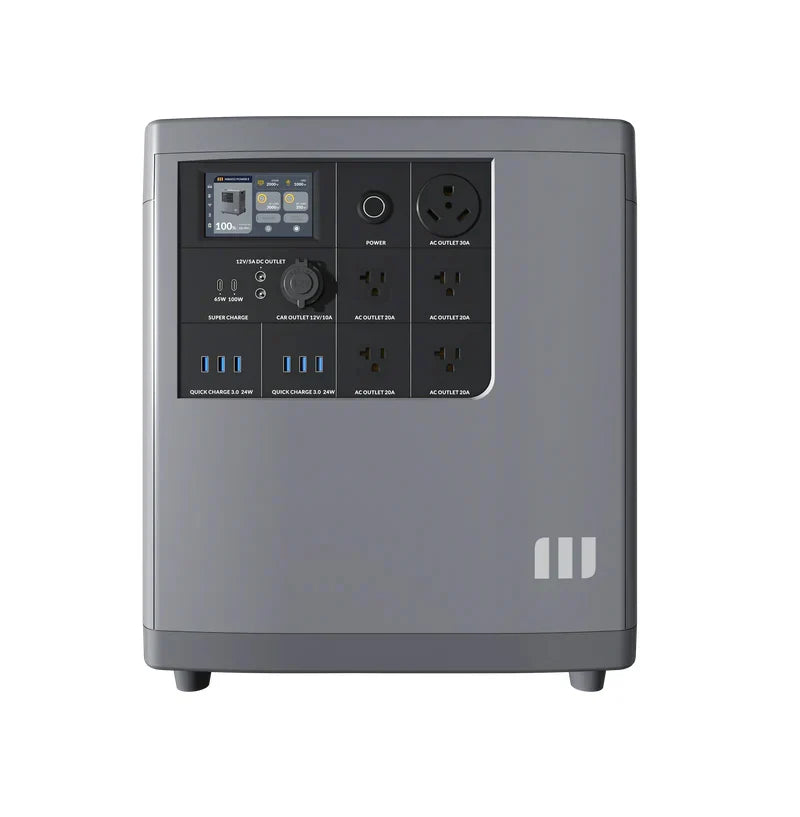

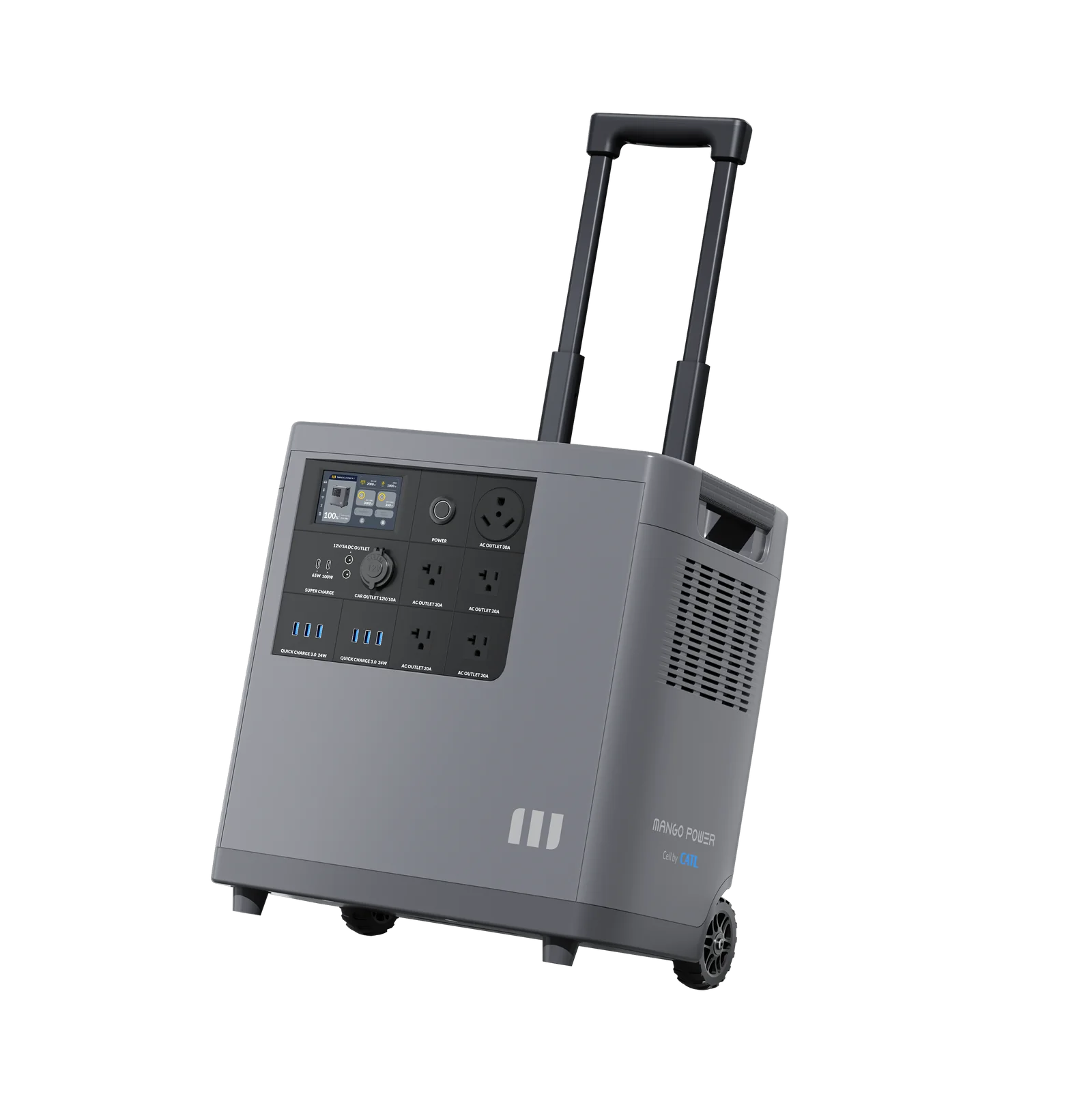

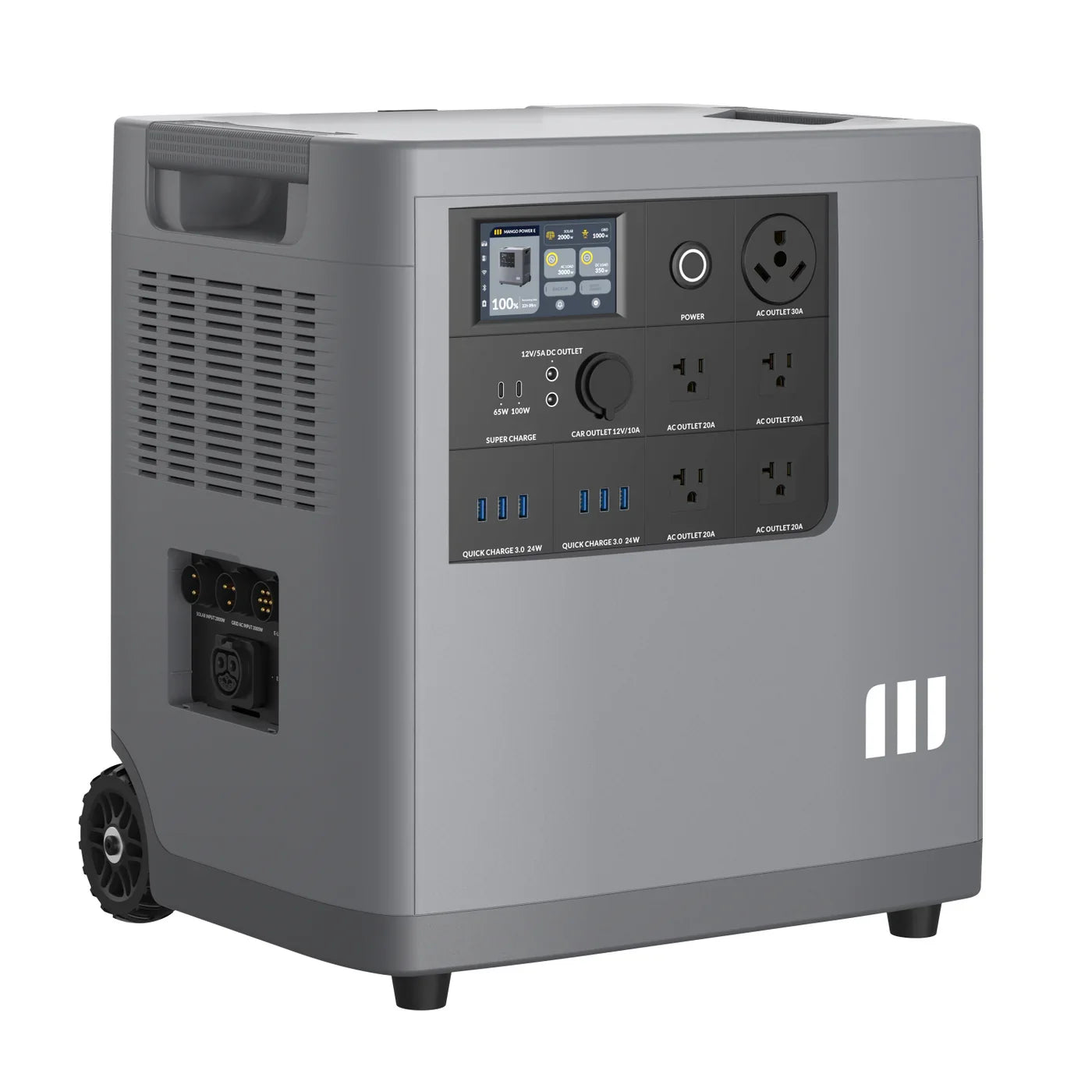

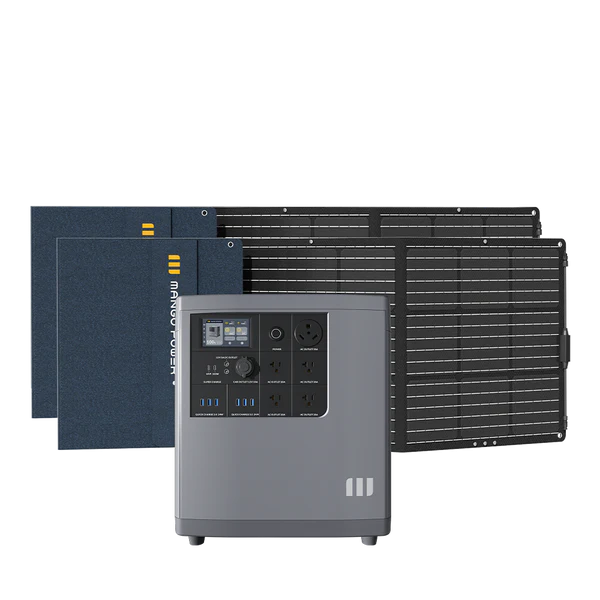

Mango Power E 3,000W 3.5kWh Portable Power Station + 2×200W Solar Panels
A complete off-grid charging loop in one package. The Mango Power E power station pairs with two 200W foldable solar panels, so the 3.53kWh CATL LFP battery inside can recharge directly from sunlight — no wall outlet required, no separate charge controller to buy.
Solar Charging, Ready Out of the Box
Both 200W panels connect in series through a single solar charging cable straight into the Mango Power E, which accepts up to 2,000W of solar input across a 60–150V range via its built-in MPPT controller. That’s enough headroom to recharge the 3.53kWh battery meaningfully through a single sunny day, with no additional charge controller or wiring kit to source separately.
This package includes one Mango Power E power station (3.53kWh) and two Mango Power 200W solar panels — no expansion battery is included in this listing.
The Same LFP Cells That Power the World’s Best EVs
Mango Power E uses CATL lithium iron phosphate cells, the same chemistry found in some of the highest-performing electric vehicles on the road. Rated for over 6,000 cycles while retaining more than 70% of original capacity, these cells are built to handle years of repeated charging and discharging without a meaningful drop in performance.
240V Split-Phase Output When You Need It
Add the mSocket Pro accessory (sold separately) and the Mango Power E delivers 240V split-phase output for large appliances like heaters and dryers — power that a standard 120V-only station simply can’t provide.
Built for Fast Setup and Real-World Weather
Exceptional Efficiency

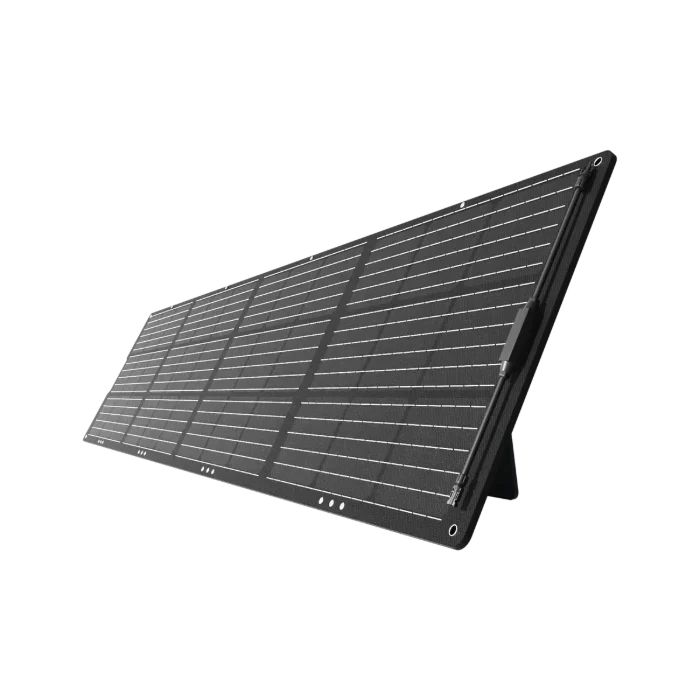

ETFE solar cell lamination delivers a 22% higher conversion rate compared to traditional panel construction, meaning more usable watts per panel in the same footprint.
Portable Design

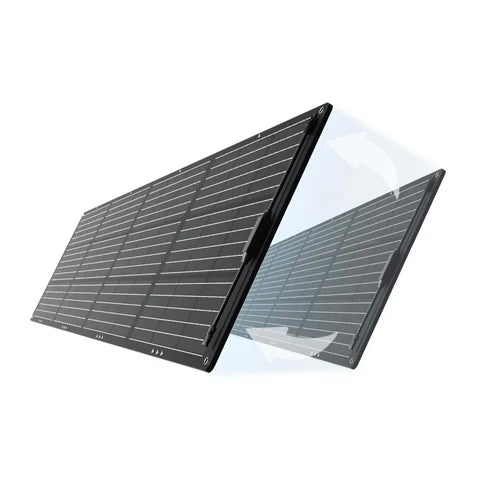

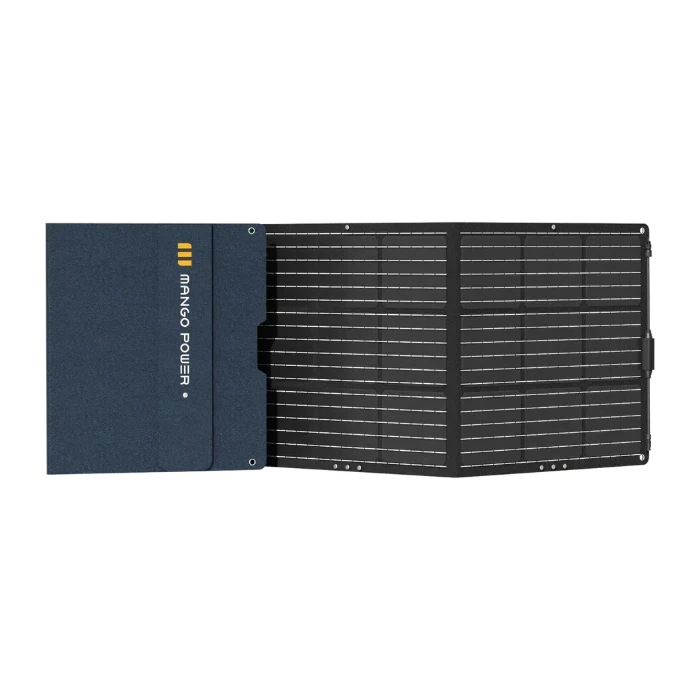

Magnetic pads let the panel fold neatly and securely for transport, without the bulk of a rigid frame.
Quick and Easy Setup
Three sturdy kickstands get the panel angled toward the sun in a matter of seconds — no tools, no separate stand to assemble.
Built to Last
The ETFE-laminated case and IP67 waterproof rating mean the panel can handle real outdoor use, not just fair-weather charging.
What’s Included
- •2× Mango Power 200W solar panels
- •200W solar panel protective case
- •User manual
- •Warranty card
Estimated Runtime on the 3.53kWh Battery
Where It Fits
Mango Power E Specifications
General & Battery
| Specification | Value |
|---|---|
| Net weight | 100 lbs (45.4 kg) |
| Size | 17.8 × 13.6 × 19.4 in |
| Working temperature | Charge -20°C to 60°C, discharge -30°C to 60°C |
| Warranty | 5 years |
| IP level | IP21 |
| Quick charge | 80% in 1hr, 100% in 1.5hrs |
| Running noise | < 40dB no-load, < 51dB full-load |
| Battery capacity | 3.53 kWh |
| Cell chemistry | CATL LFP |
| Life span | > 70% capacity after 6,000 cycles @ 25°C |
| Max charging rate | Up to 1.1C |
Input & Inverter
| Specification | Value |
|---|---|
| Charging method | AC wall, solar, EV charger, generator |
| AC charging | Max 3,000 W |
| Solar charging | Max 2,000 W (60–150V) |
| Rated AC output | 3,000 W, 120V, 60Hz |
| Overload power | 3,150–3,750W: 5min, 3,750–4,500W: 60s, 4,500–4,800W: 10s, >4,800W: <40ms |
| MPPT | 1× (roof and portable solar) |
| Inverter efficiency | Up to 88% |
Output Ports
| Specification | Value |
|---|---|
| Total output ports | 16 |
| AC output | 4 × 20A |
| USB-A | 6 × QC 3.0 27W |
| USB-C | 1 × PD 65W + 1 × PD 100W |
| Car power output | 12V / 10A |
| DC5521 output | 2 × 12V / 5A |
| AC RV port | 30A |
Smart Control & Display
| Specification | Value |
|---|---|
| Connectivity | Bluetooth and Wi-Fi |
| App remote control | Yes |
| OTA / USB firmware update | Yes |
| Customized modes | Backup, economical, time-based control |
| Screen | 4.3in touchscreen, 480×800, 16.7M colors |
| Smart self-check system | Yes |
Accessories Sold Separately
- mSocket Pro — required to unlock 240V split-phase output for high-power appliances.
- mPanel — required for direct home circuit-panel integration and automatic whole-circuit backup.
Common Questions
Do the two solar panels connect directly to the power station?
Yes. Both 200W panels connect in series through a single solar charging cable into the Mango Power E’s built-in MPPT solar input.
What’s the maximum solar input the unit accepts?
Up to 2,000W across a 60–150V range — well above what these two 200W panels alone produce, leaving room to add more panels later.
Is an expansion battery included in this package?
No. This package includes the base Mango Power E power station and two solar panels only. Expansion batteries are sold separately.
Are the solar panels weatherproof?
Yes. They carry an IP67 waterproof rating and use an ETFE-laminated case built to hold up under real outdoor conditions.
