Inverter · 12,000W

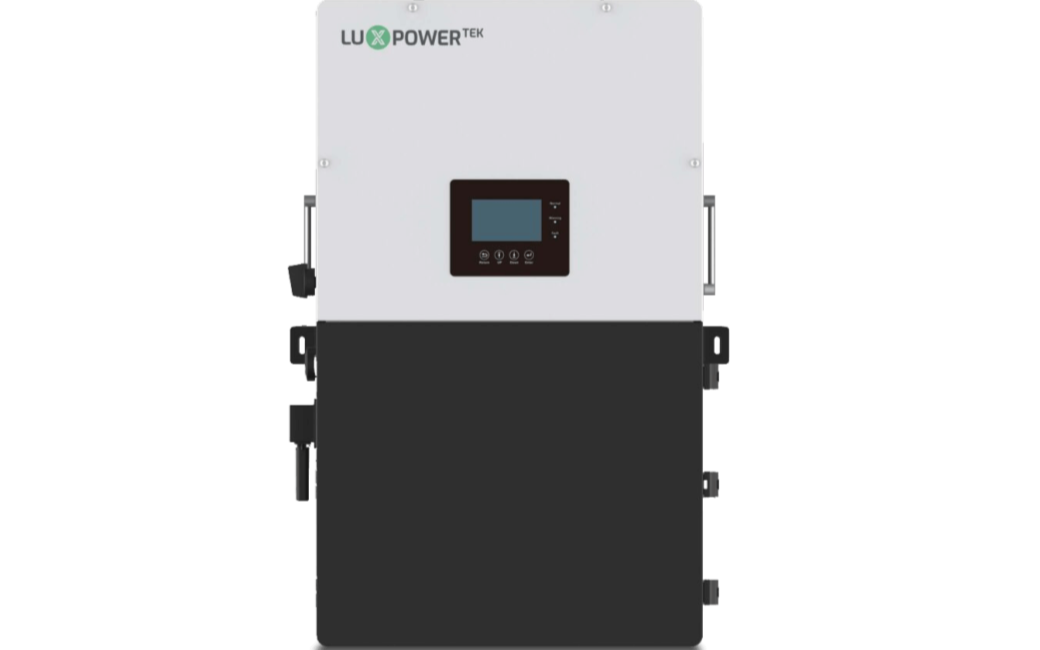

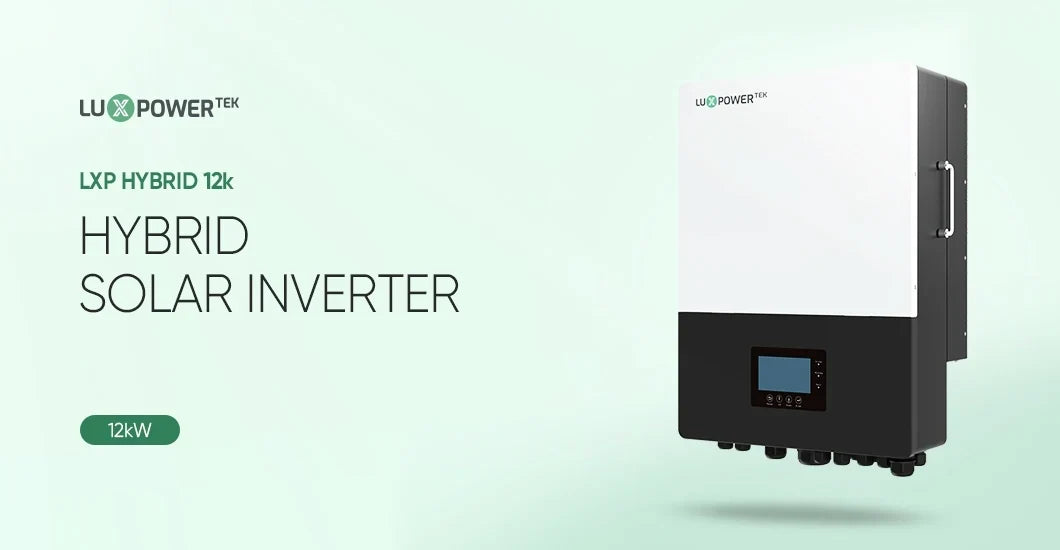

LUXPower 12kW 120V/240V Hybrid Inverter
Introducing the LXP 12K Hybrid Inverter from LUXPower – a versatile and powerful solution for all your home energy needs. With a rated power of 12,000W and support for solar arrays up to 18,000W, this state-of-the-art inverter can handle even the most demanding power systems. Designed for easy installation, it features an intuitive LCD touch screen for real-time monitoring and effortless control. Equipped with 3 MPPT inputs, built-in circuit breakers, and an integrated UPS module, it ensures smooth transitions between on-grid and off-grid modes with a fast response time of just 10-20ms.
The LXP 12K also offers flexible working modes and configurations, making it suitable for a variety of setups – whether you’re upgrading your grid-tied solar system or enhancing your off-grid backup solution. With advanced features like smart load control, AC coupling, and peak shaving, this inverter helps safeguard your home against power outages and grid instability while maximizing energy efficiency. Enjoy significant savings on your electricity bills and take control of your home’s energy today with the LXP 12K Hybrid Inverter from LUXPower.
Looking for alternatives in a similar power range? Explore the Sol-Ark 8K Solar Hybrid Inverter for another trusted solution in residential and commercial energy storage.
Features
- Triple MPPT Inputs for optimized solar power generation and enhanced efficiency.
- Smart Load Control to intelligently manage energy usage, reducing power waste.
- Multiple Working Modes adaptable to various solar and off-grid configurations.
- AC Coupling Function for flexible system integration and improved performance.
- Peak Shaving Capability helps reduce electricity demand during high usage periods.
- Built-In Circuit Breakers ensure safety and prevent electrical overloads.
- Integrated UPS Module provides uninterrupted power with seamless transitions.
- LCD Touch Screen Interface for easy monitoring and system control.
- Fast Switching between on-grid and off-grid modes in under 20ms.
- Advanced Parallelability supports expansion up to 120kW for larger systems.
Compatibility
- Compatible with 48V Battery Systems for efficient energy storage and management.
- Ideal for Off-Grid Backup Systems, ensuring reliable power when the grid is down.
- Perfect for Residential Solar Systems, maximizing home energy efficiency.
- Reliable solution for Emergency Power Systems to keep essential devices running during outages.
- Supports AC Coupled UPS Systems for uninterrupted, seamless power transitions.
For more options within the same brand, visit our full LuxPower inverters collection to find the perfect match for your solar setup.
Specifications
| Output Power | 12,000W |
| Output Voltage | 120/240; 120/208 |
| Max. PV Array Power | 18,000W |
| Rated PV Input Voltage | 360V |
| No. of Independent MPPT Inputs | 3 |
| PV Input Voltage Range | 100 – 600V |
| MPPT Voltage Range | 120 – 480V |
| Start-Up Voltage | 140V |
| Max. PV Input Current per MPPT | 25A / 15A / 15A |
| Max. MPPT Efficiency | 99.90% |
| Rated Battery Voltage | 48V |
| Battery Voltage Range | 40 – 60V |
| Max. Charge/Discharge Current | 250A |
| Max. Charge/Discharge Power | 12,000W |
| AC Voltage | 120/240; 120/208 |
| AC Frequency | 60 Hz |
| AC Output Current | 50A |
| AC Output Power | 12,000W |
| Max. AC Input Current | 100A |
| Max. AC Input Power | 24,000W |
| Output Current | 50A |
| Output Frequency | 60 Hz |
| Transfer Time | 20ms |
| Waveform | Sine Wave |
| Weight | 121.2 lbs (55 kg) |
| Depth | 11.2 in (285 mm) |
| Width | 20.5 in (520 mm) |
| Height | 34.2 in (870 mm) |
| Operating Temperature | -20ºC (-4ºF) – 60ºC (140ºF) |
| Storage Temperature | -20ºC (-4ºF) – 60ºC (140ºF) |
| Altitude | <6,562 ft |
| Protection Rating | IP65 |
Additional Documentation
| Spec Sheet: | Click Here |
| User Manual: | Click Here |
| Commissioning Guide: | Click Here |
| Registration & WiFi Setup Guide: | Click Here |
| Rapid ShutDown Certificate: | Click Here |
| UL1741 Certificate: | Click Here |
| IEEE1547 Certificate: | Click Here |
| Warranty Card: | Click Here |
| Warranty Terms: | Click Here |
