Portable Solar Panel · 200W · IP68

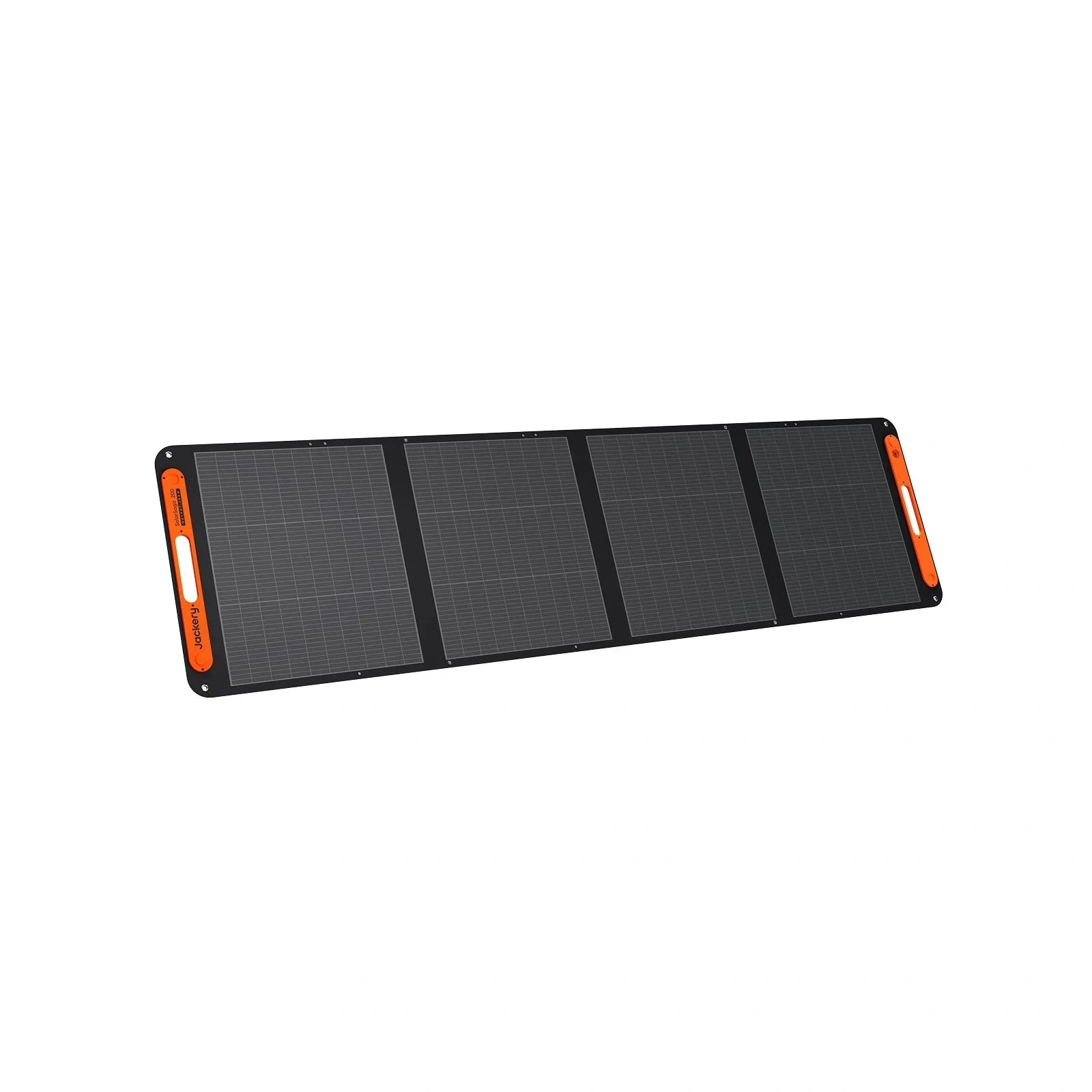

Jackery SolarSaga 200W Portable Solar Panel
The Jackery SolarSaga 200W Solar Panel is a 200W folding portable solar panel with 25% cell efficiency and an IP68 rating, built to recharge Jackery power stations off-grid.
Jackery SolarSaga 200W Portable Solar Panel
Pair it with a Jackery portable power station or see all Jackery solar panels.
Jackery SolarSaga 200W Solar Panel Features
200W TOPCon bifacial panel
Up to 25% conversion efficiency, with extra output from reflected light on the rear side.
IP68 all-weather build
Dustproof and waterproof for rain, snow and sand.
Fold-and-go with adjustable stands
Sets up in minutes; 14.3 lb.
14°F to 149°F operation
Reliable year round.
USB-A and USB-C on the panel
Charge small electronics directly.
SolarTarget aiming aid
Helps you angle the panel for maximum sun.
Cables included
3 m multi-function cable and DC8020 to DC7909 adapter in the box.
What’s in the Box
- 1×SolarSaga 200W Solar Panel
- 1×3 meters multi-functional cable (with USB charing ports)
- 1×DC8020 to DC7909 Adapter
- 1×User Manual
Jackery SolarSaga 200W Solar Panel Specifications
Jackery SolarSaga 200W Solar Panel
| Ports | |
| USB-A Output | 5V⎓2.4A |
| USB-C Output | 5V⎓3A |
| Solar | |
| Maximum System Voltage | 60V |
| Maximum Reverse Current | 15A |
| Bifaciality Coefficient (back/front) | Pmax>70%, Voc>95%, Isc>65% |
| Voltage Temperature Coefficient | -(0.27±0.03)%/°C |
| Power Temperature Coefficient | -(0.33±0.02)%/°C |
| General | |
| Weight | 14.33 lbs ± 0.66 lbs (6.5 kg±0.3 kg) |
| Protection Class Against Electric Shock | Class II |
| Waterproof | IP68 |
| Operating Temperature Range | -4~149℉（-20~65°C） |
| Warranty | 3+2 Years |
| STC (1000W/㎡, 25℃, AM 1.5) | |
| Peak Power (Pmax) | 200W±5% |
| Open Circuit Voltage (VOC) | 22V±5% |
| Short Circuit Current (Isc) | 12.5A±5% |
| Power Voltage (Vmp) | 18V±5% |
| Power Current (Imp) | 11.5A±5% |
| BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5) | |
| Peak Power (Pmax) | 225W±5% |
| Open Circuit Voltage (Voc) | 22V±5% |
| Short Circuit Current (Isc) | 13.5A±5% |
| Power Voltage (Vmp) | 18V±5% |
| Power Current (Imp) | 12.6A±5% |
| Dimensions | |
| Folded | 23.62 x 23.50 x 1.57 in (600 x 597 x 40 mm) |
| Unfolded | 89.76 x 23.50 x 0.98 in (2279 x 597 x 25 mm) |
Compatible Jackery Accessories
These genuine Jackery accessories work with this product. To add one to your order, call +1 307 317 7213 or contact us before checkout.
Jackery DC Extension Cable for Solar Panel
16.4 ft flame-retardant PVC extension cable with copper core for placing the solar panel farther from the power station.
Jackery 10m DC Extension Cable Plus
32.8 ft (10 m) DC8020-to-DC8020 extension cable with UL2464 PVC insulation. Works with most Jackery solar panels.

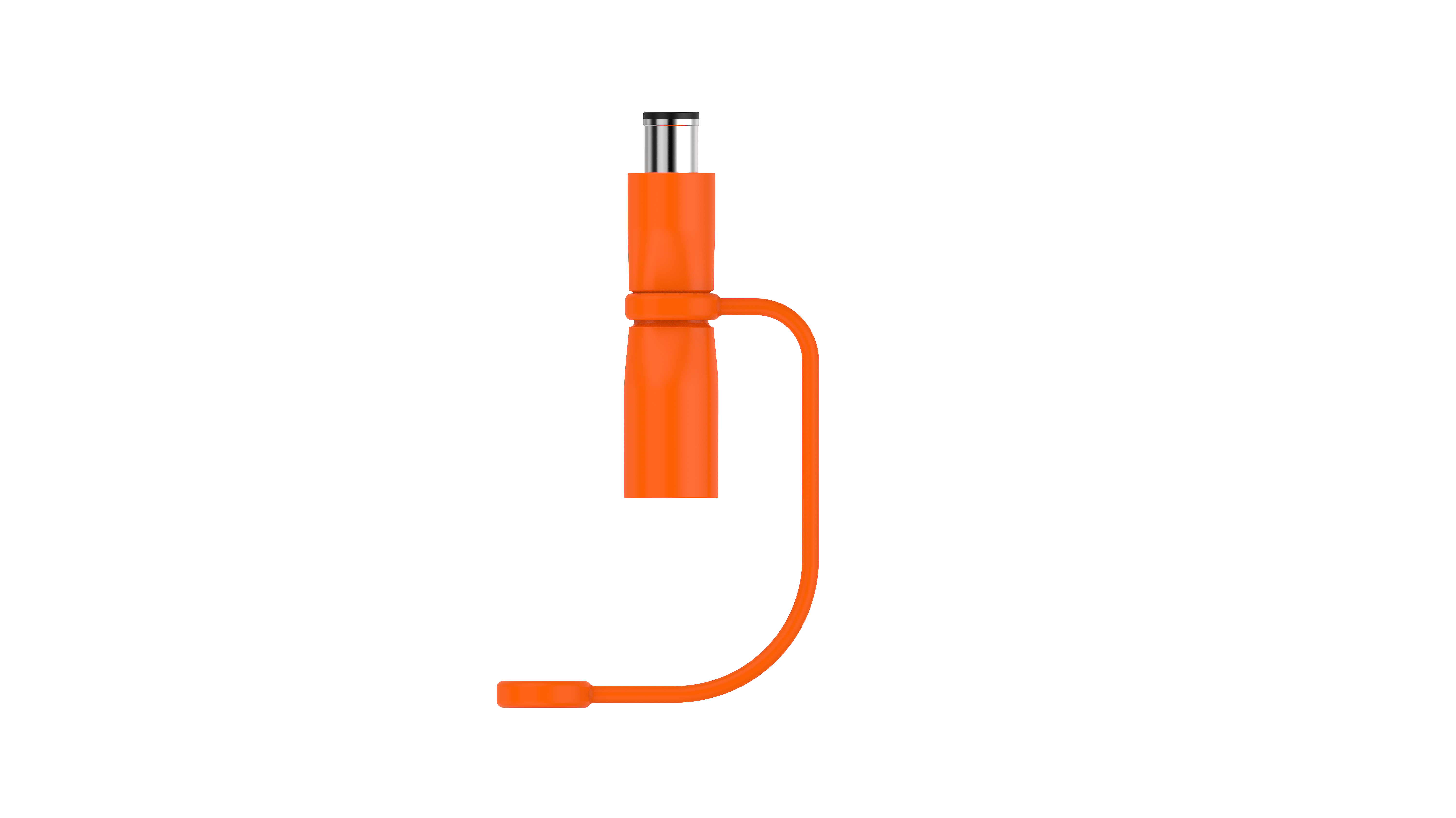

Jackery Adapter DC8020 to DC7909
DC8020 to DC7909 adapter for connecting DC8020 solar panels to power stations with a DC7909 input.
