Solar Generator Kit · 4,000W · 3,584Wh

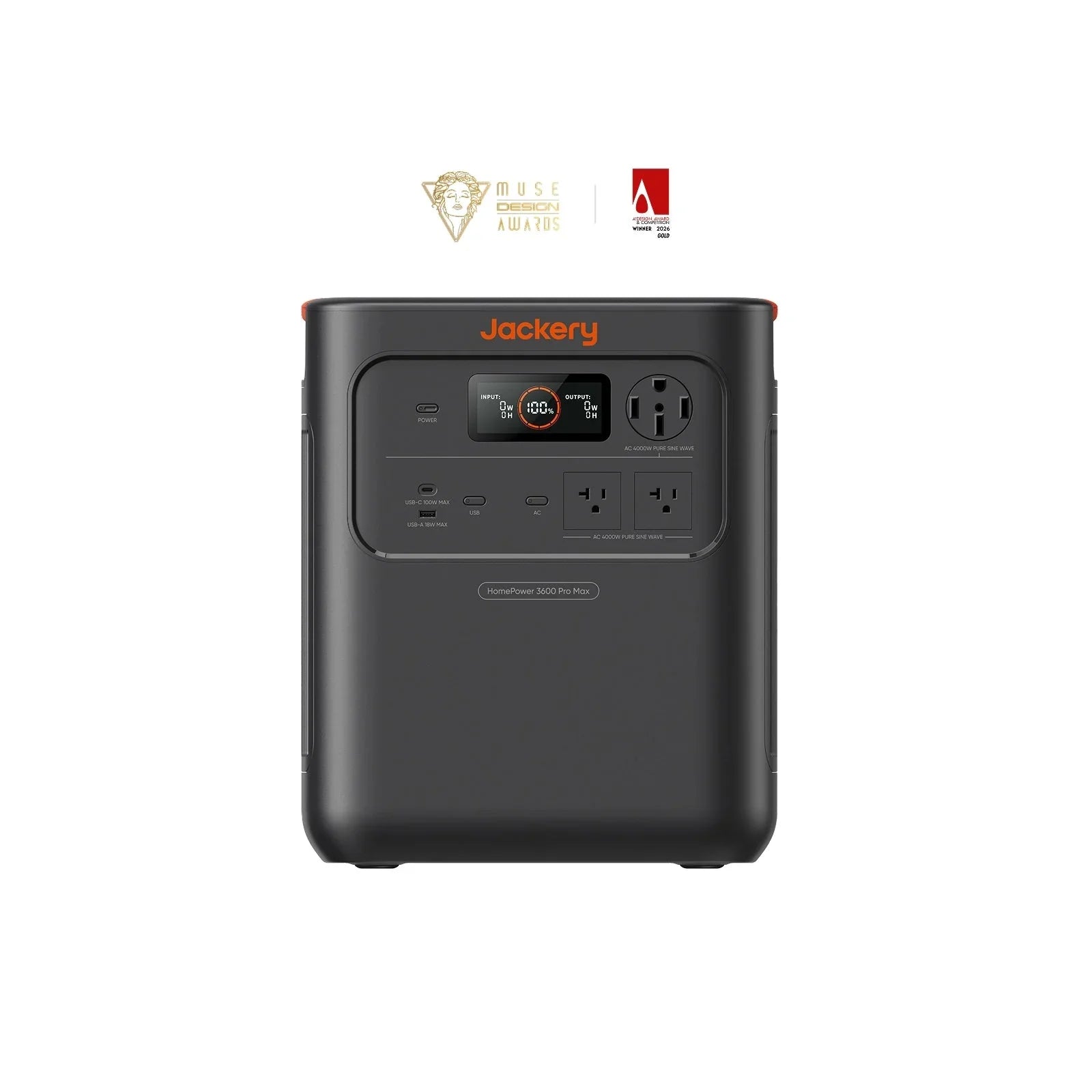

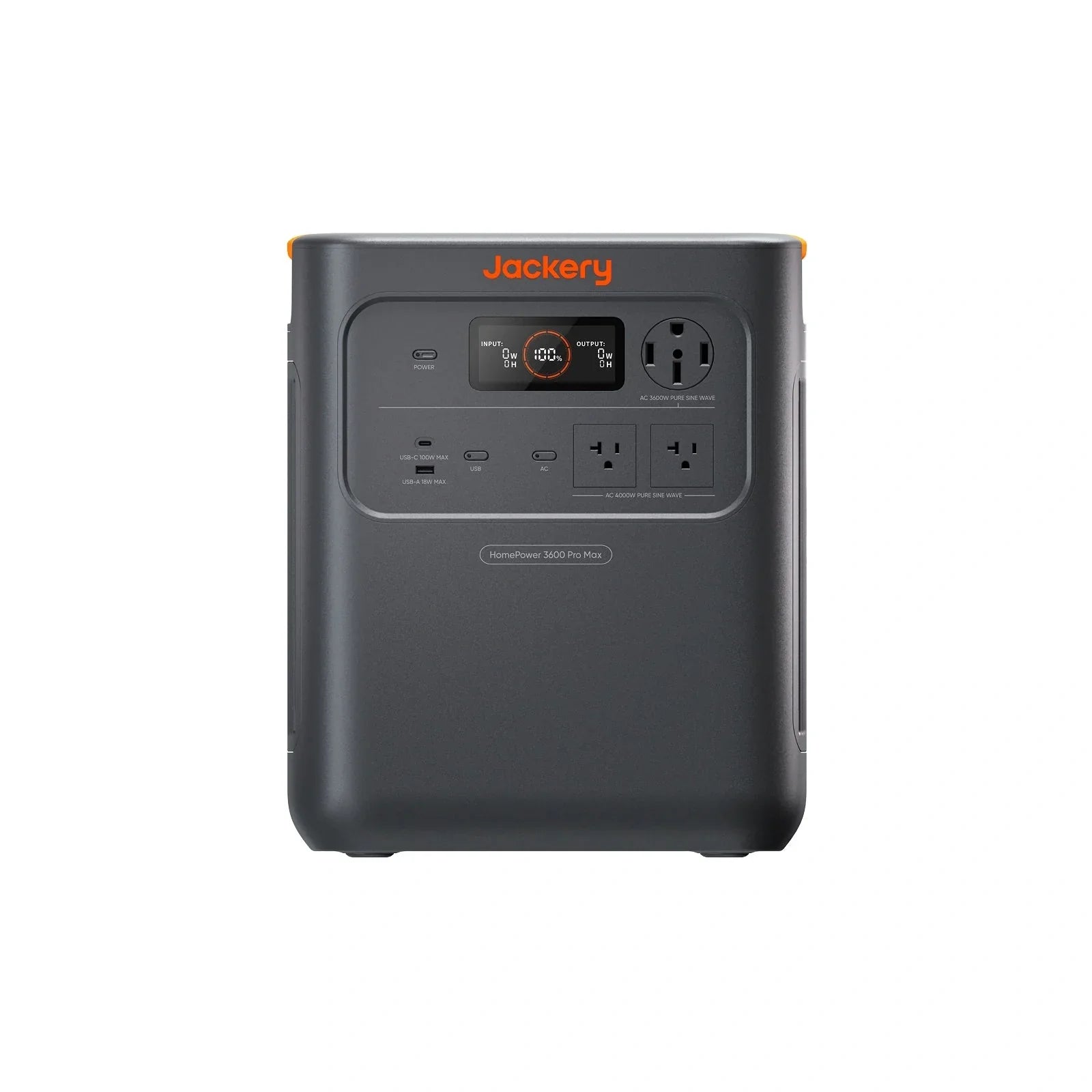

Jackery Solar Generator HomePower 3600 Pro Max
The Jackery HomePower 3600 Pro Max is a LiFePO4 portable power station with 3,584Wh of capacity and 4,000W of rated output (8,000W surge).

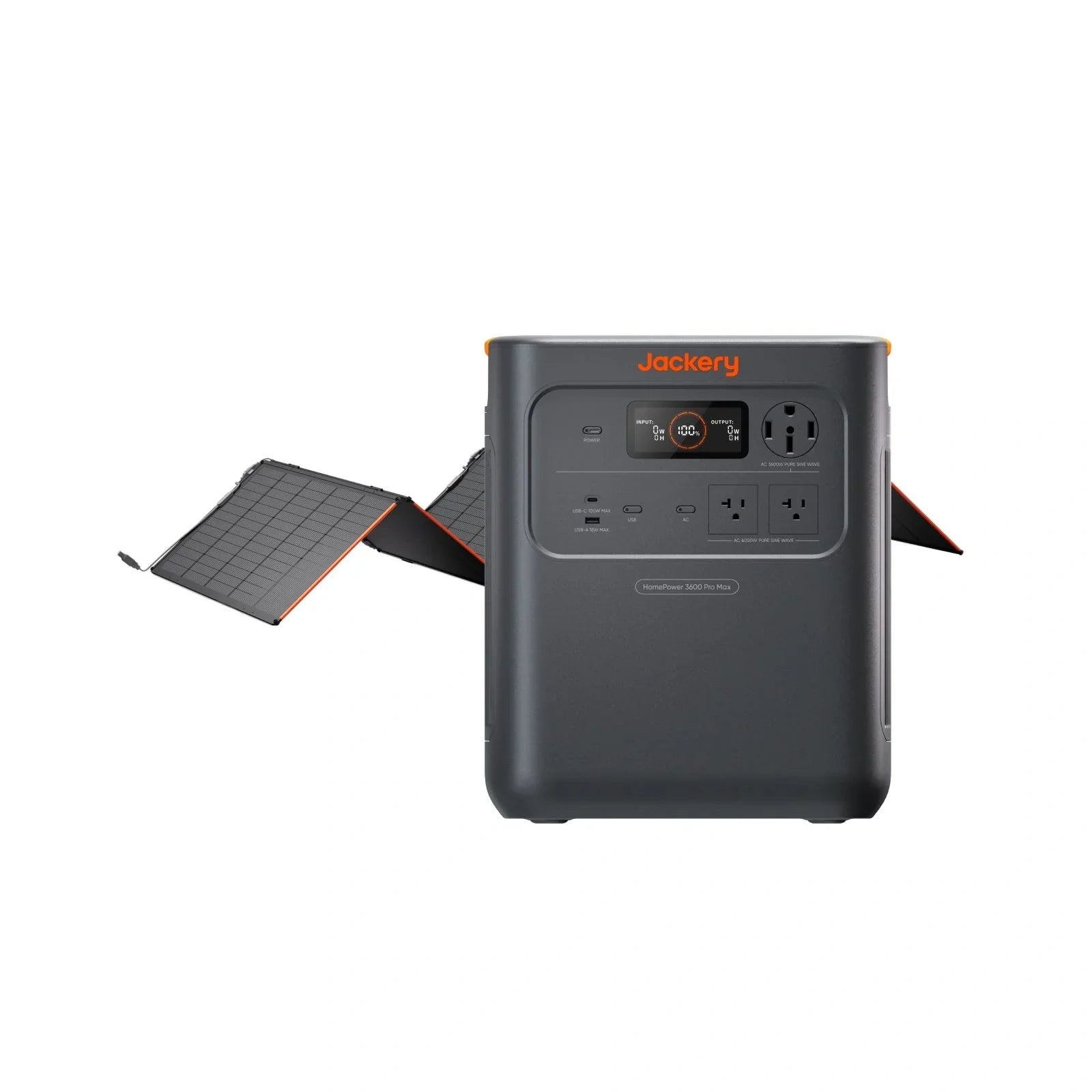

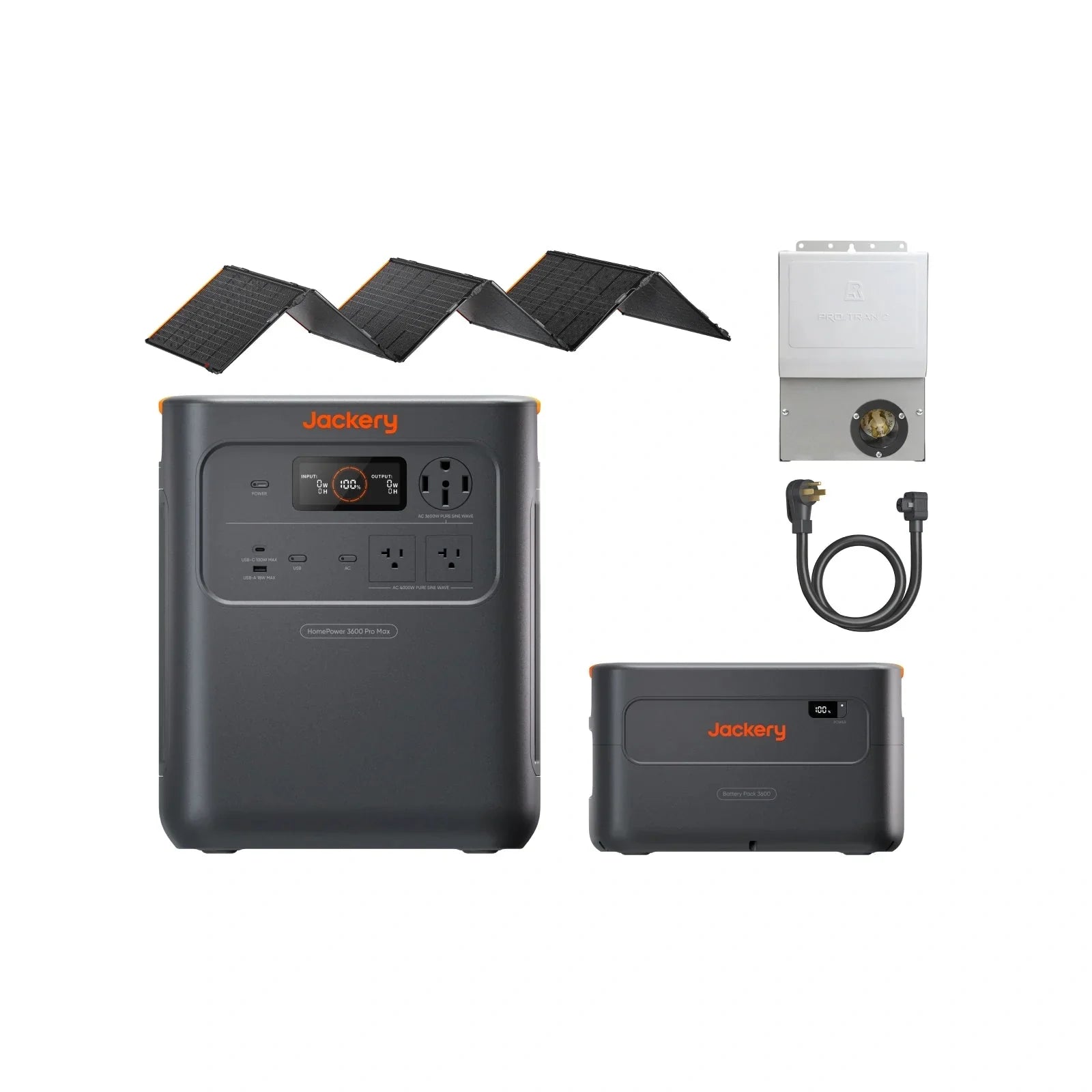

Jackery Solar Generator HomePower 3600 Pro Max with SolarSaga 500 X
The battery is rated for 6,000 charge cycles. This kit adds the Jackery SolarSaga 500 X Solar Panel. With 500W of SolarSaga panels it recharges from the sun for camping, RV trips and outage backup. Capacity is expandable up to 21.5kWh with add-on battery packs.
Browse all Jackery portable power stations, Jackery solar generator kits and SolarSaga solar panels.
Jackery HomePower 3600 Pro Max Features
01
True 240V from one unit
4,000W at 240V (8,000W surge) or 2,000W at 120V, with a NEMA 14-50 outlet for larger loads.
02
Home energy hub

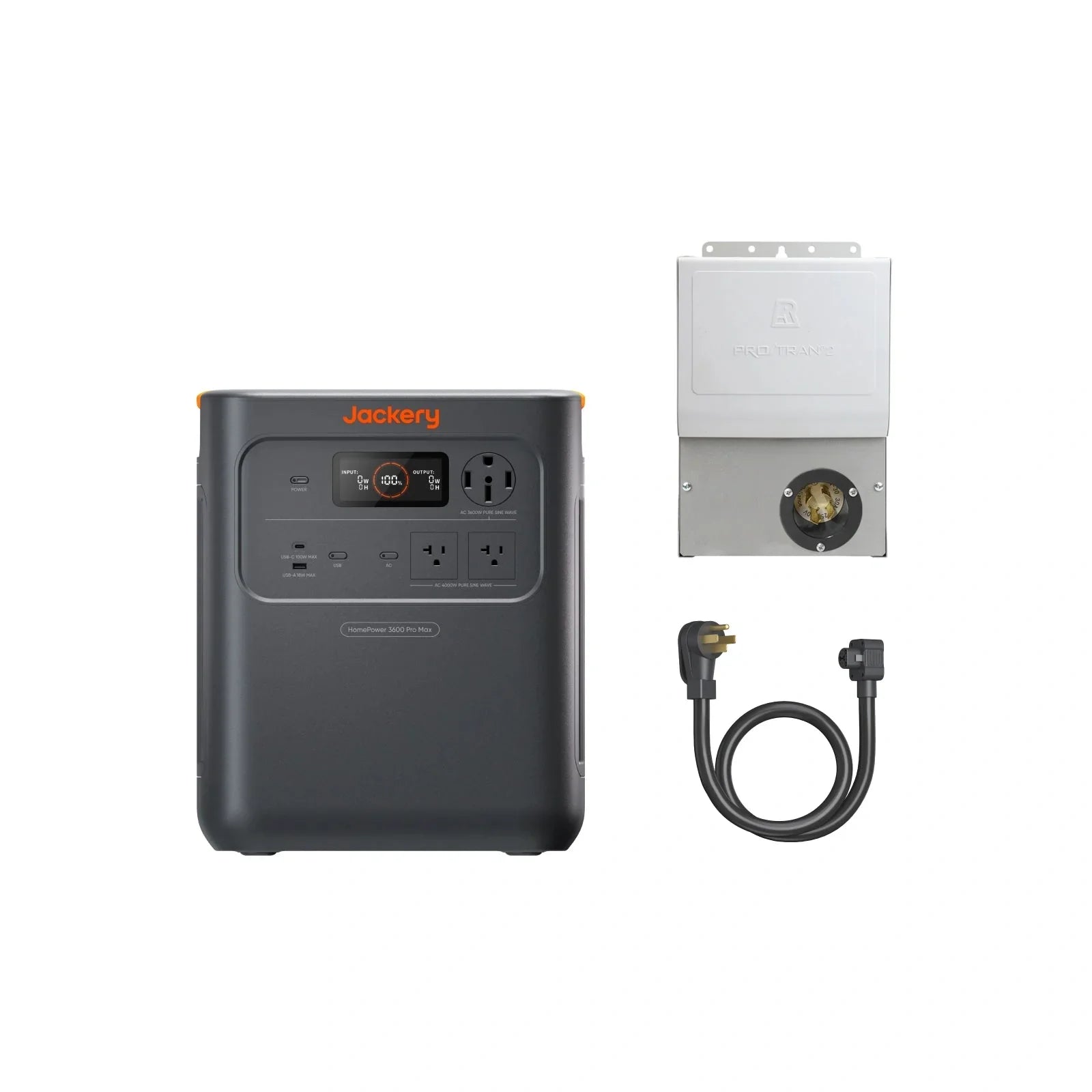

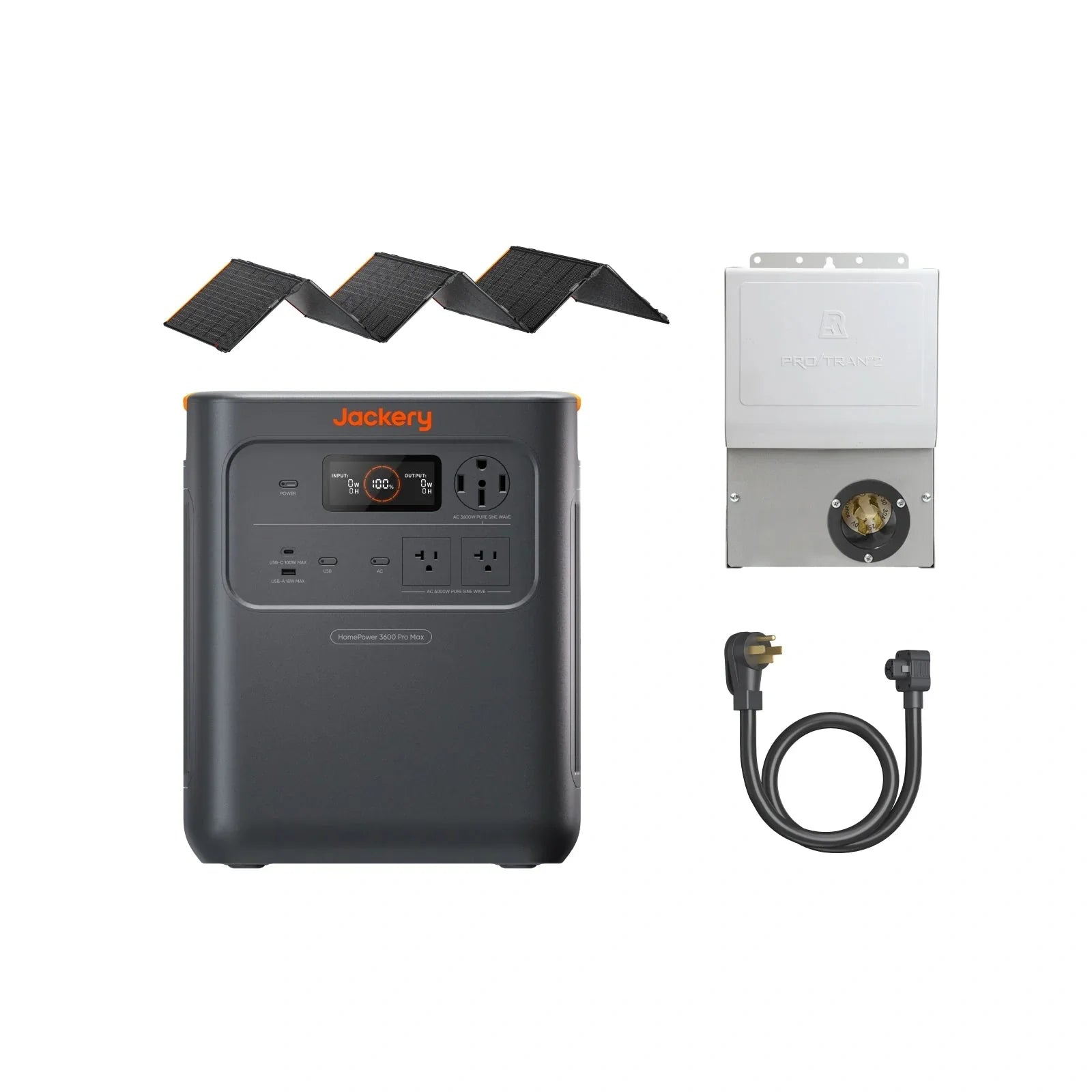

Connect through a manual transfer switch to back up household circuits.
03
Sub-10ms UPS
Computers and appliances keep running through grid drops.
04

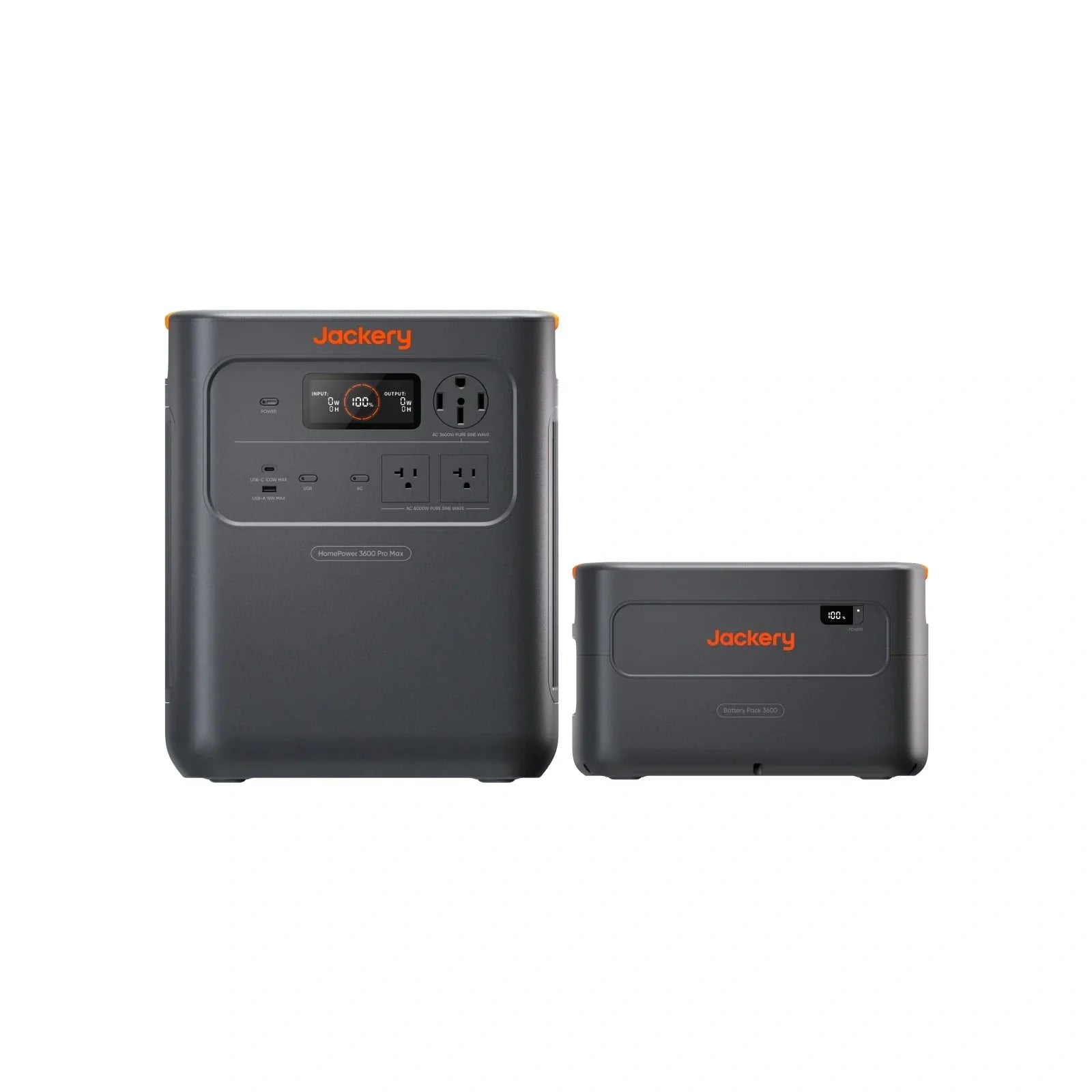

Expandable to 21.5kWh, 43kWh in parallel
Up to five Battery Pack 3600 Plus units per station.
05
UL 9540 certified, EV-grade LFP
6,000-cycle cells rated for 16+ years with a flame-retardant enclosure.
06
Time-of-Use mode
Charge when rates are low and discharge at peak to reduce utility bills.
07
Under 30dB
Library-quiet operation with eight ways to recharge.

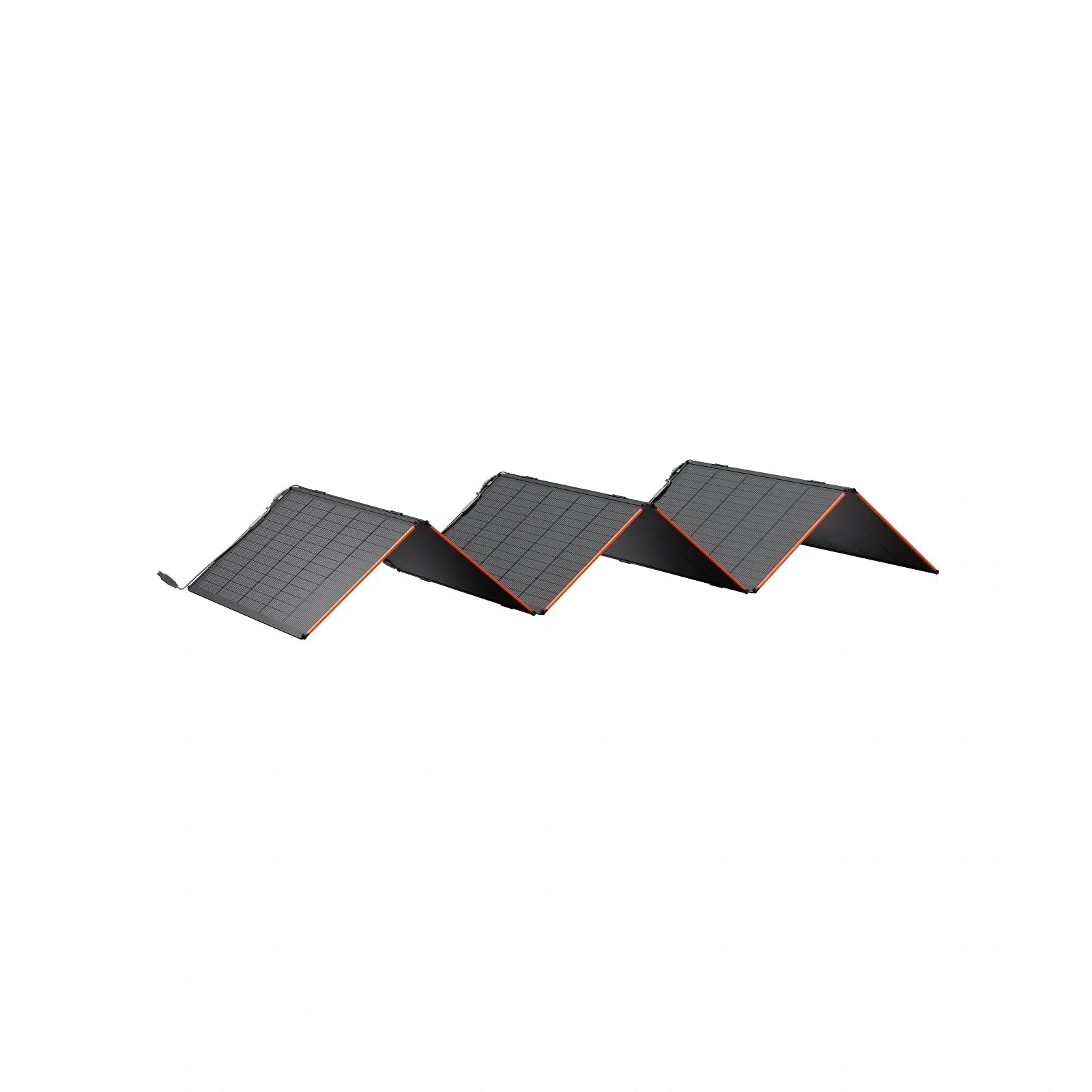

Jackery SolarSaga 500 X Solar Panel Features
01
500W from six 85W panels
Use all six or only some, depending on space and shade.
02
25% TOPCon bifacial cells
High yield in real-world light.
03
-40°F to 185°F, IP68
M-shaped array layout stands up to strong wind.
04

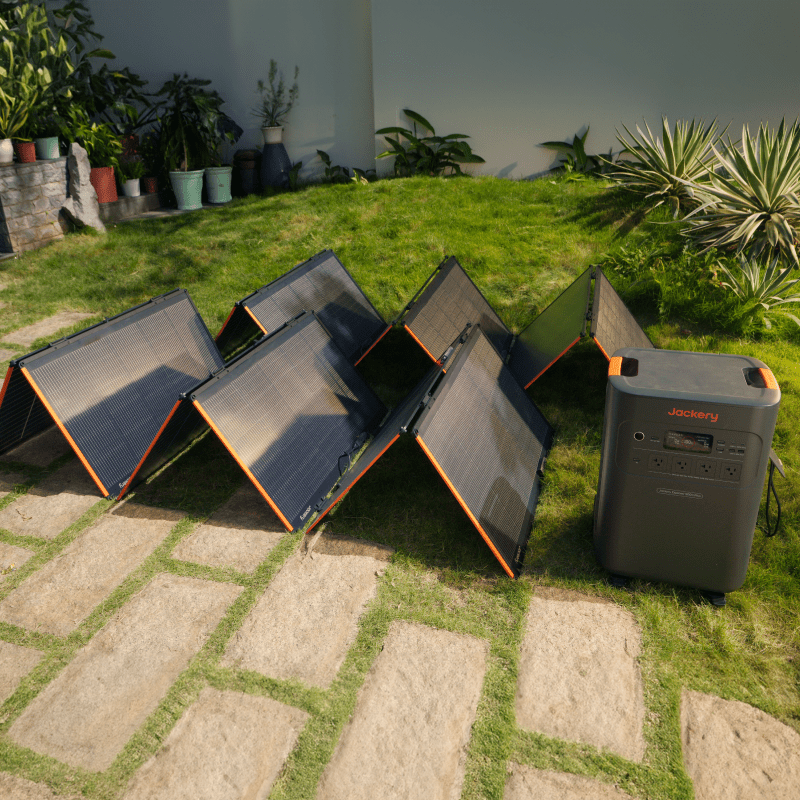

Foldable, no permanent install
Deploy on a lawn, balcony or flat roof; not intended for permanent mounting.
05
Simple parallel wiring
Plug in and start charging.
06
Compatibility
Sold by Jackery in kits with the Explorer 2000 v2, HomePower 2000 Plus v2, HomePower 3000, HomePower 3600 Plus / Pro Max and Explorer 5000 Plus; also works with the Explorer 2000 Plus, 1000 Plus and 1000 v2.
What’s in the Box
- 1×Jackery HomePower 3600 Pro Max
- 1×Jackery SolarSaga 500 X Solar Panel
- 1×AC Charging Cable
What Can the Jackery HomePower 3600 Pro Max Run?
Estimated runtimes for 3,584Wh of capacity, assuming about 85% usable energy. Actual results vary with the device and temperature.
Jackery HomePower 3600 Pro Max FAQ
Q1
How long does the Jackery HomePower 3600 Pro Max take to charge?
From a wall outlet: 2.5 Hours. It can also be charged from solar panels.
Q2
Are the solar panels included?
Yes. This kit ships with 500W of Jackery SolarSaga panels and the cables needed to connect them to the power station.
Q3
How long does the battery last?
The LiFePO4 cells are rated for 6,000 charge cycles before capacity drops to about 70%. With one full cycle every day that is more than 16 years.
Q4
Can I add more capacity later?
Yes. The Jackery HomePower 3600 Pro Max expands up to 21.5kWh with compatible Jackery battery packs.
Q5
Can it work as a UPS?
Yes. Leave it plugged into the wall with your devices connected; when grid power drops it switches to battery automatically.
Q6
Does it ship free?
Yes – free shipping within the contiguous USA, and no sales tax in most states.
Jackery HomePower 3600 Pro Max Specifications
Jackery HomePower 3600 Pro Max
| Battery | |
| Capacity | 80Ah / 44.8V DC (3584 Wh) |
| Cell Chemistry | LiFePO₄ |
| Cycle life | 6000 Cycles (retained capacity ≥70% SOH) |
| General | |
| Weight | About 73.85 lbs/33.5 kg |
| Dimensions | 14.76 × 10.83 × 17.72 in / 37.5×27.5×45.0 cm |
| Charge Temperature | -4°F to 113°F / -20°C to 45°C |
| Discharge Temperature | -4°F to 113°F / -20°C to 45°C |
| Warranty | 3+2 years |
| Output Ports | |
| AC Output | 2 × AC (NEMA 5-20R): 120V~ 60Hz, 16.7A Max, 2000W per port AC (NEMA 14-50R): 240V~ 60Hz, 16.7A Max, 4000W Rated |
| AC Total Output | 4000W Rated, 8000W Surge peak at 240V; 2000W Rated, 4000W Surge peak at 120V |
| USB-C Output | 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A |
| USB-A Output | 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A |
| Input Ports | |
| AC Expansion Port (Input) | 240V~ 60Hz, 16.7A Max, 4000W Max |
| DC Input | 36.4V-50.4V⎓126A Max |
| Charging Time | |
| AC Adapter | 2.5 Hours |
Jackery SolarSaga 500 X Solar Panel
| Solar | |
| Maximum System Voltage | 90V DC |
| Maximum Reverse Current | 15A |
| Bifaciality Coefficient (back/front) | Pmax>80%，Voc>97%，Isc>80% |
| Voltage Temperature Coefficient | -0.26%/℃ |
| Power Temperature Coefficient | -0.32%/℃ |
| General | |
| Weight | 22.05 lbs ± 2.20 lbs (10.5 kg±0.5 kg) |
| Protection Class Against Electric Shock | Class II |
| Waterproof | IP68 |
| Operating Temperature Range | -40~185℉（-40~85℃） |
| Warranty | 5 Years |
| Dimensions | |
| Folded | Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97mm) |
| Unfolded | Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294mm) |

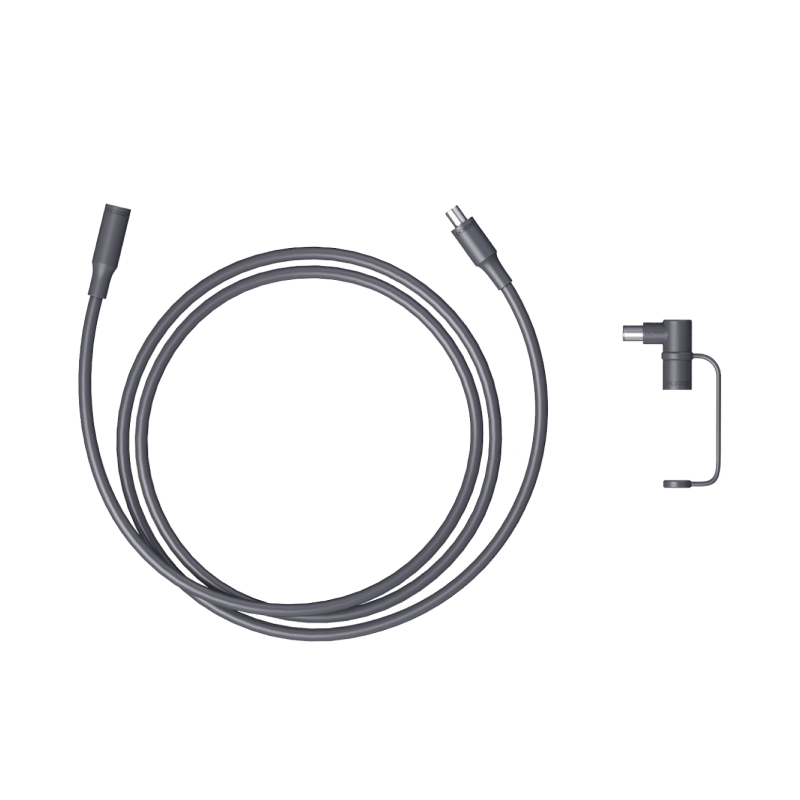

Jackery DC Extension Cable for Solar Panel
16.4 ft flame-retardant PVC extension cable with copper core for placing the solar panel farther from the power station.

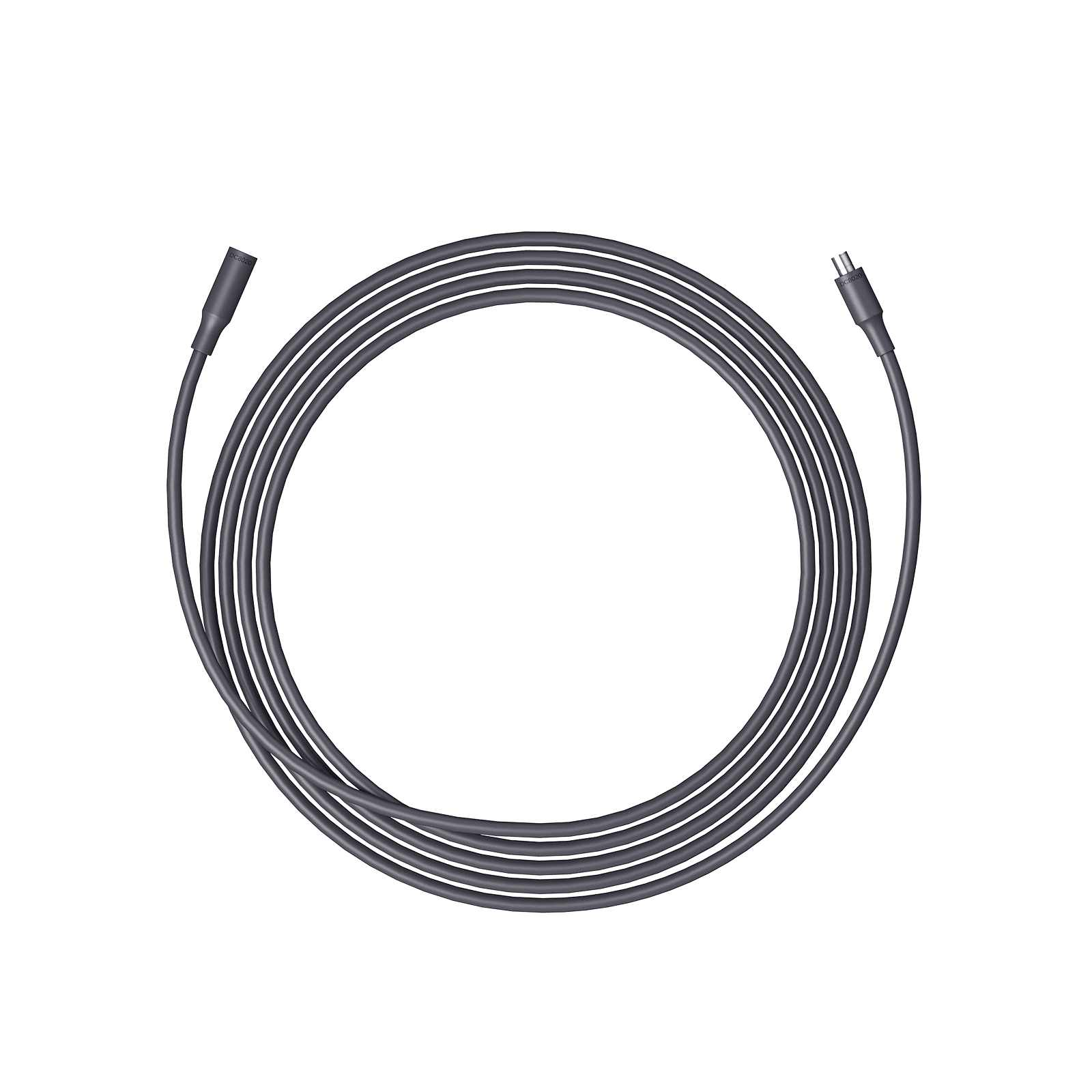

Jackery 10m DC Extension Cable Plus
32.8 ft (10 m) DC8020-to-DC8020 extension cable with UL2464 PVC insulation. Works with most Jackery solar panels.
Jackery 12V Automobile Battery Charging Cable
Charges a 12V/10A lead-acid car battery from any Jackery portable power station. Not for electric vehicles.
Jackery Anderson Extension Cable
Anderson extension cable for SolarSaga 100 Prime and SolarSaga 500 X solar panels.
Jackery Anderson Y Parellel Connector
Anderson Y connector for wiring SolarSaga 100 Prime / 500 X panels in parallel.
Jackery Anderson Y Series Connector
Anderson Y connector for wiring SolarSaga 100 Prime / 500 X panels in series.
