Solar Generator Kit · 7,200W · 5,040Wh
Jackery Solar Generator 5000 Plus
The Jackery Explorer 5000 Plus is a LiFePO4 portable power station with 5,040Wh of capacity and 7,200W of rated output (14,400W surge).

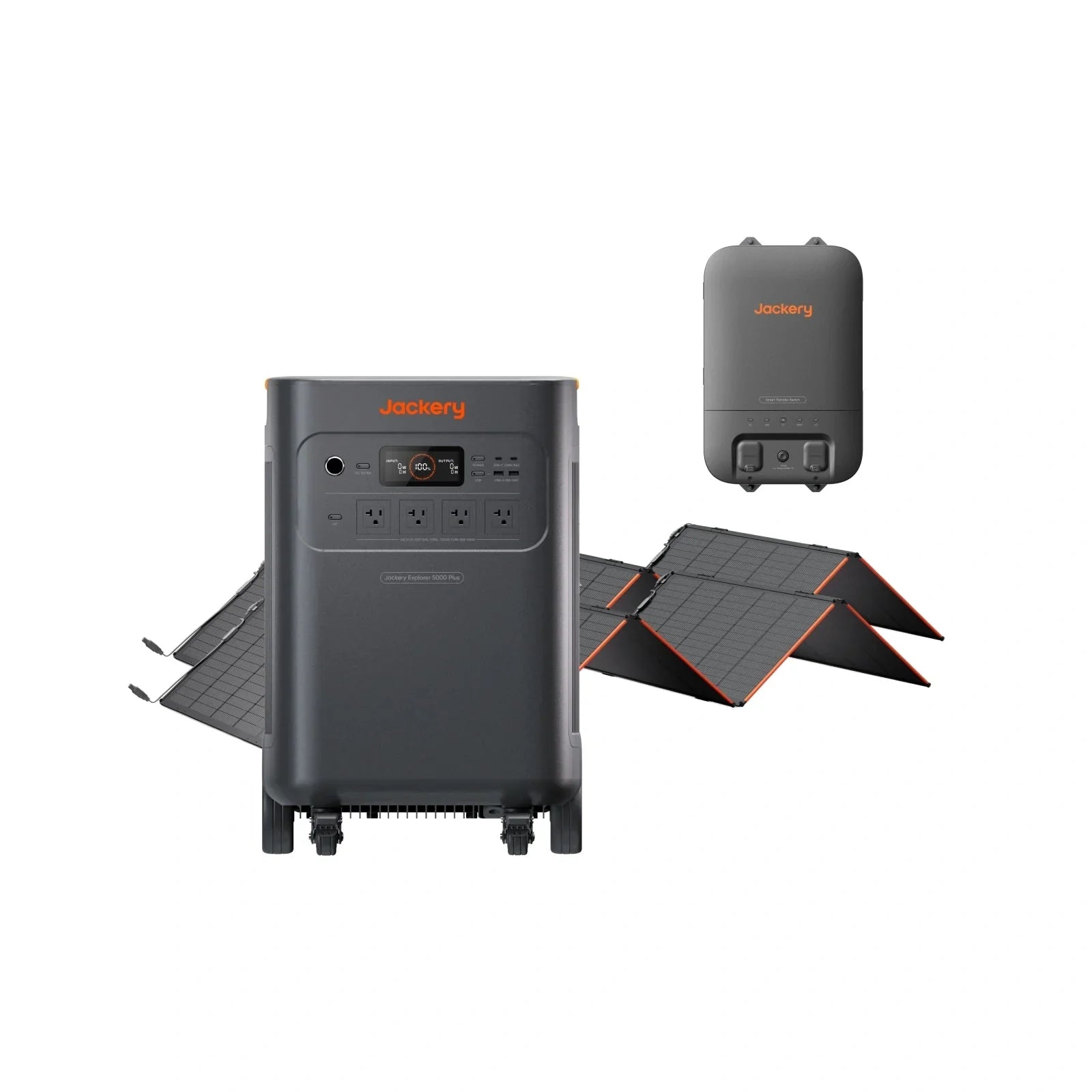

Jackery Solar Generator 5000 Plus with Smart Transfer Switch + 2x SolarSaga 500 X
The battery is rated for 4,000 charge cycles. This kit adds the Jackery Smart Transfer Switch, 2x Jackery SolarSaga 500 X Solar Panel. With 1000W of SolarSaga panels it recharges from the sun for camping, RV trips and outage backup. Capacity is expandable up to 60kWh with add-on battery packs.
Browse all Jackery portable power stations, Jackery solar generator kits and SolarSaga solar panels.

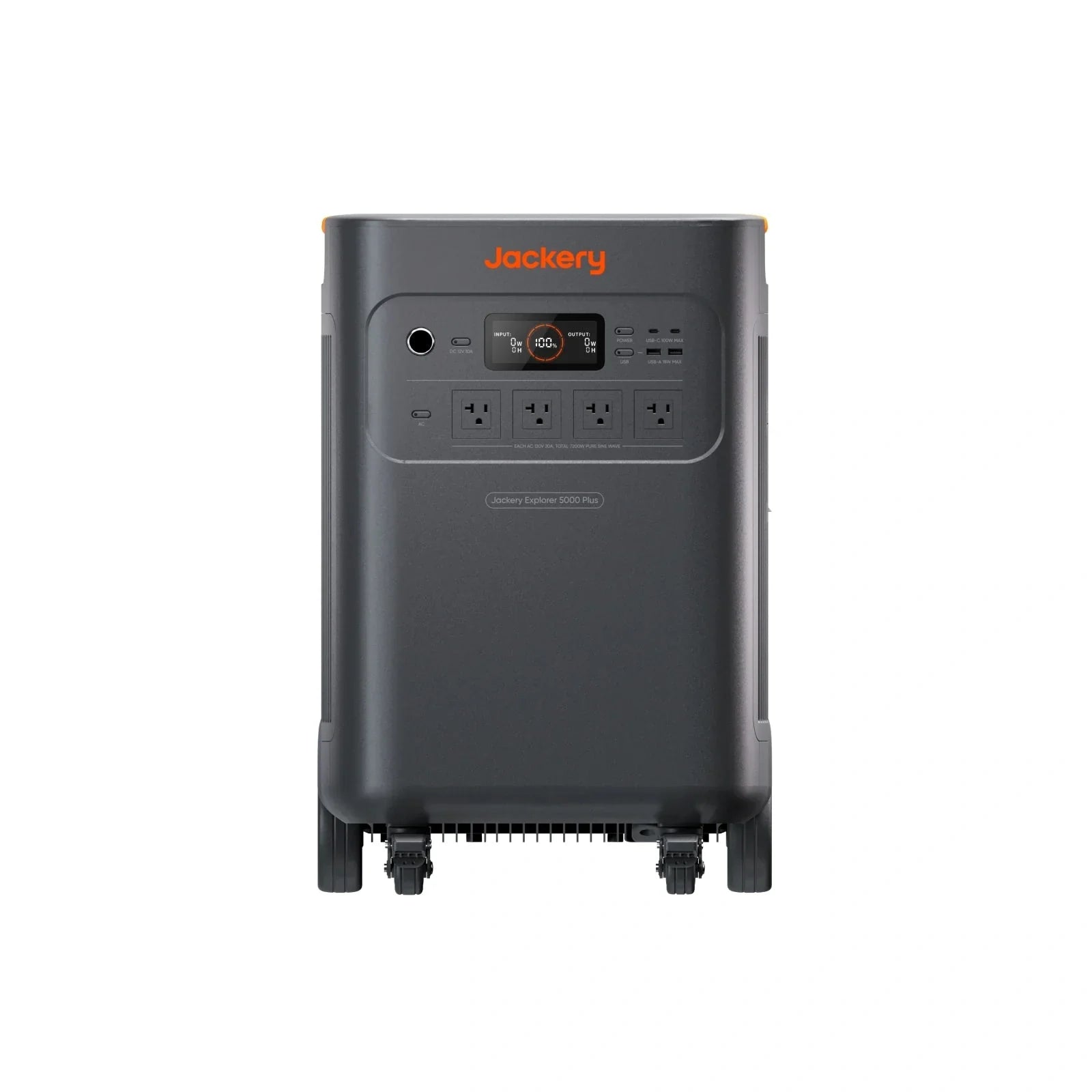

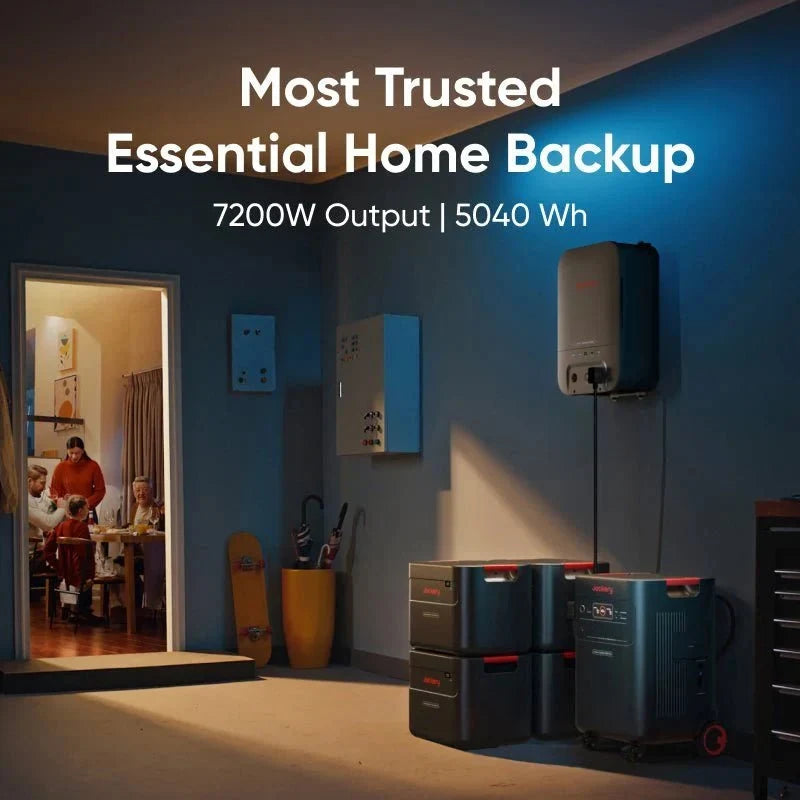

Jackery Explorer 5000 Plus Features
7,200W output, 14,400W surge
Native 120V and 240V output runs central AC (up to 5 tons), well pumps, dryers and ranges.
5,040Wh, expandable to 60kWh

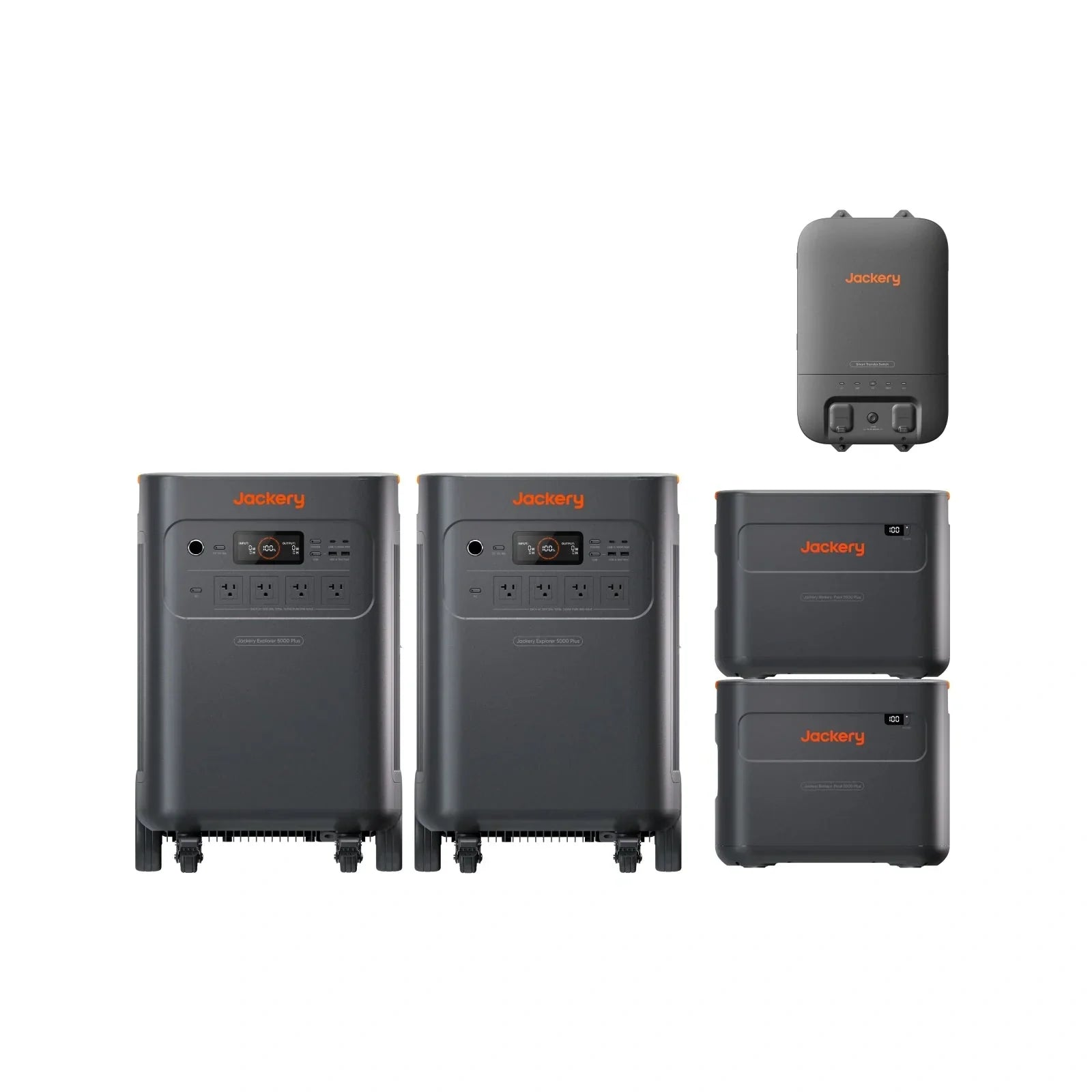

Add up to five Battery Pack 5000 Plus units per station and parallel two stations for whole-home autonomy.
Up to 4,000W solar input
Accepts both high- and low-voltage PV, recharging in about 2 hours of full sun.
Smart Transfer Switch ready
With the Jackery 60A STS it backs up 12 circuits at 120V or 6 at 240V.
0ms online UPS
Critical devices never see the outage.
LiFePO4 with ChargeShield 2.0
4,000 cycles for roughly 11 years of use.
App monitoring
Track consumption and control the system remotely.

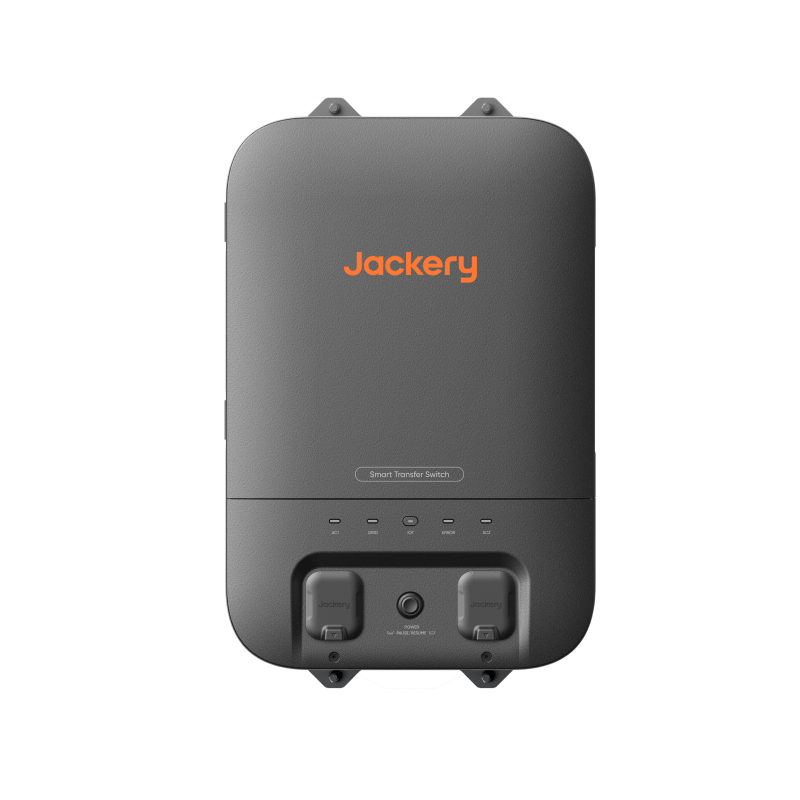

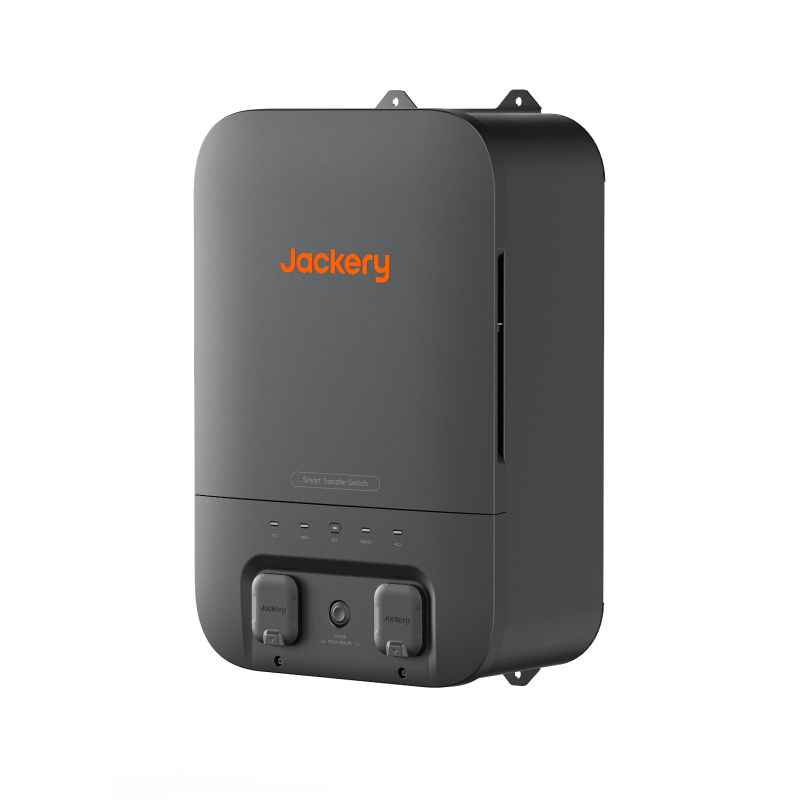

Jackery Smart Transfer Switch Features
UPS switching within 20ms
Moves selected home circuits to battery automatically when the grid fails.
Works with rooftop PV and portable solar
Integrates solar through the Explorer 5000 Plus.
Charge/discharge scheduling
Shift usage to cheaper hours to reduce electricity costs.
Compact and maintenance free
Professional installation by a licensed electrician is required.
App control
Real-time monitoring and energy management.
Compatibility
For the Jackery Explorer 5000 Plus series only; supports two units (a second Power Input/Output Cable is required).

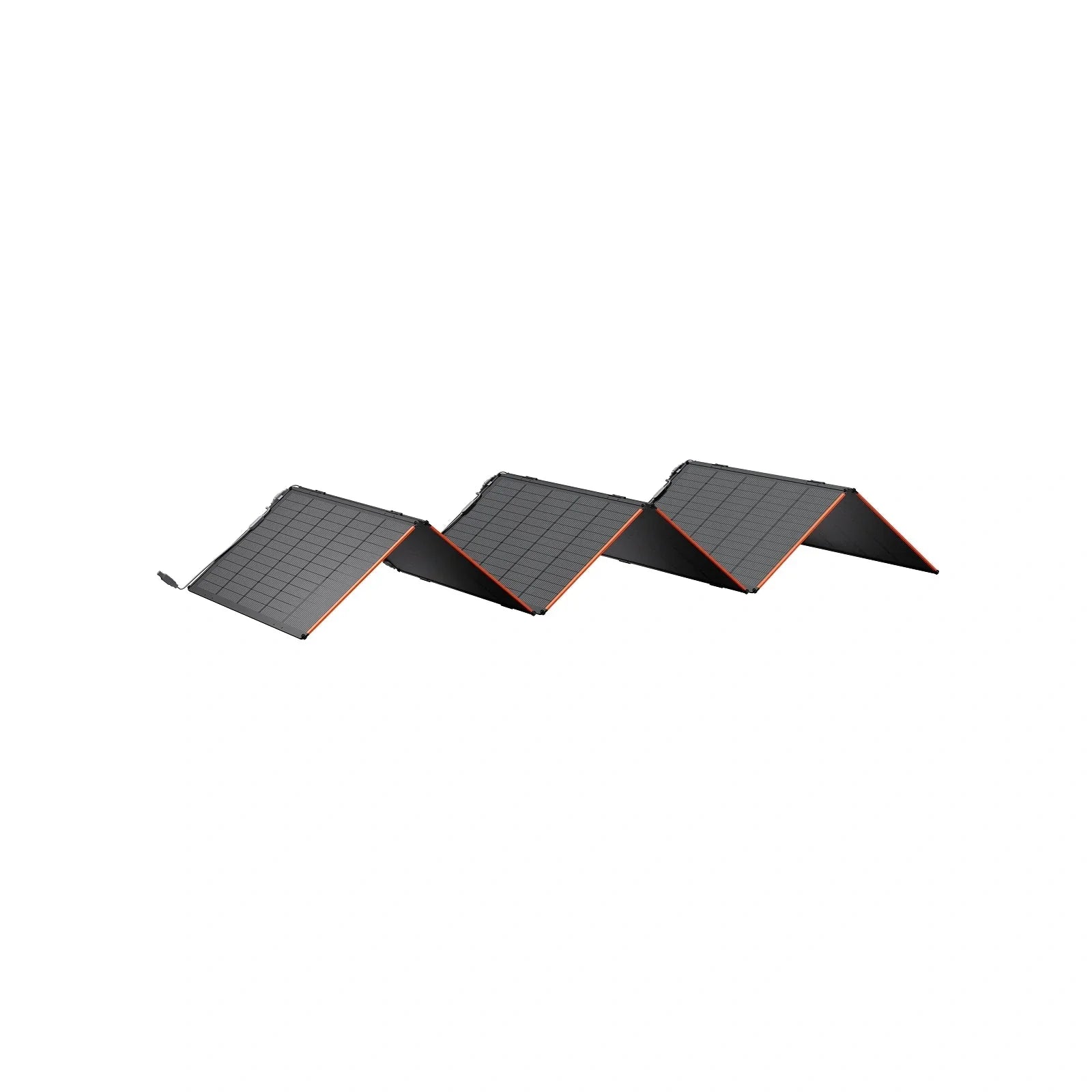

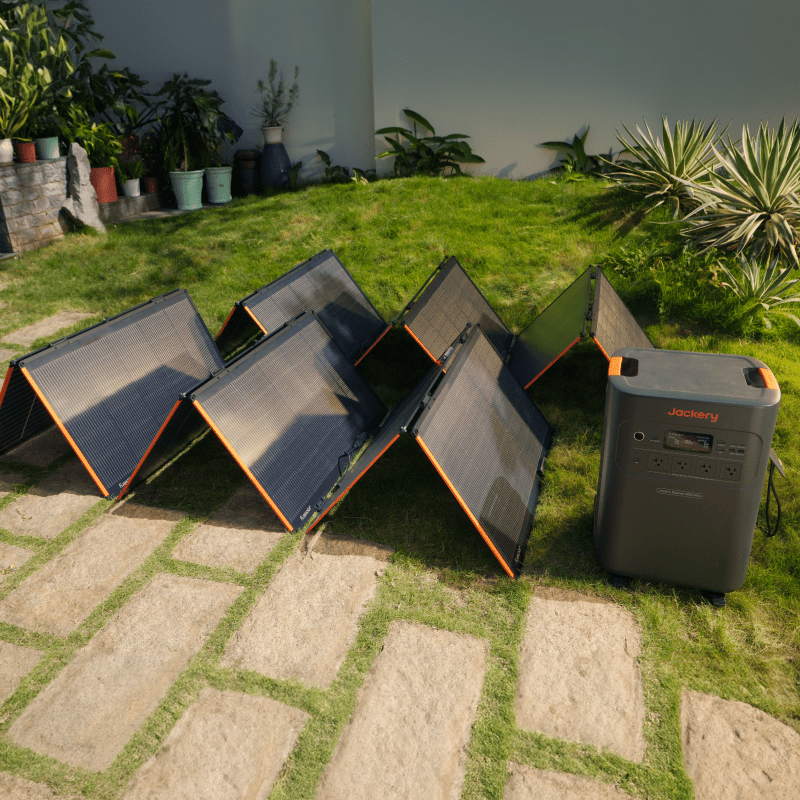

Jackery SolarSaga 500 X Solar Panel Features
500W from six 85W panels
Use all six or only some, depending on space and shade.
25% TOPCon bifacial cells
High yield in real-world light.
-40°F to 185°F, IP68
M-shaped array layout stands up to strong wind.
Foldable, no permanent install
Deploy on a lawn, balcony or flat roof; not intended for permanent mounting.
Simple parallel wiring
Plug in and start charging.
Compatibility
Sold by Jackery in kits with the Explorer 2000 v2, HomePower 2000 Plus v2, HomePower 3000, HomePower 3600 Plus / Pro Max and Explorer 5000 Plus; also works with the Explorer 2000 Plus, 1000 Plus and 1000 v2.
What’s in the Box
- 1×Jackery Explorer 5000 Plus
- 1×Jackery Smart Transfer Switch
- 2×Jackery SolarSaga 500 X Solar Panel
- 1×AC Charging Cable
- 1×MC4 Wrench
What Can the Jackery Explorer 5000 Plus Run?
Estimated runtimes for 5,040Wh of capacity, assuming about 85% usable energy. Actual results vary with the device and temperature.
Jackery Explorer 5000 Plus FAQ
How long does the Jackery Explorer 5000 Plus take to charge?
From a wall outlet: 3.5 Hours. It can also be charged from solar panels. Car charging is supported.
Are the solar panels included?
Yes. This kit ships with 1000W of Jackery SolarSaga panels and the cables needed to connect them to the power station.
How long does the battery last?
The LiFePO4 cells are rated for 4,000 charge cycles before capacity drops to about 70%. With one full cycle every day that is more than 10 years.
Can I add more capacity later?
Yes. The Jackery Explorer 5000 Plus expands up to 60kWh with compatible Jackery battery packs.
Can it work as a UPS?
Yes. Leave it plugged into the wall with your devices connected; when grid power drops it switches to battery automatically.
Does it ship free?
Yes – free shipping within the contiguous USA, and no sales tax in most states.
Jackery Explorer 5000 Plus Specifications
Jackery Explorer 5000 Plus
| Battery | |
| Capacity | 45Ah/112V DC (5040 Wh) |
| Cell Chemistry | LiFePO4 |
| Cycle life | 4000 cycles to 70%+ capacity |
| General | |
| Weight | About 134.5 lbs (61 kg) |
| Dimensions | 16.5×15.5×25 in/41.8×39.5×63.5 cm |
| Charge Temperature | 32~113 °F (0~45°C) |
| Discharge Temperature | 5~113°F (-15~45°C) |
| Warranty | 5 Years |
| Output Ports | |
| AC Output | (4x) 120V, 20A, 3600W Max (1x) NEMA L14-30R/14-50：120V/240V~60Hz, 30A, 7200W Max |
| AC Total Output | 7200W Max, 14400W Surge |
| USB-C Output | (2x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A |
| USB-A Output | (2x) 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A |
| Cigarette Lighter Port | 12V⎓10A |
| AC Expansion Port | 240V~60Hz, 30A, 7200W |
| DC Expansion Port | 80.5V-126V⎓41A Max |
| Input Ports | |
| Charge Mode AC Input | 120V~60Hz, 15A Max |
| Bypass Mode AC Input/Output | 120V~60Hz, 12A Max; 240V~60Hz, 16.7A Max |
| AC Expansion Port (Input) | 240V~60Hz, 16.7A Max |
| DC Input | DC Expansion Port (Input)：80.5V-126V⎓98A Max |
| High-PV | 135V-450V⎓15A Max |
| Low-PV | (2x) DC 8mm Ports; 16V-60V⎓10.5A Max, Double to 21A/1200W Max；11V-16V(Working Voltage)⎓8A Max, Double to 8A Max |
| Charging Time | |
| AC Adapter | 3.5 Hours |
| Car Adapter | NO |
| Other Specifications | |
| UPS | Backup UPS: ＜20ms, Onine UPS: 0ms |
| Inverter Topology | Non-isolated |
| Power Factor | ≥0.98 |
| Entire Unit | Type 1 |
Jackery SolarSaga 500 X Solar Panel
| Solar | |
| Maximum System Voltage | 90V DC |
| Maximum Reverse Current | 15A |
| Bifaciality Coefficient (back/front) | Pmax>80%，Voc>97%，Isc>80% |
| Voltage Temperature Coefficient | -0.26%/℃ |
| Power Temperature Coefficient | -0.32%/℃ |
| General | |
| Weight | 22.05 lbs ± 2.20 lbs (10.5 kg±0.5 kg) |
| Protection Class Against Electric Shock | Class II |
| Waterproof | IP68 |
| Operating Temperature Range | -40~185℉（-40~85℃） |
| Warranty | 5 Years |
| Dimensions | |
| Folded | Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97mm) |
| Unfolded | Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294mm) |
Jackery Explorer 5000 Plus Protective Cover
IPX4 waterproof and dustproof 900D cover made only for the Explorer 5000 Plus. Use the unit with the cover on; folds flat for storage.
Jackery DC Extension Cable for Solar Panel
16.4 ft flame-retardant PVC extension cable with copper core for placing the solar panel farther from the power station.
Jackery 10m DC Extension Cable Plus
32.8 ft (10 m) DC8020-to-DC8020 extension cable with UL2464 PVC insulation. Works with most Jackery solar panels.
Jackery 12V Automobile Battery Charging Cable
Charges a 12V/10A lead-acid car battery from any Jackery portable power station. Not for electric vehicles.
Jackery Anderson Extension Cable
Anderson extension cable for SolarSaga 100 Prime and SolarSaga 500 X solar panels.
Jackery Anderson Y Parellel Connector
Anderson Y connector for wiring SolarSaga 100 Prime / 500 X panels in parallel.
Jackery Anderson Y Series Connector
Anderson Y connector for wiring SolarSaga 100 Prime / 500 X panels in series.
Jackery Power Input/Output Cable
Extra power input/output cable required to connect a second Explorer 5000 Plus to the Smart Transfer Switch.
Jackery Manual Transfer Switch for Explorer 5000 Plus
Pre-wired 240V 50A manual transfer switch with wattmeters and CS6375 inlet. Includes NEMA 14-50P to SS2-50R power cord.
