Solar Panel · 400W
EcoFlow 400W 24V Monocrystalline Rigid Solar Panel
Experience Enhanced Solar Energy Conversion

Overview
Harness the power of highly efficient monocrystalline cells with our 400W rigid solar panel boasting an impressive efficiency rating of 23%. Charge faster than with similar-sized panels, whether integrated into your existing PV system or Power Kits setup, thanks to the integrated MPPT algorithm optimizing solar input.
Built to Withstand the Elements
Designed for outdoor durability, our 400W rigid solar panel features an IP68 waterproof rating and a robust anti-corrosive aluminum frame. Withstanding wind speeds of up to 130mph* and a significant snow load of up to 113lb*, this panel ensures uninterrupted solar energy capture for years to come. *Water and dust resistance were tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum water depth of 1 meter for up to 72 hours.) *Well-mounted solar panels can withstand a dynamic 2400pa wind pressure load (130mph wind speed) and a static 5400pa snow load (113lb per sq foot of snow).
Versatile Off-grid & On-grid Solution

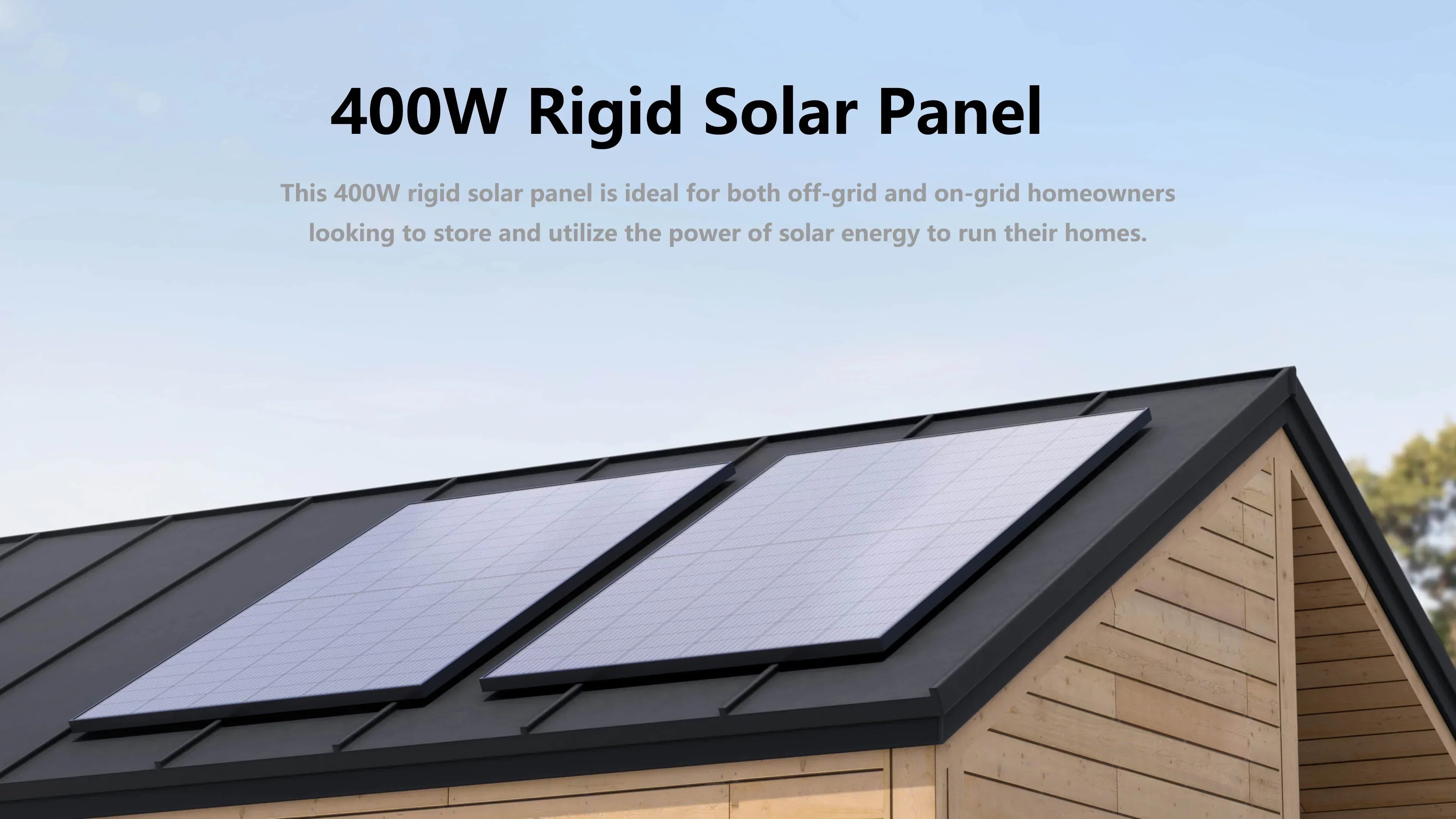

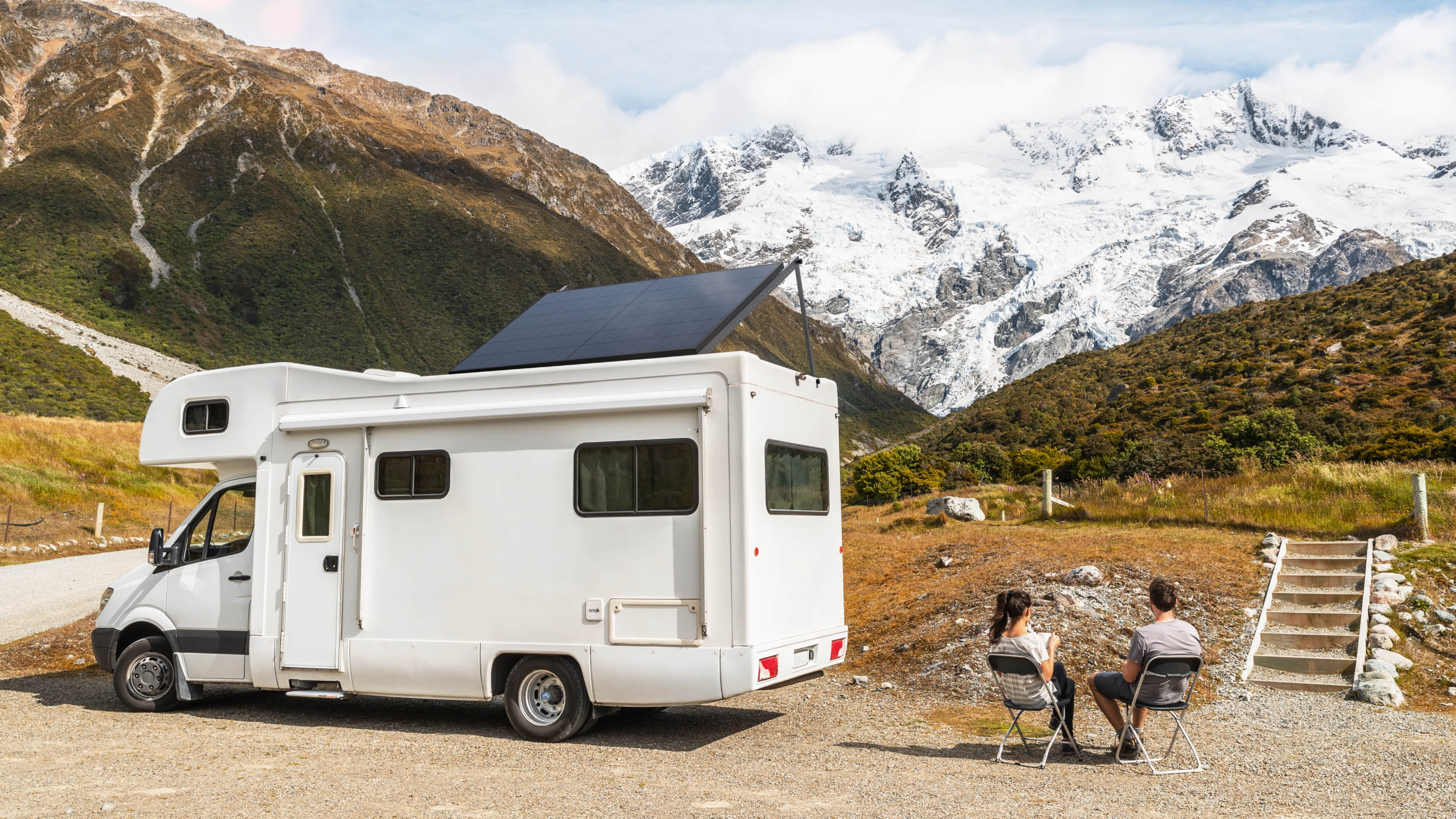

Ideal for both on-grid and off-grid solar-powered setups, our high-wattage panel stores energy for outages, reduces power bills, or powers an off-grid home.
Seamless Compatibility

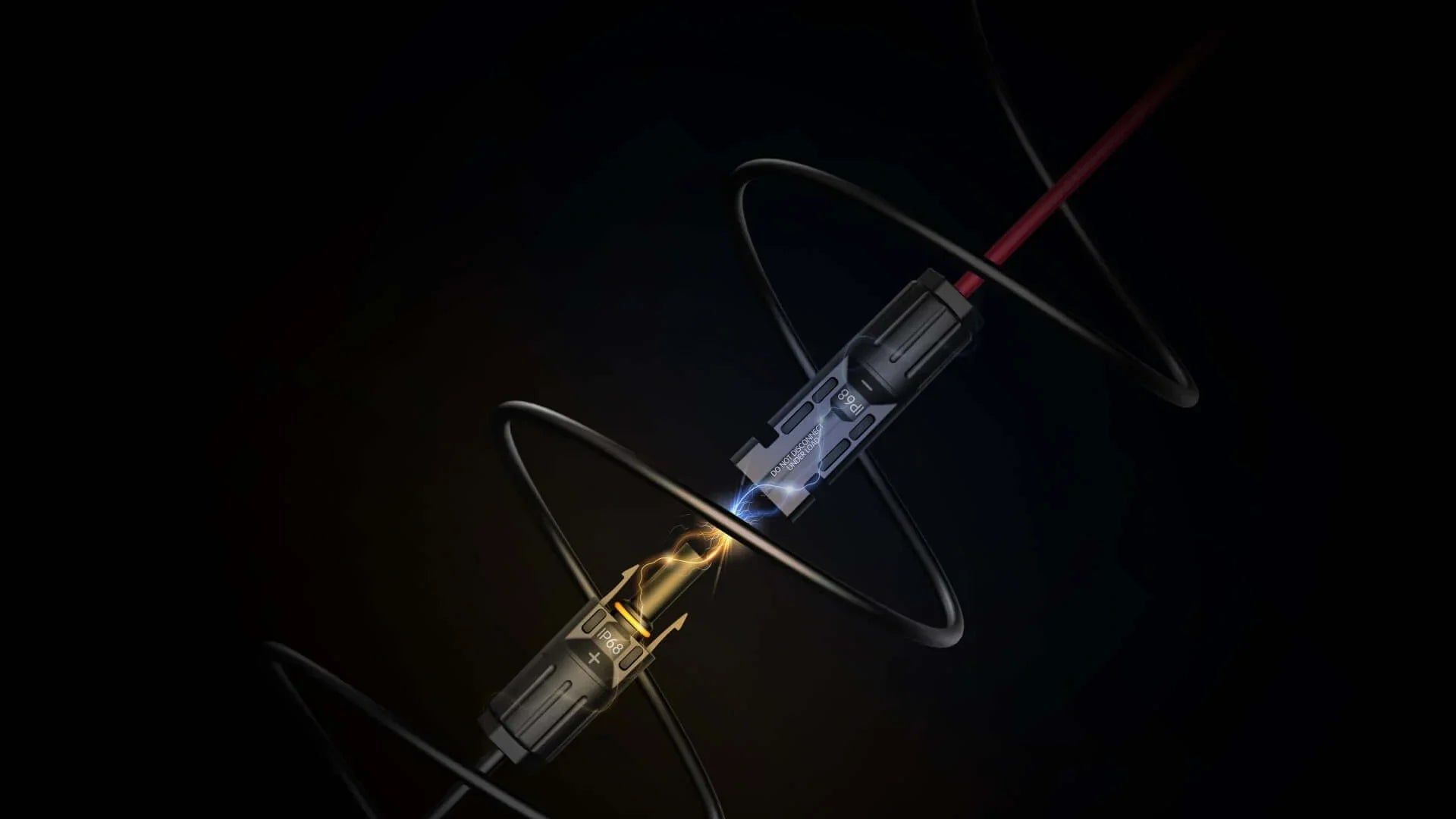

EcoFlow solar panels feature an all-inclusive solar connector, ensuring compatibility with your existing 48V power system. The 400W solar panel comes with a 300mm charging cable, providing ample space to mount multiple panels and maximize solar input.

Features
- Benefit from a 23% conversion rate to sunlight, optimizing energy efficiency.
- Enhance your home’s aesthetics with an all-black design that seamlessly blends with any house style.
- Ensure durability with an IP68 waterproof rating, built to withstand diverse weather conditions.
- Experience swift and hassle-free installation for added convenience.
- Enjoy peace of mind with up to a 10-year warranty, ensuring reliable protection for your investment.

Specifications
| Short Circuit Current | 13.79A |
| Open Circuit Voltage | 37.10V |
| Connector Type | Solar Connector |
| Efficiency | 23% |
| Cell Type | Monocrystalline |
| Rated Power | 400W |
| Maximum Operating Voltage | 31.00V |
| Maximum Operating Current | 12.90A |
| Temperature Coefficient of Rated Power | -0.38%/°C |
| Temperature Coefficient of Open Circuit Voltage | -0.35%/°C |
| Temperature Coefficient of Short Circuit Current | 0.06%/°C |
| Maximum Fuse Current | 25A |
| Maximum System Voltage | 1500V DC (UL) |
| Dimension (inch) | 67.8×44.6×1.38 |
| Net Weight (kg) | 21.8kg |
| Dimension (cm) | 172.2×113.4×3.5 |
| Net Weight (lbs) | 48.1lbs |
| Warranty | Up to 10 Years |

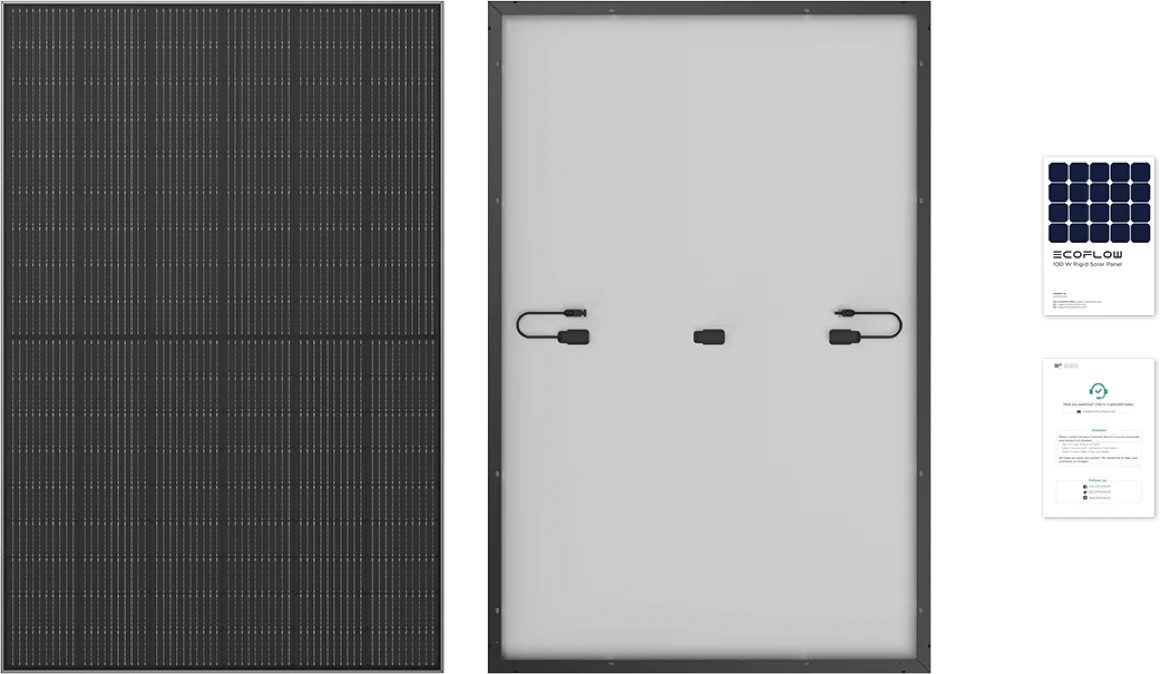

What’s in the box

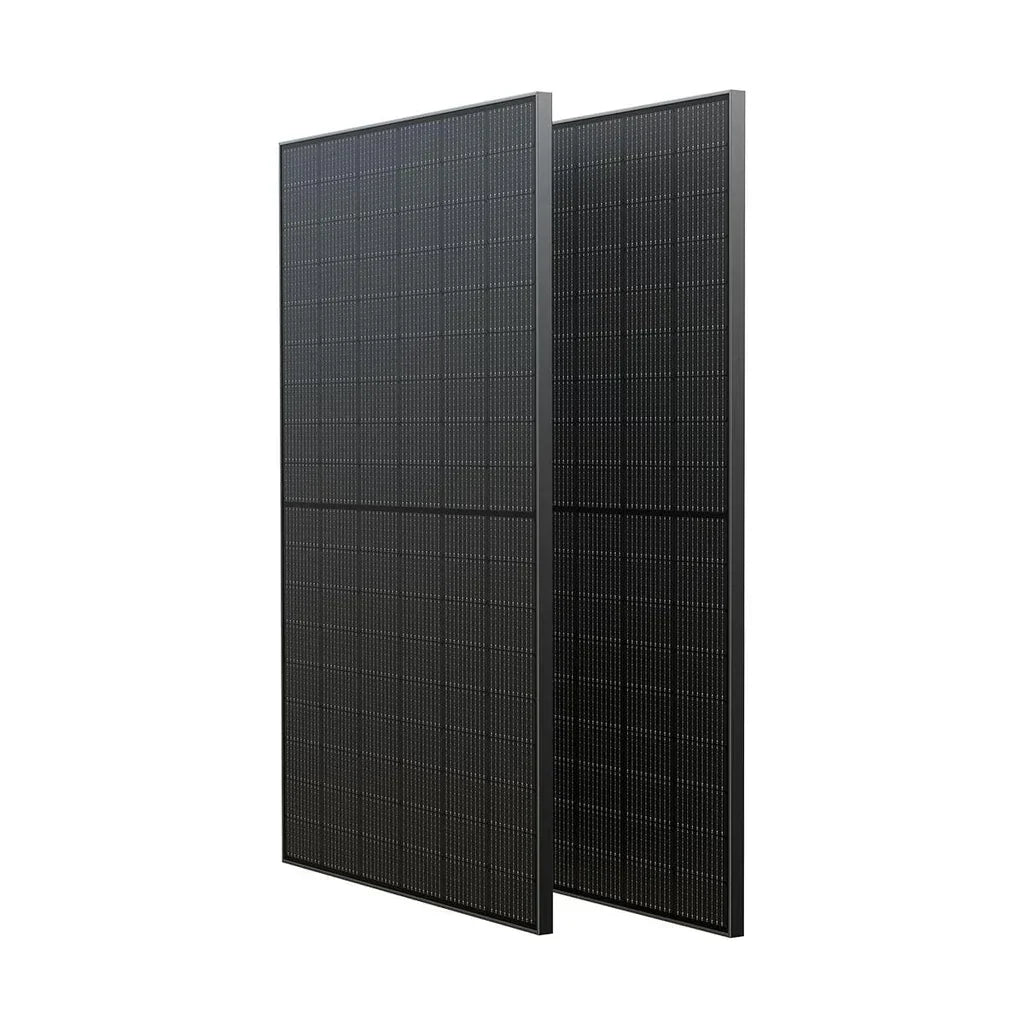

1. 2×400W Rigid Solar Panel
2. User Manual and Warranty Card
*The solar to XT60 charging cable is included in EcoFlow portable solar panels.

Additional Documentation
Rigid Solar Panel Mounting Feet 28” Tilt Mount Bracket EcoFlow 400W Rigid Solar Panel-User Manual
