Solar Kit · 2,200W · 2,048Wh
Bluetti AC200Max 2200W 2,048Wh Portable Power Station + 3 x 200W 12V Portable Mono Solar Panels
Bluetti AC200Max kit, now in stock and ready for use!
Introducing the AC200Max, the ultimate power solution for your versatile needs. With two expansion battery ports, this powerhouse offers unmatched flexibility, supporting up to two Bluetti B230 (2048Wh each) or B300 (3072Wh each) battery modules. Effortlessly expand your system’s capacity up to an incredible 8,192Wh, ensuring you have ample power for any situation.
The AC200 Max is equipped with an impressive array of 16 power outlets, allowing you to run multiple devices simultaneously while recharging via solar energy. Whether you’re at home, in an RV, or out in nature, the AC200 Max has you covered.
For RV, van, and boat enthusiasts, the AC200 Max includes a built-in 30A NEMA TT-30 outlet (RV plug) and a robust 12V 30A DC outlet. These powerful features enable direct and seamless connections, ensuring you can light up your space effortlessly and efficiently.
Harness up to 900W of solar panel input and 400W from the AC wall charger with the AC200 Max. Even better, you can charge it simultaneously using both methods, achieving a remarkable total charging input of 1300W. This dual charging capability allows you to recharge your unit in under 2 hours, providing unparalleled convenience and ensuring you’re always ready for the next adventure.

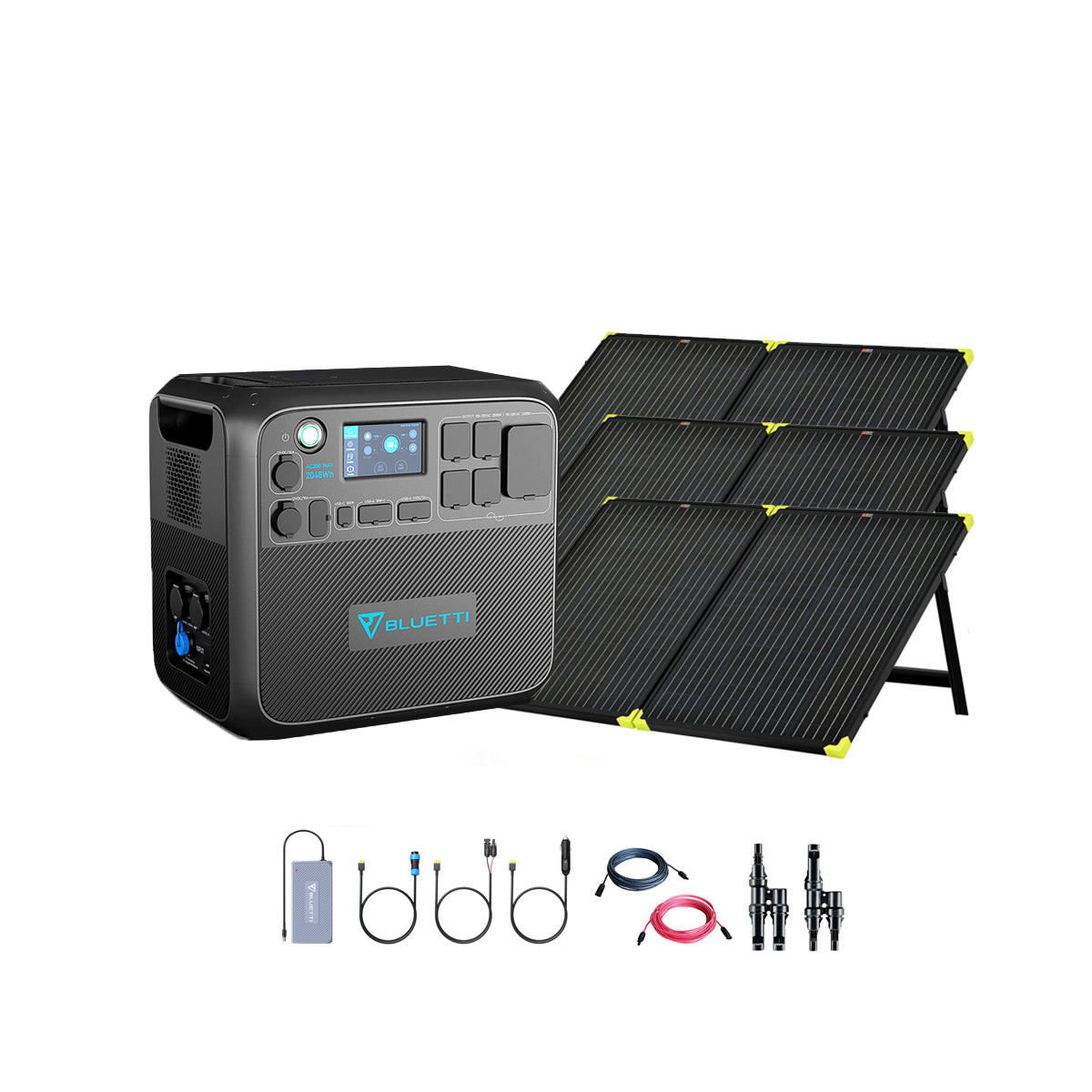

What’s In The Box?
- 1×Bluetti AC200 Max 2,048wh Lithium Solar Generator
- 3×200W 12V Monocrystalline Rigid/Folding Solar Panels
- 1×T500 AC Adapter and cable
- 2×30 ft. PV Solar Panel Extension Cable (10 AWG)
- 2×Set of Solar PV Branch Connectors for Series/Parallel Panel Configuration
- 1×400W AC wall charger for charging from any standard wall outlet
- 1×PV Solar Charging Cable (PV to XT90)
- 1×Car Charing Cable (Car to XT90)
- 1×XT90 to Aviation Plug (input)
- 1×User Manual
Bluetti AC200Max Features
More Power, More Flexibility
- Expandable Capacity: Supports up to two BLUETTI B230 (2048Wh each) or B300 (3072Wh each) battery modules.
- Total Capacity: Expands to an impressive 8192Wh.
Flexible Charging Options
- Solar Input: Allows up to 900W.
- Adapter Input: Supports 500W via the adapter.
- Simultaneous Charging: Combine wall outlet and solar panel charging for a total of 1400W, fully charging in less than two hours.
- Additional Input: Each battery module adds 500W of input capacity (up to two modules).
Enhanced Capacity with Minimal Effort
- Converter Cable: Accepts one module through its solar input port for extra capacity.
Unmatched Outlet Versatility
- 16 Outlets: Power all your devices simultaneously.
- Specialized RV Outlets: Built-in 30A NEMA TT-30 outlet and 12V 30A DC outlet designed for RV enthusiasts.
Prefer a different setup? Choose the Bluetti AC200MAX with 2 x 200W Rigid Mono Solar Panels for a lighter, more compact kit, or the Bluetti AC200Max Portable Power Station with 4 x 200W 12V Rigid Mono Solar Panels for faster charging and higher solar input.

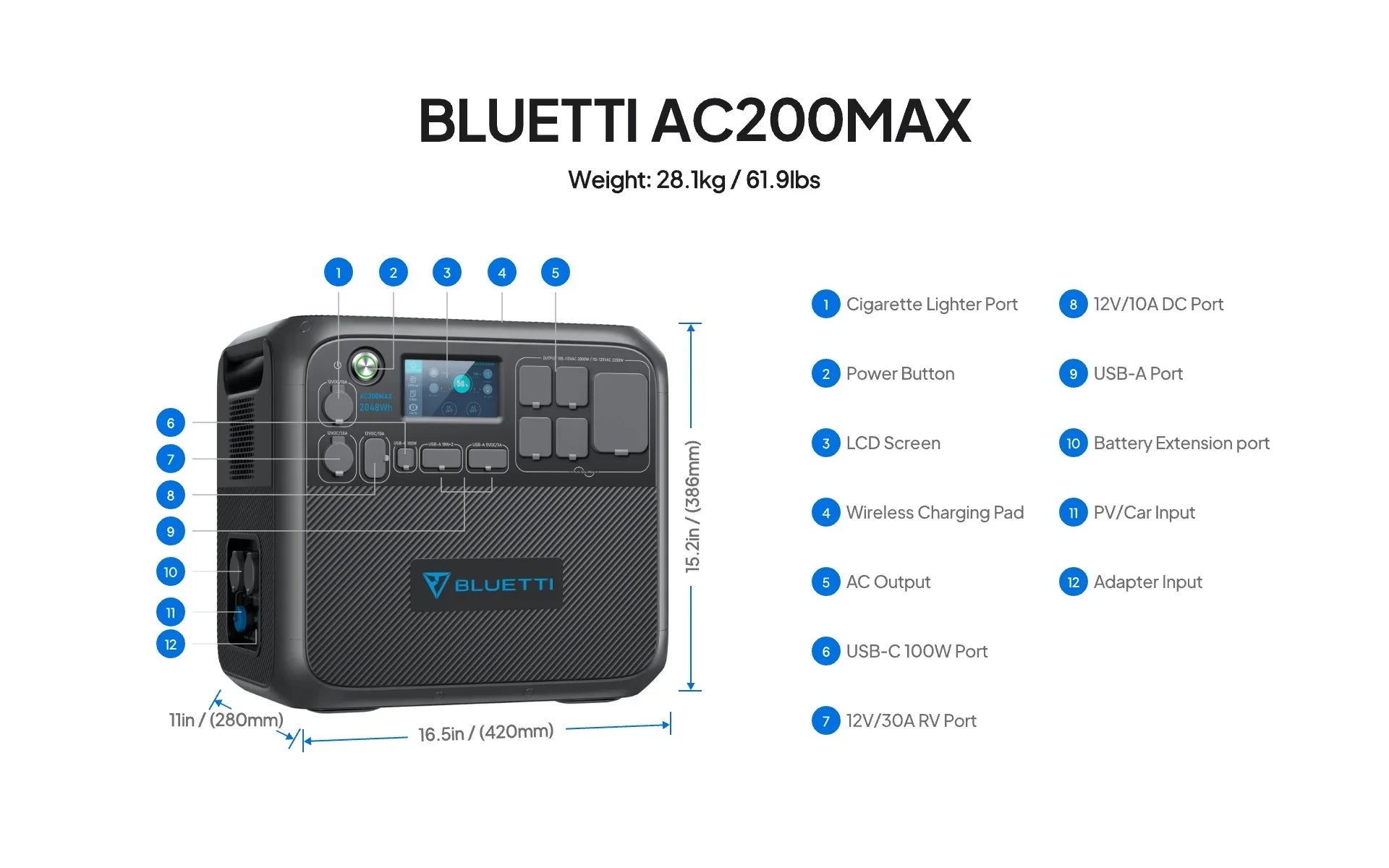

Bluetti AC200Max Specifications
| Capacity | 2,048Wh (51.2V, 40Ah) |
| Type | LiFePO4 (Lithium Iron Phosphate) |
| Life Cycles | 3,500+ Cycles to 80% Original Capacity |
| Shelf-life | Recharge to 80% Every 3-6 Months |
| Management System | MPPT Controller, BMS, etc |
| AC Outlets | 4 x 120V/20A Outlets, 1 x 120V/30A NEMA TT-30, 2200W In Total |
| Inverter Type | Pure Sine Wave |
| Surge Power | 4800W |
| USB-C Port | 1 x 100W Max. |
| USB-A Port | 2 x 5V/3A USB-A, 2 x 18W USB-A |
| 12V DC Outlets | 1 x 12V/30A (RV Outlet), 1 x 12V/10A (Car Outlet), 2 x 12V/10A DC 5521 (5.5mm Outlet) |
| Wireless Charging Pad | 2 x 15W Max. (For Each) |
| AC Adapter Input | 500W |
| Solar Input | 900W Max., VOC 10-145VDC, 15A |
| Car Input | 12/24V from Cigarette Lighter Port |
| Max Input | 1,400W, with AC+Solar Input |
| AC Adapter (500W) | ≈5.5~6 Hours |
| Solar (900W) | ≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature) |
| 12V/24V Car Outlet (100W/200W) | ≈10 or 20 Hours |
| AC Adapter + Solar (1400W) | ≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature) |
| Dual AC Adapters (1000W) | ≈3~3.5 Hours (Extra adapter is REQUIRED) |
| 240V Split Phase Bonding | No. Need 240V power source. |
| Scalability | Expandable w/ Up to 2 x B230 or 2 x B300 |
| Pass-through Charging | Yes |
| Weight | 61.9lbs (28.1kg) |
| Dimensions (LxWxD) | 16.5 x 11 x 15.2in (42 x 28 x 38.65cm) |
| Operating Temperature | -4-104℉ (-20-40℃) |
| Storage Temperature | 14-113℉ (-10-45℃) |
| Certifications | UL2743, UKCA, TELEC, RCM, FCC ID, CE, PSE, NTC |
| Warranty | 48 Months (Learn more about BLUETTI warranty policy) |
200 Watts Portable Solar Panel Specifications
| Maximum Power(Pmax) | 200W |
| Maximum Power Voltage(Vmp) | 18.6V |
| Maximum Power Current(Imp) | 10.8A |
| Open Circuit Voltage(Voc) | 22.8V |
| Short Circuit Current(Isc) | 11.2A |
| Maximum System Voltage(Vmax) | 1000VDC |
| Dimension | 55.7 x 36.6 x 1.4 in |
| Weight | 36.8 lbs |
| Warranty | 25 years |
