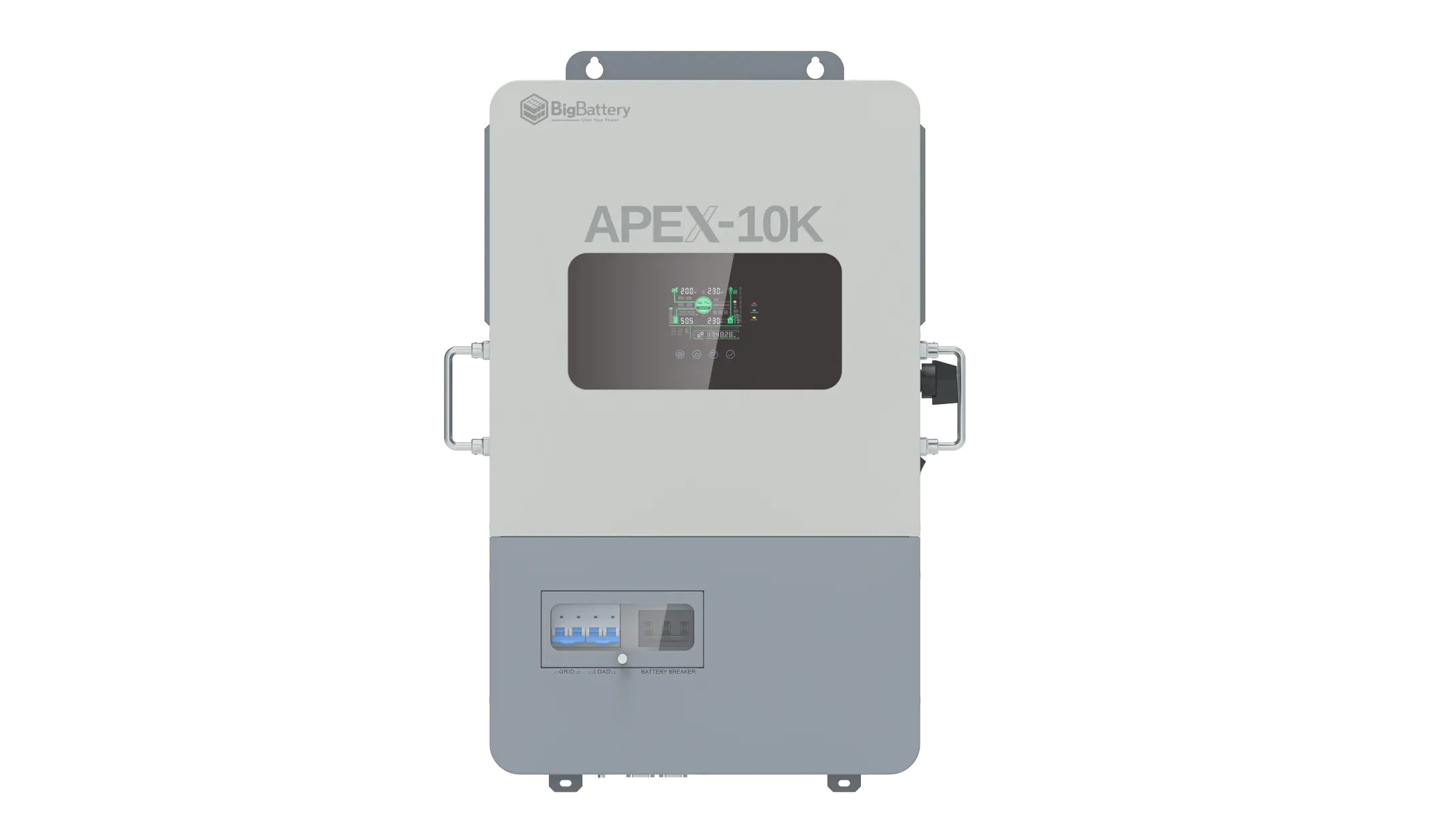

48V Hybrid Inverter · Solar + Generator Ready
10,000 Watts of Whole-Property Power, Built to Run Without the Grid

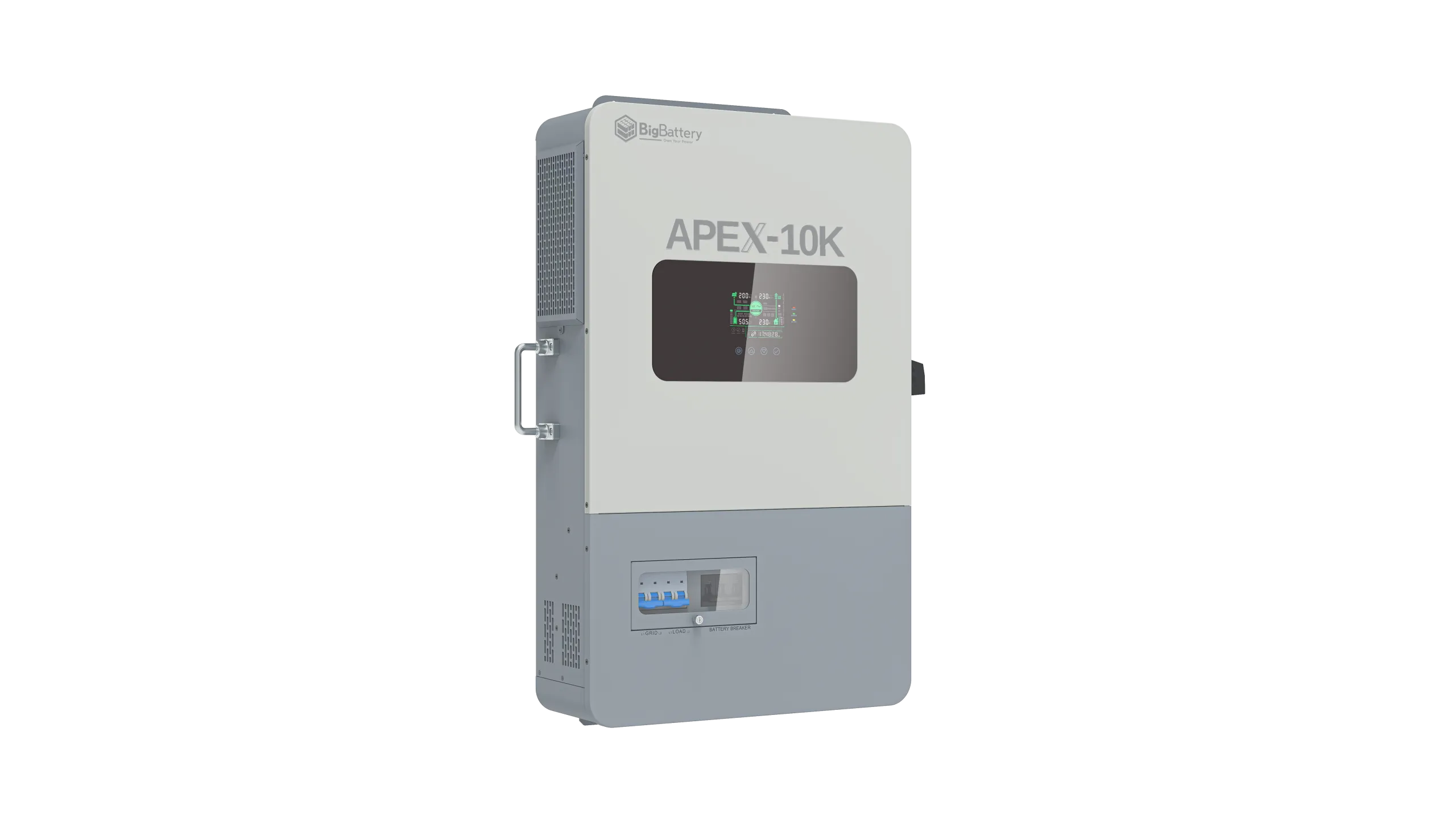

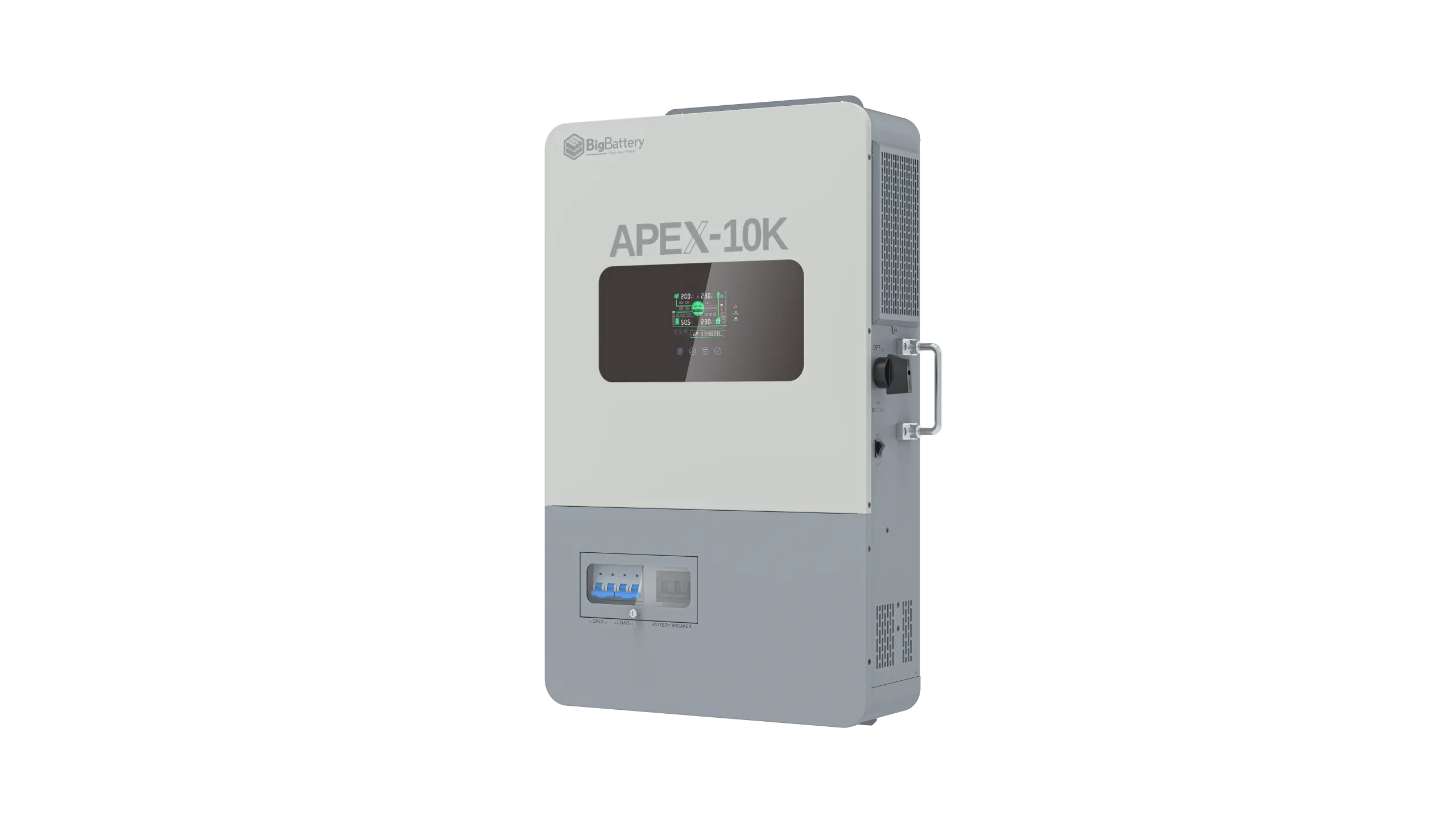

The APEX-10K converts stored DC power from a 48V lithium battery bank into full-strength 120/240V split-phase household electricity — the same clean, pure sine wave power you’d get from a utility line. Pair it with solar for day-to-day charging and a generator or grid connection as backup, and it’s built to keep cabins, homesteads, and off-grid residences running through extended stretches with no hookup at all.
What Makes the APEX-10K Different
10kW Continuous, 20kW Surge
Rated for 10,000W of continuous output with up to 20,000VA of surge headroom to start motors, pumps, and compressors without tripping.
True Split-Phase Sine Wave
120/240V pure sine wave at 50/60Hz — the same wave shape a utility delivers, safe for motors, electronics, and anything sensitive to rough power.
Dual MPPT Solar Charging
Two independent MPPT trackers pull up to 10,500W combined, adjusting continuously as sunlight shifts through the day.
Solar, Grid, or Generator
Draws from solar first and falls back to a single grid or generator input the moment your battery bank needs it (one AC source at a time).
80A Pass-Through
Routes up to 80A straight to critical loads — enough to carry a well pump or HVAC run without staging separate circuits.
Parallel Up to 6 Units
Stack multiple APEX-10K units for larger homes, or connect three or more to generate a full three-phase output.
Layered Protection
Guards against over/under-voltage, overload, short-circuit, and overheating, tripping a safe shutdown instead of letting a fault spread.
14°F to 131°F Range
Keeps working from well below freezing up to 131°F, derating only once temperatures climb past 113°F.
Built to Run Unattended
Off-grid systems live or die on how well they handle the days nobody’s watching them. The APEX-10K leans on two independent MPPT solar trackers rated for a combined 10,500W, adjusting continuously as clouds roll through or the sun moves across the sky, then switches to a single grid or generator input the moment your battery bank needs a top-up panels can’t provide on their own.

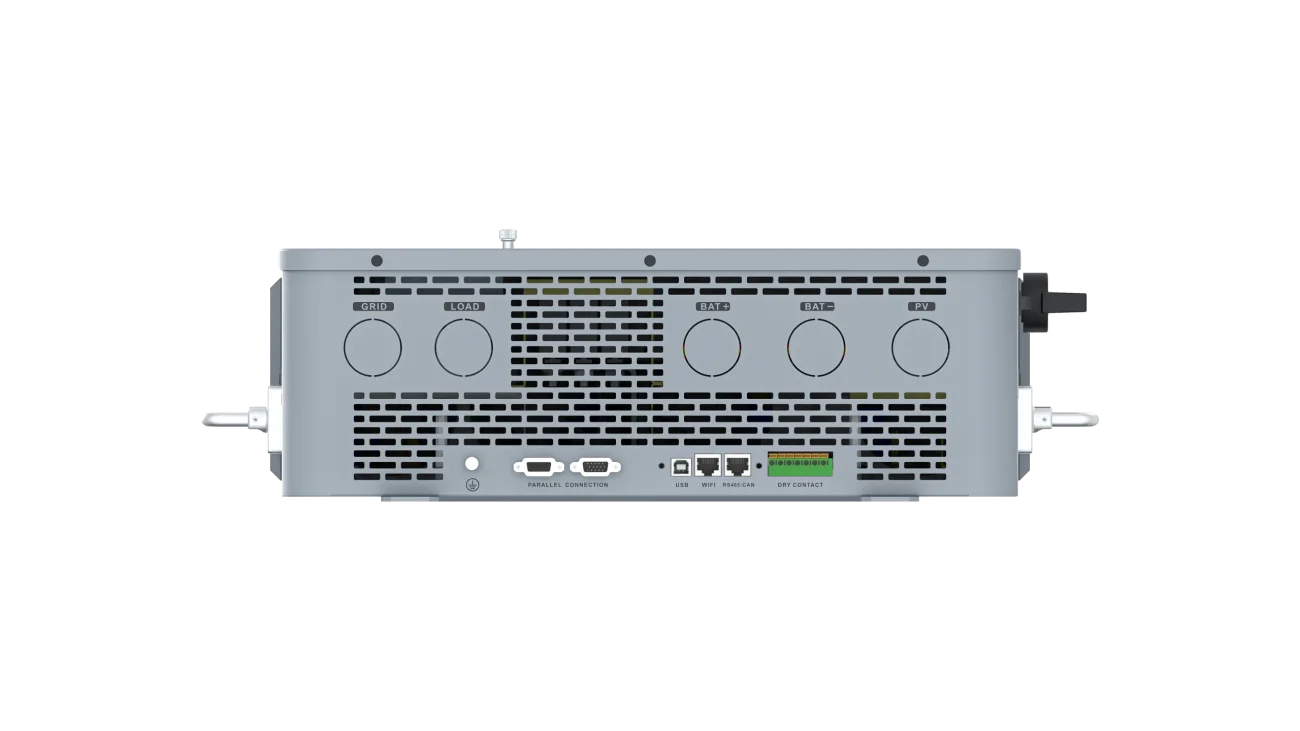

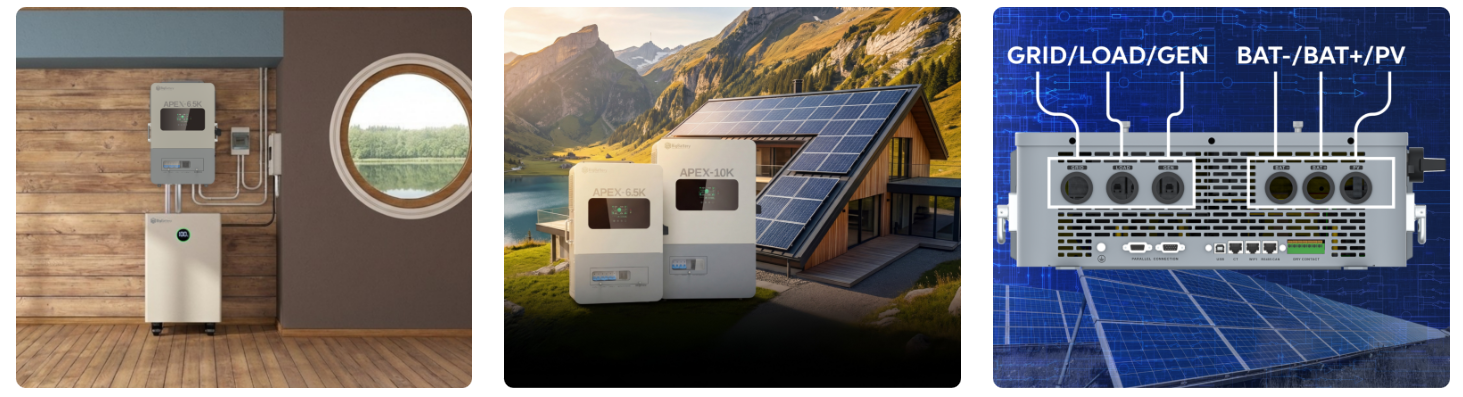

The enclosure is rated from 14°F to 131°F, derating only once temperatures climb past 113°F, and bottom-entry wiring keeps the install straightforward for whoever ends up running conduit. Layered protection against over-voltage, over-current, short circuits, and heat buildup is built in, so a fault trips a safe shutdown instead of taking the rest of the system down with it.
Full Specifications
Output
| Rated output power | 10,000 W |
| Max output (surge) | 20,000 VA |
| Output voltage | 120/240 Vac split-phase |
| Frequency | 50/60 Hz |
| Waveform | Pure sine wave |
| Motor load capacity | 6 HP |
| Switching time | 10 ms (typ.) |
| Max efficiency | 99.9% |
Battery & Charging
| Battery type | Li-ion / lead-acid / user-defined |
| Rated battery voltage | 48V |
| Battery voltage range | 40–60 Vdc |
| Max grid/gen charge current | 120 A |
| Max hybrid charge current | 200 A |
| Max solar charge current | 200 A |
Solar Input
| MPPT channels | 2 (1+1) |
| Max solar input power | 5,000W + 5,500W |
| Max input current | 22A + 22A |
| Max open circuit voltage | 550 Vdc / channel |
| MPPT voltage range | 125–450 Vdc |
| MPPT tracking efficiency | 92% |
AC Input & Bypass
| AC input | 1 input, grid or generator* |
| Input voltage range | 65–140 Vac |
| Input frequency range | 50/60 Hz |
| Bypass overload current | 63 A |
| Pass-through capacity | 80 A |
Physical & Environmental
| Dimensions | 28.46 × 17.64 × 5.91 in |
| Weight | 62 lbs |
| Ingress protection | IP20 (indoor only) |
| Operating temperature | 14–131°F |
| Noise level | <60 dB |
| Cooling | Intelligent fan |
Connectivity, Protection & ID
| Communication | RS485 / CAN / USB / dry contact |
| Optional module | Wi-Fi / GPRS |
| Integrated breakers | Utility / load / battery / PV |
| Parallel capacity | Up to 6 units, 3-phase at 3+ |
| Brand / model | BigBattery APEX-10K |
| GTIN | 00199874999463 |
*Single AC input serves either grid or generator, not simultaneously. Certifications: UL1741, RoHS, EN61000-6-1, EC61000-6-3, FCC Part 15 Class B, IEC62109-1/2.
Battery Compatibility
Built around 48V lithium battery banks (40–60Vdc), with full closed-loop communication for the packs below. Other 48V lithium or lead-acid batteries can run as a user-defined battery type, just without the live communication link.
- BigBattery NEXUS
- BigBattery ETHOS
- BigBattery HUSKY2 INV
- EG4 280Ah All-Weather / Indoor
- EG4 314Ah All-Weather / Indoor
Common Questions
Will the APEX-10K run my entire house?
It depends on your total connected load. At 10,000W continuous (20,000VA surge) it comfortably covers most single-family homes running efficient appliances, but a full load calculation is worth doing before sizing your system — especially if you’re running well pumps, electric heat, or large HVAC compressors at the same time.
Can I connect solar and a generator at the same time?
Not simultaneously. Solar charging runs independently, but the APEX-10K has a single AC input shared between grid and generator, so it draws from one or the other, not both together. (The smaller APEX-6.5K has two separate AC inputs instead.)
What batteries does it work with?
Any 48V lithium battery bank works as a general-purpose battery. Full closed-loop communication is supported with BigBattery NEXUS, ETHOS, and HUSKY2 INV, plus EG4’s 280Ah and 314Ah packs.
Can it be installed outdoors?
No — it’s rated IP20, meaning indoor or fully enclosed installation only, such as a garage, utility room, or dedicated power shed.
Can I connect more than one unit?
Yes, up to six units can be paralleled together, and three or more can be configured to produce a three-phase output for larger installations.
Do I need a licensed electrician to install it?
Given the voltages and currents involved, installation should be handled by a qualified, licensed electrician or solar installer familiar with your local code requirements.
