Solar Generator Kit · 6,000W · 7,680Wh · 400W solar
Anker SOLIX F3800 Solar Generator + BP3800 Expansion Battery + 400W Solar Panel
Anker SOLIX F3800 Solar Generator + BP3800 Expansion Battery + 400W Solar Panel: F3800 + BP3800 + PS400 – 6,000W of output and 7,680Wh of LiFePO4 storage with 400W of solar charging.
Anker SOLIX F3800 Solar Generator + BP3800 Expansion Battery + 400W Solar Panel

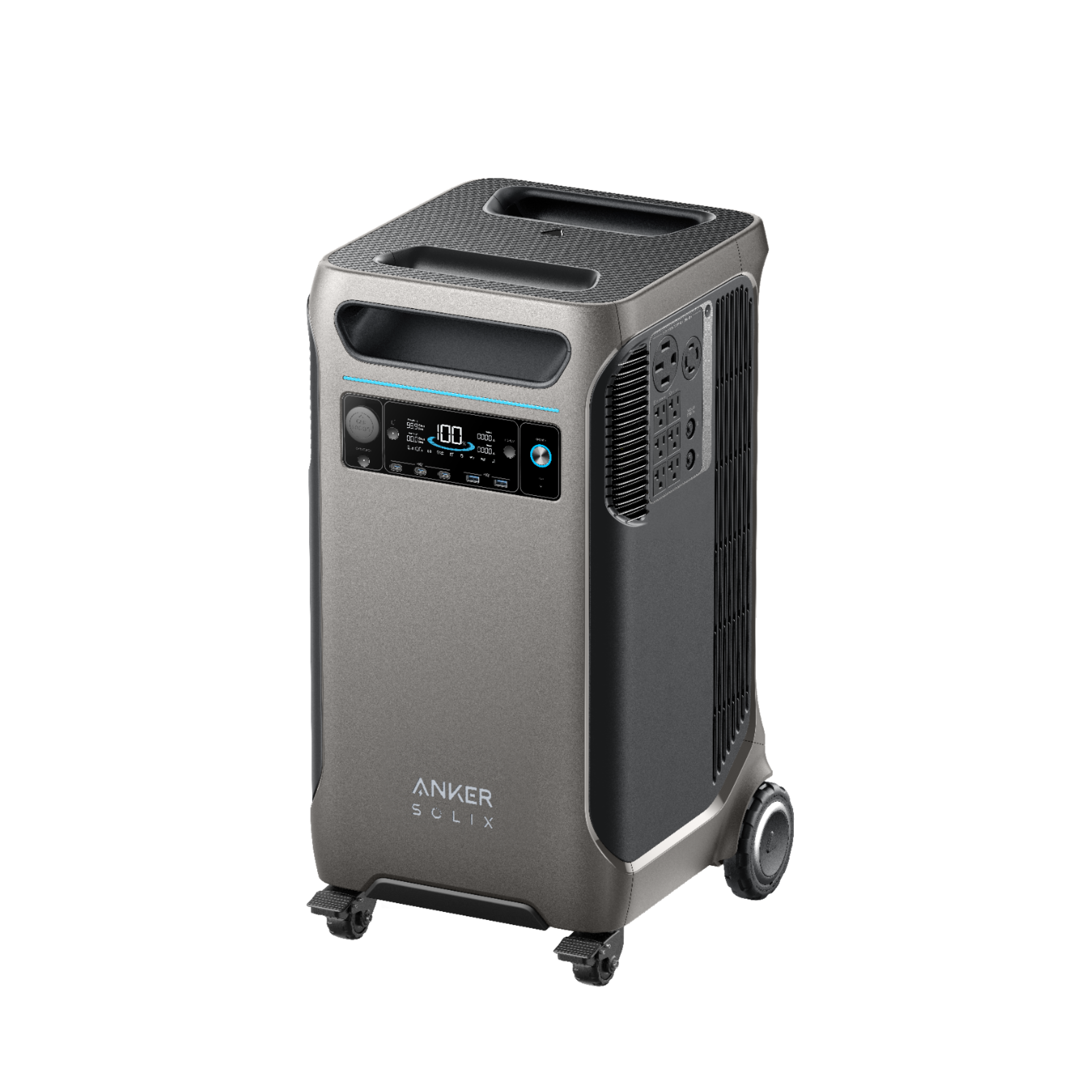

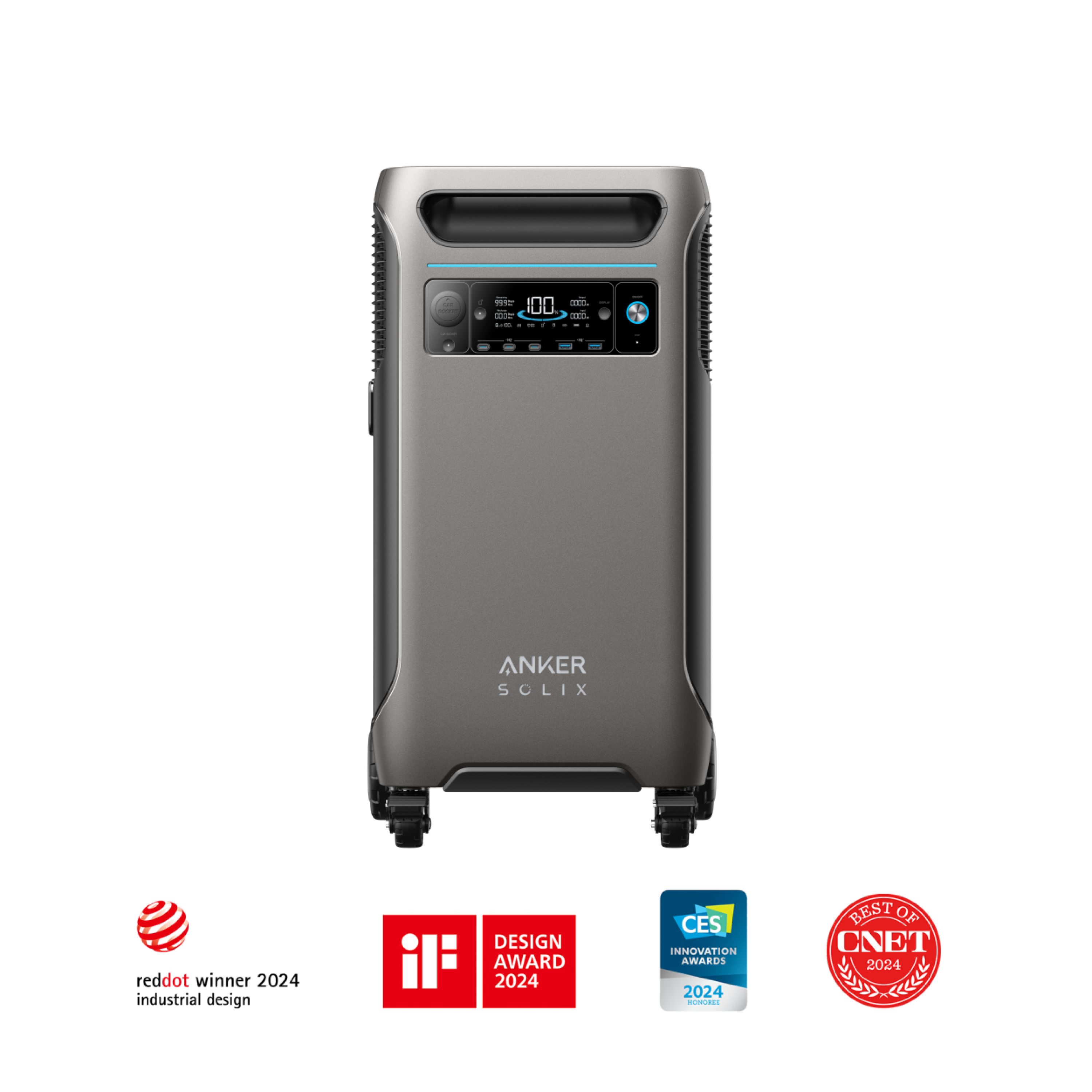

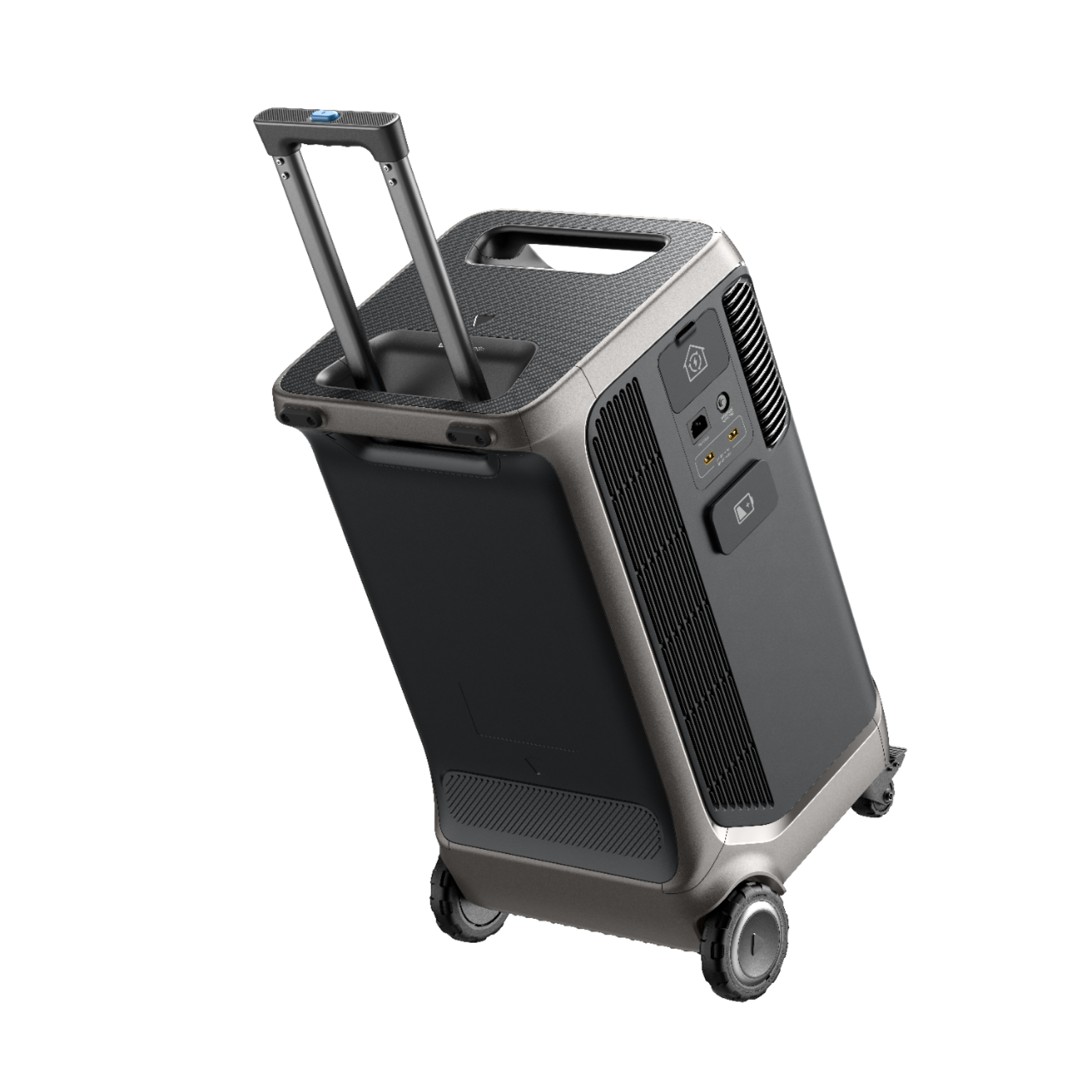

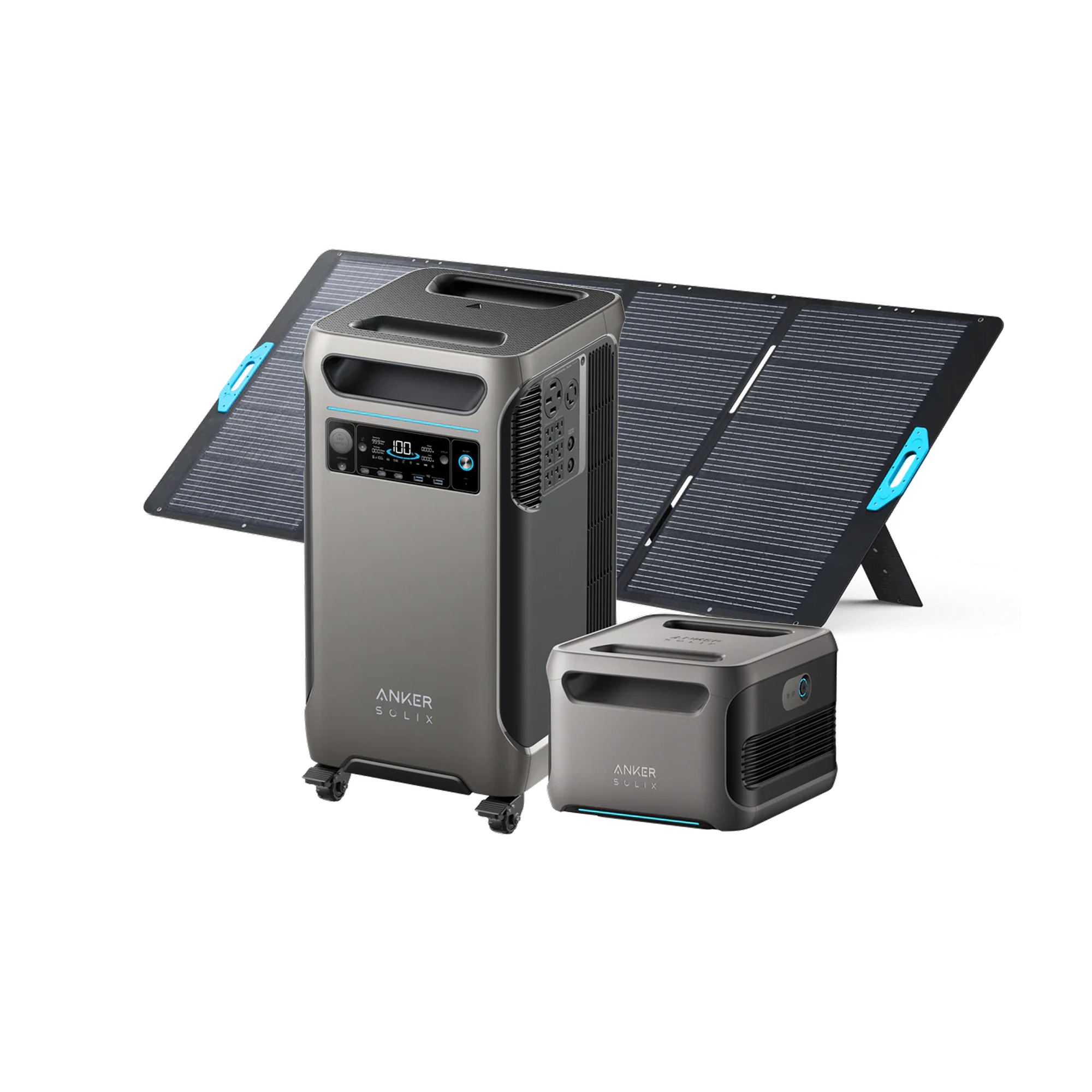

This kit combines Anker SOLIX F3800 Portable Power Station, Anker SOLIX BP3800 Expansion Battery and Anker SOLIX PS400 Portable Solar Panel (400W). The Anker SOLIX F3800 is a 3,840Wh LiFePO4 portable power station with 6,000W of 120V/240V dual-voltage output, expandable to 26.9kWh with BP3800 batteries and to 53.8kWh with two units.
With 7,680Wh on board, the system runs a full-size refrigerator, lights, Wi-Fi and a sump pump through a multi-day outage before it needs a recharge.
The 400W of solar refills the battery at up to 400W in full sun, so the kit keeps working off-grid for as long as the weather cooperates.
Browse all Anker SOLIX power stations, Anker solar generator kits, expansion batteries and Anker solar panels.
Anker SOLIX F3800 Solar Generator + BP3800 Expansion Battery + 400W Solar Panel Features
6,000W 120V/240V output
Runs 240V appliances – dryers, well pumps, central AC – and 120V loads at the same time from one unit.
3,840Wh expandable to 53.8kWh
Add up to six BP3800 batteries per unit, or pair two F3800s with the Double Power Hub for 12,000W.
2,400W solar input
Two 1,200W MPPT inputs recharge the F3800 from portable or rigid panels in as little as 1.8 hours of full sun.
NEMA 14-50 and L14-30 ports
Charge an EV directly or feed a transfer switch and home sub-panel without extra adapters.
UPS under 20 ms
Keeps computers, routers and medical devices online when the grid drops.
5-year warranty, 3,000+ cycles
LiFePO4 cells rated for 10 years of regular use, backed by Anker’s 5-year warranty.
3,840Wh per battery
Each BP3800 doubles the runtime of an F3800 – a refrigerator, lights and Wi-Fi for another day or more.
Plug-and-play stacking
Batteries connect with a single cable and are recognised automatically by the station and the app.
Charges with the station
Solar, AC and generator input charge the whole stack; input rises to 6,000W on the F3800 Plus with a battery attached.
What’s in the Box
- 1×Anker SOLIX F3800 Portable Power Station
- 1×AC charging cable
- 1×Solar charging cable
- 1×User manual
- 1×Anker SOLIX BP3800 Expansion Battery
- 1×Battery-to-host cable
- 1×User manual
- 1×PS400 Portable Solar Panel
- 1×Solar charging cable (MC4 to XT-60)
- 1×User manual
Anker SOLIX F3800 Solar Generator + BP3800 Expansion Battery + 400W Solar Panel FAQ
Can the F3800 run 240V appliances?
Yes. The F3800 delivers 6,000W of 120V/240V split-phase power from its NEMA 14-50R and L14-30R outlets, so it can run a dryer, well pump or central AC as well as ordinary 120V loads.
How do I expand the capacity?
Connect up to six BP3800 expansion batteries (3,840Wh each) to one F3800 for 26.9kWh. Two F3800s with the Double Power Hub reach 12,000W and 53.8kWh.
How fast does it recharge?
About 1.8 hours from 2,400W of solar, 2.7 hours from a 1,800W wall outlet, and faster when solar and AC are combined.
How many BP3800 batteries can I add?
Up to six per F3800 / F3800 Plus (26.9kWh total). With two stations and the Double Power Hub or Home Power Panel, up to twelve (53.8kWh).
How many PS400 panels can I connect?
Up to six on the F3800 (2,400W) or eight on the F3800 Plus (3,200W); up to six on the F3000 across its two MPPT inputs.
How long will 7,680Wh run my home essentials?
Around 33 hours for a 200W load such as a refrigerator, router and a few lights, and roughly 6.5 hours for a steady 1,000W load.
Anker SOLIX F3800 Solar Generator + BP3800 Expansion Battery + 400W Solar Panel Specifications
Anker SOLIX F3800 Portable Power Station
| Battery | |
| Capacity | 3,840Wh |
| Battery chemistry | LFP (LiFePO4), 3,000+ cycles |
| Expandable capacity | Up to 6 × BP3800 expansion batteries (3.84kWh each), 26.9kWh |
| Max system | 2 × F3800 + 12 × BP3800: 12kW, 53.8kWh |
| Output | |
| AC continuous output | 6,000W, 120V / 240V dual voltage |
| AC surge output | 9,000W |
| 120V AC outlets | 6 × NEMA 5-20R (20A) |
| 240V AC outlets | 1 × NEMA 14-50R (6,000W max), 1 × NEMA L14-30R (6,000W max) |
| USB-A output | 2 × 12W |
| USB-C output | 3 × 100W |
| Car socket | 1 × 120W (12V⎓10A) |
| UPS switch time | <20 ms |
| Input | |
| Solar input | 2,400W max (2 × 1,200W, 25A each), XT-60 |
| AC input | 1,800W max |
| Car input | 120W, 12V / 24V |
| General | |
| App control | Wi-Fi and Bluetooth |
| Discharging temperature | -4°F to 104°F |
| Charging temperature | 32°F to 104°F |
| Dimensions | 27.6 × 15.3 × 15.6 in (including wheels) |
| Net weight | 132.3 lb |
| Warranty | 5 years |
Anker SOLIX BP3800 Expansion Battery
| BP3800 Expansion Battery | |
| Capacity | 3,840Wh |
| Battery type | LFP (LiFePO4) |
| Cycle life | 3,000 cycles (at least 80% capacity) |
| Output | 51.2V, 75A |
| Compatibility | Anker SOLIX F3800, F3800 Plus |
| Max per station | 6 (26.9kWh); 12 on a dual-station system (53.8kWh) |
| Net weight | 72.8 lb |
| Warranty | 5 years |
Anker SOLIX PS400 Portable Solar Panel (400W)
| PS400 Portable Solar Panel | |
| Maximum output | 400W |
| Open-circuit voltage | 57.6V |
| Operating voltage | 48V |
| Operating current | 8.33A |
| Cell efficiency | 23% |
| Dimensions (unfolded) | 100 × 39 × 1.2 in |
| Dimensions (folded) | 39 × 26.6 × 2 in |
| Net weight | 35.3 lb |
| Water rating | IP67 |
| Warranty | 2 years |
