Solar Generator Kit · 6,000W · 3,840Wh · 3,520W solar

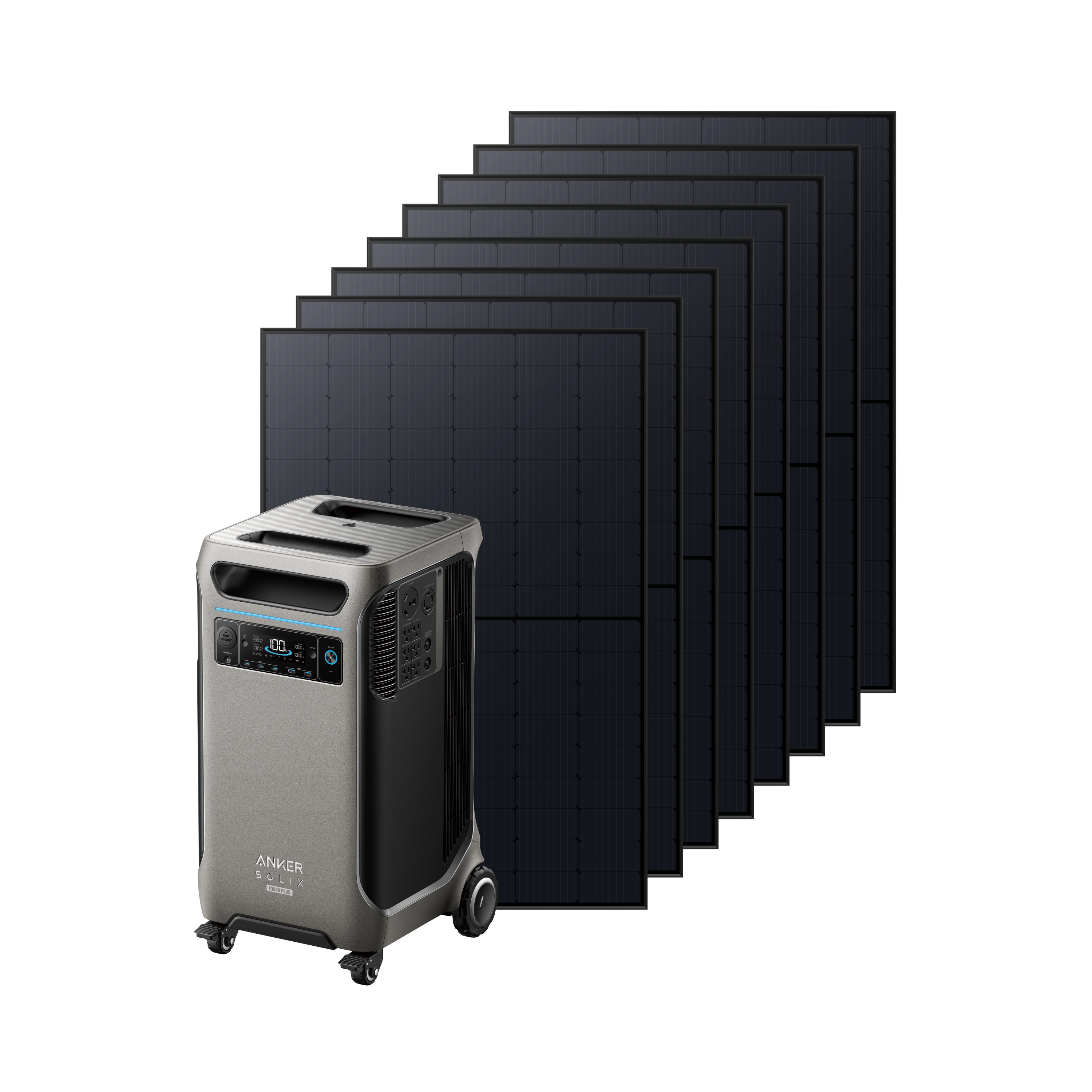

Anker SOLIX F3800 Plus Solar Generator + 8× 440W Rigid Solar Panels (4 Sets)
Anker SOLIX F3800 Plus Solar Generator + 8× 440W Rigid Solar Panels (4 Sets): F3800 Plus + 4× 440W rigid panel – 6,000W of output and 3,840Wh of LiFePO4 storage with 3,520W of solar charging.
Anker SOLIX F3800 Plus Solar Generator + 8× 440W Rigid Solar Panels (4 Sets)

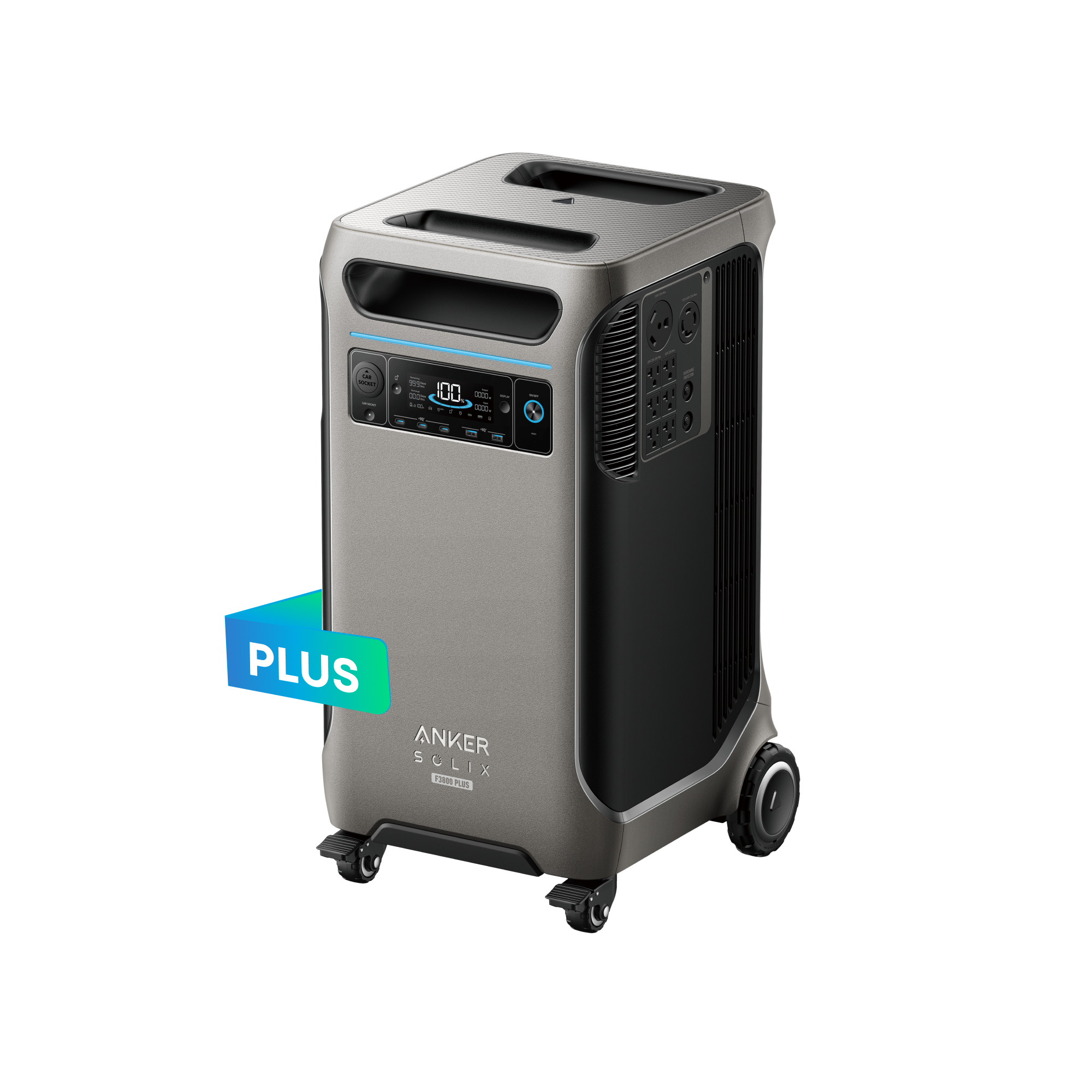

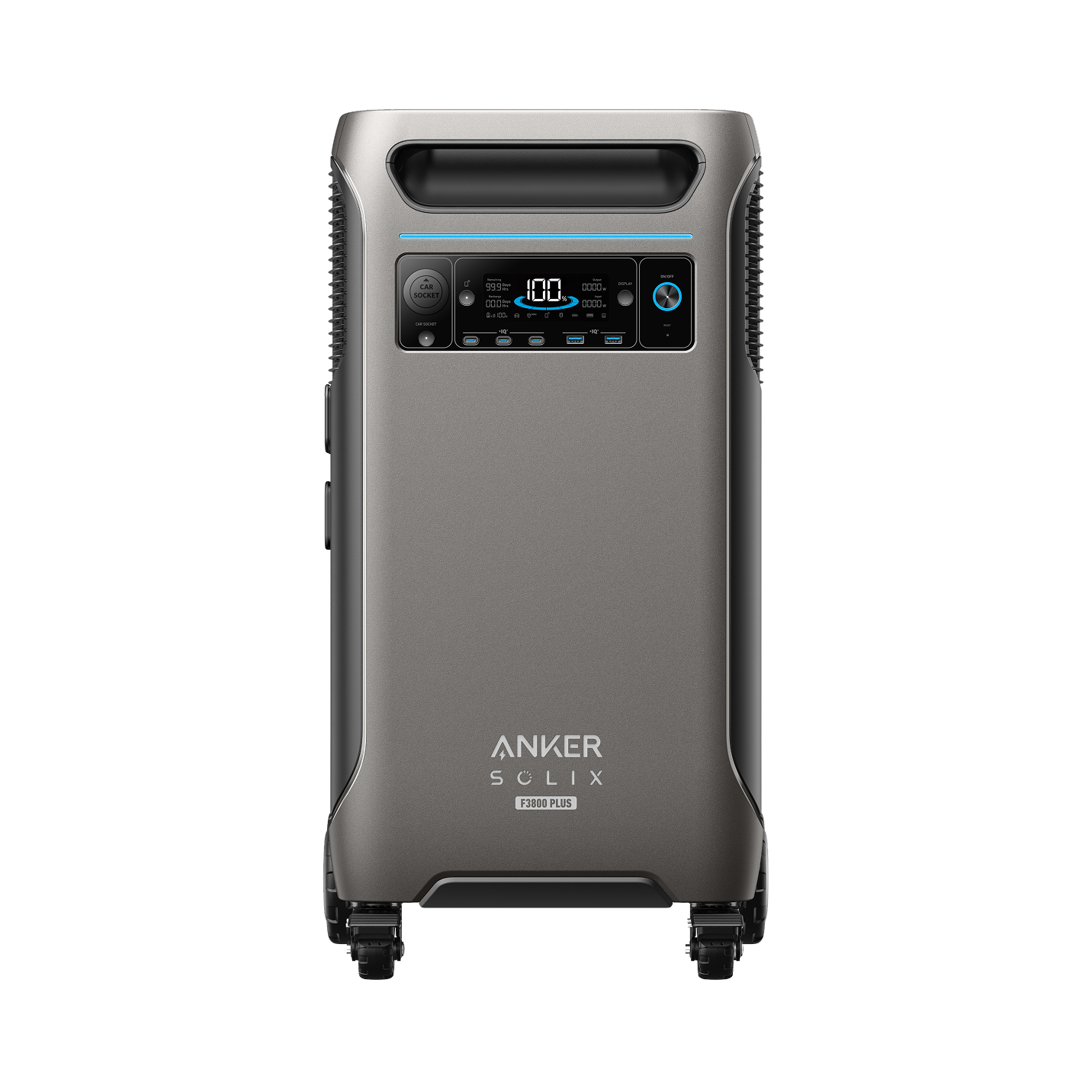

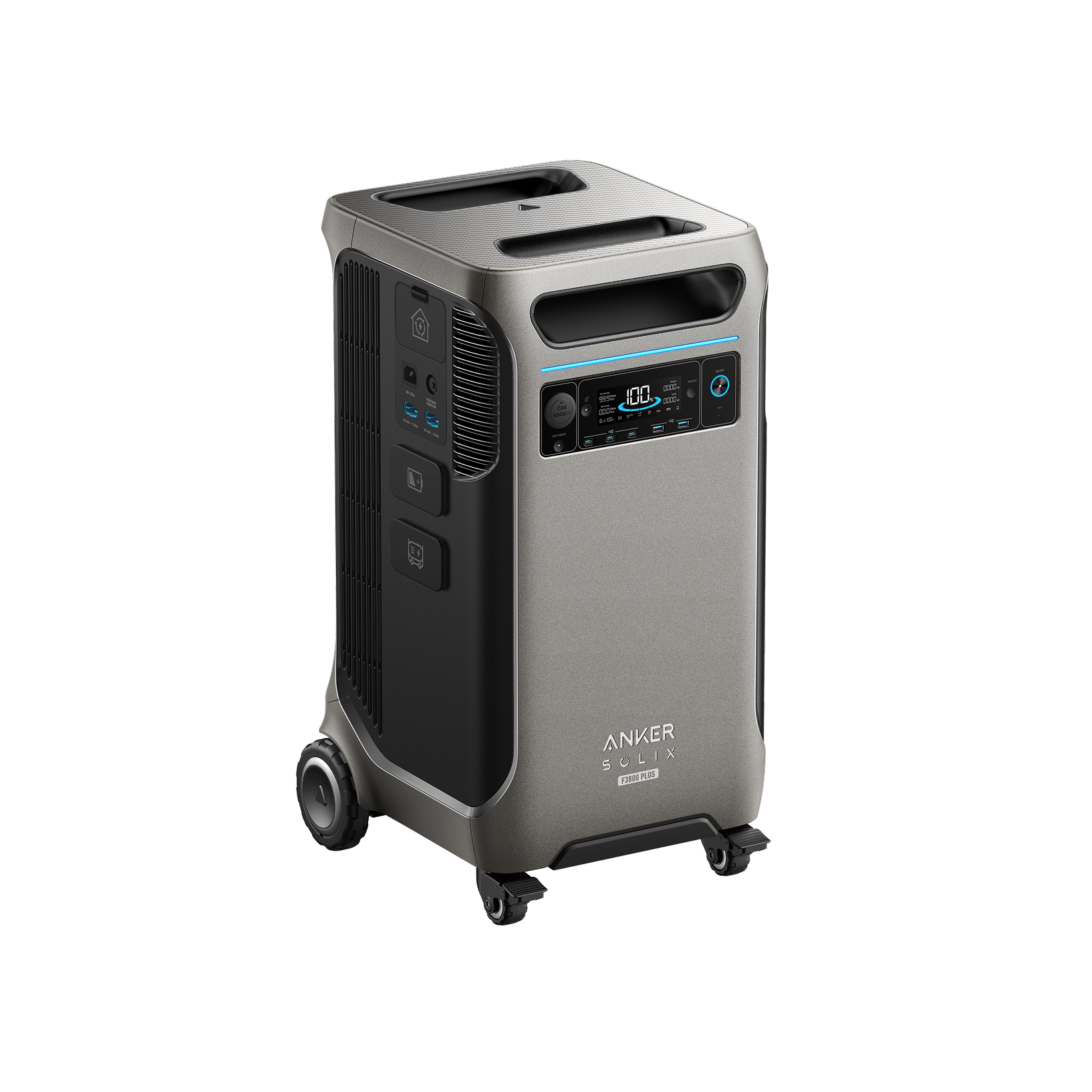

This kit combines Anker SOLIX F3800 Plus Portable Power Station and 4× Anker SOLIX 440W Rigid Solar Panel. The Anker SOLIX F3800 Plus is a 3,840Wh LiFePO4 power station with 6,000W 120V/240V output, 3,200W of solar input and 240V generator bypass charging, expandable to 53.8kWh.
The 3,520W of solar refills the battery at up to 3,200W in full sun, so the kit keeps working off-grid for as long as the weather cooperates.
Browse all Anker SOLIX power stations, Anker solar generator kits, expansion batteries and Anker solar panels.
Anker SOLIX F3800 Plus Solar Generator + 8× 440W Rigid Solar Panels (4 Sets) Features

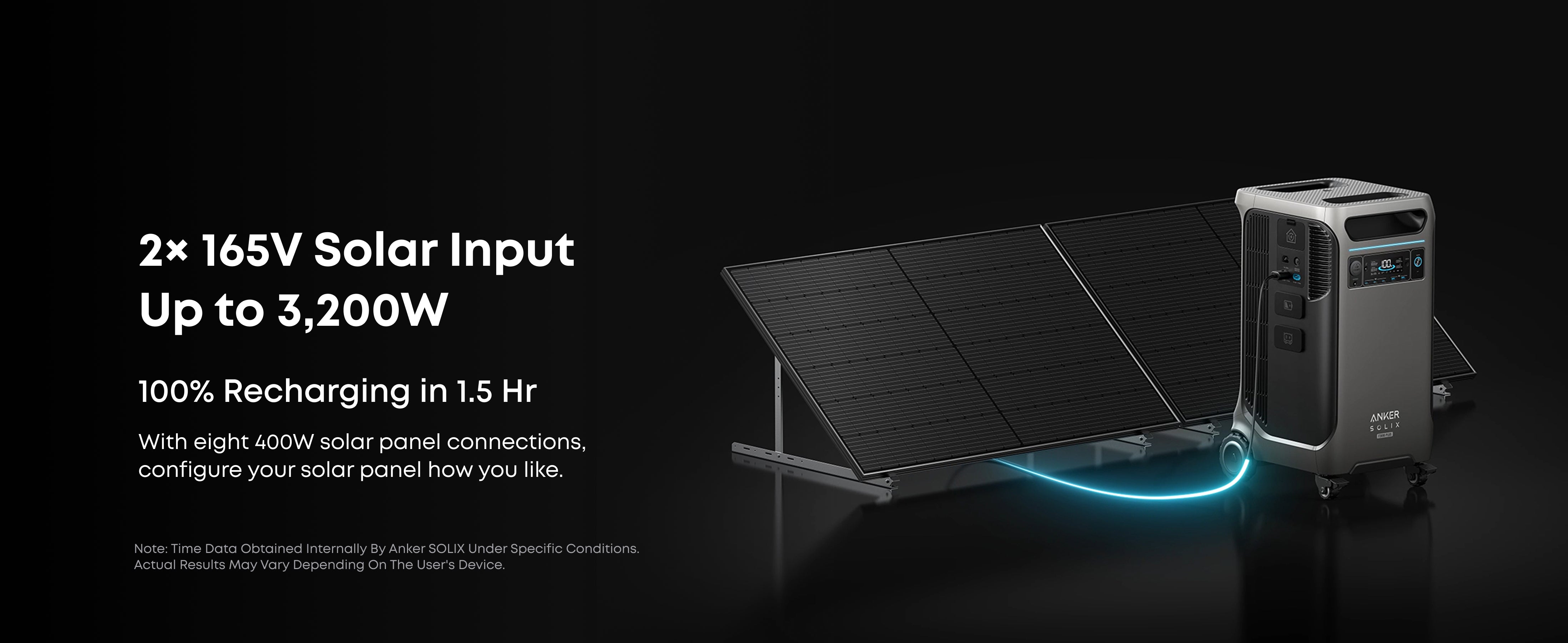

3,200W solar input
Dual 165V MPPT inputs accept up to eight 400W portable panels or eight 440W rigid panels and refill the battery in about 1.5 hours.

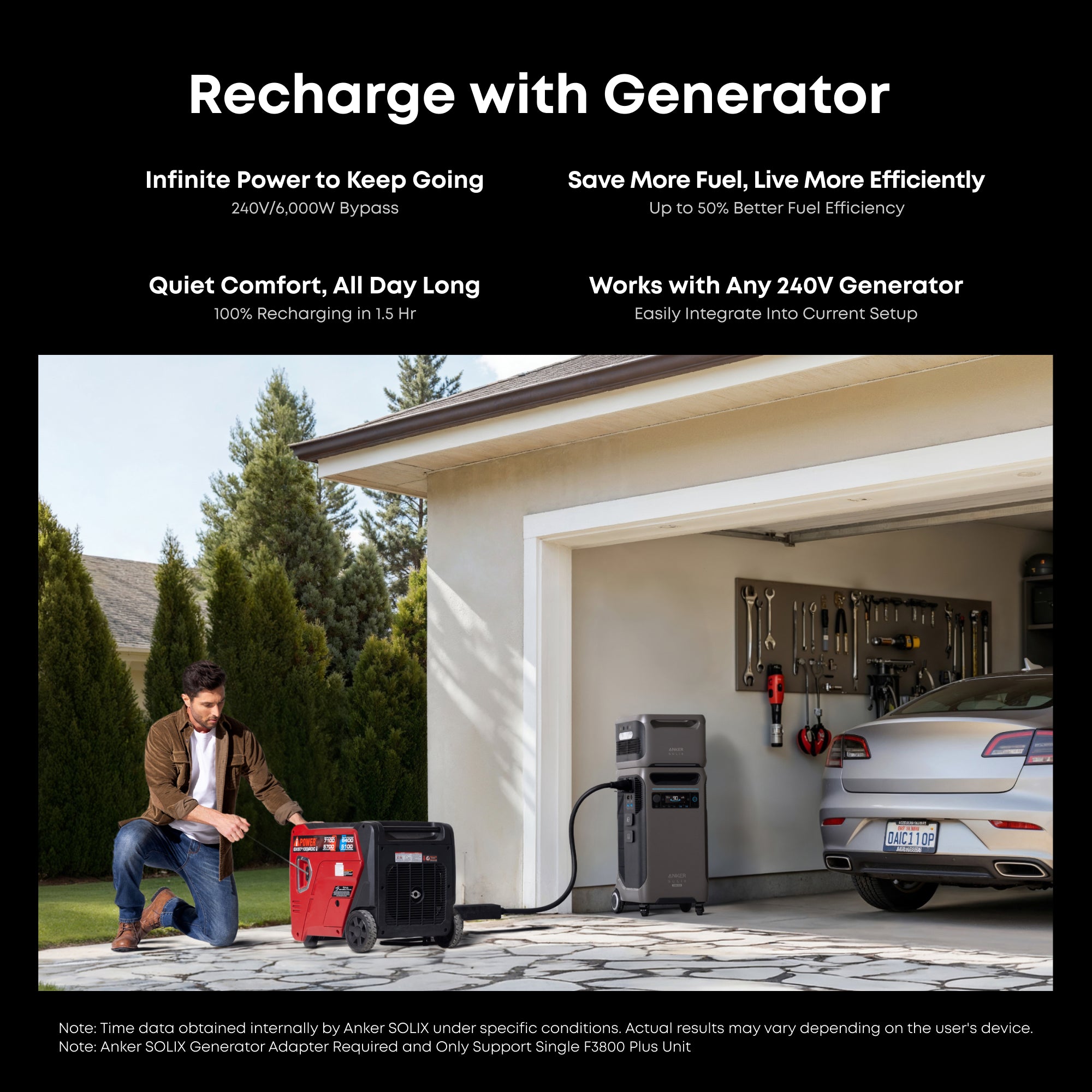

240V generator bypass charging
With the 240V bypass cable, a gas generator charges the F3800 Plus at up to 6,000W while it keeps powering the house – up to 50% less fuel than running the generator alone.
6,000W to 12,000W whole-home backup
One unit covers essentials at 120V/240V; two units with the Double Power Hub reach 12,000W.
Storm Guard
With the Home Power Panel, the F3800 Plus charges automatically when a severe weather alert is issued.

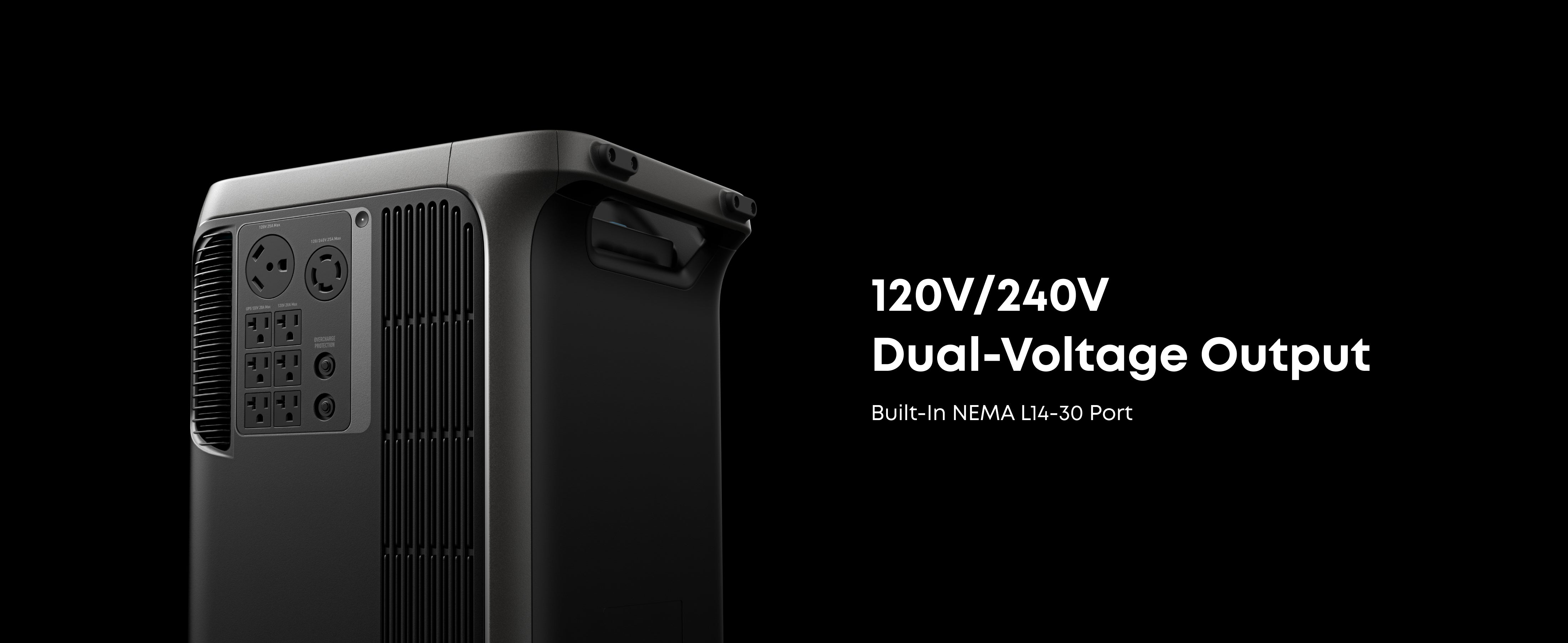

Built-in NEMA L14-30 port
Feeds a manual transfer switch or charges an EV directly without adapters.

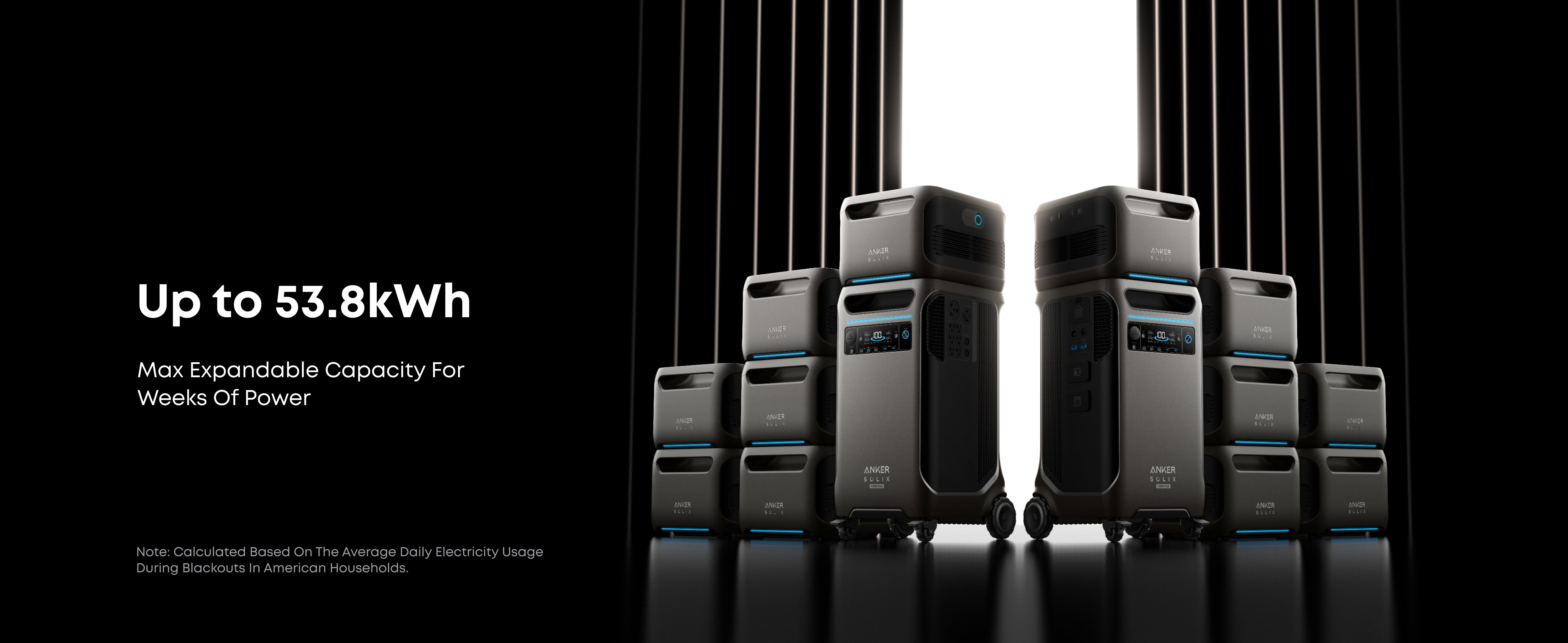

Up to 53.8kWh
Add BP3800 expansion batteries for days or weeks of backup.
880W per set of two
Two 440W panels wire in series to feed one 165V MPPT input on the F3800 Plus or F3000.
Permanent installation
Aluminium frame and tempered glass for roof, ground-mount or shed installs.
High-voltage MPPT ready
Two panels in series (78V Voc) sit inside the 165V input of the F3000 and F3800 Plus.
What’s in the Box
- 1×Anker SOLIX F3800 Plus Portable Power Station
- 1×AC charging cable
- 2×Solar charging cable
- 1×User manual
- 8×440W Rigid Solar Panel
- 4×Solar charging cable
Anker SOLIX F3800 Plus Solar Generator + 8× 440W Rigid Solar Panels (4 Sets) FAQ
What is the difference between the F3800 and the F3800 Plus?
The Plus adds 3,200W of solar input (vs 2,400W), 240V generator bypass charging through the generator adapter port, and Storm Guard automatic charging with the Home Power Panel. Output, capacity and expansion are the same.
Can I charge it from a gas generator?
Yes. With the Anker SOLIX 240V bypass charging cable, any 240V generator charges the F3800 Plus at up to 6,000W while the station keeps powering your loads.
Does it work with the Home Power Panel?
Yes. One or two F3800 Plus units connect to the Anker SOLIX Home Power Panel for automatic whole-home backup and solar self-consumption.
How many 440W panels can I use?
F3800 Plus: up to 8 (four sets, 3,200W). F3000: up to 4 (two sets on the 165V input). F3800: use the 60V input – 2 panels in parallel per input.
Does it ship free?
Yes – free shipping within the contiguous USA and no sales tax in most states. Large kits may ship in several boxes that can arrive on different days.
Anker SOLIX F3800 Plus Solar Generator + 8× 440W Rigid Solar Panels (4 Sets) Specifications
Anker SOLIX F3800 Plus Portable Power Station
| Battery | |
| Capacity | 3,840Wh |
| Battery chemistry | LFP (LiFePO4), 3,000+ cycles |
| Expandable capacity | Up to 6 × BP3800 expansion batteries (3.84kWh each) |
| Max system | 2 × F3800 Plus + 12 × BP3800: 12kW, 53.8kWh |
| Input | |
| AC input | 120V~ 15A max (<3 hrs) / 12A continuous, 1,800W max charging, 1,440W bypass |
| Solar input | 2 × 11-165V⎓17A (1,600W max each), 3,200W total |
| Generator / HPP port | 6,000W max AC input, 120V/240V (generator adapter or Home Power Panel) |
| Anker SOLIX generator port | 60V max, 120A max |
| Output | |
| AC output (total) | 6,000W max, 9,000W surge |
| 120V AC outlets | NEMA 5-20R, 120V~ 20A, 2,400W max each |
| 240V AC outlet | NEMA L14-30R, 120V/240V~ 25A, 6,000W max |
| HPP / generator adapter port | 6,000W max AC output, 120V/240V |
| USB-A output | 12W max per port |
| USB-C output | 100W max per port |
| Car socket | 12V⎓10A |
| General | |
| UPS switch time | <20 ms |
| App control | Wi-Fi and Bluetooth |
| Dimensions | 27.6 × 15.3 × 15.6 in (including wheels) |
| Net weight | 136.7 lb |
| Warranty | 5 years |
4× Anker SOLIX 440W Rigid Solar Panel
| 440W Rigid Solar Panel (each) | |
| Rated maximum power (Pmax) | 440W (0 to +5W sorting) |
| Voltage at Pmax (Vmp) | 33.21V |
| Current at Pmax (Imp) | 13.25A |
| Open-circuit voltage (Voc) | 39.16V |
| Short-circuit current (Isc) | 13.88A |
| Max system voltage | 1,500V |
| Max series fuse rating | 30A |
| Operating temperature | -40°C to 85°C |
| Dimensions | 1,722 × 1,134 × 35 mm (67.8 × 44.6 × 1.4 in) |
| Net weight | 46.3 lb |
| Warranty | 25-year performance |
