Complete Portable Power Kit · 6,000W · 7,680Wh
Anker SOLIX F3800 6,000W 7,680Wh Portable Power Station + 12V Portable Solar Panels | Complete Portable Power Kit
The Anker SOLIX F3800 Solar Power System combines serious storage and output with a 3840Wh portable power station, the BP3800 Expansion Battery (adds 3840Wh), and multiple 200W portable solar panels. Delivering up to 6,000W AC output and 240V split-phase support, it powers heavy appliances, workshops, and full home circuits.
7,680WhTotal Battery Capacity
6,000WMax AC Output
2,400WSolar Input (Dual MPPT)
240VSplit-Phase Support
Overview
High-Capacity Off-Grid Energy
Fast recharging via 2400W solar input and dual MPPTs ensures off-grid readiness. Use NEMA 14-50/L14-30, USB-C 100W, and 12V/10A DC ports for versatile connectivity. The included BP3800 Battery doubles storage to 7,680Wh, ideal for long-term energy needs. Panels offer 18.6V, 10.8A, and roof-mount flexibility. A reliable solar power system for backup, RVs, and off-grid living.
Panels
Available Panel Configurations

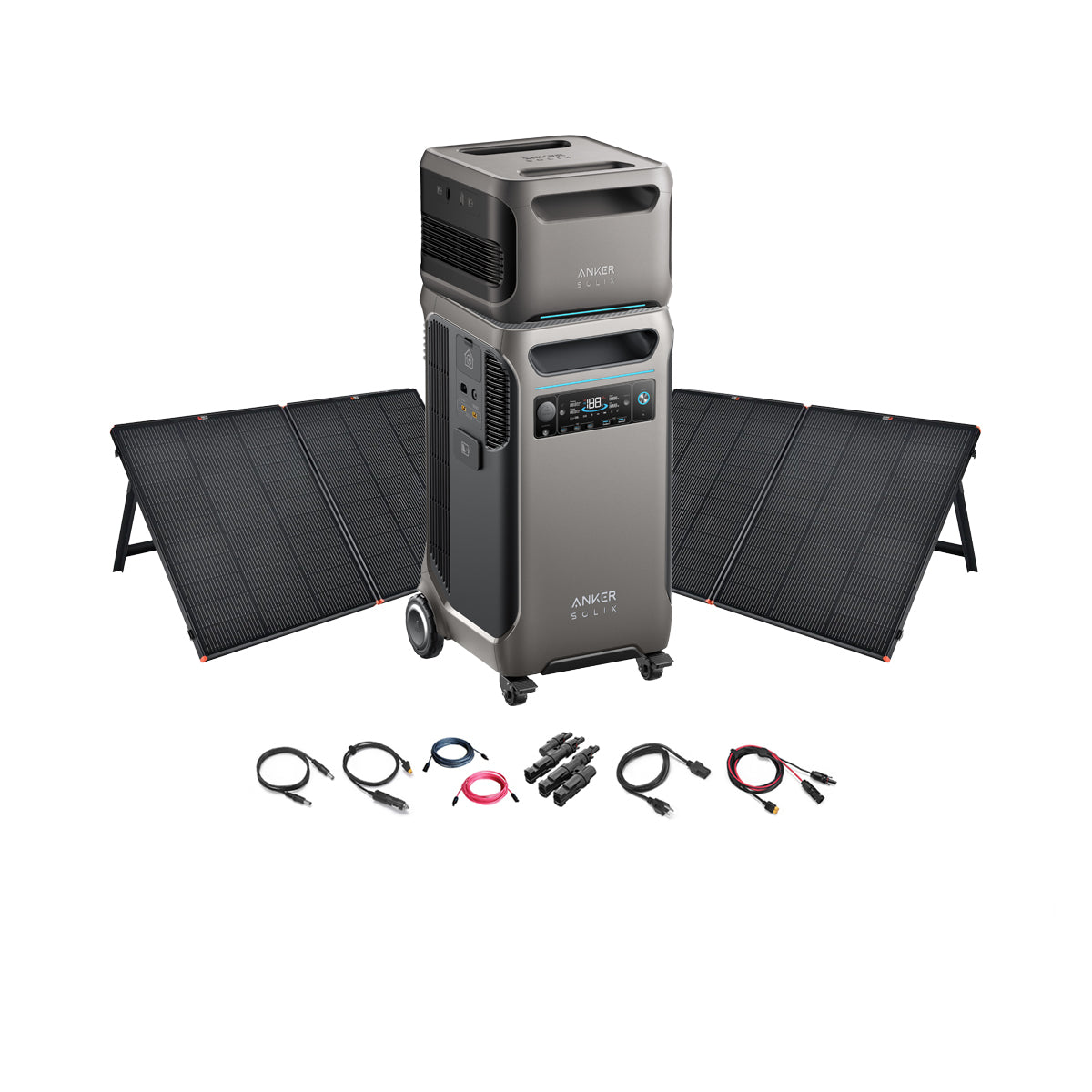

2 × 200W Folding Solar Panels (400W)
3 × 200W Folding Solar Panels (600W)

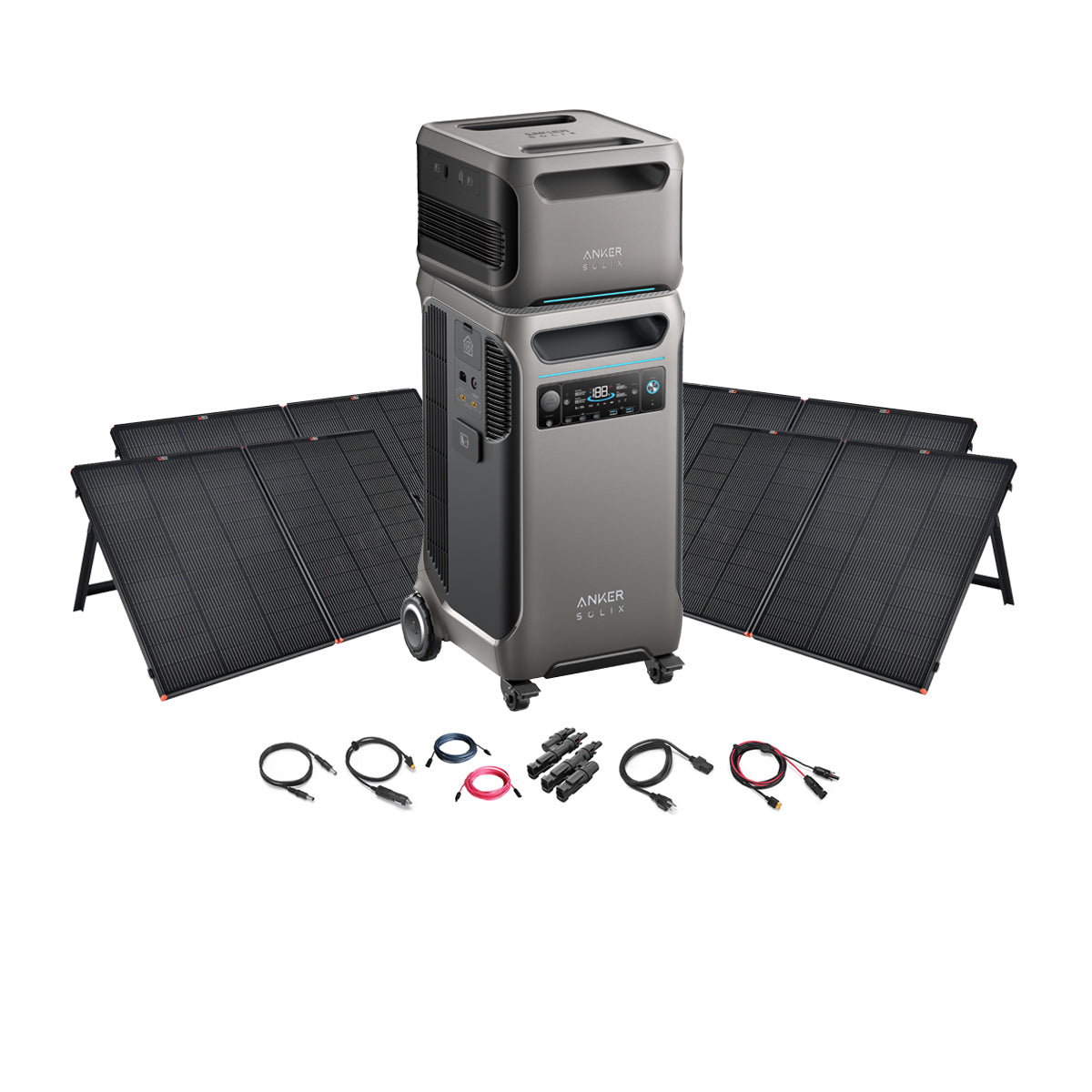

4 × 200W Folding Solar Panels (800W)
Included
What’s In The Box?
- 1×Anker SOLIX F3800 6,000W 3,840Wh Solar Generator

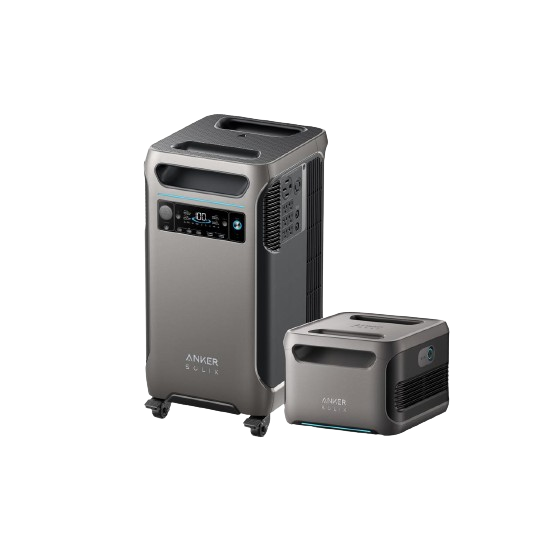

- 1×Anker SOLIX BP3800 Expansion Battery – 3,840Wh Storage (7,680Wh Total)
- 2-4×200W Portable Solar Panels – 25-Year Power Output Warranty
- 1×50 ft 10 AWG PV Solar Panel Extension Cable
- 1×Pair of PV Branch Connectors
- 1×Anker SOLIX High-Voltage Solar Charging Cable
- 1×AC Standard Charger
- 1×Carrying Case for Folding Solar Panels
- 1×5-Year Extended Warranty (Industry Leading)
- 1×Free 10,000 Word Solar Generator Setup & Maintenance Guide
Data
Specifications

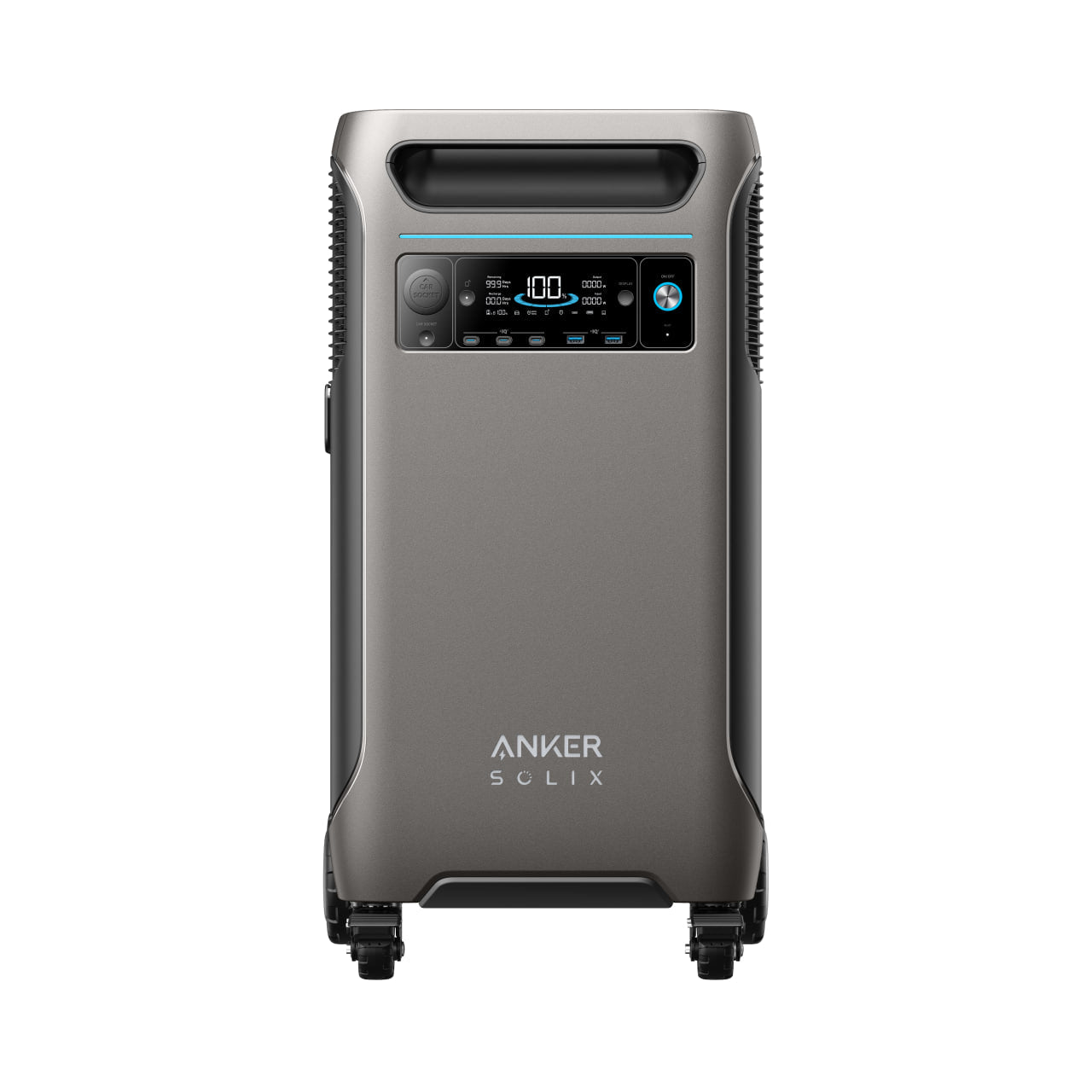

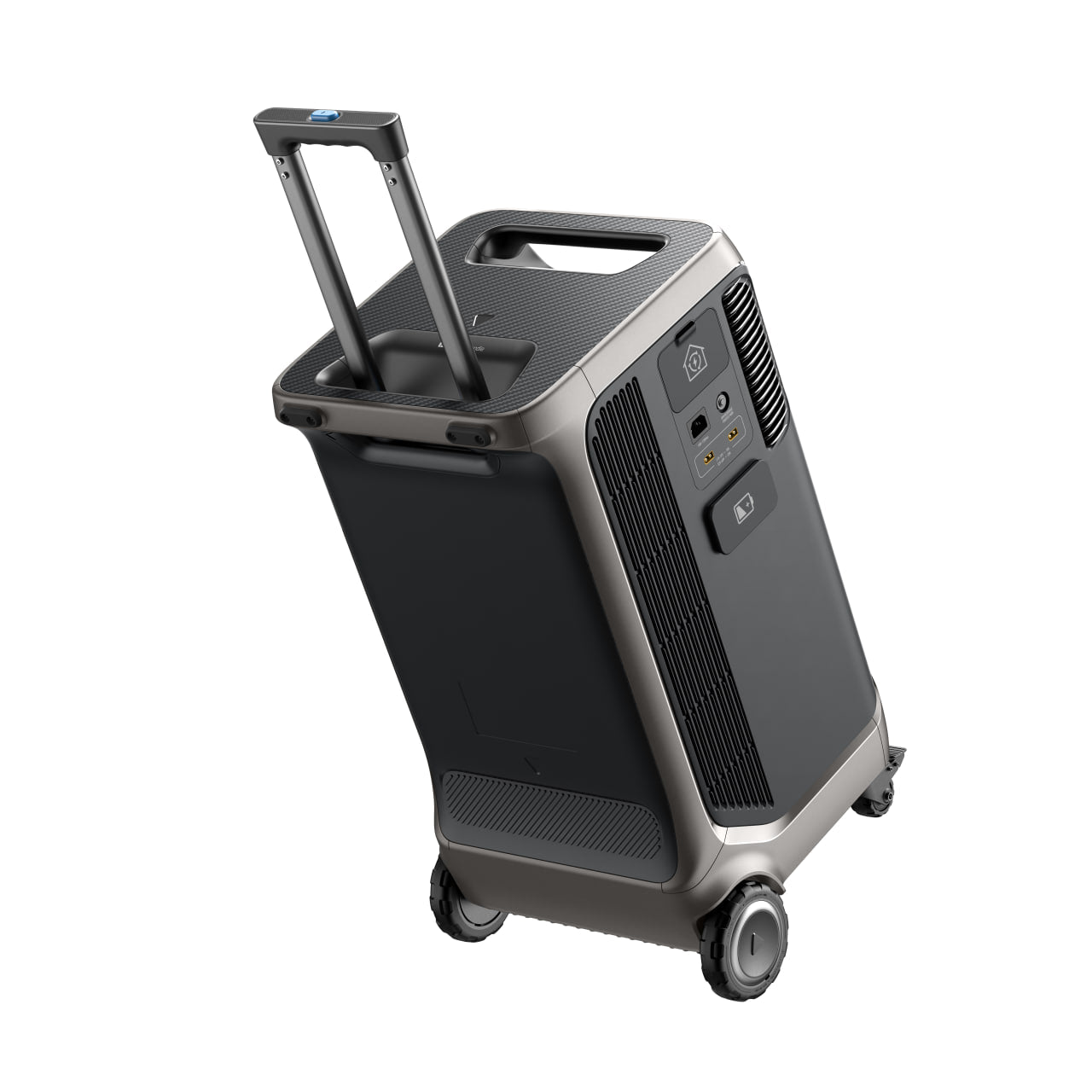

Anker SOLIX F3800
| Capacity |
3,840 Wh |
| AC input |
120V~15A (3hr max), 12A continuous, 60Hz |
| AC input power (charging) |
1,800 W max |
| AC input power (bypass mode) |
1,440 W max |
| Solar panel input |
2,400W (1,200W × 2), dual MPPT |
| Car charger output |
12V, 10A |
| Home panel power port |
3,800W max (AC in), 6,000W max (AC out), 120V/240V |
| AC output power (total) |
6,000 W max |
| AC output |
120V~20A max, 60Hz, 2,400W max |
| AC output (NEMA 14-50/L14-30) |
120V/240V~25A max, 60Hz, 6,000W max |
| USB-A output |
5V/2.4A, 12W max per port |
| USB-C output |
5V/3A–20V/5A, 100W max per port |
| UPS |
20 ms |
| Size |
27.6 × 15.3 × 15.6 in |

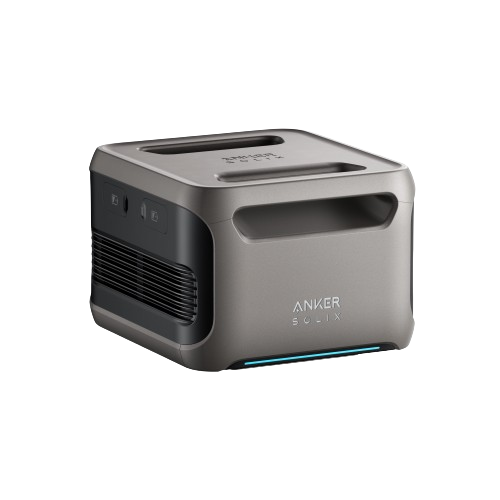

BP3800 Expansion Battery
| Model |
Anker SOLIX BP3800 |
| Battery type |
LFP (Lithium Iron Phosphate) |
| Capacity |
3,840 Wh |
| Lifespan |
10 years |
| Life cycles |
3,000 cycles |
| Warranty |
5 years |
| Compatibility |
Anker SOLIX F3800 |
| Output voltage |
51.2 V |
| Output current |
75 A |
200W Portable Solar Panel
| Maximum power (Pmax) |
200 W |
| Maximum power voltage (Vmp) |
18.6 V |
| Maximum power current (Imp) |
10.8 A |
| Open circuit voltage (Voc) |
22.8 V |
| Short circuit current (Isc) |
11.2 A |
| Maximum system voltage (Vmax) |
1,000 VDC |
| Dimensions |
55.7 × 36.6 × 1.4 in |
| Weight |
36.8 lbs |
Environmental
| Discharging temperature |
-4°F to 104°F (-20°C to 40°C) |
| Charging temperature |
32°F to 104°F (0°C to 40°C) |
